Complete 1979 Ford F100 Alternator Wiring Guide with Detailed Diagram
Begin troubleshooting by locating the voltage regulator under the driver-side dashboard. Disconnect the three-wire plug and verify continuity between the I (indicator) and F (field) terminals–resistance should measure 3.5 to 4.5 ohms. A reading outside this range confirms internal coil failure, requiring regulator replacement rather than repair. Ignore aftermarket “universal” units; factory-spec parts ensure proper voltage limiting at 14.2–14.8V under load.
The main harness exits the rear case through a 13mm stud labeled BAT–secure this with a star washer and torque to 8–10 ft-lbs. Loose connections cause intermittent charging and can melt the pigtail insulation, often mistaken for stator failure. Route the wiring away from exhaust manifolds (minimum 2 inches clearance) and zip-tie every 6 inches to prevent vibration-induced wear on the voltage sense wire (light green with yellow stripe).
For bench testing, apply 12V to the field terminal (F) and monitor output at the BAT post with a 30-amp load. Current should stabilize within 3 seconds; slower ramp-up indicates worn brushes or a contaminated slip ring. Replace brushes if length falls below 5/16 inch. Avoid sandpaper–clean rings with electrical contact cleaner only.
Ground the case directly to the engine block using a dedicated 10-gauge cable; stock mounting bolts often corrode, causing erratic output. Verify the circuit by jumping the BAT to A (ammeter) terminal–if the dashboard gauge responds, the issue lies upstream in the fusible link or ignition switch. Replace the fusible link with same-gauge wire; never splice or fuse it. Final inspection includes probing the R (relay) terminal while cranking–the voltage must drop below 0.5V to confirm proper cutout operation.
Electrical Charging System Layout for Classic Pickup Models
Locate the voltage regulator on the passenger-side fender well–it’s a small rectangular module with a wiring harness connector and two mounting screws. Disconnect the battery’s negative terminal before testing continuity on the “I” (ignition) and “S” (stator) terminals; both should register approximately 12.5V when the engine is running. If readings drop below 12.2V, replace the internal diodes or brushes–common failure points in stock 63-amp units. The yellow field wire from the regulator connects to the rear housing spade terminal, while the white/red striped lead runs directly to the ignition switch; bypassing this wire for bench testing requires a 10-ohm resistor to prevent overcharging.
Component-Specific Troubleshooting Steps
Use a multimeter to verify the fusible link between the positive battery cable and the charging unit’s “Bat” terminal–resistance should not exceed 0.2 ohms. If corrosion is present at the connection point, clean with a wire brush and apply dielectric grease before reassembly. The stator’s three-phase output can be tested by setting the meter to AC voltage and probing between each of the three stator terminals; readings should match within 0.5 volts of each other at 2000 RPM. For models equipped with an external fan, ensure the pulley alignment maintains at least 0.030-inch clearance to prevent bearing seizure.

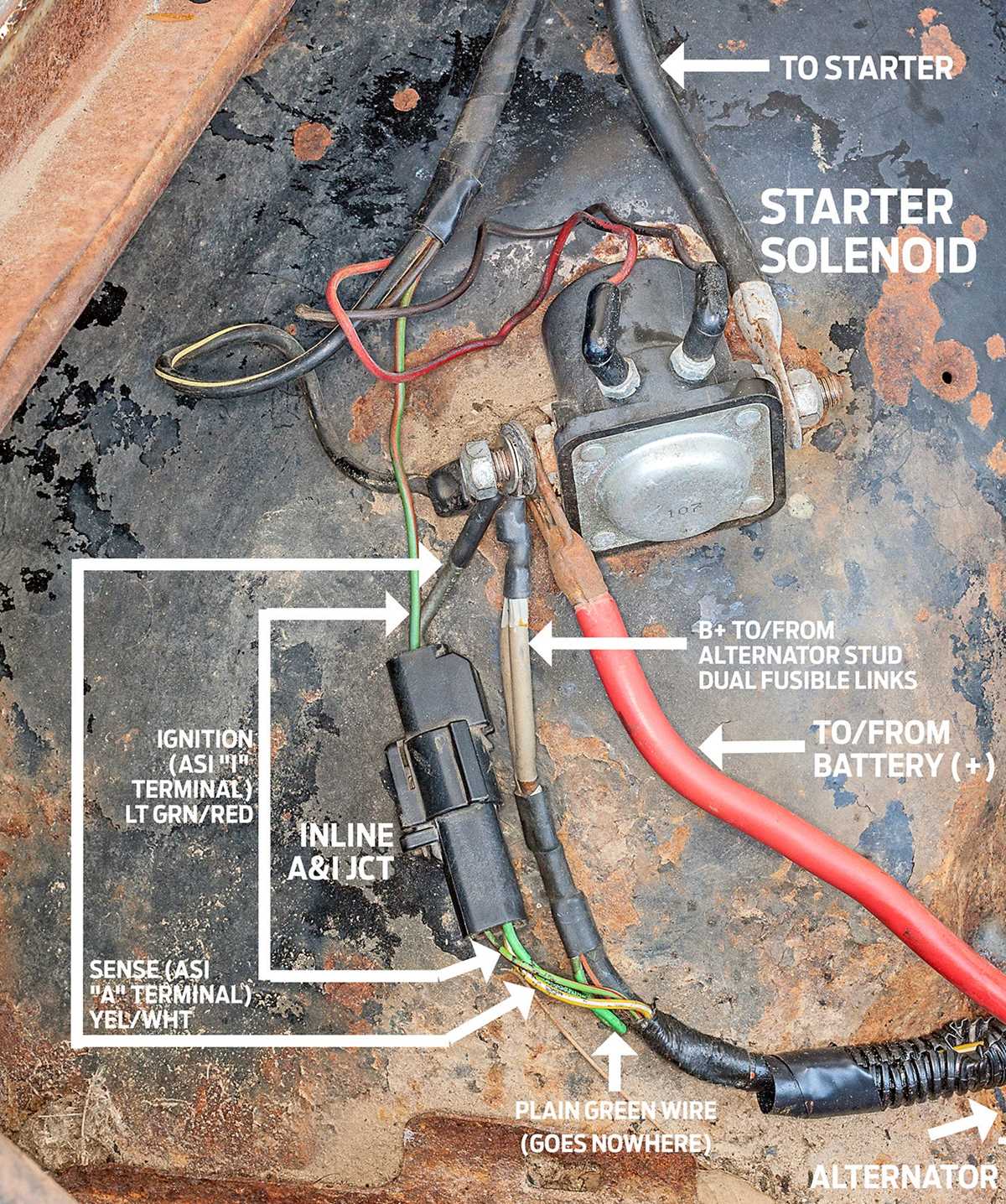

Finding Power Source Connections on a Classic Pickup
Start by accessing the rear of the charging system–mounted on the driver’s side of the engine block, adjacent to the water pump. The main output terminal is a stud with a 10mm nut, typically covered by a black or dark brown insulation boot. Beneath it lies the primary feed cable, a thick gauge strand that routes directly to the battery’s positive post. Trace this cable upward; it often merges with a fusible link–a short segment of smaller, heat-resistant wire acting as a safety fuse near the starter solenoid or firewall junction.

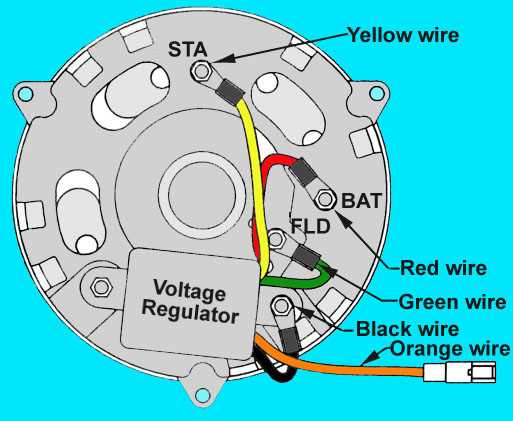

Connector Pinout and Harness Identification
| Wire Color | Terminal Type | Purpose | Routing Path |
|---|---|---|---|
| Yellow with black stripe | Spade (female) | Voltage regulator signal | Through harness grommet behind valve cover |
| Dark green | Push-on (male) | Field excitation | From ignition switch via bulkhead connector |
| White with orange stripe | Ring terminal | Ground reference | Bolts to engine block near timing cover |
| Light blue | Spade (female) | Charge indicator lamp | Dash cluster via eight-pin plug |
Locate the dual-spade connector at the side of the charging unit; it mates with a matching plug from the vehicle’s main harness. The upper spade (closest to the pulley) carries the ignition-switched excitation lead–typically a dark green or solid brown wire–while the lower spade delivers the charge light signal via a light blue or beige conductor. A third, smaller wire–often white or white-orange–emerges from the housing’s rear and grounds directly to the engine block via a ring terminal secured by a 7mm bolt.
For accurate testing, disengage the main harness plug by rocking it gently side-to-side while pulling; avoid yanking, as brittle 40-year-old connectors snap easily. Probe the male spades with a multimeter set to 20V DC; key-on, engine-off voltage should read 12.6V at the excitation terminal and 0V at the charge light terminal. If readings deviate, inspect the three-pin dash connector behind the instrument cluster–green wire for lamp power, blue for sensor return–ensuring none are corroded or intermittently shorting.
Understanding Electrical Lead Hues in the Generator Charging System
Begin by locating the white with black stripe (W-B) lead–this is the primary excitation cable. It connects directly to the ignition switch to activate the voltage regulator when the engine starts. Ensure this connection is secure, as intermittent contact here causes erratic voltage output.
The yellow (Y) cable carries the main charging output to the battery. Trace it from the rectifier housing to the positive terminal, verifying no corrosion or fraying exists. High resistance in this path reduces efficiency, so clean terminals with a wire brush if oxidation is present.
Identify the light blue with red stripe (L-BR) wire–this grounds the voltage regulator. It should terminate at a bare chassis point or the engine block, not a painted surface. Poor grounding here mimics alternator failure, so scrape away any primer or rust to ensure a solid metal-to-metal contact.
The red with light blue stripe (R-LB) serves as the sensing wire, monitoring system voltage. It connects to the battery side of the starter relay or fusible link. If this path is compromised, the regulator receives false readings, leading to overcharging or undercharging. Test continuity with a multimeter; resistance should be under 0.5 ohms.
Inspect the black with orange stripe (B-O) for field current return. This lead often loops back to the rectifier assembly. If it’s brittle or cracked, splice in new 10-gauge wire. A weak return path increases heat buildup, risking regulator damage over time.
For models with an external regulator, the dark green with yellow stripe (DG-Y) bridges to the stator. This wire handles high AC ripple currents, so any damage–even minor nicks–requires immediate repair. Heat-shrink tubing or liquid electrical tape protects against vibration-induced shorts.
Finally, note the brown with white stripe (Br-W)–a dedicated warning lamp circuit. If the bulb glows after startup, the issue lies in this feed or its ground. Replace the bulb first; if persistent, check the regulator’s internal relay or the instrument cluster’s printed circuit board for cold solder joints.
Step-by-Step Guide to Verifying Electrical Generator Circuit Integrity
Disconnect the battery terminal first to prevent accidental shorts or false readings. Use a multimeter set to continuity mode (Ω symbol with a sound wave or diode symbol). Probe the main output cable–typically a thick, red-coated wire–from its connection point on the charging system to the voltage regulator or fuse panel. A continuous beep confirms an uninterrupted path; silence indicates a break requiring further inspection of connectors, splices, or the harness itself.
Key Checkpoints:
- Ground strap: Test continuity between the case and the engine block or chassis. Corrosion or loose bolts create high resistance.
- Excitation circuit: Probe the smaller gauge wire (often blue or yellow) linking the voltage regulator to the stator. Resistance should read between 2-5 ohms; higher values suggest worn brushes or internal faults.
- Rectifier diodes: Set the meter to diode test mode. Touch probes to each diode terminal (AC input and DC output). A reading of ~0.5V in one direction and OL (overload) in reverse confirms functionality. Repeat for all diodes.
- Fusible links: Inspect for melted insulation or burnt smells near the firewall. Use a jumper wire to bypass momentarily while monitoring battery voltage; if voltage stabilizes, replace the link.
For suspect sections of the harness, strip insulation at both ends of the segment and use alligator clips to bridge the gap. If the circuit restores, the damaged portion must be excised and replaced with heat-shrink solder splices. Avoid twist-and-tape repairs–moisture intrusion will recreate the failure. Document each test point with a circuit diagram for reference during reassembly.
Linking the Power Source to the Charging System and Control Unit
Begin by locating the main output terminal on the generator–this is typically the largest post, often marked with a red or orange-colored insulator. Use a 10-gauge cable, preferably with tinned copper strands to resist corrosion, to run directly from this terminal to the positive battery terminal. Keep the route short and avoid sharp edges; secure the cable every 6 inches with nylon clamps to prevent vibration damage.
The engine block and chassis serve as the ground return path. Attach a second 10-gauge lead from the generator’s case lug–usually a small stud near the back–to a clean, bare metal surface on the engine block. Sand the contact point down to bare metal and apply dielectric grease after tightening the connection to 18 ft-lbs torque to prevent oxidation.
The control unit requires two key leads: the field excitation wire and the sensing wire. The field lead is usually a thin, insulated cable (often blue or yellow) originating from the rear housing of the generator. Route this wire to the corresponding terminal on the voltage regulator–commonly labeled “F” or “Field.” Ensure the connection is crimped with a soldered butt splice rather than relying on a friction connector alone.
For the sensing lead, use a 14-gauge cable to connect the regulator’s “S” or “Sense” terminal directly to the positive battery post. This wire informs the regulator of the actual system voltage. Avoid routing it through ignition switches or fusible links to prevent voltage drop errors. If the regulator has an ignition-switched input, this is typically a third, thinner wire (red or pink); route it from the ignition feed, not the battery.
- Always disconnect the negative battery terminal before working on connections to eliminate short-circuit risks.
- After wiring, initial startup should show 13.8–14.4 volts at idle when measured at the battery terminals.
- If voltage exceeds 15 volts, immediately check the regulator ground and sensing wire integrity.
- Visually inspect the belt tension–proper deflection is ½ inch mid-span–before voltage testing to rule out mechanical issues.
The regulator housing must be grounded properly. If mounted on the inner fender or a non-conductive surface, run a dedicated 12-gauge ground cable from its metal base to the chassis. Paint or rust on contact surfaces creates resistance; scrape down to bare metal and apply anti-corrosion compound.
When routing cables near exhaust manifolds or moving parts, use heat-resistant loom or fiberglass sleeving rated for 250°C. Label each wire with heat-shrink tubing and a permanent marker to simplify future troubleshooting. Loose strands from frayed wires can touch the engine block and cause intermittent shorts–always trim and terminate properly.
Final step: after reconnecting the battery, start the engine and verify charging with a multimeter. If the voltage is low (below 13.5 volts), recheck each connection in reverse order–begin with the output terminal, then ground, field wire, and sensing lead. Corrosion in a single junction can reduce charging efficiency by up to 30%, so eliminate any greenish-blue deposits immediately.
