Understanding Symbols and Connections in Electrical Circuit Schematics

Begin by isolating the power source. Identify the battery, power supply, or mains input symbols–typically a pair of parallel lines for DC or a circled zigzag for AC. Trace the positive and negative leads immediately; errors here cascade through the entire design. Note voltage ratings and polarity markings (if present) before proceeding.

Locate switches next. Toggle, push-button, and relay contacts follow standardized symbols: an open gap for normally open and a slanted line for normally closed. Verify the default state before analyzing downstream components–misreading this flips logic gates, timers, and protective relays. For example, a momentary switch drawn as closed will invert expected behavior in a latching circuit.

Decode resistors, capacitors, and inductors by value and placement. Resistor values appear as numbers (e.g., 470Ω) or color bands, capacitors as microfarads (μF) or picofarads (pF), and inductors as millihenries (mH). Cross-check with positional clues: a resistor near a transistor’s base controls bias; a capacitor across power rails filters noise. A 10kΩ series resistor with a 0.1μF decoupling cap screams analog signal conditioning–skipping this detail risks misdiagnosing signal integrity issues.

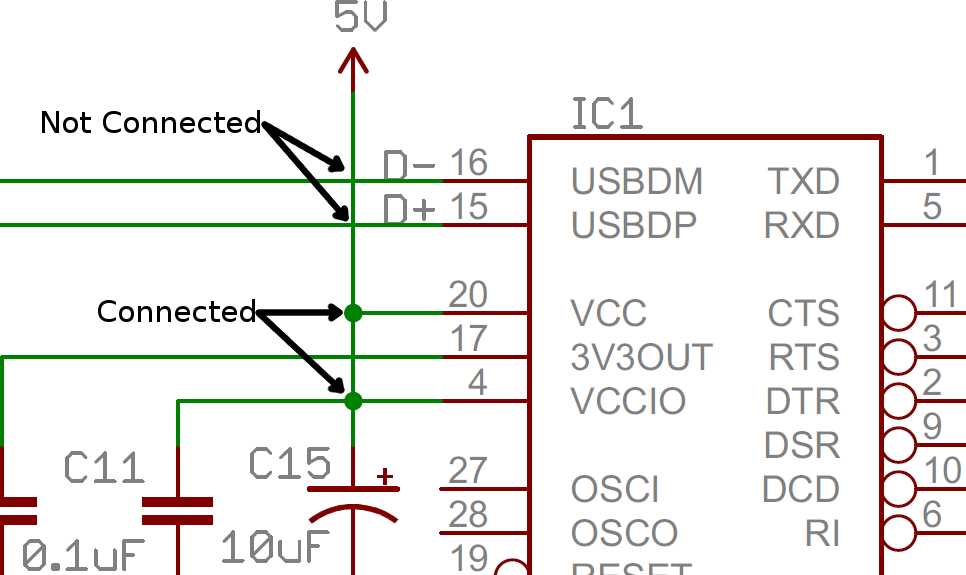

Follow conductors like arteries. Solid lines connect physically; dashed or dotted lines signal airborne coupling (RF) or control logic. Thicker traces imply high current paths–route these away from sensitive analog lines to prevent interference. Junction dots (nodes) mark wire crossings that actually connect; their absence means insulation layers separate conductors, a frequent source of troubleshooting nightmares.

Identify semiconductors last. Diodes (arrows for current direction), BJTs (three terminals), MOSFETs (gate/ drain/source), and ICs (pin numbers) require context of surrounding components. A diode’s cathode stripe must face away from high voltage; a transistor’s emitter-to-base resistor sets gain. ICs demand datasheet scrutiny–pin 1 orientation, timing specifications, and package variations change behavior overnight.

Annotate unknown symbols aggressively. Circle enigmatic shapes, cross-reference with IEC 60617 or ANSI Y32 standards, and label provisional functions (e.g., “RF choke?”). Two horizontal bars with arrows could be a thyristor or TRIAC; confirm via adjacent components (gate drive networks usually give away function). Failure to resolve ambiguous symbols in revision 1 guarantees rework in revision 3.

Decoding Electrical Schematic Readouts

Start by identifying the power source, marked by symbols like a battery (parallel lines of varying length) or an AC outlet (sine wave). Note voltage values–common household setups use 120V/230V AC or 5V/12V DC for low-power devices. Trace the path from the source through conductive lines; breaks or switches dictate flow control. Ground symbols (downward triangles or horizontal lines) must connect back to complete the loop–ignore these, and the system fails.

Key Symbols and Their Implications

• Resistors: Zigzag lines with ohm values (e.g., 470Ω) limit current–higher values restrict flow more.
• Capacitors: Parallel lines (non-polarized) or curved/straight pair (polarized) store charge; values in microfarads (μF) affect timing in filters.
• Transistors: Arrowed lines (NPN/PNP) amplify signals; the arrow direction indicates current flow direction.
• ICs: Rectangles with numbered pins; datasheets mandate exact pin assignments–mistakes risk short circuits.
• Diodes: Triangles with a line; point the triangle toward the allowed current direction (blocking reverse flow).

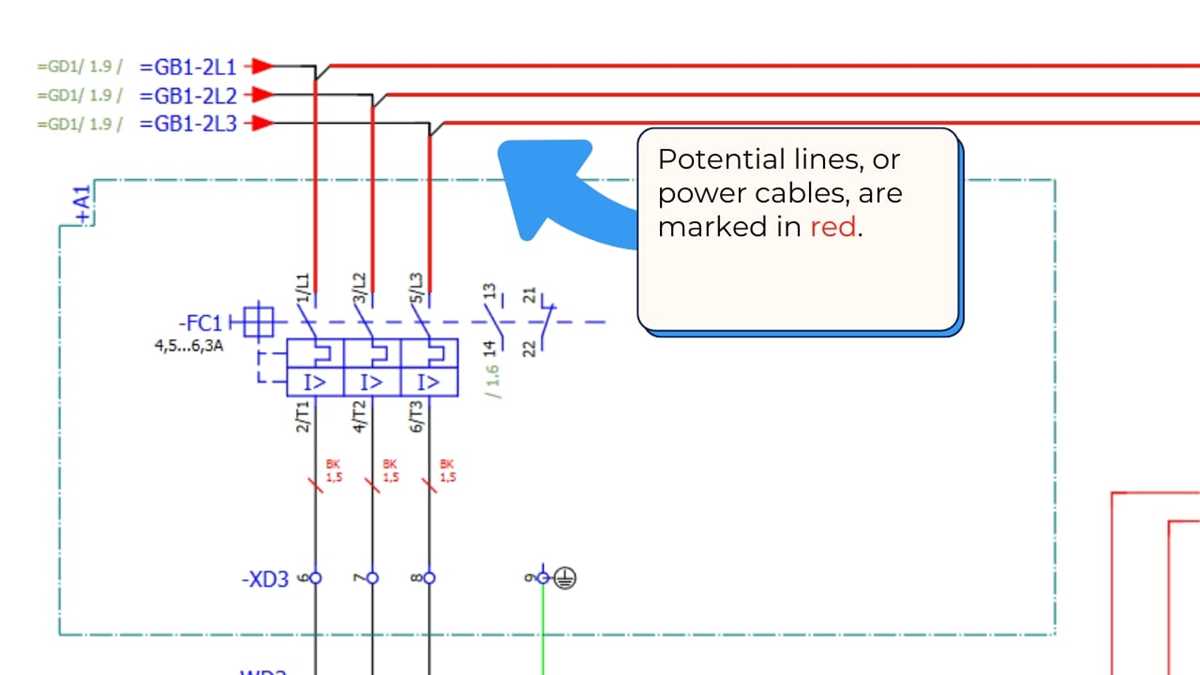

Label all components with unique identifiers (R1, C3, Q2) to avoid confusion during assembly. Highlight critical paths–red for power rails, blue for ground, yellow for signal lines–to spot errors fast. Cross-reference with a BOM (bill of materials) to verify components match schematic values. For logic gates (AND/OR/XOR), confirm inputs/outputs against truth tables; mismatches cause unintended behavior. Use a multimeter to verify connections against the schematic before powering on.

1. Scan for missing connections–scratch marks or unrouted lines indicate errors.
2. Check polarity–reversed capacitors or diodes often fail catastrophically.
3. Simulate the schematic using SPICE tools (LTspice, KiCad) to catch design flaws early.
4. Measure voltages at test points noted in the schematic; deviations >10% signal faults.
5. Document modifications immediately–handwritten notes on paper schematics prevent future misalignment.

Identifying Common Symbols and Their Functions in Schematic Drawings

Begin by memorizing the five core symbols present in nearly every electronic blueprint: resistors, capacitors, inductors, voltage sources, and transistors. A resistor’s zigzag line denotes opposition to current, labeled with an “R” and its value in ohms (e.g., “R1 10kΩ”). Capacitors appear as two parallel lines for non-polarized types or a curved line paired with a straight line for electrolytic versions, annotated with a “C” and capacitance in farads (e.g., “C2 100µF”). Inductors resemble a coiled wire, marked with an “L” and inductance in henries (e.g., “L3 1mH”). DC voltage sources show a longer line (positive) and a shorter line (negative), while AC sources use a sine wave symbol; both include voltage ratings (e.g., “V1 5V”). Transistors–bipolar (NPN/PNP) or FET–use a three-terminal symbol with a directional arrow indicating current flow; their function (switching or amplification) depends on the arrow’s placement (emitter/source side).

Symbol	Shape	Function	Typical Label	Critical Note
Resistor	Zigzag	Limits current	R1 470Ω	Thermal noise increases with resistance; prefer low values in high-frequency paths
Capacitor	Parallel lines (non-polarized) / curved + straight (polarized)	Stores charge; blocks DC	C5 22pF	Polarized types explode if reverse-biased; observe “+” mark
Inductor	Coiled wire	Resists current changes; filters signals	L2 10µH	Core material affects inductance; ferrite cores saturate at high currents
Diode	Triangle + line (anode to cathode)	Allows one-way current	D1 1N4148	Check forward voltage drop; LEDs require correct polarity
Transistor (NPN)	Arrow outward (emitter)	Amplifies/switches current	Q3 BC547	β (gain) varies between batches; verify datasheet for saturation voltage

Cross-reference symbols with datasheets–package size (e.g., SOT-23, TO-92) often correlates with max current/power ratings. Ground symbols vary: a downward triangle denotes chassis ground; a line with three descending flats signifies earth/protective ground; parallel horizontal lines indicate signal ground. For ICs, rectangular boxes with numbered pins require pinout charts (e.g., a 555 timer’s “VCC” at pin 8). Switches use interrupted lines (SPST, SPDT); relays combine coil coils and contact symbols. Always verify logic levels in digital schematics–”H” (high, ≥2V) and “L” (low, ≤0.8V) thresholds for TTL vs. CMOS differ.

How to Methodically Follow Signal Paths in Schematic Drawings

Identify the input and output points before any analysis. Look for connectors, sensors, or power rails clearly labeled as “IN,” “OUT,” “VCC,” or “GND.” Use these as anchors to map the entire route. Ignoring this step leads to confusion, especially in complex layouts with multiple branches.

Highlight each component in the path with a colored pen or digital overlay. Start at the input, trace through resistors, capacitors, transistors, or ICs, and mark every junction. Verify component values against the legend–mistaking a 10kΩ resistor for 1kΩ disrupts the entire flow analysis.

Check for signal conditioning stages: amplifiers, filters, or voltage regulators alter the waveform or level. Locate op-amps, inductors, or diodes–their presence indicates intentional modifications. A missing stage suggests a design error or incomplete diagram.

Follow power rails independently. Signals often split between data and supply lines. A +5V rail feeding a logic gate differs from a 12V rail powering a motor driver. Misreading these connections causes incorrect assumptions about signal behavior.

Examine feedback loops–common in oscillators, regulators, and control systems. Trace wires returning to earlier stages (e.g., from output to input in an op-amp). Overlooking feedback creates false conclusions about signal stability or frequency response.

Use continuity checks: short circuits, open circuits, or grounded nodes can reroute or block signals. Probe suspected paths with a multimeter to confirm connections across solder points or PCB traces. A single overlooked short can invalidate an entire analysis.

Document each step. Sketch the signal’s progression from source to load, noting voltage drops, impedance changes, and component interactions. Compare against expected values from datasheets or design specs. Discrepancies reveal either diagram errors or unexpected circuit behavior requiring further testing.

How to Distinguish Series and Parallel Connections Visually

Look for components placed end-to-end along a single path without branching. In series layouts, current flows through each element sequentially–if one fails, the entire pathway breaks. Check for resistors, batteries, or LEDs connected in a straight line with no alternate routes. The voltage divides across components, while the current remains constant.

Parallel arrangements feature branches splitting from a main line, allowing current to divide among paths. Identify multiple components aligned vertically or horizontally between the same two nodes (e.g., resistors connected across the same power rails). Here, voltage stays equal across branches, but current splits proportionally to resistance. Trace each fork: if power enters one side and exits the other through separate paths, it’s parallel.

Compare the schematic’s flow direction. Series connections force all electrons through every component in sequence–visualize a single wire looping through each part. Parallel setups offer electrons choices, like a river splitting into tributaries. Highlight each junction: if components share both start and end points without intermediate connections, they’re parallel.

Use resistance clues. Two resistors in series stack their values (R1 + R2), while parallel resistors calculate as (1/(1/R1 + 1/R2)). Scan schematics for grouping: series clusters form unbroken chains; parallel ones appear as ladder-like rungs between rails. Measure with a multimeter–series shows cumulative resistance, parallel reveals lower combined values than individual parts.
