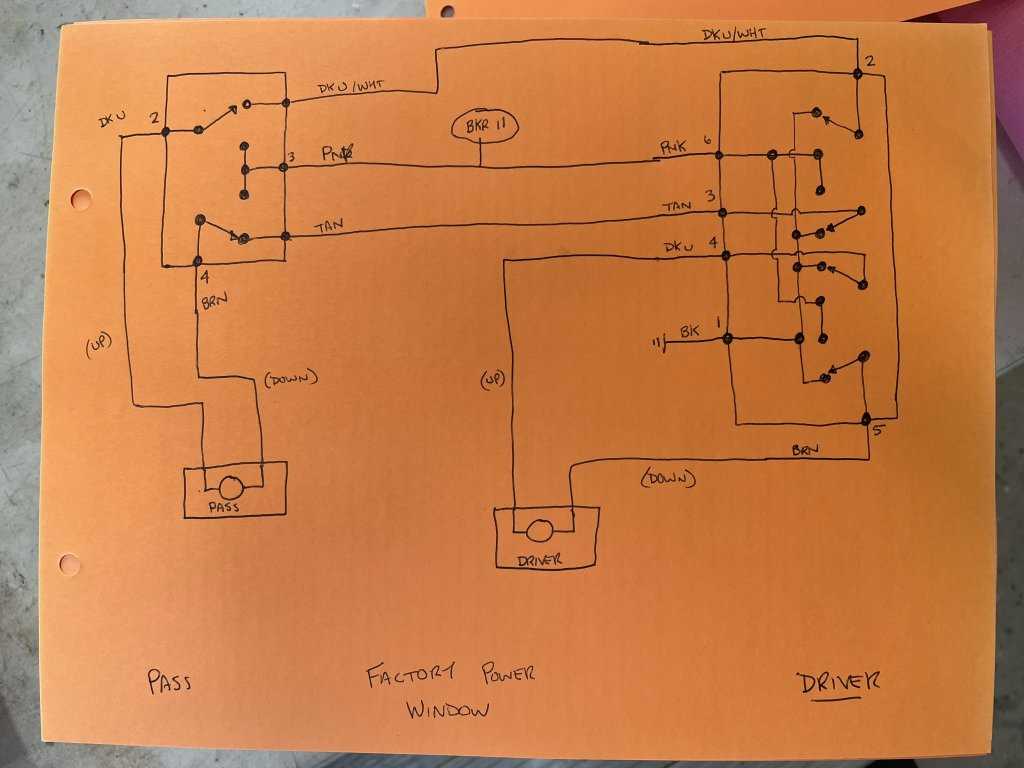

1985 Chevy Truck Power Window Wiring Diagram Schematics Guide

Start with the main relay–typically a brown wire connecting to terminal “A” on the driver-side switch. Trace it to the fuse block (position F5, 20A) before branching to the passenger side. If windows fail simultaneously, inspect this path first.

Examine the white/orange stripe wire feeding the motor assembly. Locate it near the door hinge; corrosion here disrupts current flow. Scrape terminals clean and apply dielectric grease during reassembly. Swap in a known-good motor for faster diagnosis.

Verify voltage at the window control module inputs. Probe pins 3 (blue) and 5 (black/white) with a multimeter while activating the switch. Readings below 11V indicate a faulty ground–often hidden beneath the kick panel near the rear axle.

Replace broken window regulators using OEM part #14059590. Secure the drive cable with thread-lock before tightening bolts–torque to 8 lb-ft. Misalignment here causes premature failure.

For intermittent issues, bypass the delay circuit temporarily. Jump the pink wire at the fuse box directly to the motor to isolate faulty relays. Keep jumper connections brief to prevent overheating the wiring harness.

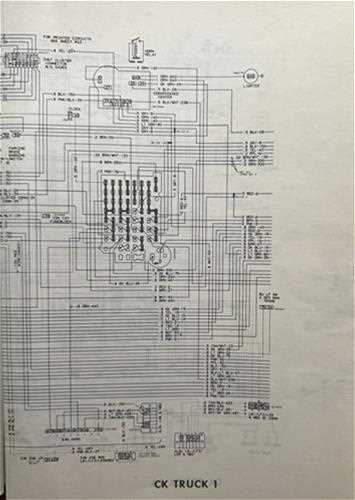

Electrical Schematic for GMC Sierra Cab Glass Motor Circuits

Locate the central fuse block under the dashboard–identify relay slot F3 (20A) labeled “DRVR WDO” and check for continuity using a multimeter. A faulty relay here disrupts the entire left-door actuator chain, so replace it if resistance exceeds 0.5 ohms or if voltage drops below 11.8V during operation.

Trace the violet wire (circuit 39) from the control switch to the driver-side door motor. This wire carries the activation signal; if frayed or corroded at terminal B-5 on the switch connector, strip and solder a fresh segment using 16-gauge THHN copper wire to maintain current flow consistency. Ensure the splice is waterproofed with dielectric grease before reassembly.

Door Module Troubleshooting Steps

For intermittent failures, bypass the pulse-board delay module temporarily by jumpering pins 4 (orange) and 8 (dark blue) on the white C102 connector near the kick panel. If the regulator responds immediately, the delay module requires replacement–original GM part #15673672 is cross-compatible with aftermarket units like Standard Motor Products DS-96.

Inspect the ground strap attached to the lower hinge pillar; corrosion here manifests as sluggish operation or erratic behavior. Sand the contact surface to bare metal, apply a zinc-based anti-corrosion spray, and secure tightly with a 10mm bolt torqued to 20 ft-lbs. Verify ground integrity by measuring less than 0.2V drop between the strap and battery negative terminal.

Test the passenger-side system independently by accessing the two-wire connector behind the door panel. The gray/red (circuit 757) and gray/black (circuit 758) leads should show 12V differential when toggling the switch–if not, suspect a break in the harness along the sill plate or within the rubber boot bridging the door hinge area. Probe with a continuity tester to isolate the exact fault location.

Switch Replacement and Calibration

If the regulator only operates in one direction, disassemble the master switch and clean the internal copper traces with a pencil eraser. Apply conductive grease sparingly to prevent oxidation; excessive buildup can cause sticking contacts. For complete switch failure, replace with ACDelco D1991A–third-party units often lack proper detent springs, leading to premature wear.

Finding the Electrical Conduit for Side Glass Controls in a 1983 GMC C/K Series

Begin beneath the driver-side kick panel. Unsnap the plastic cover using a flathead screwdriver–work slowly to avoid cracking the brittle 40-year-old clips. The main harness bundle exits the firewall through a grommet slightly left of the steering column; follow it horizontally across the footwell. Look for a woven fabric loom splitting into three branches: the largest feeds the door mechanisms, the middle serves dashboard functions, and the smallest loops back to the fuse block.

On the driver door, the conduit enters through a ⅜-inch hole drilled 3 inches above the hinge. Trace the two 18-gauge wires–striped white (positive feed) and solid brown (ground)–from the switch pack to where they disappear behind the door card. Peel back the thick cardboard liner at the bottom corner; the wires are tucked behind the regulator assembly. Use a non-contact voltage tester to confirm current before handling–these circuits often remain live even after key-off.

Wire Color	Function	Fuse Rating	Test Voltage (Key ON)
White/Black stripe	Switch power input	20A	12.6V ±0.2V
Brown	Common ground	–	0V
Yellow	Motor down feed	10A auxiliary	12.4V
Light blue	Motor up feed	10A auxiliary	12.4V

The passenger door conduit mirrors the driver side but routes underneath the dashboard first. Remove the glove box by unscrewing two Phillips head bolts–one near the latch, one behind the hinge. The harness snakes between the HVAC module and the blower motor resistor pack before exiting through a firewall grommet adjacent to the brake master cylinder. Probe the gray 14-gauge wire here; it carries current from the master switch and can melt nearby insulation if shorted.

In the cabriolet configuration, a third conduit runs along the roof rail. Locate the headliner clip approximately 18 inches from the B-pillar–pop it with a trim removal tool, then slide the panel rearward to expose the harness. The two 20-gauge wires (purple/orange for up, dark green/orange for down) terminate at the sail panel motor. Check continuity across the door jamb connectors; corrosion here mimics switch failure.

Common failure points cluster at door hinge pinch zones and beneath seat tracks. Strip back loom tape at these locations; corrosion appears as green-white powder on copper strands. Solder new terminals using 60/40 rosin-core wire–crimp connectors fail within 18 months in high-humidity regions. Avoid electrical tape; wrap splices in adhesive-lined shrink tubing instead. Label each connection with color-coded heat shrink markers per the table specs to simplify future diagnostics.

For vehicles equipped with intermittent wipers, the harness shares ground paths with the side glass controls. The junction box sits behind the left tail light assembly–remove the lens to access. Trace the white/black wire from the tail light socket to a six-pin connector; the third pin from the bottom supplies the passenger switch network. Apply dielectric grease to connectors during reassembly to prevent fretting corrosion.

If the system draws excessive current, disconnect the motor leads first–seize-ups cause 80% of fuse blows. The motors draw 8A peak; use an amp clamp on the yellow feed wire while cycling the switch. Normal operation should show a brief spike, then settle to 2-3A. Anything higher indicates internal brush wear; replace the motor assembly rather than repinning individual wires.

Final continuity testing requires a 5kΩ resistor across suspected fault points. Connect one end to chassis ground, the other to the wire under test. A reading below 1.5kΩ indicates a short to ground; above 10kΩ suggests an open circuit or high-resistance connection. Target the door hinge area for opens–previous repairs often leave weak solder joints that fail under vibration.

Decoding Color Schemes in Your Vintage Vehicle’s Electric Glass Mechanism

Locate the main loom beneath the door panel–strip the harness sleeve to expose the conductors. Dark blue (DB) with a white stripe delivers 12V switched ignition feed, connecting to the window motor’s positive terminal via the switch. Yellow (Y) carries the ground return, terminating at the door’s inner frame or chassis ground stud. For driver-side circuits, pink (PK) transmits activation from the control module, while passenger-side units substitute with light blue (LB). Verify each path with a multimeter set to continuity mode; discrepancies often trace to corroded lugs or broken splice joints near the kick panel junction.

Tracing Alternate Markings and Factory Annotations

Look for faint factory stickers adhered to the loom or printed directly onto the wires–these often include alphanumeric codes (e.g., “32-G”, “50-BK/WH”). Tan (TN) wires with a black trace denote the solenoid trigger in lockout relay circuits, while solid purple (PPL) links the master switch to auxiliary functions like mirror heaters. Cross-reference with the vehicle’s service manual Plate 8, Sheet 3–mismatched hues between door harnesses and main harness bundles typically indicate aftermarket splices or incorrect reassembly. Probe suspected wires with a non-powered test light before energizing to avoid shorting adjacent systems.

Step-by-Step Guide to Diagnosing the Electric Glass Regulator with a Multimeter

Disconnect the motor’s electrical connector first to prevent shorts. Set your multimeter to the 200-ohm resistance setting. Probe the two terminals on the motor’s wiring harness–the reading should be between 2 and 5 ohms. A value outside this range indicates internal coil failure, requiring motor replacement. If the multimeter shows no continuity, check for broken wires or corroded contacts.

Switch the multimeter to DC voltage mode (20V scale) and reconnect the wiring harness. Have an assistant operate the switch while you monitor the voltage at the motor terminals. A fully functional system delivers 12 volts; anything below 10 volts suggests excessive resistance in the circuit, likely due to oxidized connections or faulty relays. Zero voltage points to a blown fuse, defective switch, or open circuit between the fuse block and the motor.

To test ground integrity, attach the multimeter’s black lead to battery negative and the red lead to the motor’s ground wire. A proper ground reads 0.2 volts or less–higher values mean corroded chassis grounds or loose mounting bolts. Inspect the ground strap for rust or fraying; clean or replace it if necessary. Poor grounding is a common cause of intermittent operation or slow glass movement.

Check for voltage drop under load by activating the switch while measuring across the motor terminals. A drop exceeding 0.5 volts signals high-resistance connections. Focus on the switch, fuse block, and bulkhead connectors–these are prone to oxidation in older models. Use dielectric grease on cleaned terminals to prevent future corrosion. If voltage remains stable but the motor still doesn’t run, the issue lies within the mechanism itself, not the electrical supply.

For a final confirmation, apply 12V directly from the battery to the motor terminals using jumper wires. If the motor spins, the problem is upstream in the circuit. If silent, the motor is dead. Replace it–attempting repairs on sealed units rarely succeeds. Always verify window regulator alignment after installation to avoid binding or premature failure.
