Building a Seven Segment LED Display Step-by-Step Circuit Guide

Start with a common cathode arrangement for simplicity–it requires fewer external components and simplifies wiring. Select resistors rated between 220Ω and 470Ω per digit pin to prevent burnout while maintaining visibility. Use a BC547 transistor for each digit if multiplexing is needed; this reduces current draw from the microcontroller while keeping brightness consistent.

For single-digit setups, connect the anode pins of the glyph directly to a 5V power rail through resistors, grounding the cathode to light specific bars. If accuracy is critical, test each bar individually with a multimeter in continuity mode to confirm connections before soldering. Avoid relying solely on breadboard setups for final builds–loose contacts can cause erratic behavior.

To drive multiple glyphs, implement a shift register like 74HC595–this reduces microcontroller pin usage to just three data lines (clock, latch, data). Calculate the refresh rate: a 50Hz scan frequency per glyph prevents flicker while balancing power efficiency. For battery-operated designs, use logic-level MOSFETs instead of transistors to handle higher currents without voltage drop.

When etching PCBs, route traces wider than 0.5mm for low-resistance paths, especially for shared cathode or anode lines. If using through-hole components, pre-tin pads to prevent oxidation–this ensures solder adheres properly during assembly. For projects requiring decimal points, isolate the corresponding bar with a separate resistor to avoid dimming adjacent elements.

Debugging? Check for floating inputs–tie unused control pins to ground or Vcc to prevent random activation. If glyphs appear dim, increase resistor values gradually; if too bright, reduce them–but never exceed the maximum rated current (typically 20mA per bar). For high-ambient-light environments, add a translucent diffuser to improve contrast without increasing power consumption.

Building a Numeric Indicator Wiring Scheme

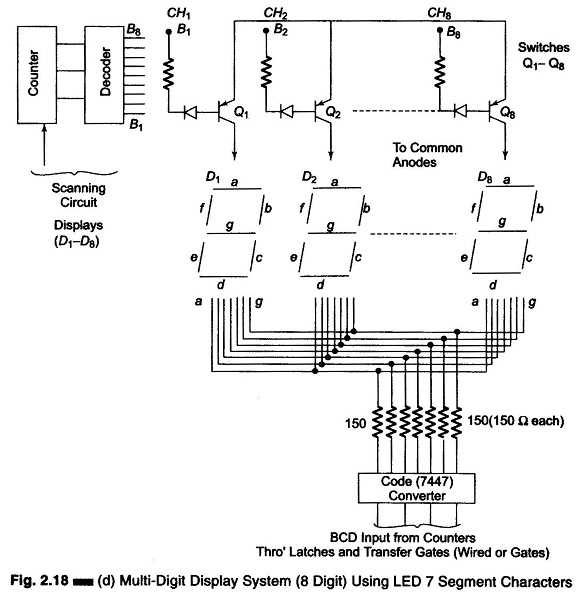

Start with a common cathode configuration if your project requires active-low control logic, as it simplifies sinking current through transistors or ICs like the 74LS47 decoder. For 1-digit setups, connect the cathode directly to ground via a 220Ω resistor per anode to limit current to 10-15mA per element. Multi-digit systems need multiplexing–use a CD4511 driver for BCD-to-output decoding with pull-down resistors on data lines to prevent floating inputs.

For anodes, route each pin through a current-limiting resistor sized based on supply voltage: 150Ω for 3.3V, 330Ω for 5V. Avoid cheaper resistors with >5% tolerance to prevent uneven brightness. If using a microcontroller, ensure its output pins can deliver sufficient current–Atmega328P sinks 20mA per pin but only 100mA total across all pins, so add a ULN2003 darlington array for high-current applications.

Decoding Signals Without Dedicated ICs

Program an MCU to send raw binary data to the elements using lookup tables–store digit patterns in PROGMEM to save RAM. Example for ’0’ (common cathode): `0x3F` (binary `00111111`). Use shift registers like 74HC595 if pin count is limited, cascading units for 2+ digits. For dynamic driving, refresh rates above 60Hz prevent flicker; adjust timer interrupts on 8-bit MCUs to cycle digits every 4-8ms.

Power management matters: decouple the supply with a 100nF ceramic capacitor near the driver IC to suppress noise from inductive loads. If brightness varies with input voltage, add a 1kΩ potentiometer on the common line for manual adjustment. For battery-powered devices, reduce current during idle states by blanking unused digits or lowering refresh rates.

Test individual elements before full assembly. Probe each anode with 5V through a 1kΩ resistor–faulty dies often show partial illumination or dead segments. Replace failing units immediately; reflowing solder rarely fixes internal wire bonds. Use a continuity tester on the PCB traces to confirm no shorts exist between adjacent pins, which cause ghosting.

Troubleshooting Common Failures

Flickering indicates unstable power or multiplexing timing issues–check for long ground loops or missing pull-up resistors on enable lines. Dim outputs suggest inadequate drive current or excessive series resistance; recalculate resistor values using Ohm’s law with Vf=2.0V for red elements. If digits appear intermittently, inspect cold solder joints on the common cathode, as loose connections introduce high impedance.

For high-voltage applications (12V+), replace standard resistors with constant-current sinks like LM317 adjusted to 15mA per channel. Alternatively, use MOSFETs (e.g., IRLML6401) to handle higher power dissipation. Always verify thermal limits: most discretes tolerate 200mW per element, but multiplexing reduces this due to pulsed operation.

Document your schematic pinouts for future debugging. Label each trace with net names and annotate resistor values directly on the silkscreen. For complex layouts, export gerber files with separate layers for power, ground, and signal paths to isolate cross-talk issues during fabrication.

Selecting the Optimal Numeric Indicator for Your Task

Begin with common cathode variants for low-power embedded systems. Their current-sinking configuration pairs efficiently with microcontrollers like AVR or PIC, reducing discrete component needs. Anode types demand additional transistors, complicating layouts for density-constrained designs. Check forward voltage–1.8V red variants suit Li-ion battery projects, while 2.2V options excel in regulated 3.3V systems, avoiding voltage drops that distort brightness.

Type	Typical Current (mA)	Viewing Angle (°)	Expected Lifespan (kh)
Standard monochrome	10-20	120	50-100
High-brightness	5-15	140	30-80
Multiplexed	15-30	110	40-90

Prioritize SMD 0805 packages for surface-mount designs–component height under 2mm prevents interference with enclosures. Through-hole variants work for prototyping but require additional soldering time. Choose character height based on viewing distance: 0.36″ suits handheld devices, 0.56″ fits wall-mounted units, while 1.0″ meets industrial visibility standards. Verify digit count–single-digit modules reduce wiring, multi-digit simplify mounting, but require sequential drive circuitry.

How to Assemble a Single-Digit Numeric Indicator with Shared Negative Terminal

Begin by identifying the pinout of your 0.56-inch numeric readout. Most devices label the common negative terminal as pin 3 or 8–verify with a datasheet or multimeter continuity test. Connect this pin directly to ground via a 220-ohm resistor to prevent overcurrent. The remaining eight pins correspond to the A-G and decimal point anodes; label them sequentially from left to right (A=pin 7, B=pin 6, down to DP=pin 5) to avoid mapping errors during soldering.

Wire each anode through a separate current-limiting resistor (220–470 ohms) to a microcontroller port or switch matrix. For Arduino-based setups:

• Set digital pins 2–9 as outputs (D2→A, D3→B … D9→DP).
• Use the built-in digitalWrite() function to toggle states–logic HIGH lights an element.
• Test each segment individually with a baseline sketch cycling through 0–9 patterns.

Avoid exceeding 20 mA per pin; measure forward voltage (typically 2–2.2 V) and recalculate resistor values if brightness is uneven.

Troubleshooting Incorrect Illumination

If digits appear malformed, validate connections with a 5 V source and jumper wire–touching each anode should light its respective bar. Reverse polarity protection diodes (1N4148) can be added between anodes and resistors if accidental reverse bias risks damaging the chip. For multiplexed configurations, limit refresh rates to 100–150 Hz to prevent ghosting; use a 2N3904 transistor array or MAX7219 driver for higher-current applications.

Secure cables with heat-shrink tubing if the board will experience vibration–loose strands often cause intermittent shorts. When integrating into larger projects, keep traces under 10 cm to minimize capacitance; route signals away from high-frequency components like buck converters. Finish by encasing the assembly in a 3D-printed shroud or layered acrylic diffuser to enhance readability in ambient light.

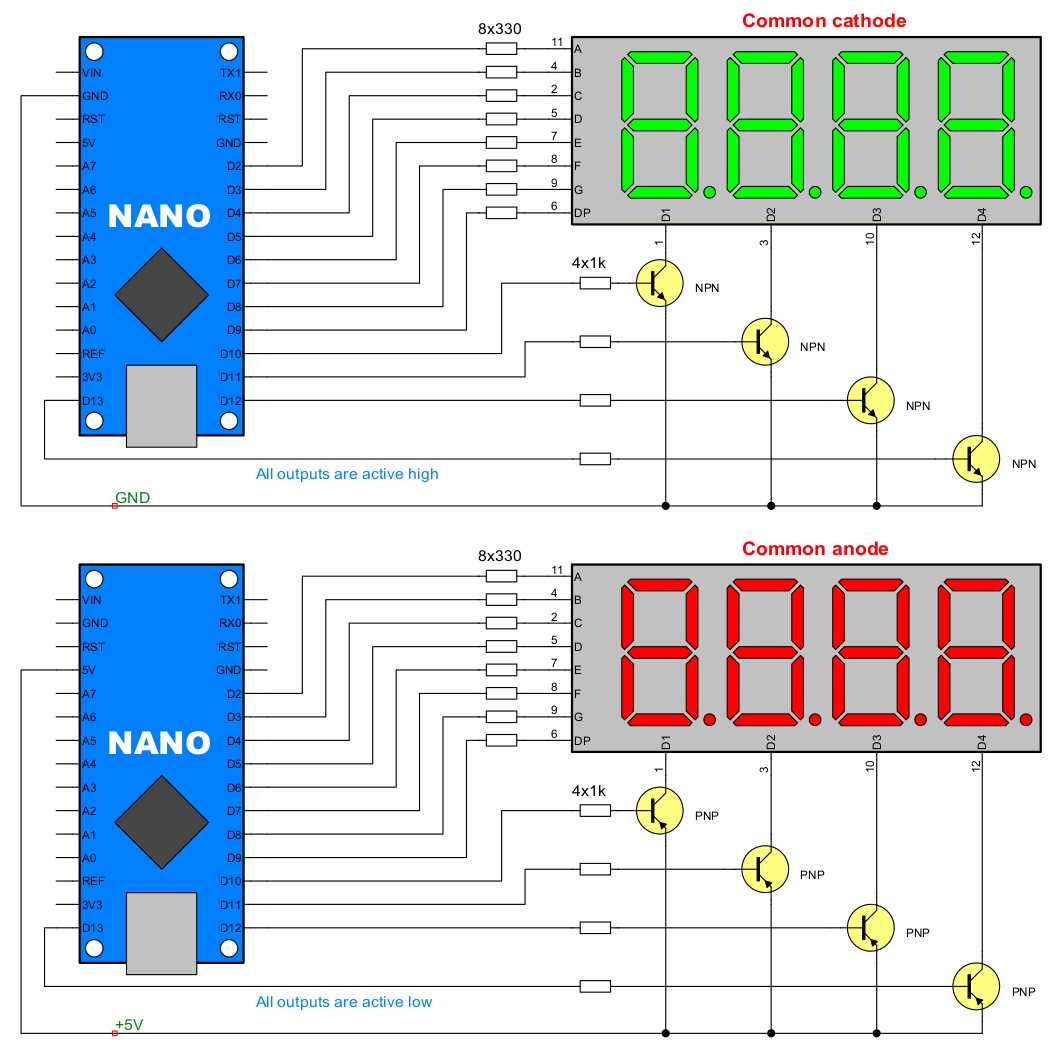

Wiring a Numeric Indicator to Arduino with Current-Limiting Components

Begin by identifying the common pin configuration–either anode or cathode–on your numeric readout. Anode-driven types require a 220-470Ω resistance in series with each light-emitting bar, while cathode-driven units attach resistors to the Arduino pins, grounding the common pin directly. Use a multimeter to confirm pin assignments if the datasheet is unavailable.

For a single common-anode unit: connect the shared high-voltage pin to +5V. Link each individual bar (a–g and decimal point) through a separate 330Ω resistor to distinct digital pins (2–9 recommended). Avoid PWM-capable pins unless brightness control is needed.

Cathode-driven configurations reverse the polarity: ground the shared low-voltage pin, then route each bar via a 220Ω resistor to Arduino outputs. Lower resistance values increase brightness but shorten lifespan–adjust within 200–560Ω based on ambient light requirements.

Use a breadboard for rapid prototyping, arranging resistors vertically to conserve space. Label each resistor-bar connection with masking tape to prevent miswiring. Double-check connections with a continuity tester before powering on to avoid short circuits that can damage both the readout and microcontroller.

If multiplexing multiple indicators, employ a 74HC595 shift register to reduce pin usage. Connect the register’s data pin to Arduino’s SPI MOSI, clock to SCK, and latch to a digital pin (10–13 optimal). Each subsequent readout shares the same bar outputs but connects its common pin through a transistor (2N2222 or equivalent) for isolation.

Calibrating Brightness and Error Handling

Measure current draw with a multimeter in series–target 5–15mA per bar. Exceeding 20mA risks overheating. For dimming, implement software PWM (analogWrite) on a single bar first; test across all segments to ensure uniform illumination. Uneven brightness often indicates incorrect resistor values or a failed bar.

Add a 0.1µF ceramic capacitor between the readout’s power and ground pins to suppress flicker. For long wire runs (over 10cm), replace resistors with 100Ω values and add 1µF electrolytic capacitors at the readout terminals to filter noise. Verify correct sequence output by displaying digits 0–9 in a loop, adjusting delays to prevent ghosting.
