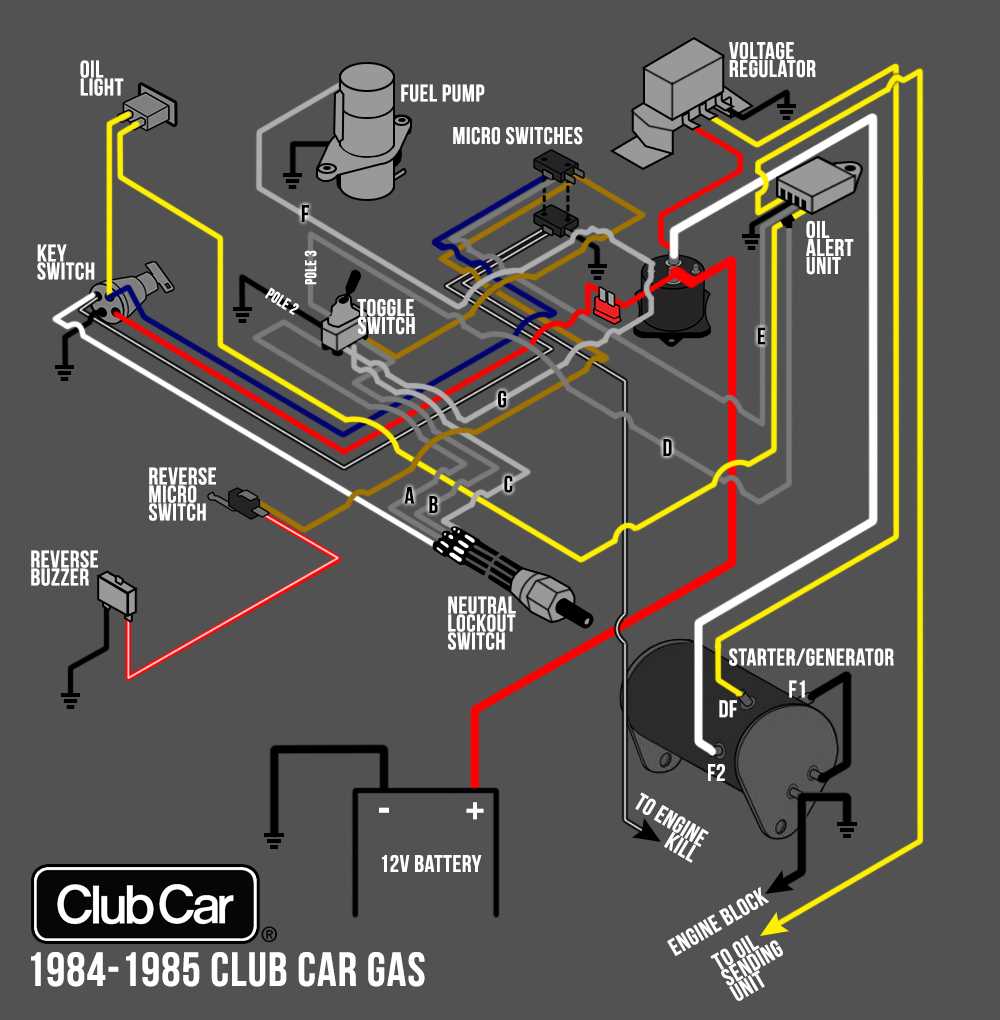

Complete 1985 Club Car Golf Cart Wiring Schematic Guide

The 36-volt DS model requires precise voltage routing between the six 6V batteries. Confirm connections at terminals S1 and S2 on the speed controller–these link directly to the throttle microswitch and key switch respectively. If voltage drops below 0.5V at S1 when the pedal is depressed, inspect the gray accelerator wire for fraying near the potentiometer housing.

For ignition relay troubleshooting, trace the red-black wire from the key switch to solenoid terminal L. Resistance above 0.2 ohms here indicates corrosion in the coil windings or faulty grounding at the mounting bracket. The white-blue wire serves as the primary ground return; verify continuity to the chassis using a multimeter set to 2KΩ range–readings should not exceed 0.5Ω.

Headlight wiring follows a separate 12V circuit starting from the main positive bus bar. Check the yellow-white wire for voltage stability–fluctuations suggest a failing voltage regulator mounted beneath the seat. Reverse polarity damage is common; if diodes D1-D4 show signs of overheating, replace the entire regulator assembly rather than individual components.

Charging system diagnostics begin at the ammeter. Current should read 18-22 amps during peak charging. If readings are erratic, examine the orange charging wire for chafing against the rear axle. The gray-brown wire carries excitation current to the alternator; voltage below 13.2V here confirms alternator failure, not battery depletion.

Auxiliary circuits (horn, brake lights) branch from the 4-pole fuse block. Horn relay activation requires a minimum of 9.5V at the brown-violet wire. Brake light circuits use a dedicated 15A fuse–if bulbs remain dim, bypass the fuse holder with a jump wire to isolate resistance issues in the fuse contacts.

Electrical Schematic for Vintage Golf Models: Full Breakdown

Start troubleshooting by locating the solenoid near the battery pack–its connections dictate starter engagement. Label each terminal before disconnecting: the large posts link to the motor and power source, while the small terminals trigger activation from the ignition switch. Use a multimeter to test voltage across the small terminals; readings below 12V indicate a faulty microswitch or corroded wiring harness under the seat.

Trace the main positive cable from the battery to the controller–this cable often frays near high-stress points like the chassis entry. Inspect the 50-amp fuse inline on this cable; replace with an identical amperage rating if blown. Check continuity between the controller’s output terminal and the motor’s field winding; resistance above 0.5 ohms suggests worn brushes or stator damage requiring disassembly.

Examine the forward/reverse switch contacts for pitting or discoloration. Clean with emery cloth if corrosion appears; avoid lubricants as they attract dirt. Verify the switch’s grounding strap–it must connect directly to the frame without rust or paint interference. Test switch functionality by activating in both directions while monitoring voltage at the controller; uneven readings point to internal switch failure.

For headlight circuits, confirm the brown wire from the light switch splits to both lamps with a junction near the front bumper. Replace any brittle or melted wires with 14-gauge automotive-grade cable. Check the taillight’s red wire for continuity back to the fuse panel; a short here often drains the auxiliary battery overnight.

If the charger fails to engage, probe the gray wire at the receptacle–it should read 12V when connected to AC. Measure voltage drop across the charger’s internal relay; more than 0.2V indicates contact erosion. Clean the power inlet pins with isopropyl alcohol; bent pins prevent proper charging and overheat quickly.

For speed controller issues, bypass the throttle microswitch temporarily by jumping the two small wires at the pedal. If the vehicle runs, replace the switch; if not, test resistance across the potentiometer while moving the pedal–values should climb smoothly from 0.5k to 4.5k ohms. Sudden jumps signal a worn potentiometer needing recalibration or replacement.

Pinpointing Critical Electrical Elements in Early Golf Transport Models

Start by locating the solenoid–positioned near the battery on the vehicle’s frame. This cylindrical or rectangular component bridges high-current circuits, actuated by the key switch. Verify its functionality: a distinct click should occur when turning the ignition; absence indicates corrosion, faulty contacts, or coil failure. Clean terminals with a wire brush or replace if pitted.

Examine the controller–typically mounted beneath the seats or dash. Early models used resistor-based speed control, identifiable by thick cables connecting to the motor. Trace these wires back to the throttle microswitch; white and blue leads often denote accelerator inputs. Corrosion here disrupts voltage regulation, causing jerky motion or stall-outs.

Check the voltage regulator if your model includes a charging system. Integrated near the voltmeter, it prevents battery overcharge by diverting excess current to the ground. Test output with a multimeter: readings should stabilize around 14.5V under load. Erratic voltages point to failed diodes or internal short circuits. Replacement units must match exact amperage ratings.

Inspect the direction switch–usually a three-position lever mounted near the steering column. Internal contacts may oxidize, leading to intermittent reverse functionality. Disassemble and sand contact points to restore conductivity. Wire colors follow a standard: red (forward), black (reverse), and yellow (common). Swapping leads risks motor reversal if polarity isn’t confirmed first.

Visual Diagnosis of Common Failure Points

• Frayed insulation on battery cables near strain points–replace with 4-gauge marine-grade wire.
• Melted connectors at motor terminals–indicates sustained high amperage; install heat-resistant terminals.
• Discolored fuse holders–sign of voltage spikes; upgrade to ATO blade fuses rated 30A.
• Loose ground connections–secure to chassis with star washers to prevent intermittent power loss.

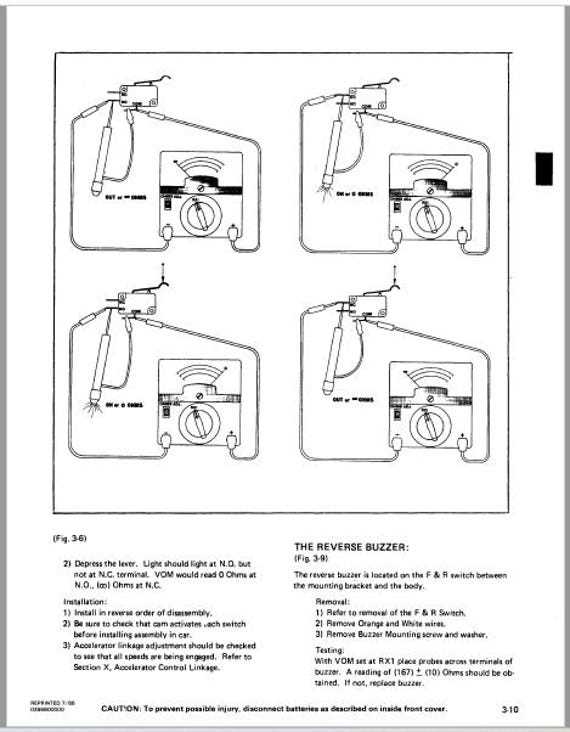

Component Testing Protocols

1. Disconnect the battery’s negative terminal before probing any circuit.
2. Set multimeter to continuity mode: probe solenoid terminals while turning ignition–reading should drop to near zero ohms.
3. Test motor resistance: healthy values range 0.3–0.8 ohms across terminals; higher indicates winding failure.
4. Verify charging system: engine running, multimeter should read 13.2–14.8V across battery posts.
5. Inspect all splices: tug on connections–loose crimps cause voltage drops under load.

Label all removed connectors during repairs. Early models lack color standardization–document each wire’s path with photographs to avoid miswiring. Replace aged switches with modern equivalents only if pin configurations align; mismatches can disable entire subsystems.

Step-by-Step Electrical Schematic Breakdown for Classic Golf Utility Vehicles

Begin by isolating the battery circuit on DS and Precedent series. Locate the main solenoid–typically mounted near the power source–then trace the positive cable to the controller. Verify continuity between terminals 1 and 2; resistance should read below 0.5 ohms. If values exceed this, inspect for corrosion at the C-terminal or frayed connections along the harness. Replace degraded leads immediately, ensuring soldered joints for long-term durability.

For gas-powered variants, focus on the ignition module. Disconnect the distributor cap and probe the coil’s primary winding: specifications demand 1.5–3.0 ohms. Deviations indicate a faulty coil or compromised grounding–test the frame path by attaching a multimeter’s negative probe to the chassis and the positive to the ignition switch. Readings above 0.2 volts signal a need for frame wire cleaning or bolt replacement at mounting points.

Examine the solenoid relay on electric versions by applying 12V directly to the activation post. A distinct click confirms functionality; absence suggests a burned-out coil–swap the relay unit. Check the speed controller’s input pins: voltage drop from battery to pin A should match battery voltage within 0.3V tolerance. Higher losses point to an overheated diode bridge, requiring board-level diagnostics with a thermal camera.

Lighting circuits demand separate attention. Test each bulb socket with a 12V test lamp; if illuminated, the issue lies in the switch–a common failure point in older models. For turn signals, trace the flasher unit’s leads back to the stalk switch–erratic blinking often stems from oxidized contacts. Polish with emery cloth and apply dielectric grease to prevent recurrence.

Rechargeable systems necessitate voltage regulator checks. Measure output at the alternator’s field terminal; 13.8–14.4V is optimal. Below 13.5V indicates a failing regulator–replace it without delay. Monitor amperage draw during charging: spikes above 40A suggest a shorted armature, necessitating bench testing with a growler coil.

Finalize diagnostics by charting all verified paths on a fresh reference sheet. Label components by their schematic identifiers–e.g., “K1” for key switch, “MOTA” for main motor lead. Keep a log of test results for future troubleshooting, noting environmental conditions (humidity, temperature) that may affect conductivity.

Diagnosing Power Problems with the Circuit Blueprint

Start by isolating the charging system. Locate the solenoid on the schematics–it’s the small relay near the battery terminals. Use a multimeter to test voltage at the input terminal; readings below 12.4V indicate a drained battery or corroded connections. Clean terminals with a wire brush, then retest. If voltage remains low, the alternator may not be engaging; check continuity between the field coil and ground pin.

For intermittent power loss, trace the main harness path. The fuse block, typically a 30-amp blade fuse, should show ~13V on both sides when active. If voltage drops on the output side, replace the fuse. If the issue persists, inspect the heavy-gauge cables connecting the battery to the controller. Rubber insulating boots often hide cracks or melted spots–flex the cable to reveal hidden breaks.

• Switch ignition to “ON” and measure voltage at the key switch output (purple wire). Should read battery voltage; lower readings suggest a faulty switch or broken wire in the harness.
• Check the forward/reverse micro-switch clusters. Each should click audibly when toggled; silent switches require replacement.
• Test the throttle potentiometer by rotating the pedal. Voltage should smoothly increase from 0.5V to 4.5V; erratic readings mean the potentiometer needs recalibration or replacement.

When headlights dim under acceleration, focus on the controller-to-motor circuit. The field wires (A1/A2) and armature wires (F1/F2) must maintain tight connections. Loose terminals cause heat buildup, visible as discolored or bloated insulation. Crimp new connectors if corrosion is present. Verify the diode trio near the controller–it regulates voltage spikes; a failed diode often leaks current, draining the battery overnight.

For no-start conditions, bypass the safety interlocks one by one. Jumper the brake light switch wires (white/yellow) at the pedal assembly. If the vehicle engages, the switch is faulty. Test the seat switch by sitting on it–no “click” means the microswitch needs adjustment or replacement. Disconnect the controller’s negative lead and check resistance across the motor windings. Readings outside 0.1–0.5 ohms indicate shorted or open windings.

Corroded ground points are a common failure. Scrape paint from the chassis attachment points until bare metal shows. Reattach ground wires with star washers to prevent oxidation. For persistent issues, run a separate 6-gauge ground wire from the battery negative terminal directly to the motor housing, bypassing the factory ground path entirely.
