Complete 1986 Chevy C10 Instrument Cluster Wiring Schematic Guide
Start by locating the black/white striped wire (pin 18) on the back of the speedometer–this is your primary ground for the fuel gauge and must be secured to the chassis with a 16-gauge ring terminal. Failure to properly terminate this connection will result in erratic readings or complete gauge failure. Use a multimeter set to continuity mode to verify zero resistance between the wire and the frame before proceeding.
The pink wire (pin 3) supplies 12V from the ignition switch–test for voltage with the key in the “ON” position. If voltage is absent, trace the wire to the ignition switch harness (connector C2, pin 8) and inspect for corrosion or broken strands. Replace the wire segment if resistance exceeds 0.5 ohms. For the temperature sender, the dark blue wire (pin 2) connects to the sending unit–ensure it reads between 75 and 100 ohms at operating temperature. Anything outside this range indicates a faulty sender or short in the circuit.
For the oil pressure gauge, the gray wire (pin 14) must link directly to the sender without splices. Use crimp connectors with heat shrink tubing for any repairs–solder joints can introduce resistance over time. The voltmeter requires the white wire (pin 17) connected to the alternator’s “S” terminal, but only after confirming the alternator’s output (13.8–14.5V at 2,000 RPM). If readings fluctuate, check the alternator’s diode trio or the orange wire (pin 1) feeding the gauge from the fuse block’s ignition circuit.
Tachometer issues often stem from the purple wire (pin 5) not receiving a clean signal from the ignition coil’s (-) terminal. Route this wire away from spark plug wires to avoid induction interference. If the tach needle bounces, install a 0.1μF ceramic capacitor between the purple wire and ground. The brake warning light (if equipped) uses the light blue/black wire (pin 9)–test continuity from the switch to the dashboard bulb socket. Replace the switch if resistance exceeds 2 ohms when the pedal is pressed.
Label every wire with heat-resistant tape during disassembly. Reassemble in reverse order, but first verify all bulb sockets (194 or 168 types) with a test light–replace any corroded or loose sockets. For LED upgrades, add a 330-ohm resistor in series to prevent hyperflashing. Secure all connections with dielectric grease to prevent moisture intrusion. Store the original harness schematic (GM part #88986456) alongside the glove box for future reference–deviations from this diagram will void gauge calibration.

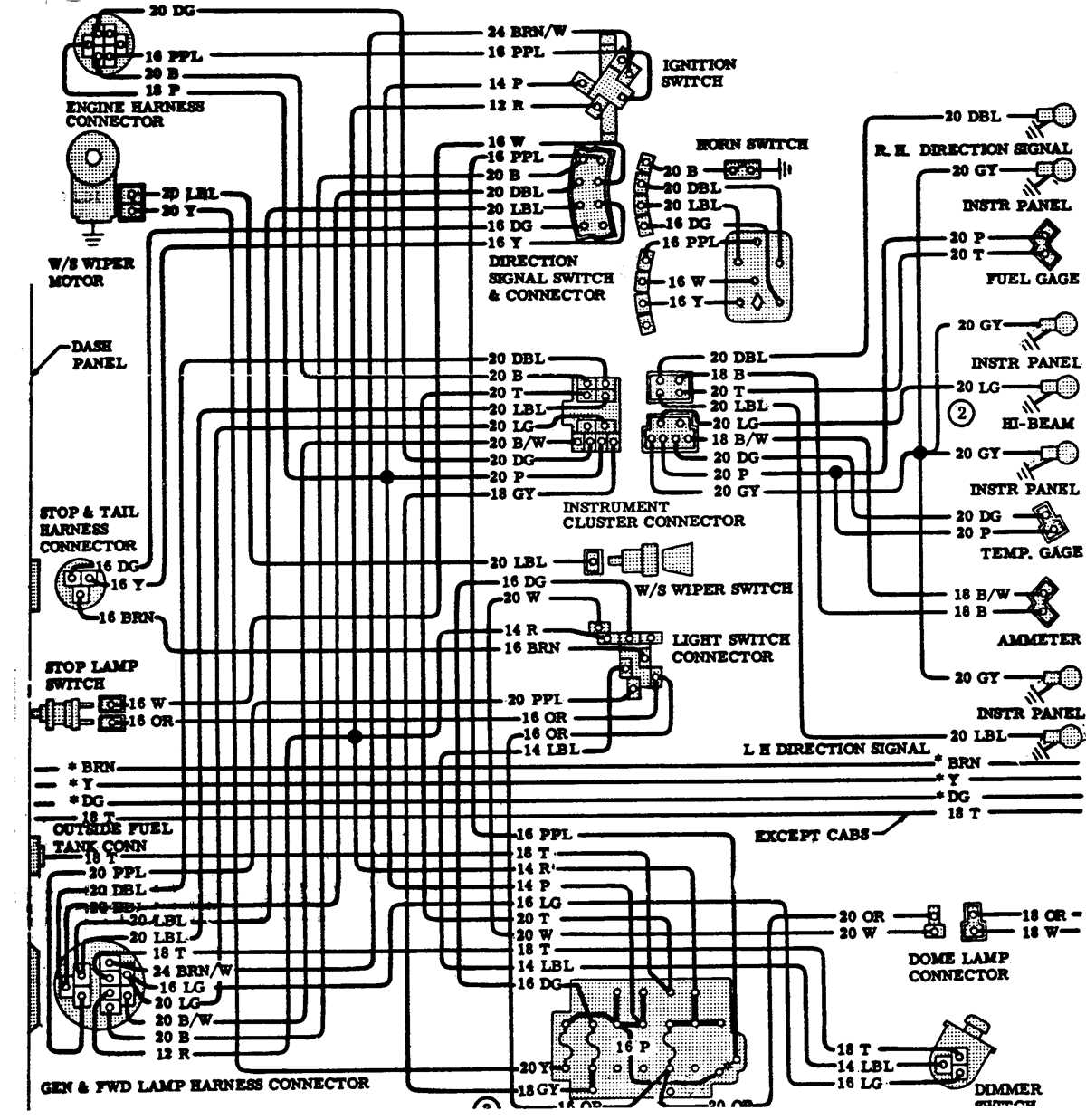

Electrical Schematic for Chevy Squarebody Gauge Assembly
Trace the brown wire from the voltage regulator to terminal A on the back of the speedometer housing–this carries 12V ignition feed. Verify continuity with a multimeter set to 200Ω range; resistance should read below 0.5Ω. Failure here typically indicates a broken connection in the dash harness, often at the firewall grommet.
Locate the orange-striped wire at the fuel sender; it terminates at pin 32 on the printed circuit board behind the tachometer. Use a 10W soldering iron to reflow this joint if voltage drops below 10V during cranking–oxidation on older circuits disrupts signal integrity. Pair this with the sender’s ground wire (black) at chassis stud G40; corrosion here mimics a faulty sender.
Temperature gauge troubleshooting: the pink wire from the coolant sensor must reach pin 15 without splicing. If readings fluctuate, bypass the blower motor resistor–shared circuits cause intermittent drops. Check the oil pressure sender’s tan wire at pin 27; grounding through the engine block should trip the warning lamp at 5 PSI or below.
Dash Lighting Modifications

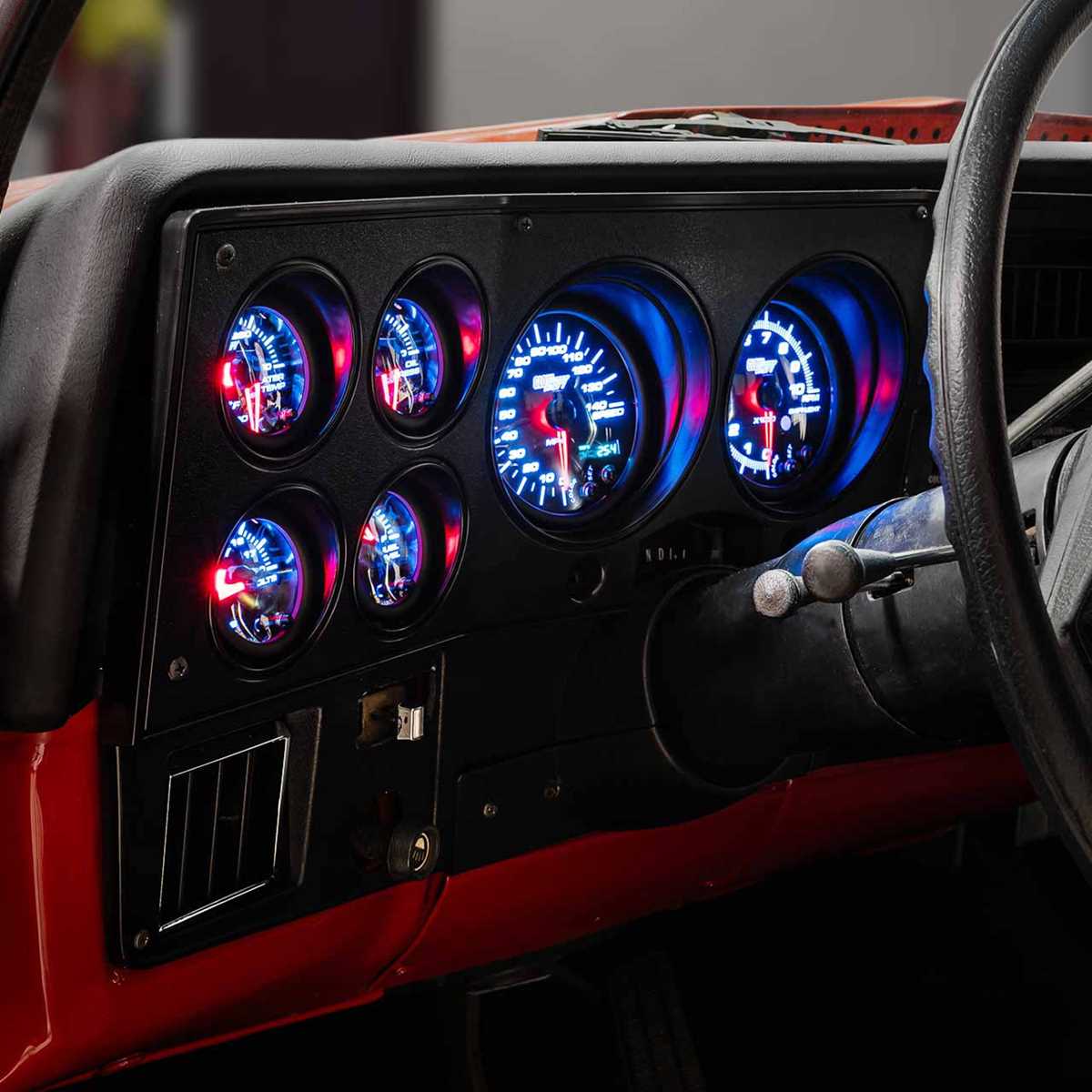

Replace the 14V bulbs (part #194) with 12V LEDs; reverse polarity on the dimmer switch (gray wire to terminal R) prevents premature failure. For aftermarket gauges, route new wires through the existing grommet–drill a 3/8″ hole if using additional senders. Secure all connections with dielectric grease to prevent corrosion in high-humidity climates.
Pinpointing Critical Dash Harness Links on Chevrolet’s GMT400 Pickup
Start by locating the 12-pin rectangular connector behind the gauge assembly–marked “A” on schematics–where the primary power feed (usually a pink or orange wire, 10-gauge) terminates. This connector handles all ignition-switched voltage, sending current to the tach, speedometer, and warning lights. Verify continuity with a multimeter: probe pin 1 (power in) and pin 12 (ground), ensuring resistance below 0.5 ohms. Corrosion on these terminals is the most common failure point; clean contacts with a brass brush and dielectric grease.
- Tachometer splice: Follow the gray/black wire from connector “A” to the ECU harness–this carries the engine RPM signal. Splice into this line only at the firewall bulkhead; cutting elsewhere risks signal degradation.
- Fuel sender circuit: The yellow wire from the tank sender connects to connector “B” (oval, 8-pin). Resistance should vary between 0 ohms (full) and 90 ohms (empty). Replace any splice that doesn’t hold within 1-2 ohms of factory specs.
- Temperature gauge loop: The tan/white wire runs from the engine block sensor directly to the dash connector “C”. Bypass aftermarket senders; they often mismap the 5V reference voltage.
For the turn signal flasher circuit, trace the light green and dark blue wires from the steering column to the hazard module. These merge into a single brown wire before splitting again at the dash bulbs. Use a non-powered test light to confirm each segment pulses simultaneously–uneven flashing indicates a bad ground at either the left (G101) or right (G102) fender well. Secure grounds with star washers; paint penetration is mandatory for conductivity.
Check the printed circuit board behind the warning light bulbs for hairline cracks–thermal cycling breaks solder joints on the dimmer switch feed. Reflow suspect joints with 60/40 rosin-core solder; avoid acid-core fluxes. Label each disconnected wire with white electrical tape and a silver marker before removal; misreconnection risks blowing the fusible link on the main harness.
How to Trace Gauge Illumination Cables in a Classic Pickup Display
Locate the printed circuit backing behind the speedometer and tachometer. Remove the two Phillips screws securing the clear plastic lens, then pull the lens forward gently–it snaps onto pegs without clips. The circuit board lies flat against the metal housing; note the thin copper traces branching to each telltale. Use a digital multimeter set to continuity mode; probe the pad marked “ILLUM” at the right edge of the board, then follow the trace visually back to the brown-striped lead entering the harness plug labeled “A.”
Disconnect the twelve-pin connector at the firewall bulkhead before testing. Pin eight on the male side–which mates with socket eight on the plug–supplies constant battery voltage through a 500-ohm resistor. A gray-white wire exits the same socket and daisy-chains to the left-hand column lamp, then loops to the voltmeter backlight and ends at the trip odometer bulb. Split loom protects the gray-white segment between the column and dash; slit the loom lengthwise with a razor blade to expose the splice without cutting the wire.
Test bulbs individually by jumping 12 volts through a 470-ohm resistor to each socket base. Start with the tachometer illumination socket: three tabs–outer tabs ground, center tab hot. Swap bulbs only when cold to avoid filament fracture. Bulbs rated at 1.4 watts (GE 194) press-fit into spring-loaded sockets; twist counterclockwise to release. Match replacement bulbs by socket depth; deeper sockets (0.3 in) require longer bulbs, while shallow sockets (0.2 in) use standard length.
Clean corroded traces with 600-grit wet sandpaper followed by isopropyl alcohol. Re-coat bare copper with liquid rosin flux, then brush on a thin layer of silver-bearing conductive paint. Let cure 30 minutes before reassembly. Reattach the harness plug while observing bulb-on behavior: all backlights should glow simultaneously when the headlight switch is pulled to the first detent. If one remains dark, check for broken filaments or intermittent chassis ground at the driver-side kick panel; a loose bolt here starves the entire lighting circuit.
Voltage and Ground Wire Locations for the Chevy Pickup Gauge Assembly
Locate the speedometer’s power feed at the orange wire (circuit 39) on the back of the tachometer connector. This 12V source originates from the fuse block under the dashboard, specifically the IG1 terminal. If voltage drops below 11V at this point, inspect the fuse (10A) and trace the wire through the firewall grommet near the steering column. Corrosion often builds at this entry point; clean or replace the connector if resistance exceeds 0.5 ohms.
Ground for the gauge assembly connects via the black wire (circuit 150) at the speedometer’s rear. This wire runs directly to the G302 grounding stud, mounted on the driver’s side kick panel. Verify continuity between the ground wire and chassis–readings above 1 ohm indicate a faulty connection. If the stud is painted or rusted, sand the surface to bare metal and apply dielectric grease before reattaching the wire. Loose or oxidized grounds cause erratic needle behavior and dim lighting.
Key Wire Locations and Testing Points
- Tachometer connector (white 6-way plug):
- Pin A (orange) – 12V feed.
- Pin B (black) – Ground.
- Pin C (pink/black) – Tach signal (ignore for speedometer).
- Behind the speedometer (gray 8-way plug):
- Pin 3 (light green) – Vehicle speed sensor input (4 pulses per revolution).
- Pin 7 (gray) – Illumination power (switched 12V).
- Pin 8 (brown/white) – Dimmer control (optional).
Test the vehicle speed sensor (VSS) signal by probing the light green wire while spinning the transmission output shaft–healthy output reads 0.5V AC or higher. If voltage is absent, check the buffer resistor (1.5k ohms) inside the speedometer housing; a burned resistor disrupts signal processing. Replace the entire gauge unit if resistor failure is confirmed. For dimmer circuit issues, measure the brown/white wire at 2-8V when adjusting the headlight switch–values outside this range suggest a faulty rheostat or wiring short.
