Complete Wiring Diagram Guide for the 1986 Mazda B2000 Pickup Truck

If your light-duty truck suffers from flickering dash lights, intermittent power loss, or erratic sensor behavior, start by isolating the color-coded harness behind the driver-side kick panel. Trace the red-white stripe wire from the main fuse block to the turn signal switch–this path often develops brittle insulation near the firewall grommet. Replace the section with 16-gauge stranded copper wire, soldering each connection instead of twisting to prevent corrosion.

For persistent no-start issues, bypass the ignition relay temporarily with a jumper wire between terminals 30 and 87 on the under-hood relay box. If the starter engages, focus on the 14-gauge black-yellow wire feeding the relay coil–check for voltage drops across the neutral safety switch (located on the transmission housing) with a multimeter set to 20VDC. Resistance above 0.3 ohms indicates a failing switch that requires replacement.

Dashboard gauges acting erratically point to a compromised 10-gauge orange wire in the instrument cluster harness. Locate the splice near the steering column (often wrapped in black tape) and inspect for green corrosion–common where the wire passes through the firewall. Clean contacts with electrical-grade solvent and apply conductive grease to the connectors. If readings stabilize only when tapping the dash, replace the circuit board behind the cluster assembly.

For headlight failures, skip the bulb test first–inspect the 12-gauge light green wire from the headlight switch to the dimmer relay. Voltage should read 12.6V with the switch on; inconsistencies suggest a burnt switch contact or melted connector at the bulb socket. Replace the headlight switch ($28 OEM part #TK55-67-410) rather than attempting repairs–aftermarket switches often lack heat-resistant coatings, leading to repeat failures.

Alternator charging problems require checking the 6-gauge yellow wire at the battery positive terminal. With the engine off, disconnect the wire and measure resistance to ground–values below 5Ω confirm a short to the frame. Isolate the short by dividing the harness into sections, starting from the alternator output post. Focus on areas where the wire bends sharply near the radiator support or engine block.

Electrical Schematic for the ’86 Pickup: Precision Troubleshooting

Start with fuse box terminals: F1 (10A) powers ignition, F2 (15A) handles headlights. Trace red/black leads from F2 to multifunction switch under dash–this splits to low/high beams. Verify continuity at connectors C101 (instrument cluster) and C202 (fuel sender) with a multimeter set to 200 ohms. Resistance should read under 3 ohms for intact circuits; spikes indicate corroded joints at the firewall grommet.

Locate the alternator’s voltage regulator at the rear of the engine bay. Three wires: blue (exciter), white (battery sense), black/yellow (ground). Backprobe the blue wire during ignition-on–should deliver 12.6V. If not, replace the regulator; aftermarket units often fail at solder joints. Check stator windings by disconnecting the alternator plug and probing pins–AC voltage here must exceed 13.8V at 2000 RPM.

Examine the turn signal flasher module behind the hazard switch. One relay feeds both left/right circuits–failure causes rapid blinking. Swap with a known-good 4-pin relay (standard ISO type) to diagnose. For brake lights, follow the green/black wire from the pedal switch to the tail lamp sockets–common failure points include the trailer harness plug and rear body grounds near the spare tire.

Critical sensors: coolant temp sender (single-wire, 350 ohms at 70°C), TPS (variable resistance across pins A-C, 0.5-4.5k ohms sweep), and MAP (blue/red wire, 1-4.5V output). Test MAP with a vacuum pump–voltage drops linearly with vacuum increase. Ignition coil primary side resistance (yellow/black wires) must be 0.7-1.0 ohms; secondary (tower to distributor) 10-15k ohms. Replace if readings deviate by >10%.

Finding the Complete Electrical Schematic for Your 1985-1987 Compact Pickup

Start with the official service manual released by the manufacturer. For this model range, the factory-issued repair guide includes a dedicated section titled “Electrical System” or “Wiring Schematic,” typically spanning 20-30 pages. Look for part numbers THM-K865 or CHM-K865–these identifiers correspond to the North American and Japanese market versions, respectively, both containing identical diagrams.

Online repositories like MazdaFactoryRepair.com and PickupTruckRepairArchives.net host digitized copies of these manuals, often broken into downloadable PDF chapters. Filter search results by year cluster (1984-1988) to avoid irrelevant variants, as earlier or later editions may feature incompatible fuse layouts or connector pinouts. Critical pages to verify include those detailing the instrument cluster, ignition system, and charging circuit–these segments frequently contain fold-out schematics not present in the standard text.

Alternative sources include owner forums such as CompactTruckEnthusiasts.com or MazdaLightTruckClub.org. Experienced mechanics on these platforms sometimes upload annotated scans of their personal workshop manuals. Use forum search tools with keywords like “fusebox layout,” “starter relay pinout,” or “headlight harness,” paired with the model’s internal platform code–”BF” for this series–to yield precise matches.

Beware of third-party manual aggregators offering “universal” diagrams. These often splice together segments from multiple years, leading to mismatches in color-coding or ground locations. Verify authenticity by comparing connector labels against known OEM standards: red/white wires for ignition feed, black/yellow for battery positive, and body-ground symbols marked with “G” or “B-” tags.

If digital access fails, contact regional auto parts chains with OEM reference libraries. Stores like AutoZone Professional or NAPA Commercial maintain physical copies of manufacturer-issued schematics for classic models. Request lookup by VIN prefix–the first eight digits (e.g., JM2UF****) confirm engine and market variants, ensuring the diagram matches your vehicle’s exact configuration.

For partial repairs, focus on isolating specific circuits. The engine bay schematic spans pages 12-18 in most manuals, covering the alternator, distributor, and starter motor. Rear lighting and trailer wiring diagrams are separated into pages 22-25. Use a multimeter to trace discrepancies between the schematic and actual wiring–resistance values should match within 5% tolerance, and wire gauges (typically 18-12 AWG) must align with the legend.

Consider purchasing a physical repair manual from specialty publishers like Haynes or Chilton. While condensed, their electrical diagrams are vetted against manufacturer originals and include troubleshooting flowcharts. Avoid “quick reference” guides–they omit crucial details like sensor pinouts or optional equipment wiring (e.g., air conditioning or fog lights).

For persistent gaps, contact the automaker’s classic vehicle support division. Their archives retain microfiche copies of all original schematics, which can be faxed or mailed upon request. Provide the VIN, registration history, and a description of the missing section–response times range from 48 hours for digital requests to 10 business days for mailed documents.

Locating Critical System Elements in the Vehicle’s Electrical Blueprint

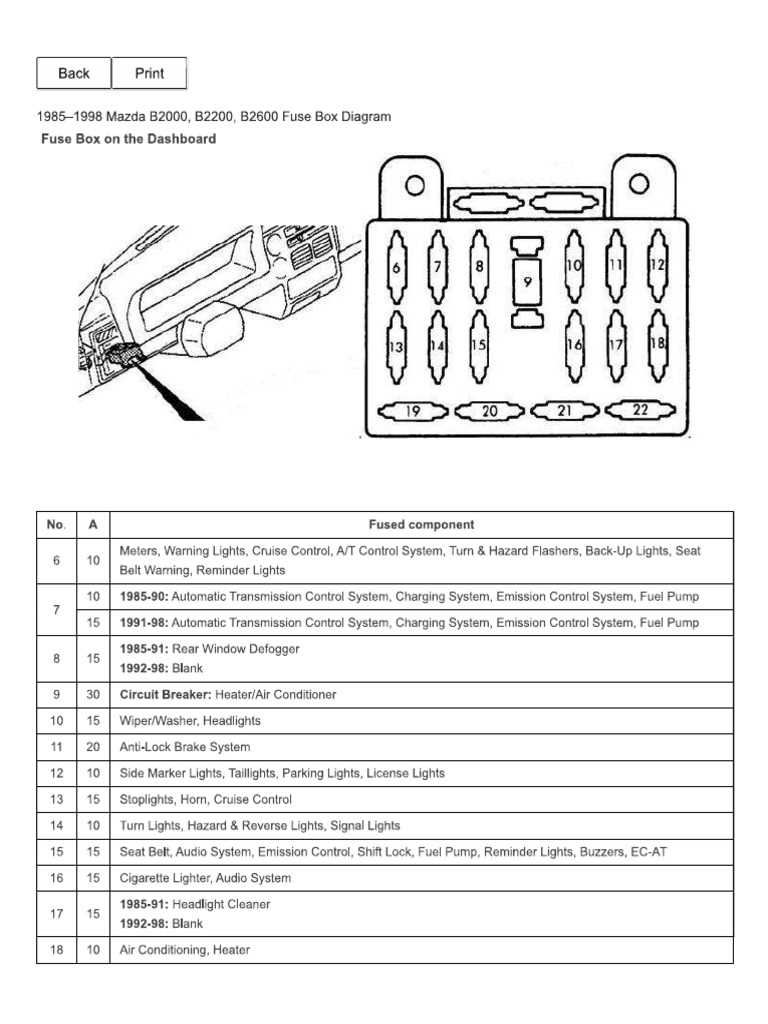

Begin by isolating the central fusebox, typically mounted beneath the dashboard on the driver’s side. Verify fuse ratings against a reference chart–mismatches often cause intermittent failures. For example, the ignition relay (marked 15A) controls fuel pump activation; a blown fuse here halts engine start entirely. Label each fuse slot with masking tape to avoid misplacement during testing. Use a multimeter to confirm continuity before replacing any suspect components.

Trace the battery’s positive cable to the starter solenoid–this heavy-gauge conductor is prone to corrosion at terminal connections. Clean contacts with a wire brush and apply dielectric grease to prevent future oxidation. The solenoid also routes power to the alternator’s B+ post; a faulty connection here reduces charging voltage, mimicking alternator failure. Check voltage drop across the solenoid (should be <0.5V) to confirm integrity. If resistance exceeds this threshold, replace the solenoid or repair the cable.

Examine lighting circuits by reviewing color-coded pathways on the schematic: headlamps (white/blue), brake lights (red/white), and turn signals (green/yellow). Common failure points include ground connections near the taillights and corroded bulb sockets. For the instrument cluster, locate the voltage stabilizer (usually a small black box adjacent to the tachometer)–this regulates 5V to gauges. Test input/output voltages with a multimeter: inconsistent readings suggest a failed stabilizer, leading to erratic gauge behavior.

Inspect the ignition coil and distributor assembly by identifying the primary (thick brown/green) and secondary (thin blue/yellow) wires. High-resistance connections in these circuits cause misfires or hard starting. Test coil resistance: primary should read 0.7–1.2Ω, secondary 8–15kΩ. Replace the coil if readings fall outside these ranges. For distributor-based systems, ensure the pick-up coil resistance (measured between distributor terminals) is 500–1500Ω–deviations indicate internal damage requiring distributor replacement.

Component	Wire Color (Primary)	Typical Resistance/Reading	Failure Symptoms
Ignition Relay	Red/White	Continuity when energized	No fuel pump prime
Alternator B+ Cable	Heavy-gauge red	Voltage drop <0.3V	Battery not charging
Fuel Pump Relay	Blue/White	Click audible when activated	Engine cranks but no start
Temperature Sensor	Yellow/Black	1–10kΩ (varies with temp)	Poor idle, overheating
