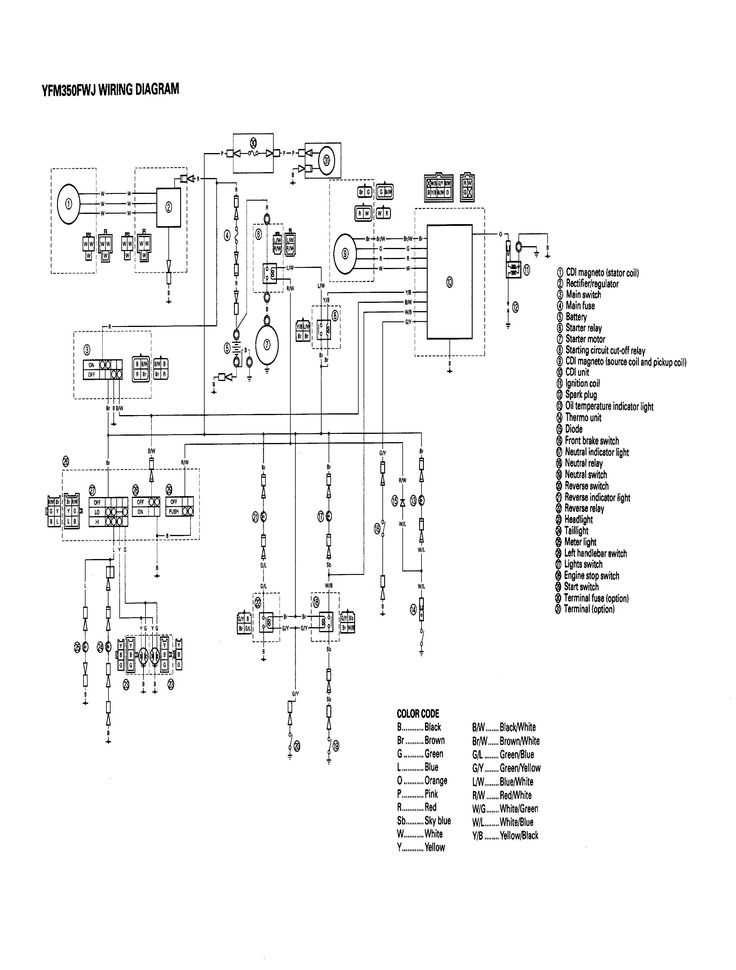

Complete Yamaha Warrior 350 Electrical Wiring Schematic from 1987

Start by disconnecting the battery terminals to prevent accidental shorts while inspecting the harness. Locate the main fuse block beneath the seat–it houses three 10A fuses governing ignition, lighting, and auxiliary circuits. If the engine cranks but fails to start, trace the red/white ignition feed wire from the solenoid to the rectifier; continuity loss here is a common culprit. Replace frayed sections with 12-gauge automotive wire, crimping connectors at 3/16″ intervals for secure contact.

For persistent electrical gremlins, focus on the black/yellow ground leads near the frame rails. Corrosion here mimics faulty sensors–clean with a wire brush and apply dielectric grease before reattaching. The turn signal relay, mounted behind the left side panel, often fails silently; swap it with the horn relay (identical part #3SW-84750-00) to test function without dropping tools.

High-beam failure points to the blue/white lead at the handlebar switch first. If voltage present but no illumination, check the bulb socket tabs for oxidation–bend them outward to restore contact. Modify stock harness routing if aftermarket handlebars rub insulation; reroute loom along the bottom triple clamp using 1/4″ spiral wrap for strain relief.

CDI unit diagnostics require a multimeter set to 20kΩ. Probe pins G (gray) and Y (yellow/blue)–readings below 2kΩ indicate internal capacitor leakage; replace with OEM unit only. Aftermarket CDIs often misfire under 3,000 RPM; adjust ignition timing to 12° BTDC using the stator’s alignment marks.

Tail light flickering stems from either the brown feed wire’s loose connector at the rear fender (snip and solder) or a failing voltage regulator. Bypass tests: jumper the green/red (field) wire to battery positive–steady output confirms a bad regulator. For upgrades, wire in a MOSFET-based unit (Kawasaki part #21067-1042) using the existing mounting points; it handles load dumps better than the stock SCR type.

Understanding the Electrical Blueprint for Your Classic Off-Road Bike

Locate the main harness connector near the battery–it’s a 12-pin plug labeled “A” and “B” on the original schematics. Pin A1 (red/white stripe) carries ignition power; test for 12V with the key in the “ON” position. If voltage drops below 10.5V, inspect the rectifier-regulator (mounted beneath the left side panel) for corrosion on the heat sink fins or failed diodes–common failure points in models of this vintage. Replace with a compatible aftermarket unit (e.g., Shindengen FH012AA) if testing reveals AC ripple exceeding 0.5V on a multimeter’s DC range.

Critical Troubleshooting Paths

• Lighting Circuit: Trace the yellow wire from the headlight bulb socket to the dimmer relay (behind the instrument cluster). A dim or flickering beam typically indicates a faulty ground–clean the frame connection point near the steering stem using 120-grit sandpaper and apply dielectric grease. For intermittent brake lights, bypass the brake switch with a jumper wire; if the lights illuminate, replace the switch (part #3JW-83780-00).
• Charging System: Connect a multimeter between the battery’s positive terminal and the stator’s red output wire (exiting the engine casing). At 3,000 RPM, voltage should read 13.5–14.8V. If readings fluctuate wildly, disassemble the flywheel cover and check stator resistance–target 0.2–0.5 ohms between any two lead wires. Replace the stator assembly if readings exceed 1.0 ohm.
• CDI Box: Swap the ignition box with a known-working unit (borrow from a donor bike or use aftermarket CDI like VMS Racing). If the engine starts, the original box is defective–rebuilt units are unavailable, but aftermarket alternatives often require soldering a voltage stabilizer (7809 IC) to prevent premature failure.

Store digital backups of your schematics as vector files (SVG) for precise scaling during repairs, and annotate physical copies with highlighters to mark confirmed functional circuits. Always disconnect the battery’s negative terminal before probing live wires to avoid shorting the ECM or triggering the tip-over sensor’s self-destruct sequence.

Finding Key Electrical Junction Points on a Classic ATV

Begin by removing the left side panel–it secures with three 10mm bolts and one plastic rivet near the rear fender. Behind this cover lies the primary harness cluster, identifiable by a rectangular black connector with six wires: red, yellow, green (two), black (two), and a single white trace. This junction routes power to the ignition coil, headlight relay, and CDI unit. Treat corroded terminals with contact cleaner and re-crimp any deformed spade ends.

The engine bay houses two critical splitters. The first sits beneath the fuel tank, tucked against the frame rail–a four-pin white connector (purple, orange, gray, pink) linking the stator to the regulator. Follow the orange wire back to the alternator; if resistance exceeds 0.2 ohms, replace the rotor. The second splitter appears at the rear of the cylinder, where a three-wire black connector (blue, brown, white) joins the kill switch, throttle position sensor, and ECU ground. Probe each pin while cranking; voltages should toggle between 0.8V and 4.2V.

Under the seat, a compression-molded loom protector shields additional connectors. Pry off the rubber grommet to expose a five-pin junction–black (three female, two male)–that distributes signals to the taillight, brake switch, and horn. Use a multimeter in continuity mode to verify each circuit; expect zero ohms between chassis ground and body-colored wires. A missing horn ground often mimics a dead battery–trace the black/yellow stripe to the frame lug.

Behind the instrument cluster lies a hidden eight-pin connector, typically green or beige. This hub consolidates speedometer, neutral light, high-beam indicator, and turn signal inputs. Disassemble the speedo housing by removing two Torx T20 screws; the wires exit through a strain-relief sleeve–ensure the sleeve hasn’t chafed against the aluminum dash support. Mismatched turn signals frequently stem from broken strands here–strip, tin, and solder any damaged terminals.

The front fender mounts a lesser-known three-wire harness leg–white (main), black (ground), and a thin brown sensor lead–feeding the front brake switch. Locate the connector adjacent to the fork stem; corrosion builds inside the terminal housing, requiring removal of the fork assembly to access the male pin retainers. Spray dielectric grease into each cavity after cleaning; moisture ingress at this junction triggers intermittent ABS-like brake warnings.

Exhaust manifold heat shields conceal the final grouping–a two-pin connector (red, blue) that bridges the oxygen sensor and CDI pulse generator. Remove the two 12mm nuts securing the shield; the connector snaps into a plastic clip on the down tube. Failure here causes hesitation above 4000 RPM–back-probe the blue wire while running; a stable 0.5V reading confirms sensor integrity.

Use zip ties to secure any rerouted leads against sharp frame edges and recheck all connections with a thermal camera–hotspots above 60°C suggest loose terminals or undersized wire gauges. Label each harness branch with colored tape matching the factory service manual coding system: yellow for lighting, purple for ignition, orange for charging circuits.

Understanding the Color-Coded Connections in Your Off-Road Machine’s Electrical Schematic

Begin by isolating the main harness near the ignition coil–this is your reference point. The red lead (often with a white tracer) carries the primary positive charge from the battery; interrupt this circuit first when diagnosing power failures. The black cable with a yellow stripe grounds the CDI module: verify continuity here if the engine cranks but won’t fire. For lighting systems, orange wires feed the headlamp, while green/red pairs handle brake signals–swap bulbs if flickering occurs before checking these lines.

Trace the following critical paths in the harness, noting splices and connector types:

• Yellow/red: Alternator output–measure AC voltage (18–22V) with engine at 5,000 RPM; lower readings indicate stator issues.
• Brown/white: Neutral switch input–test resistance (∞ when engaged, 0Ω otherwise) to confirm transmission safety lockout.
• Blue/white: Tachometer signal–install an inline capacitor (0.1µF) if the gauge displays erratic readings.
• Gray: Regulator/rectifier input–probe for 13.8–14.4V DC at idle; voltage drops below 13V suggest failed diodes.

When probing, use a multimeter set to DC 20V for power circuits and Ω 200 for switches. Label each connection with masking tape temporary tags to avoid cross-testing errors during reassembly.

Troubleshooting Common Anomalies Using Color Codes

If the electrical system exhibits intermittent faults:

1. Disconnect the battery negative terminal before handling any wires to prevent short-circuits.
2. Inspect white/red wires (fuel pump circuit) for chafing near the frame; replace with 16-gauge silicone-jacketed wire if insulation is compromised.
3. Examine black/white leads (ground straps) for corrosion–clean with a wire brush and apply dielectric grease to connections.
4. For starter solenoid issues, verify the purple trigger wire delivers 12V when the ignition is engaged; bypass with a jumper wire if the relay clicks but fails to crank.

Replace any brittle or oxidized connectors with waterproof Deutsch or AMP-style terminals to prevent future oxidation.
