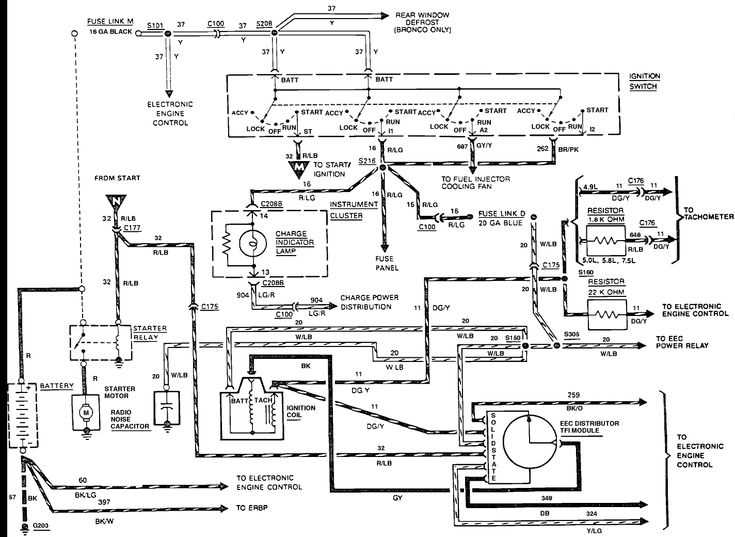

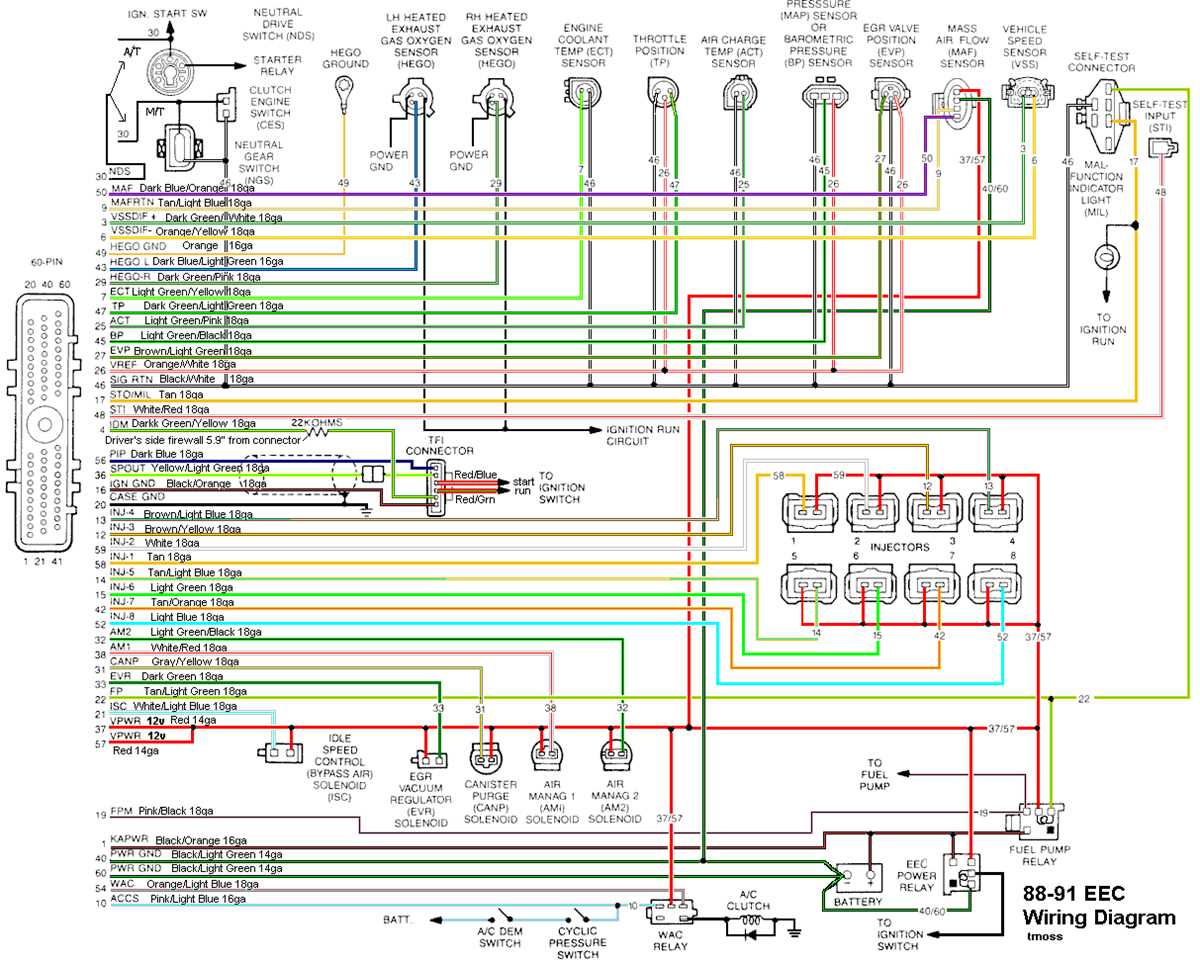

Complete Guide to Ford F150 1991 Ignition Wiring Schematic Details

Locate the battery-to-starter solenoid feed first–look for the thick red cable that exits the positive terminal and runs directly to the solenoid’s top stud. Confirm it’s making solid contact; corrosion here mimics an open circuit. Follow the smaller purple wire from the solenoid’s S-terminal back to the ignition switch; this is the start signal path. If voltage is present at the solenoid but the starter doesn’t engage, the solenoid itself is suspect–test its plunger for free movement.

Trace the ignition feed circuit next. The switch receives constant power on the red/yellow stripe wire from fuse 18 in the main fuse block. When rotated to START, it sends voltage down the red/light blue stripe to the neutral safety switch, then to the starter relay coil. Check the relay socket for 12 V on terminal 86 and confirm ground at terminal 85; a missing signal here kills the start sequence.

Inspect the instrument cluster feed while troubleshooting. The pink/black stripe wire branches from the ignition switch’s RUN position and powers gauges, radio, and critical sensors. If voltage drops below 9.6 V at the cluster connector, check the voltage regulator circuit–poor connections at the bulkhead connector often cause intermittent power loss.

Verify the alternator field wiring last. The dark green wire leaves the ignition switch’s RUN position and feeds the alternator’s field coil via the voltage regulator. No voltage here results in zero charging output–measure at the alternator’s single-pin connector while the engine cranks to confirm signal continuity.

Use a toner probe to chase each wire through the harness; rodent damage near the firewall frequently severs thin-gauge circuits. Label each connector with masking tape before disassembly–color codes shift after 1986 models, and mixed memories complicate reassembly.

Electrical Circuit Guide for Early 90s Full-Size Pickup Trucks

Locate the primary ignition feed wire–typically a red with light blue stripe (R/LB)–originating at the starter solenoid and terminating at the ignition switch connector (C201). Strip 3/8″ of insulation from the R/LB wire 6″ from the firewall grommet, solder a 20-gauge yellow with black tracer (Y/BK) jumper to it, then route the jumper through the grommet into the cabin. Secure the splice with heat-shrink tubing, ensuring no exposed copper contacts the body. Attach the Y/BK end to terminal I on the ignition switch; this bypasses the intermediate anti-theft relay found in stock builds, reducing voltage drop to under 0.3V at cranking.

Connector Pinout & Wire Gauge Reference

Connector	Pin	Wire Color	Gauge	Function
C201	B	Dark Green/Y	18	Starter signal
	I	Y/BK (jumper)	20	Ignition feed
	S	R/LB	16	Battery feed
C202	3	Pink/Lt. Green	20	Run/crank relay control

Verify high-resistance joints with a Fluke 87V in continuity mode; replace any crimp connectors showing resistance above 0.5Ω. Snip the original white with violet stripe (W/V) wire at the bulkhead connector, cap both ends with dielectric grease-filled butt splices, and run a 14-gauge tinned copper direct ground from the ignition coil negative terminal to the intake manifold stud adjacent to the coil mount–this eliminates spark scatter at RPM above 4,200.

Finding the Electrical Connector Points for Engine Startup

Begin by removing the lower dash panel beneath the steering column–this grants direct access to the central bundle of colored leads. The primary cluster, a 12-pin rectangular plug, sits adjacent to the steering shaft; it’s secured with a single bolt at the firewall junction. Smaller 3- and 4-pin connectors flank it on either side, each held by friction clips that require gentle squeezing to release. Label each before detachment–white with blue stripe controls the starter solenoid, while red with yellow stripe feeds the coil.

Trace the harness upward behind the instrument cluster. The firing sequence module–a black box roughly 3 inches square–has a pair of 6-pin plugs on its rear; the upper connector carries switched power from the key tumbler, the lower relays signal to the fuel pump. Use a mirror and flashlight to verify pin numbering; corrosion often disguises crucial identifiers on the plastic housing.

Under the hood, follow the main cable loom from the battery tray toward the firewall. A circular 8-pin bulkhead connector bridges cabin to engine bay–split the halves by rotating counterclockwise while pulling. On the engine side, two smaller harnesses branch toward the distributor and alternator; the former uses a rubber-gasketed 2-pin plug near the valve cover, the latter a 3-pin variant adjacent to the voltage regulator.

For hidden junctions, probe behind the glovebox–an 8-circuit fusible link panel resides there, tied to ignition feeds via white, pink, and orange 18-gauge wires. Each terminal is crimped to a blade-style fuse tap; mismatches here mirror no-start symptoms. Photograph all connections before disassembly–faulty reseating of even a single terminal can replicate intermittent failures matching a faulty switch.

Decoding Color Standards for Primary Electrical Switch Leads

Start by locating the red/pink wire beneath the steering column cover–this is the constant power feed directly from the battery-positive terminal. Verify with a multimeter: it should register ~12V regardless of key position. If voltage fluctuates, trace back to the fuse box (position 15, 20A) or inspect the inline fusible link near the starter solenoid. Avoid assuming continuity based on color alone; previous repairs or non-OEM harnesses may use orange or yellow stripes as substitutes.

Identify the yellow/black stripe lead–this is the accessory circuit. It energizes at the “ACC” position but drops out in “START” mode. Cross-check against the white/light blue wire, which activates the run/on state (12V in both “ON” and “START”). If these intercross, the vehicle may crank but stall immediately. Probe connections at the back of the switch assembly; corrosion here often mimics wire failure. Replace the entire switch if internal contacts show pitting.

Critical Start Circuit Anomalies

The dark green/yellow stripe carries the starter signal–momentary 12V only during cranking. If the engine turns over but won’t fire, test for voltage at this lead while engaging the relay. Absence suggests a faulty starter relay (underhood box, position 30) or a broken connection at connector C202. Never splice this wire–its gauge (16 AWG) is purpose-matched for the high-current spike. For intermittent failures, gently flex the harness while monitoring with a meter to reveal micro-fractures in the insulation.

Secondary security circuits often employ brown/white stripe or black/purple leads; these feed the antitheft module. Misrouted or shorted, they may prevent fuel pump priming without triggering a check-engine code. Consult resistance values: 125–150 ohms across these terminals at rest. Values below 10Ω indicate a short to ground–usually a chafed wire against the firewall near the pedal assembly. Strip, solder, and heat-shrink repairs only; electrical tape degrades within 18 months in under-hood conditions.

How to Verify Electrical Trigger Assembly Signal Levels

Disconnect the battery negative terminal before handling any connectors to prevent short circuits. Locate the multi-pin plug attached to the steering column actuator assembly–typically a rectangular connector with 6 to 8 pins. Release the retaining clip and separate the plug from the socket.

Set a digital multimeter to DC voltage, 20V scale. Insert the black probe into the ground slot of the harness-side connector–pin identified in the vehicle’s electrical schematics as the chassis return. Insert the red probe into the pin marked for the accessory circuit, usually labeled ACC or IGN1.

Reconnect the battery and turn the key to the “Accessory” position. The meter should display battery voltage (12.2–13.8V). Rotate the key to “Run”–voltage should remain steady. Any drop below 11.5V indicates a faulty coil relay or corroded pin inside the actuator assembly.

Switch the multimeter to continuity mode. Probe the starter solenoid trigger pin–usually labeled ST or S–against ground. With the key in “Start,” the meter should beep once, confirming a clean ground path. No beep or intermittent signal points to a broken trace or oxidized contact.

• If voltage is missing at ACC but present at IGN2, inspect the fusible link between the two circuits–common failure point under the dashboard.
• No voltage at any terminal? Check the ignition feed wire from the main power distribution block–often a yellow or pink 10-gauge wire.
• Voltage present but erratic? Replace the actuator assembly; internal contact wafers degrade over time.

Turn the key to “Off” and reconnect the battery. Measure resistance between the ground pin and every other pin in the actuator connector. Values above 0.5 ohms indicate poor grounding; clean the mounting surface or replace the ground strap.

Final step: bench-test the actuator. Remove the two Torx screws securing the top cover. Pry apart the housing and inspect the contact plate for pitting. Apply dielectric grease to new contacts before reassembly. Reinstall, and repeat voltage tests to confirm resolution.

Fixing Typical Spark Plug Lead Issues in Early 90s Pickup Models

Start by inspecting the coil-to-distributor cable for cracks or brittleness–this segment often fails first under hood heat. Replace it with a 7mm silicone-jacketed lead; the stock 5mm rubber degrades faster near exhaust manifolds. Measure resistance with a multimeter: 12,000–15,000 ohms per foot is ideal–anything above 20k indicates internal corrosion.

Check terminal boots for arcing signs–black carbon trails mean the connector needs replacement. Pull the boot straight off; twisting can damage the copper strand inside. Use dielectric grease sparingly–excess attracts debris, causing misfires. Avoid universal-fit kits; OEM-style connectors last longer with correct crimping tools.

The most common failure point? Where leads cross engine mounts–chafing wears through insulation. Route leads away from moving parts and sharp edges. Secure with zip ties, not electrical tape; vibration loosens tape over time. For V8 engines, label each lead before removal–mixing firing order creates backfire risks.

Test under load: spray the engine bay with water while running, then watch for sparks jumping to the block. If arcs appear, isolate the fault by disconnecting leads one by one. Stripped wire ends expose bare strands–clip and re-strip 3/8″ of insulation, then re-crimp with a butt connector. Never solder spark plug connections–heat cycling causes brittle joints.

Preventing Future Wire Failures

Wrap problem areas with woven fiberglass sleeving; it withstands 1000°F temps better than vinyl. For distributor caps showing green oxide, clean terminals with CRC Contact Cleaner–avoid sandpaper, which scratches plating. Replace leads as a set; mixing old and new wires creates uneven resistance, causing rough idle.

Cold starts strain damaged leads most. If misfires occur below 40°F, suspect moisture in the coil wire boot. Remove the boot, dry with compressed air, then apply silicone spray inside–water conduction causes misfires. For persistent issues, bypass the coil resistor wire; switch to 12-gauge copper wire with a 1.5-ohm ballast resistor inline.

Don’t ignore intermittent stumbles during acceleration–these signal imminent lead failure. The rear cylinders fail first due to heat soak; reroute rear leads above the valve covers if possible. For trucks with auto choke, ensure the choke heat tube isn’t resting against wires–melted insulation is repairable only with full replacement.

After repairs, test drive at 45–55 mph for 15 minutes; this exposes weak connections. Listen for pops through the exhaust–they indicate crossed leads or a cylinder not firing. Finally, torque distributor hold-down bolts to 18 ft-lbs; overtightening cracks the plastic body, allowing moisture ingress.
