Complete Pioneer AVH-4200NEX Wiring Schematic for Installation
Begin by securing the ground wire to a clean, unpainted metal surface on the vehicle’s chassis–this prevents signal interference and ensures stable operation. Use a 10-gauge wire or thicker for optimal conductivity. Locate the factory grounding point near the mounting bracket; failing to do so may result in audio distortion or system resets.
The constant 12V power lead must connect directly to the battery via a 20-amp fuse placed within 18 inches of the terminal. Avoid routing this wire through the firewall alongside signal cables–electromagnetic interference will degrade performance. For vehicles with start-stop systems, add a relay to maintain power during engine cutoffs.
Speaker outputs require 16-gauge oxygen-free copper wire to preserve audio clarity. Match the polarity precisely: positive (marked red or striped) to the corresponding terminal, negative (solid color) to the chassis ground. Mistakes here create phase cancellation, reducing bass response by up to 60%. Use crimp connectors with heat shrink tubing to prevent corrosion–exposed strands cause intermittent failures.
The parking brake bypass involves splicing into the vehicle’s brake light circuit. Consult the manual for the exact wire color (typically blue/white or pink), as variances exist across models. Ignoring this step disables video playback while driving, a safety feature enforced by OEM systems.
For rear-view camera integration, route the yellow video lead through the headliner to the camera’s RCA jack. Ensure the camera’s power wire (red) connects to the reverse light circuit–this triggers automatic display activation when shifting into reverse. Use a 4-pin mini-DIN connector if splicing into factory harnesses to avoid signal loss.

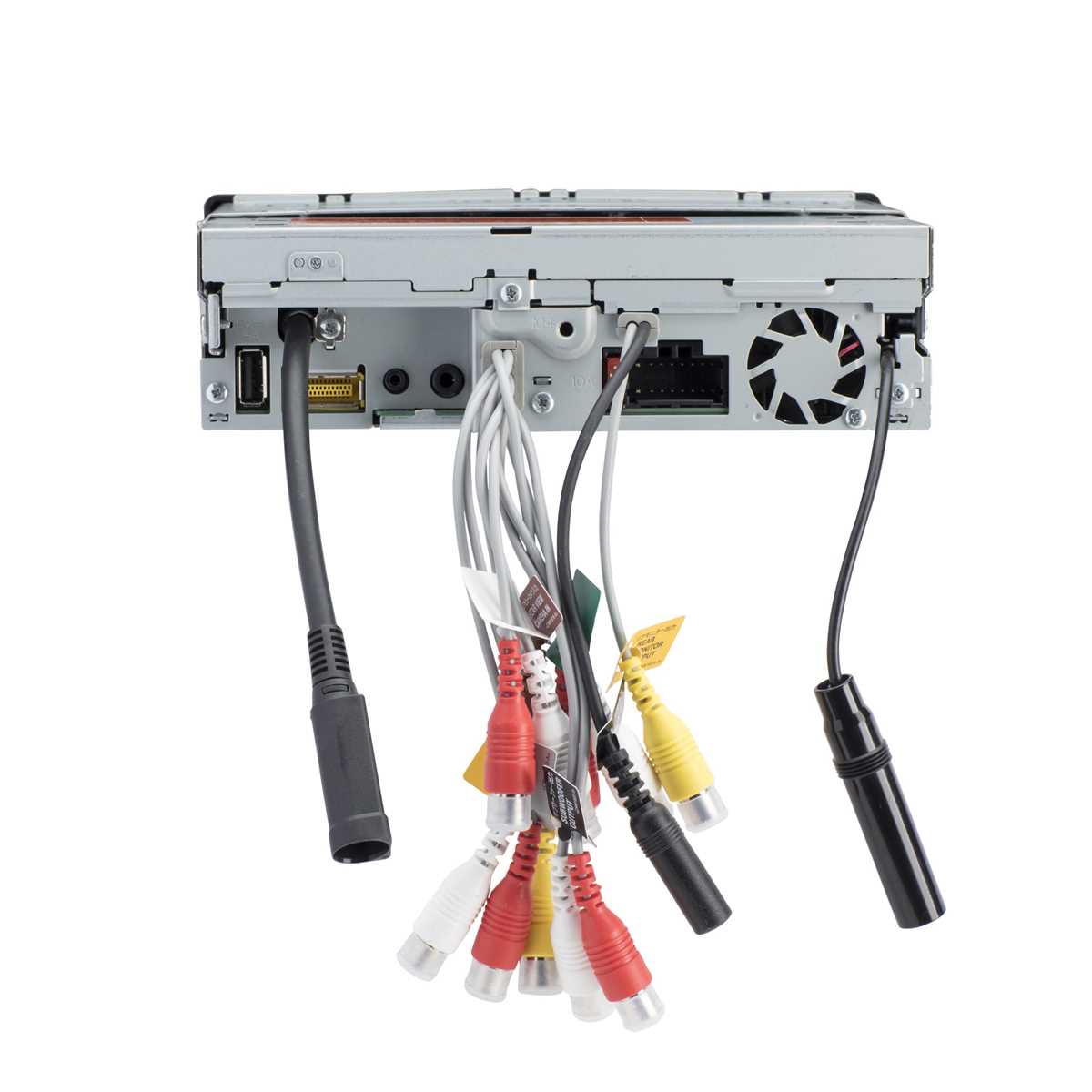

Head Unit 4200NEX Connection Schematic: Full Breakdown
Begin by matching the harness colors from your vehicle’s factory connector to the aftermarket stereo’s adapter. Use a multimeter to verify voltages–constant 12V (yellow) should read 12V with the ignition off, while switched 12V (red) must drop to zero when the key is removed. Ground (black) should show continuity to the chassis; resistance above 0.5 ohms signals corrosion or loose mounting. For parking brake detection, connect the pink/white wire to a 500–1000 ohm resistor before grounding it, preventing video playback restrictions when driving. If reverse camera integration is needed, route the purple wire to the backup light circuit–triggering +12V activates the display automatically.
| Wire Color | Function | Voltage (Key Off) | Voltage (Key On) | Notes |
|---|---|---|---|---|
| Yellow | Battery Constant | 12V | 12V | Fused at 10A |
| Red | Ignition Switched | 0V | 12V | Drops with key removal |
| Black | Ground | 0V | 0V | Chassis connection required |
| Blue/White | Amplifier Remote | 0V | 12V | Activates external amp |
| Pink/White | Parking Brake | Variable | Variable | Resistor needed for bypass |
For audio outputs, route RCA cables (red/white for front, gray/white for rear) directly to the amplifier, avoiding routes near power wires to minimize noise. Subwoofer pre-out (purple) typically requires a dedicated mono RCA cable to a powered sub. If steering wheel controls are retained, splice the vehicle’s control wires into the aftermarket harness’s light blue/yellow (SWI) input–refer to the car’s specific interface adapter for pin assignments. Double-check all connections with a test light before finalizing; intermittent power often traces to poor crimps or damaged insulation.
Mastering Power and Ground Hookups for Your In-Dash Multimedia System
Connect the main power lead (yellow, 12-gauge minimum) directly to the vehicle’s battery terminal–never to a fuse block or accessory circuit. A dedicated fuse (20A) must be installed within 18 inches of the battery to prevent fire hazards. Use tinned copper wires and crimp connectors with heat-shrink tubing for corrosion resistance. Avoid daisy-chaining this line to other electronics, as voltage drops can cause glitches or unit resets, especially during cranking.
Grounding: The Silent Performance Killer
Attach the ground cable (black, same gauge as power) to a bare metal chassis point near the head unit’s mounting location. Scrape away paint or undercoating to ensure a solid connection–even a thin layer of insulation can introduce resistance. For vehicles with aluminum or composite bodies, bolt to a factory grounding stud or engine block. Test continuity with a multimeter (less than 0.1 ohms) before finalizing; weak grounding manifests as screen flicker, distorted audio, or random shutdowns.
Use dielectric grease on ground connections to block moisture, especially in humid climates. Avoid mounting near ECUs or sensitive modules–stray currents can interfere with CAN bus signals. If experiencing noise issues, relocate the ground point at least 12 inches from alternator leads or ignition systems. For V6/turbocharged engines, consider a secondary ground strap from the head unit’s chassis to the vehicle frame to eliminate alternator whine.
Route power and ground cables through the vehicle’s firewall using existing grommets to prevent chafing. Seal entry points with silicone or firewall-safe sealant to block water infiltration. Never bundle these wires with speaker or RCA cables–keep a minimum 6-inch separation to avoid electromagnetic interference. Label both ends of each cable with heat-shrink tubing markers (e.g., “BATT+” and “CHASSIS GND”) for future troubleshooting.
After installation, verify voltage stability with the engine running: the power line should read 13.8–14.4 volts. Any deviation suggests alternator issues or excessive wiring resistance. Ground voltage should read 0 volts relative to chassis; readings above 0.05 volts indicate a poor connection. Use a load tester to simulate real-world conditions–if the head unit reboots during heavy bass, upgrade to 10-gauge wires or add a capacitor within 12 inches of the unit.
Step-by-Step Speaker Wire and Subwoofer Output Connections for Your Head Unit
Begin by identifying the rear RCA preamp outputs on your device–specifically the subwoofer (typically a single mono channel) and front/rear speaker pairs (colored red/white). Use oxygen-free copper cables with a minimum gauge of 16 AWG for full-range signals and 12 AWG for low-frequency channels to minimize resistance and signal degradation. Connect the red RCA to the positive (+) terminal of the amplifier or active subwoofer, ensuring the white RCA (or black, if marked) links to the negative (-) terminal.
Preparing the Amplifier Inputs
For passive speaker setups, strip ¼ inch (6mm) of insulation from each wire end using a dedicated stripper tool–avoid cutting strands or excessive twisting. Crimp gold-plated spade connectors onto the exposed copper to prevent oxidation and ensure a secure grip on amplifier terminals. Match the color-coded pairs from the head unit’s harness to the amplifier’s input: yellow/black for rear left, green/black for rear right, white/black for front left, and red/black for front right.
If integrating a dedicated subwoofer output, route the mono RCA signal through a low-pass filter crossover set between 80–120 Hz. Adjust the amplifier’s gain to 50% of its maximum during initial testing to prevent clipping–use a multimeter to verify voltage output (target ~2.0V at moderate volume). For 4-ohm loads, confirm the amplifier’s impedance compatibility; mismatches can cause overheating or blown fuses.
Secure all connections with zip ties at 8-inch intervals to prevent vibration-induced shorts in high-movement installations (e.g., off-road vehicles). Test each channel individually using a pink noise signal at 75% volume–speakers should produce clear, distortion-free output. If phase issues arise (e.g., weak bass), reverse the positive/negative wires on the problematic channel or verify the RCA grounding point on the head unit’s chassis.
For high-power setups, add an inline fuse holder (30–50A) within 7 inches of the battery’s positive terminal. Use tinned copper wire for corrosion resistance in humid environments. Double-check the remote turn-on lead (blue/white stripe) to ensure it delivers 12V trigger voltage–failure here disables the amplifier entirely. Finalize by tightening all terminals with a torque screwdriver (3–5 in-lbs) to avoid loose connections.
Correct Installation of Vehicle Safety and Backup Sensor Connections
Connect the handbrake safety circuit directly to the orange/light blue cable from the main harness. Use a 1 kΩ resistor for proper signal detection–skipping this step triggers a persistent warning on the display. Confirm voltage fluctuates between 0V (engaged) and 12V (released) with a multimeter before finalizing the splice. Secure the joint with solder and heat-shrink tubing to prevent corrosion; twist-and-tape methods fail under vibration.
Steps for Reverse Signal Integration:
- Locate the vehicle’s backup light switch–typically a brown or purple wire–using a wiring schematic specific to the car model.
- Tap this wire and route it to the green/white lead on the multimedia unit’s connector, ensuring the path avoids sharp edges or moving parts.
- Verify functionality by engaging reverse gear; the interface should switch to the rear camera feed within 0.5 seconds. If delays occur, inspect for voltage drops (acceptable range: 10.5–14V) or interference from other circuits.
- Fuse the connection with a 7.5A mini-blade fuse–standard automotive fuses risk melting under prolonged use.
Test both circuits under real driving conditions–parking brake engagement while moving should disable touch inputs, and reverse gear activation must override all other video sources immediately.
