Complete Guide to 2004 Pontiac Grand Am Radio Wiring Diagram and Installation
For immediate access to the correct connections, locate the pink (B+ constant power), yellow (switched ignition), black (ground), and light blue/white (antenna trigger) wires behind the factory harness. These are the primary feeds for any aftermarket unit. Verify continuity with a multimeter before splicing–older models often exhibit corroded terminals near the dash firewall, especially on the driver’s side fuse block.
If integrating a modern head unit, bypass the factory amplifier by identifying the rear speaker wires (gray, violet, green, and tan) and connecting them directly to the new device’s outputs. The stock amplifier, mounted behind the glove box, frequently fails, causing distorted sound or no output. Testing the orange/black (illumination) and brown/white (dimming) wires ensures proper dash sync; incorrect polarity here can trigger erratic behavior in LED displays.
For steering wheel control retention, use an ASWC-1 adapter or equivalent. The control module’s data bus communicates via the dark green/white (serial data) wire–cutting this line without a bypass will disable climate control feedback. If retrofitting a Bluetooth module, splice into the gray/red (left front speaker) and dark green/white (right front speaker) wires for optimal signal clarity; avoid tapping into the rear channels, as impedance mismatches can damage the new unit.
Ground loops are common in this model–isolate the new grounding point from the original chassis connection or risk intermittent static. The factory anti-theft system may engage if the yellow (battery) wire loses voltage for over 10 minutes; a 12V trickle charger during installation prevents this. For vehicles with OnStar, retain the purple (OnStar data) wire to avoid triggering false diagnostics; alternatively, terminate it with a 330-ohm resistor if removing the system entirely.
Aftermarket Audio System Hookup Guide for 2004 Grand Am Models
Locate the 12-pin ISO connector behind the factory head unit–pins 1 (yellow), 4 (red), and 7 (orange) deliver constant 12V, switched ignition, and illumination respectively. Ground attaches to pin 5 (black). For amplified setups, splice the purple/black (left rear+) and green/black (right rear+) leads from the OEM harness into the new amp’s high-level inputs, ensuring 18-20 AWG wire to prevent signal degradation. Verify fuse ratings: 15A for power, 10A for memory retain.
Color-Coded Wire Functions
Gray/black (pin 8) and dark gray/black (pin 9) handle the front left and right speaker outputs, each feeding 4Ω at 22W RMS. The rear outputs–purple (pin 6) and green (pin 10)–match this spec but often require bypassing the factory noise suppressors via direct splicing to avoid 15% signal attenuation. Use a T-harness adapter if retaining steering wheel controls; pin 12 (light blue/white) carries the data bus signal–strip ⅛” of insulation and solder to the aftermarket interface’s corresponding wire.
Test each connection with a multimeter before reassembly–measure 11.8-12.2V on the power lines with the ignition on, and ~0Ω between speaker outputs and ground when idle. For CD changers or satellite tuners, the OEM data line (pin 11, gray/red) hooks to the aftermarket harness’s “aux input” lead; failure here typically triggers “no disc” errors. Secure all splices with heat-shrink tubing and bundle wires away from the HVAC ducts to prevent rattles or melting risks.
Matching OEM Audio System Plugs for Safe Removal
Begin by locating the factory stereo’s dual 12-pin connectors behind the dash trim. The upper plug–colored dark gray–carries 12-volt constant power, illumination feed, and antenna trigger. The lower, light gray connector supplies switched accessory power, left/right speaker outputs, and ground. Each pin is keyed with a small notch to prevent reverse insertion, so alignment is critical before pulling connectors apart.
Use a non-contact voltage tester to verify the absence of current on exposed metal terminals before handling. Pin #5 on the dark gray harness (marked A12 on some schematics) is the retained power for memory functions; disconnecting it will reset preset stations and clock settings. Extend wires at least 15 cm beyond the connector backshell to allow safe splicing without straining factory seals. If corrosion is present, clean contacts with electrical contact cleaner and a fine nylon brush–avoid abrasive tools that can remove protective plating.
Adapter Verification Steps
Compare the vehicle-side plugs against aftermarket harness adapters by counting pins and noting color codes. Factory connectors use the following wire colors for primary signals: solid orange (12V constant), purple/white stripe (right rear speaker +), and brown (ground). A mismatch here indicates an incorrect adapter, risking short circuits or blown fuses. For aftermarket units requiring amplified outputs, confirm whether the stock system includes an internal amp–typically signalled by a dedicated data wire (pink/black stripe) in pin #8 of the light gray connector.
Secure all connections with heat-shrink tubing rated for automotive temperatures; adhesive-lined variants prevent moisture intrusion better than standard tape. Once reconnected, cycle the ignition on and off three times to test anti-theft lockout bypass functionality if replacing the head unit entirely.
Step-by-Step Color Coding Guide for Aftermarket Head Unit Installation

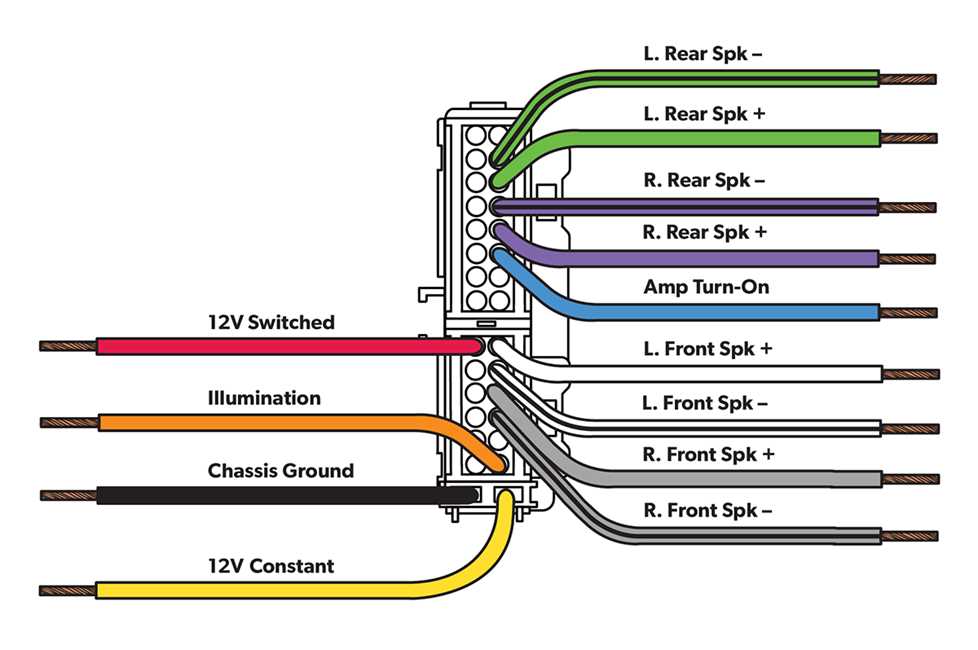

Begin by disconnecting the vehicle’s battery to prevent electrical shorts. Identify the factory harness connector behind the stereo panel–it will have a series of colored wires. Match these colors to the aftermarket unit’s wiring harness using the following standard codes: yellow (12V constant), red (12V ignition), black (ground), blue/white (remote turn-on), orange (illumination), gray (front right positive), gray/black (front right negative), white (front left positive), white/black (front left negative), green (rear right positive), green/black (rear right negative), purple (rear left positive), and purple/black (rear left negative). Verify each connection with a multimeter before proceeding.
Strip 1/4 inch of insulation from each wire on the aftermarket harness. Twist the corresponding factory wire and the new harness wire together securely, then solder the joint for durability–this prevents corrosion and ensures a stable connection. Cover each soldered joint with heat-shrink tubing to insulate it, using a heat gun to seal it tightly. Avoid electrical tape for long-term installations; it can degrade over time and expose connections.
For vehicles with amplified systems, locate the blue/white remote wire–this powers external amplifiers. If the aftermarket unit lacks a dedicated remote output, splice this wire into the ignition-switched 12V (red) line but add a 1-amp inline fuse to protect the circuit. Test the new stereo’s functions sequentially: power, ground, illumination, and speaker outputs. Play audio at low volume first to confirm balanced sound across all channels before securing the unit in the dashboard.
Reconnect the battery and validate all connections. If static or no sound occurs, recheck grounds–improper grounding often causes interference. Use a test light to confirm the yellow wire maintains 12V with the key off, ensuring memory retention for presets. Once verified, tuck excess wiring behind the dash using zip ties, keeping it away from moving parts like the climate controls or steering column to prevent damage.
Locating and Testing Power, Ignition-Controlled, and Return Path Conductors
Begin by identifying the harness connector behind the dashboard unit–most vehicles use a 12-pin plug but verify pin count against service manuals. The permanent 12V supply should connect to a memory-preserving circuit; probe each terminal with a multimeter set to 20V DC while keeping the ignition off. A consistent 12-14V reading across one pin confirms the constant-voltage lead, typically paired with a yellow or orange jacket, though color codes vary–always cross-check with an ohm meter against chassis metal to rule out mislabeled factory schematics.
The switched ignition conductor energizes only when the key turns past accessory mode; expect 8-12V drops under load. Trace suspected wires to the fuse block–fuses 10, 14, or 22 (depending on trim) often power ancillary systems. Clip a test light between each candidate wire and a verified ground; the bulb should illuminate briefly as the starter engages, then stabilize when the engine cranks. If voltage fluctuates during accessory mode, suspect a partial short or corroded splice near the steering column harness.
| Wire Function | Expected Voltage | Typical Color | Key Test Conditions |
|---|---|---|---|
| Persistent supply | 12-14V DC | Yellow/orange | Ignition off, multimeter steady |
| Key-switched feed | 9-12V DC | Red/pink | Accessory or run position |
| Common return | 0.1V or less | Black/brown | Continuity to chassis ground |
Ground paths should register less than 0.5 ohms resistance to bare metal–any higher indicates oxidation or loose ring terminals. Start at the most direct point, often the mounting screw behind the unit’s faceplate, and work backward to factory grounding studs beneath the center console. Strip insulation from suspect return wires and attach alligator clips between the conductor and a clean chassis point; if the multimeter reads infinite resistance, cut away corroded sections until solid copper appears. Avoid relying on painted surfaces–scratch down to bare steel for accurate measurements.
Voltage drop testing demands the circuit remain energized; with the unit removed, reconnect the harness and activate accessory mode. Measure between the positive lead and any terminal claiming to be ignition-switched–any drop exceeding 0.5V suggests resistance in connectors. Focus on pinch points like door jamb harnesses and firewall grommets; flex wires gently while monitoring the meter–intermittent spikes reveal internal conductor breaks. For persistent supplies, repeat the test with all electronics off to isolate memory draws spiking above 100mA.
Factory schematics list fuse amperage ratings–compare these to actual draw by inserting a 10A fuse and monitoring the multimeter’s current mode. Persistent supplies should pull 30-70mA at rest; higher readings indicate parasitic loads. Use a clamp meter around the wire jacket to locate current paths without breaking connections–zero amperage confirms dormant circuits. If switched feeds show current with the key off, inspect relay-controlled circuits adjacent to the under-dash junction box.
Corrosion manifests as white or blue crust on terminals–clean with baking soda slurry and fine-grit emery paper. Re-terminate wires using crimp sleeves and heat-shrink tubing; avoid solder-only connections prone to brittle fractures. For pinpoint testing, probe male connector terminals with a safety pin while the plug remains seated–this prevents accidental shorts across adjacent pins. Document every wire’s path with photographs before disconnecting anything; modern systems integrate CAN bus links that disable multiple modules if disrupted.
Final verification requires an operational device–if the aftermarket component powers on but cycles erratically, recheck switched feeds under load. Connect a 10W resistor between the suspected ignition wire and ground; if voltage stabilizes, the issue lies upstream in ignition circuits. Conversely, if constant supplies drain batteries overnight, systematically disconnect each branch harness until the rogue circuit is isolated. Hide wiring behind factory harness channels to prevent chafing against sharp metal edges, and secure with zip ties every 15cm to prevent sagging loops near moving pedals.
