Complete 1991 Ford F150 Stereo Wiring Color Code and Installation Guide
For accurate rewiring or upgrades, locate the harness connector behind the factory radio unit. The orange/light green stripe wire delivers constant 12V power, while the yellow/light blue stripe handles switched ignition feed. Ground connections use black wires with ring terminals–verify these terminate at the chassis near the firewall for corrosion-free contact. Speaker outputs follow a left/right pattern: gray (front left positive), gray/black stripe (front left negative), purple (front right positive), and purple/black stripe (front right negative). Rear channels mirror this with white and white/black stripe for left side, green and green/black stripe for right.
When splicing aftermarket units, avoid cutting original wires–use snap-in butt connectors or pigtail adapters matching the vehicle’s 8-pin rectangular plug. Subwoofer installations require tapping into low-level RCA outputs if the new head unit lacks dedicated subwoofer preouts. For amplifier setups, run 12-gauge power cable directly from the battery with an inline fuse (30-40A) within 18 inches of the terminal. Route signal cables separately from power wires to prevent interference, bundling them with existing harnesses away from engine components.
Verify all connections with a multimeter before final assembly: ignition wire should read ~12V when key is “on”, constant power wire ~12V regardless of key position, and speakers 4-8 ohms resistance. Test each channel individually–distorted audio often traces to reversed polarity on speaker wires. If retaining factory functions like chimes or warning tones, preserve the braided orange/black wire linking to the vehicle’s computer module. For auxiliary inputs, solder a 3.5mm jack to the radio’s unused pins (consult service manual for pinouts) rather than tapping into existing speaker wires to avoid signal degradation.
Common failure points include frayed wires at the dash bulkhead and corroded ground points behind the left kick panel. Address these before installing new components–clean terminals with dielectric grease and replace any brittle insulation. For climate-controlled dashes, ensure wiring harnesses avoid contact with HVAC ducts to prevent heat damage. If the dimmer function fails, trace the brown/yellow stripe wire to its source near the headlight switch; this carries illumination voltage and often interrupts with worn contacts.
Understanding Your Truck’s Audio System Connections
Start by locating the factory harness behind the dash panel on the driver’s side. The twelve-pin connector will have identifiable wires: yellow for constant 12V power, red for accessory power, black for ground, and blue/white for amplifier trigger. Use a multimeter to verify these voltages before connecting aftermarket units–mismatched currents can damage sensitive components. Label each wire with masking tape to avoid cross-wiring errors during installation.
Speaker outputs follow a standardized color code–gray (front left positive), gray/black (front left negative), white (front right positive), white/black (front right negative). Rear channels use violet (positive) and green (positive), with their striped counterparts denoting negatives. Avoid splicing directly into these; instead, match the adapter plug to the vehicle’s harness for reversible modifications. OEM wiring often includes thin anti-theft filaments–cutting these may trip security systems.

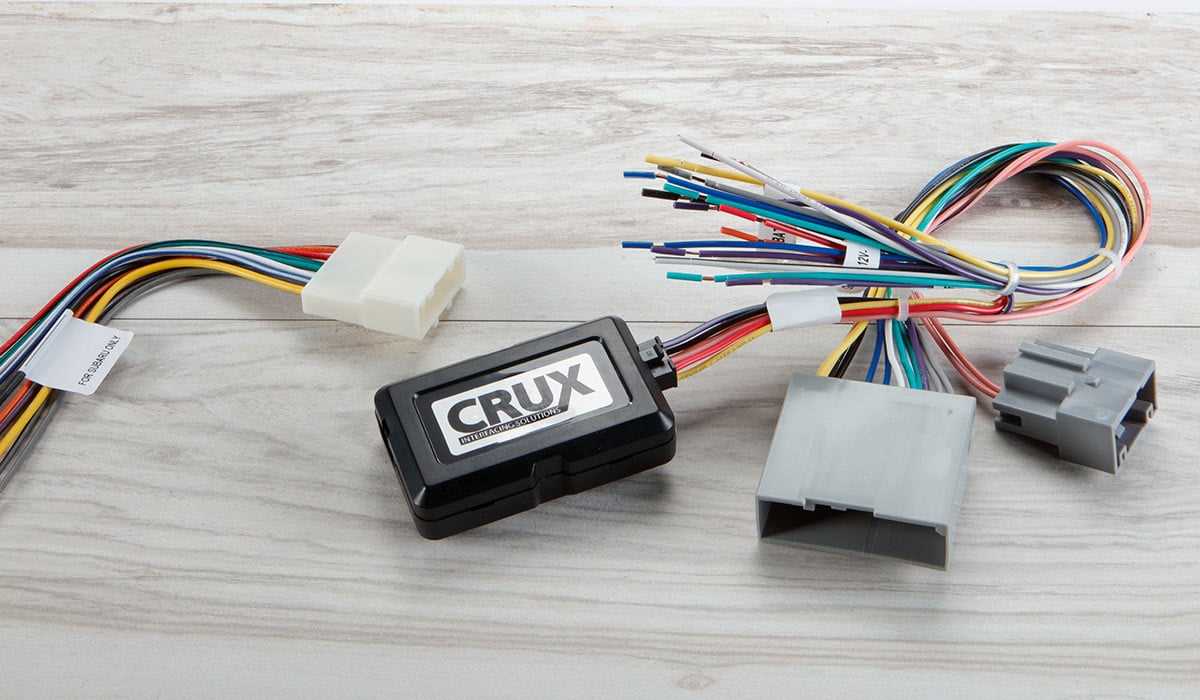

Aftermarket adapters like Metra 70-1770 or Scosche FD17SR streamline integration with most head units. These kits include harnesses pre-matched to the truck’s existing connectors, eliminating manual wire stripping. Pay attention to dimmer circuits–some models share illumination wires with the heater controls, requiring isolation to prevent backfeeding voltage to unintended circuits. Test dimming functionality before finalizing the dash reassembly.
For vehicles with premium sound systems, an external amplifier may lurk under seats or behind kick panels. These units often use thicker-gauge wiring (typically 16-14 AWG) and dedicated RCA outputs on the head unit. If replacing the amplifier, ensure the new component matches the impedance (usually 4 ohms) of the original setup. Phantom power issues arise when interfaces neglect passive crossovers–retain factory tweeters if present, as they often lack separate inputs.
Ground connections demand clean, unpainted metal surfaces. Bolt directly to the chassis near the original grounding point, using dielectric grease to prevent oxidation. Loose grounds manifest as static or intermittent failures. If the radio resets during engine cranking, relocate the constant power wire to the battery with an inline fuse (15-20A) positioned within 18 inches of the terminal. Avoid daisy-chaining accessory power to other circuits.
Finding the Original Sound System Plug in Your Early 90s Pickup

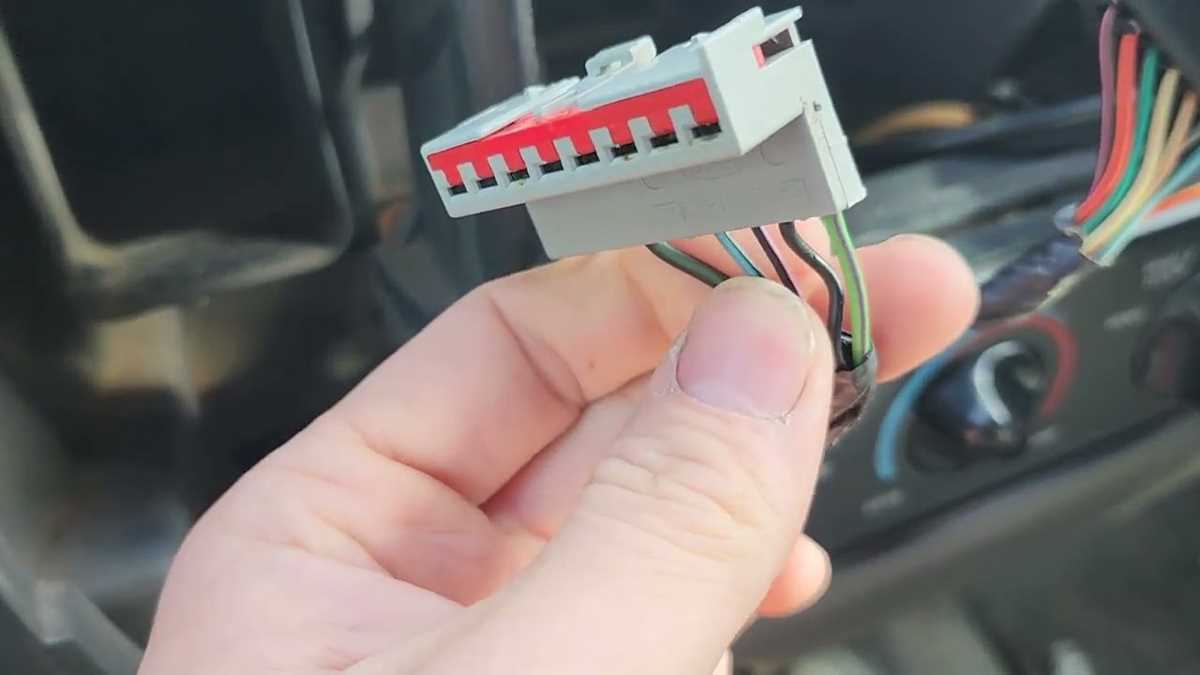

Start by removing the lower dash panel beneath the driver’s side vent. A single 7mm bolt secures it near the hood release lever; once loosened, pull the panel outward from the top lip. The harness connector will be visible among a cluster of black, gray, and pink wires bundled to the left of the fuse box mounting bracket–look for a rectangular plastic plug roughly 2.5 inches wide with 12 terminals arranged in two staggered rows.
If the plug isn’t immediately apparent, trace the speaker leads emerging from behind the instrument cluster. They typically run downward behind the ventilation duct and terminate in the factory connector. The upper row of pins handles power, ground, and illumination (yellow with black stripe for constant 12V, red with light blue stripe for accessory, and black for chassis ground), while the lower row carries front and rear channel signals (gray, dark green, purple, and light green).
Label each wire with masking tape before disconnecting–factory colors rarely match aftermarket schemes. Use a multimeter to verify each terminal: probe the yellow lead for steady voltage while the ignition is off, then check the red lead for voltage only when the key is turned to ACC or ON. The black ground wire should show zero ohms to the chassis.
Common pitfall: the connector may be tucked behind a plastic air duct retainer clip. Gently pry this clip upward with a flat screwdriver–it snaps into place and can pinch fingers if removed hastily. Once released, the entire harness bundle slides forward about an inch, exposing the plug fully.
Alternative Access Points
If dash disassembly proves difficult, reach from the engine bay. The firewall passthrough grommet near the master cylinder houses the main harness–feel for a cylindrical rubber plug roughly 3 inches in diameter. Pierce the center with a small screwdriver, then push the connector through from the interior side. This method avoids trim removal but risks damaging the grommet if rushed.
The glove box removal provides a third route. Empty the compartment, unsnap the front loading door by depressing two tabs at the hinge points, then remove two Philips screws inside. The compartment drops down, revealing the rear of the radio support bracket. The factory plug rests against the bracket’s left flange, partially obscured by HVAC pipes–rotate it counterclockwise to release the locking tab.
Once located, test continuity between speaker wires and their door-mounted units before soldering or crimping new connections. The rear door tweeters (if equipped) share the same wire bundle; expect slight impedance variation due to OEM inline resistors. Always reconnect ground last to prevent accidental short circuits while probing.
Matching Harness Wire Colors to Sound System Roles
Begin by locating the gray lead–this is the constant 12V power source for memory preservation in the entertainment system. Connect it directly to the vehicle’s battery terminal using a 15-amp fuse within 6 inches of the connection point to prevent electrical faults. Avoid splicing this line into ignition-switched circuits, as it must remain energized even when the vehicle is off.
Key Audio Signal and Speaker Leads
| Color | Function | Voltage/Resistance Notes |
|---|---|---|
| Dark Green/Red | Left rear positive (+) | 4-8 ohms impedance; verify with multimeter |
| Dark Green/White | Left rear negative (-) | Should mirror positive lead’s continuity |
| Dark Blue/Orange | Right rear positive (+) | Same impedance as left rear |
| Dark Blue/White | Right rear negative (-) | Check for balanced resistance with positive |
| Light Green/Black | Left front positive (+) | Lower impedance if tweeters are present |
| Light Green/Yellow | Left front negative (-) | Tight twist ratio with positive for noise reduction |
When connecting speaker wires, strip only 3-4mm of insulation–excess bare wire risks short circuits. Secure connections with crimp connectors or solder, then insulate with heat-shrink tubing. For aftermarket amplifiers, tap into the orange/black dimmer wire to synchronize dash illumination; failure to do so may cause display brightness mismatches.
Ground and Illumination Handling
Black wires serve as chassis ground–bolt them to bare metal using a star washer to ensure a corrosion-resistant bond. Scrape away paint or undercoating at the grounding point to maximize conductivity. The brown lead carries dash light power; connect it to the factory dimmer system to maintain OEM brightness control. Isolate this line from accessory circuits to prevent voltage drops affecting audio performance.
Test all connections with a 12V test light before finalizing–probing each harness pin should show expected voltages without load. For speaker outputs, use a 9V battery to confirm polarity: a correct connection produces audible click from the speaker cone; reversed polarity may weaken sound or damage components. Never rely solely on wire color charts; verify functions with a meter, as previous modifications or factory deviations can alter standards.
Subwoofer integration requires tapping into the purple/white amplifier trigger wire–this delivers signal only when the sound system powers on, preventing battery drain. For vehicles with premium sound systems, the pink/light blue wire carries remote turn-on for power antennas; route this to aftermarket amplifiers to avoid signal loss during startup. Cap all unused wires with electrical tape to prevent accidental shorts.
Final step: wrap bundled wires with loom tubing or split conduit to protect against abrasion and engine bay heat. Route audio harnesses away from high-current lines (starter, alternator) to minimize interference. For systems with navigation or steering wheel controls, retain the yellow/red multiplex wire–this carries serial data; splicing into it incorrectly can disable vehicle functions.
