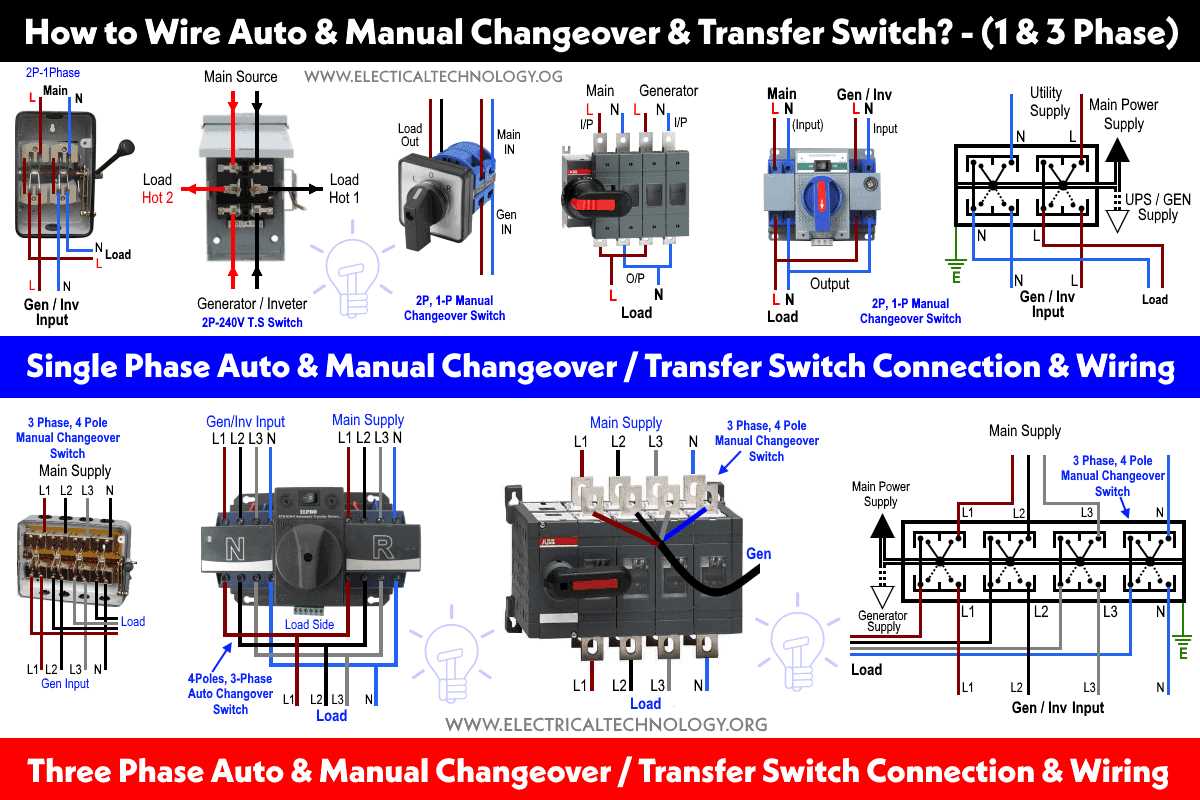

Complete 3 Phase Automatic Transfer Switch Wiring Schematic for Generators
For a three-line automatic switching system connecting standby power units, use a closed-transition configuration with double-throw contactors rated for at least 125% of the continuous load current. Install neutral bonding on the utility source side only to prevent circulating currents during parallel operation. Place the main busbar within 1 meter of the switching mechanism to minimize voltage drop during transfer.
The control logic must include a 2-second delay before load reconnection to allow generator stabilization at nominal frequency (50Hz ±0.2Hz) and voltage (400V ±5%). Use 2.5mm² THHN copper conductors for signals and 35mm² for power circuits in installations under 50kVA; scale up to 70mm² for units exceeding 150kVA. Ground the metallic enclosure with a dedicated 70mm² copper strap connected to the facility’s grounding electrode system.
Mount current transformers on each line before the switching contacts to monitor load imbalance (alarm threshold: 15% deviation). Integrate surge protective devices with a clamping voltage of 600V on both utility and standby inputs. For diesel-powered units, add a fuel solenoid cutoff in series with the starting circuit to prevent engine run-on during manual service interventions.
The switching sequence should prioritize non-critical loads via separate contactors, disconnecting them if generator output falls below 85% of rated capacity for more than 5 seconds. Program the controller to log transfer events with timestamps for post-event analysis, including pre-transfer voltage readings and transfer duration (target: under 100ms for closed-transition). Verify neutral isolation with a megohmmeter (

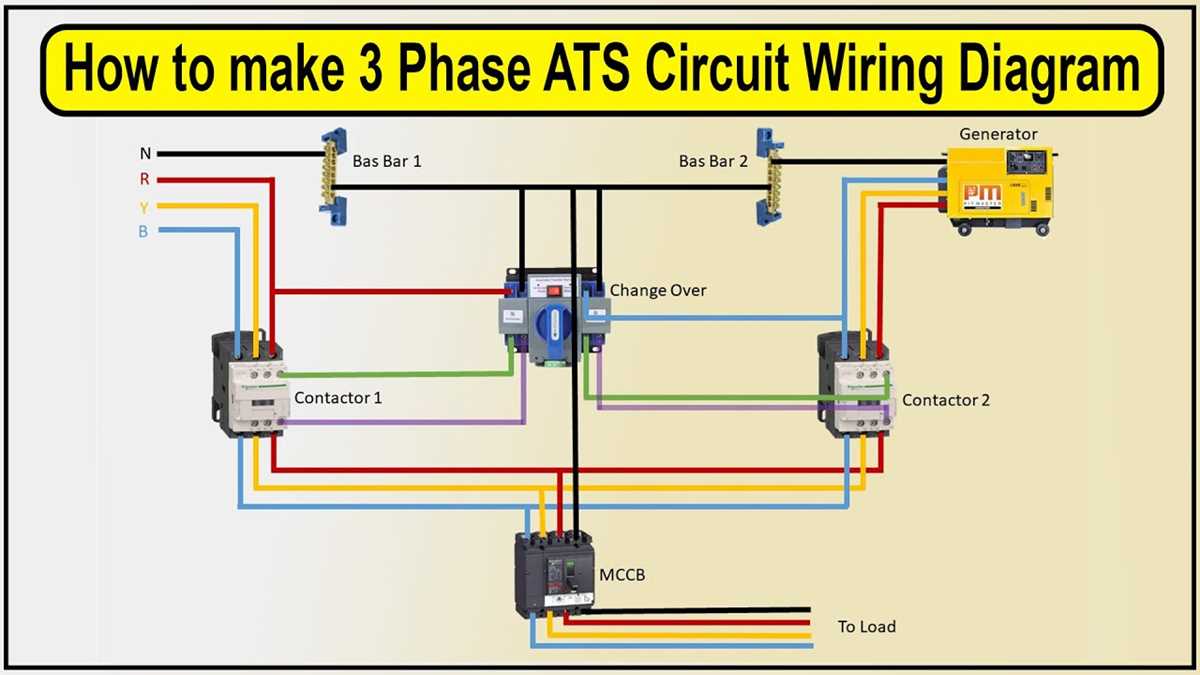

Automated Power Switching Schematic for Triple-Circuit Backup Units
Implement a closed-transition setup with a 4-pole changeover device rated 1.25x the continuous load current to prevent arcing during simultaneous contact engagement. Connect the main service conductors (L1/L2/L3) to the upper terminals of the switching mechanism, ensuring the neutral bus is bonded to the grounding electrode via a #4 AWG copper conductor. Route the backup supply leads (R/Y/B) through a separate breaker panel with individual 30A protection for each conductor, bypassing the primary distribution board to eliminate backfeed risks.
- Label all conductors with heat-shrink tubing: use orange for priority loads, yellow for critical circuits, and white for neutral references.
- Install a 10kΩ resistor between the coil return and earth to suppress voltage spikes during coil de-energization.
- Position voltage sensing relays (27/81) on the load side of the switchgear, spaced 30cm apart to avoid interference.
- For diesel units, wire a fuel pump solenoid in parallel with the starter relay, utilizing a 24V DC control circuit with a 10A fuse.
- Ground the alternator frame to the chassis with a braided strap no longer than 45cm to minimize resistance.
Verify torque settings on all terminal connections using a calibrated driver: 15 lb-ft for aluminum conductors, 25 lb-ft for copper. Log readings from a true RMS multimeter at 20% load, 50% load, and 100% load–acceptable deviation is ≤3%. If readings exceed tolerance, inspect the automatic voltage regulator for defective diodes (forward voltage drop ≥0.7V indicates failure).
Key Components of a Tri-Stream Automatic Transfer Switch Circuit Layout
Begin by positioning the power source isolators at the ingress of the system to ensure immediate overcurrent protection. Use high-capacity molded case circuit breakers rated for at least 125% of the peak load demand, as outlined in IEEE Std 1015 guidelines. Equip each ingress point with surge arresters conforming to ANSI/IEEE C62.11 standards to mitigate transient voltage spikes exceeding 1.5 kV.
Core Switching Mechanism Specifications
Select a double-throw contactor configuration with silver-alloy contacts and a minimum mechanical life expectancy of 100,000 operations. The contactor coil voltage must match the control power (typically 120V or 230V) and include a suppression diode to prevent back EMF damage. Verify that the contactor’s breaking capacity exceeds the short-circuit current rating of the backup power unit by 20% to handle inrush currents during motor starts.
| Component | Minimum Rating | Critical Standard |
|---|---|---|
| Main Contactor | 690V, 250A | IEC 60947-4-1 |
| Control Relay | 10A resistive load | UL 508 |
| Voltage Sensor | ±1% accuracy | IEC 61000-4-30 |
Integrate a microprocessor-based control panel with a sampling rate of at least 1 kHz to monitor voltage symmetry within 5% tolerance across all streams. The panel should trigger a transfer within 50 ms upon detecting a dip below 80% of nominal voltage on the primary supply. Programmable logic must include a pre-transfer delay (adjustable 0–30 seconds) to prevent nuisance switching during temporary disturbances.
Use stranded copper conductors sized per NEC Article 310 for the interconnecting cabling, with insulation rated for 90°C dry conditions. Secure connections with tin-plated lugs crimped at 5,000 psi and torque to manufacturer specifications–typically 25–35 Nm for 250 MCM terminals. Avoid aluminum conductors in environments with high vibration or corrosive atmospheres.
Auxiliary Monitoring and Safety Devices
Incorporate redundant voltage sensors on each line to confirm the absence of power before closing the alternate power path. Add a phase rotation relay to prevent reverse rotation of three-stream motors during transitions. Include a manual bypass switch with interlocks to allow safe maintenance without interrupting the load, complying with OSHA 1910.303 for electrical safety.
Ground the neutral through a 15 kΩ resistor to limit fault currents to 5 A, meeting NFPA 70E arc-flash reduction requirements. Equip the enclosure with forced-air cooling fans rated for IP54 ingress protection, positioned to maintain internal temperatures below 40°C under full load. Verify that the fan’s CFM rating exceeds 1.5 times the total heat dissipation of the system’s components.
Label every terminal and device per NEC Article 110.22, using engraved tags resistant to UV and chemical exposure. Include a QR code on the enclosure door linking to a detailed single-line schematic and maintenance log, ensuring compliance with IEEE 3007.3 for critical infrastructure documentation.

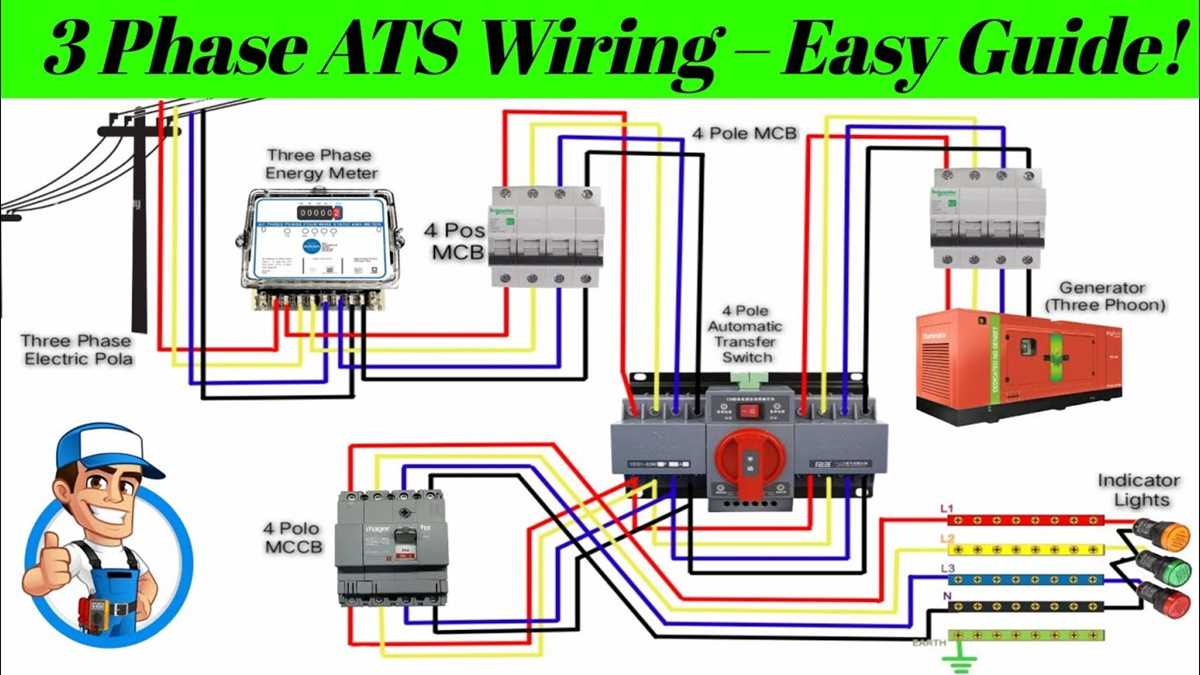

Key Connections for Main Power and Alternate Source Integration
Isolate all incoming feeds first. Use a double-pole breaker or fused disconnect for each input–utility grid and standby unit–before connecting to the transfer switch. Label each terminal clearly: L1/L2/L3 for grid feed, G1/G2/G3 for standby source, and neutral (N) for both. This prevents accidental cross-connections that could damage equipment or create hazardous backfeed.
Secure the neutral busbar separately for grid and standby feeds if your system uses a four-pole transfer mechanism. Bond the neutral only at the main service panel to avoid circulating currents. For three-pole switches where neutral remains continuous, verify the busbar’s capacity–it must handle combined loads without overheating. Tighten connections to 16-20 Nm torque; use a crimped lug for 6 AWG and thicker conductors.
Route grid conductors from the main panel’s breakers directly to the transfer switch’s designated terminals in the correct sequence (L1→G1, L2→G2, L3→G3). Avoid sharp bends–maintain a radius of at least 8x the cable diameter. For standby conductors, pull cable from the unit’s output breaker to the switch, matching the grid’s phase order. Use colored tape (brown/black/gray) to mark conductors at both ends, ensuring consistent identification.
Connect the standby unit’s control circuit to the transfer switch’s auxiliary contacts using 14 AWG solid copper wire. Link COM to NC or NO as required–most switches default to NC for grid failure detection. Test the circuit with a multimeter: voltage should drop below 3V when the grid fails, triggering the switch. If the unit uses a digital controller, consult its manual for logic-level signals (typically 5V or 12V DC).
Ground both inputs separately. The grid’s grounding electrode conductor (GEC) connects to the main panel’s grounding bus, while the standby unit’s frame bonds to a dedicated rod driven at least 2.4m into soil. Use 6 AWG bare copper for the GEC; for portable units, install a temporary ground clamp on a buried metal plate. Verify resistance under 25 ohms with a ground tester before energizing.
Final checks: power down all breakers, confirm open disconnects, then energize the grid side first. Measure line-to-line voltages (380-415V) and line-to-neutral (220-240V) across all poles. Switch to standby mode–the transition should complete within 10 seconds. Monitor for voltage dips below 10% during transfer; if present, adjust the unit’s governor or AVR settings. Tag and seal all connections with warning labels: “High Voltage–Authorized Personnel Only.”
Neutral and Earth Bonding Strategies in Triple-Line Automatic Transfer Switches
Bond the neutral conductor to earth at a single point within the system–preferably at the utility supply source or main service panel–to prevent stray currents and neutral voltage shifts during load transitions. Isolated neutral configurations, though sometimes advocated for sensitive equipment, introduce risks of overvoltage during unbalanced loads, particularly when backfeeding from an auxiliary power unit. Verify local electrical codes, as NFPA 70 (NEC) Article 250 and IEC 60364 mandate specific grounding arrangements based on system voltage and application.
Separately derived systems, such as standby power sources, require independent grounding electrodes unless the equipment is permanently connected via a four-pole transfer mechanism. In such cases, the neutral remains tied to the primary grounding bus only at the original bonding point, eliminating parallel return paths that could trip ground fault protection devices. Install a dedicated ground rod with resistance below 25 ohms where local soil conditions allow; supplement with Ufer grounds in concrete-encased foundations if resistivity exceeds acceptable thresholds.
Use insulated neutral conductors between the transfer switch and power sources to prevent inadvertent multiple bonds, which can create circulating currents and interfere with protective relaying. Copper conductors sized per NEC Table 250.122 ensure adequate fault current handling–a minimum 8 AWG for 100-amp circuits, scaling upward for larger installations. Bonding jumpers must be no smaller than the largest neutral conductor within the circuit to maintain low-impedance fault paths.
Test neutral-to-earth potentials during commissioning and after major load changes. Voltages exceeding 3% of the nominal line-to-neutral voltage (e.g., >3.6V in a 120/208V system) indicate unintended grounding elsewhere in the circuit. Use a clamp-on ammeter to measure neutral current under full load; values exceeding 20% of phase current suggest parallel bonding paths or excessive harmonic distortion from nonlinear loads.
Equipotential bonding between metallic enclosures and the grounding electrode conductor eliminates touch potentials during fault conditions. Connect all non-current-carrying metal parts–including switchgear frames, conduit, and generator housings–via a continuous bonding conductor, terminated at the grounding bus with irreversible compression lugs. Avoid relying on threaded couplings or set-screw terminations for grounding continuity; verify torque settings with a calibrated wrench per IEEE Std 80.
Ground fault detection schemes in triple-line systems must account for neutral shifts during source transitions. Programmable relays with adjustable pickup thresholds (typically 30-50% of rated current) prevent nuisance tripping while ensuring personnel safety. Test ground fault protection under simulated unbalanced loads–e.g., one line de-energized–to confirm proper operation of the transfer switch’s control logic before reliance on standby power.
Portable and temporary installations demand special consideration: bond the neutral to the generator frame at the first disconnecting means only, then establish an independent equipment ground back to a driven rod. Use GFCI protection for all downstream outlets in temporary setups, as neutral-to-earth voltage fluctuations can exceed safety thresholds. Document all grounding configurations in as-built schematics, including electrode resistance test reports, to comply with AHJ inspections and insurance requirements.
