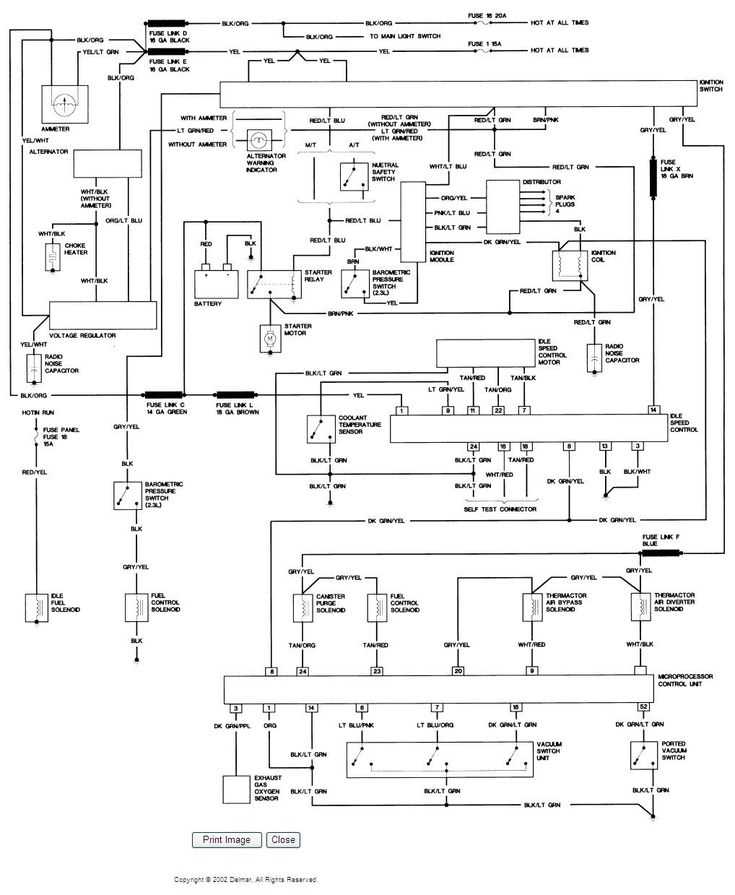

Ford Ranger 1991 Ignition Wiring Diagram and Troubleshooting Guide
Start by isolating the main harness connector near the steering column–this is the primary junction where power distribution for the starter and accessory circuits converges. Pinouts for this model typically include six wires: red (battery positive), yellow (ignition feed), black/white (starter solenoid), dark green/yellow (accessory), light green/red (run), and brown/white (instrument illumination). Verify each wire’s function with a multimeter set to DC voltage, probing against chassis ground while cycling the key through all positions.
If voltage drops below 10.5V at the starter solenoid terminal during cranking, inspect the ballast resistor bypass circuit–a common failure point in models of this era. The bypass wire (often orange) should deliver full battery voltage to the ignition coil during start, then drop to ~8-9V once the engine fires. Corrosion at the firewall grommet or a degraded fuse link (located near the battery) frequently disrupts this path. Replace the fuse link with a properly rated inline fuse if melted insulation is visible.
Trace the purple/white wire from the ignition switch back to the neutral safety switch–this safety feature prevents starter engagement unless the transmission is in Park or Neutral. A faulty switch or misadjusted linkage often causes intermittent no-start conditions. Adjust the linkage by loosening the mounting bolts and aligning the switch actuator arm with the transmission range selector shaft, ensuring the plunger fully depresses in Park/Neutral.
For models with a passive anti-theft system (indicated by a single green wire at the ignition switch), the module may require a 30-second power cycle via the battery disconnect to reset. If the system triggers accidentally, the starter relay will remain open despite valid key positions. Check the module’s ground connection (typically black) at the inner fender–clean any paint or rust from the mounting surface before tightening.
Coil-power wires (usually pink or pink/black) should maintain steady voltage in both Run and Start positions. A short to ground in this circuit will blow the ignition fuse–use a continuity tester to isolate the faulty segment. Replace damaged sections with 18-gauge primary wire, ensuring soldered joints and heat-shrink insulation to prevent future shorts.
Understanding the Electrical Switch System in Early 90s Compact Pickups
Disconnect the battery’s negative terminal before touching any power connections to prevent short circuits. The central switch assembly on this model connects to seven key wires: red (constant 12V), yellow (starter solenoid), green/white (accessory), pink/black (ignition feed), dark blue (instrument cluster), light blue (radio memory), and black/white (ground). Trace each wire from the switch to its termination point–errors often stem from frayed insulation near the firewall grommet.
| Wire Color | Function | Voltage (Key Position) |
|---|---|---|
| Red | Battery hot at all times | 12V (Off/Run/Start) |
| Yellow | Starter engagement | 12V (Start only) |
| Green/White | Accessory power | 12V (Run/Accessory) |
| Pink/Black | Run circuit feed | 12V (Run) |
Test continuity between the black/white ground wire and the chassis using a multimeter–resistance should read below 0.5 ohms. If higher, clean the grounding bolt near the pedal bracket and apply dielectric grease to prevent corrosion. The pink/black wire splits at the fuse block; one branch powers the fuel pump relay, while the other feeds the ignition coil–verify both branches with a test light under load.
Relays for the fuel pump and ignition module mount on the driver’s side inner fender. Replace any relay with a clicking sound when tapped–internal contacts degrade over time. The dark blue wire carries pulsed voltage to the tachometer and computer; if the engine stalls at idle, probe this wire with an oscilloscope to confirm a consistent 10-14V square wave pattern during cranking.
For intermittent no-start conditions, focus on the yellow wire at the solenoid. Bend the connector gently to expose corrosion–early models frequently develop green oxidation here. Apply contact cleaner, then crimp a new terminal if pitting is visible. Reassemble by securing the switch housing with T20 Torx screws, ensuring the actuator rod aligns with the lock cylinder plunger within 0.020 inches to prevent binding.
Finding the Starter Circuit Connector on Your Early ’90s Compact Pickup
Begin by removing the lower dash panel beneath the steering column. This panel is secured by two screws near the brake pedal and plastic clips along the edges. Once detached, the main engine control bundle will be visible, terminating in a rectangular 8-pin plug on the firewall’s passenger side–this is the primary junction for the start sequence.
The connector is typically black or dark gray, positioned directly above the pedal assembly. Trace the harness from the ignition cylinder downward; it merges into this plug after a short run. If inaccessible, follow the bundle from the battery’s positive terminal–it routes through the firewall near the same location.
Visual Cues and Common Mistakes
- Look for a zip-tied group of wires entering the cabin behind the glovebox hinge.
- Do not confuse this with the smaller 4-pin gauge cluster connector further left.
- The bundle includes a thick red wire (battery feed) and a purple/yellow stripe (start signal).
- Avoid tugging on the harness–it routes through a grommet with sharp edges.
If corrosion is present on the terminals, clean with electrical contact spray and a brass brush. The plug housing often accumulates debris; compressed air can clear dust before reseating. Misaligned or forced reconnection can damage pins, particularly the smaller ones handling the trigger circuit.
Alternative Access Points
When dashboard removal isn’t practical:
- Raise the vehicle and locate the starter motor on the driver’s side bellhousing.
- The main harness exits the cabin through a grommet above the transmission tunnel.
- A secondary 6-pin connector may be present upstream–this feeds sensors, not the ignition relay.
- For models with manual transmissions, the neutral safety switch harness joins near this area.
Label each wire before disconnecting. Use masking tape and a marker to note positions; the factory color codes (red = power, purple/yellow = solenoid trigger) are consistent but not universal. Test continuity with a multimeter if unsure–crossed connections can disable the starter relay or fuse circuits.
Understanding Color-Coded Conductors in Early 90s Pickup Truck Electrical Assemblies
Verify the starter solenoid circuit first–identify the yellow wire with a red stripe (Y/R) at pin 5 of the ignition switch harness. This conductor supplies 12V during cranking and must remain intact; corrosion at the connector is a common failure point. Use a multimeter to confirm voltage drop across the terminal before disassembly.
Red (R) and red/light blue (R/LB) wires deliver power from the battery to the switch in both accessory and run positions. Trace these back to the fuse block under the dashboard; a faulty 30A fuse often mimics switch failure. Replace the fuse with a matching amperage rating–never substitute higher values as this risks fire in the main harness.
Critical Sensor and Safety Circuit Conductors
The orange wire (O) carries voltage to the fuel pump relay and ignition coil. Intermittent stalling frequently stems from a brittle connection near the coil pack–inspect for cracked insulation or green oxidation. Solder and heat-shrink damaged sections rather than twisting or taping.
Neutral safety and clutch start switches rely on dark green/yellow (DG/Y) and light blue/black (LB/BK) pathways. Test continuity with the transmission in neutral or the pedal fully depressed; false starts usually indicate a broken wire inside the steering column boot. Slide the boot back gently to reveal the break without cutting into the harness.
Ground Paths and Supplemental Circuits
Black wires (BK) serve as chassis returns–three separate ground points exist beneath the dashboard alone. Clean each ground connection with a wire brush and apply dielectric grease to prevent future corrosion. A weak ground can cause erratic dash lights or failed solenoid engagement.
The purple/white (P/W) conductor activates the tachometer; if the gauge reads zero but the engine runs, inspect for a severed wire near the instrument cluster. Locate the splice under the glovebox and re-crimp with a sealed butt connector before sealing in silicone.
Accessory circuits like the radio and rear defrost run on pink (PK) and brown/orange (BR/O) feeds. If these components operate only when the key is in crank, suspect a faulty ignition switch–replace the entire switch assembly rather than attempting to repair internal contacts.
How to Check Spark Plug Cables with a Voltage Meter
Start by setting your voltmeter to the 20 kΩ resistance range. Disconnect both ends of the first high-voltage lead–one from the coil pack and the other from the spark plug. Touch the probes to each terminal inside the cable connectors. A reading between 3,000 and 15,000 ohms per foot of wire length indicates normal resistance. If the value exceeds 25,000 ohms or shows infinite resistance, replace the cable.
For consistency, measure each conductor in the same manner. Record values for all leads before comparing them. Large discrepancies (over 2,000 ohms) between wires suggest internal damage even if individual readings fall within the acceptable range. Inspect boots for cracks or carbon tracking while testing.
Handling Abnormal Readings
If a wire shows no continuity, pinch the insulation near the connector and retest. A sudden drop to normal resistance indicates a broken conductor hidden inside the sleeve–replace it immediately. Silicone-insulated wires often fail this way due to heat cycling.
When resistance reads slightly high, clean both connector terminals with electrical contact cleaner and a fine wire brush. Reconnect and test again. Corrosion typically adds 5-10 kΩ of false resistance. Avoid bending wires sharply during reinstallation to prevent stress fractures.
Verifying Coil Pack Output
Before concluding, check the source. Reattach the wire to the coil output tower but leave the spark plug end disconnected. Set the meter to the 200 volt AC scale. Have an assistant crank the engine briefly while you monitor voltage. Values should spike above 20 V AC. If readings stay below 10 V, suspect a faulty coil or ECM signal issue.
Ensure the engine is cold before testing. Heat can alter resistance readings temporarily. Repeat measurements after the vehicle has sat for 30 minutes if initial results seem inconsistent. Note that some aftermarket coils have different output specifications–consult factory service manual values for comparison.
Discard any wires showing visible arcing marks or melted insulation. Even if resistance tests pass, these symptoms indicate imminent failure. Replace the entire set if one wire fails to maintain consistent readings, as uneven resistance causes misfiring under load.
After completing checks, reconnect all components and start the engine. Listen for smooth operation and confirm no misfires occur at idle or under light acceleration. Drive the vehicle briefly, then inspect connections for heat buildup–a sign of high resistance not detected during bench testing.
