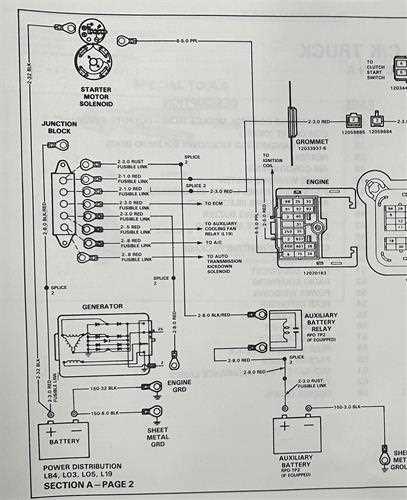

Complete Wiring Schematic for 1995 Chevrolet 3500 Truck Electrical System
Start by locating the under-dash fuse block on the driver’s side–this is where the primary power distribution begins. Use a multimeter set to 12V DC to verify continuity across terminals J1-2 (red/black) and J1-4 (purple), which feed the ignition relay and ECM. If voltage drops below 11.8V, inspect the 80-amp maxi fuse near the battery junction box; corrosion on the 6mm bolt connection is a common failure point.
Trace the instrument cluster harness (12-pin connector labeled “C1”) back to the bulkhead firewall grommet. The yellow/black stripe wire supplies +12V switched to the tachometer, while dark blue/white carries the VSS signal from the transmission controller. Disconnect the plug and probe pin A5–a steady 5V reference confirms the ECM’s signal circuit is intact; irregular readings indicate a faulty speed sensor or grounded wire.
Focus on the engine bay harness next. The orange/black lead from the alternator’s “R” terminal routes to the charge indicator lamp but splits before the fuse block to power the fuel pump relay. Use a test light to confirm 12V present at terminal 85 (purple, 20-amp fuse) when turning the key to “RUN.” Absence of voltage here often stems from a burned-out diode trio in the alternator or a broken 4-gauge feed from the starter solenoid.
For the rear lighting circuit, follow the tail lamp harness from the left frame rail to the trailer connector. The brown/white wire loops through the brake switch before branching to the stop lamps; splice resistance should not exceed 0.3 ohms. If marker lights flicker, check the ground strap bolted to the rear crossmember–replace the M10-1.25 bolt if threads are stripped, as poor grounding causes erratic voltage fluctuations.
Download the official GM service manual supplement #P/N 88985744 for pinout tables. Cross-reference each wire color with the SAE J1128 standard–late-model iterations swapped some circuit colors post-1994, so rely on documented schematics rather than chassis-specific labels. Keep a spare Deutsch DT06-12SA connector on hand; factory insulation often cracks at the firewall bulkhead, leading to intermittent shorts.
Electrical Schematic for a 1995 GMC Heavy-Duty Truck: Hands-On Reference
Locate fuse block under the instrument panel on the driver side–FMVSS-108 compliant labels identify circuits 1 through 24; verify continuity with a 10 A-meter before replacing any blade-style fuse rated above 20 A.
Trace the red 10-gauge starter cable from the battery positive terminal to the solenoid; expect a 0.2 V drop across the 4-gauge copper lug–anything higher indicates corrosion inside the crimp or undersized alternator output.
Engine harness connector C101 (black 12-pin) mates with the PCM; pins A and F supply 5 V reference, while B and G deliver throttle position signal–swap suspected wires with known-good ECM pins before condemning sensors.
Headlight circuit runs through the dimmer relay (fuse 12) then splits to low-beam bulbs via yellow/black 18-gauge wire; measure 12.6 VDC at the bulb socket with headlight switch in HIGH position–absence suggests an open in the cradle relay or faulty multi-function stalk.
Auxiliary brake controller harness (pink 8-way) integrates behind the dash; pin 4 carries stop-lamp voltage, pin 6 outputs proportional signal–use a scan tool in “data” mode to confirm 0-5 V swing at pin 6 before splicing trailer leads.
Charging system test: back-probe alternator B+ terminal with engine at 2000 rpm, observe 14.2 VDC; if lower, isolate voltage regulator by jumping “L” terminal to ground–voltage rise confirms regulator failure, no rise points to stator or diode trio.
Instrument Panel Troubleshooting
Speedometer receives VSS pulses via gray connector C203, pin 3; count pulses per mile with a scope (750 ppm nominal)–low counts indicate worn transmission drive gear or shorted wiring inside the transfer case.
Fuel gauge sender circuit (pink 16-gauge) starts at tank unit, runs through sender resistor network, then enters instrument cluster via connector C202, pin 5; full sweep requires 10–155 Ω resistance–clean sender float contacts with dielectric grease if gauge fluctuates.
Finding the Primary Electrical Link Junctions Beneath the Engine Cover
Begin at the driver-side fender well where the bulkhead connector clusters under a plastic retaining clip. Release the tab securing the clip–pressure alone won’t free it–and pivot the cover upward to reveal the instrument panel feed, engine control module tap, and headlamp relay harness. Label each terminal with masking tape marked in pencil: “IP 1-12,” “ECM A-D,” and “HL L/R” respectively. Follow the thickest black conduit downward to the firewall grommet–here the chassis ground strap and ignition switch input join at a common stud.
Critical Tie-In Points Near the Battery Tray
Behind the positive terminal, a three-pronged junction houses the starter solenoid trigger, alternator sense wire, and fusible link output. The yellow-striped lead (12-gauge) supplies constant power; verify continuity before reconnecting. Trace the orange conduit along the inner fender to the underhood lamp assembly–its two-pin connector often hides corrosion underneath a weatherproof boot.
Identifying Dashboard Instrument Cluster Connector Pinouts and Wire Colors
Start by disconnecting the negative battery terminal to prevent short circuits while probing connectors. The 24-pin gray connector (A) and 14-pin brown connector (B) are primary targets–locate them behind the cluster assembly. Use a multimeter in continuity mode to trace each pin back to the fuse block or ignition switch, noting voltage presence at KOEO (Key On, Engine Off).
- Gray connector (A):
- Pin 1: Purple/White–fuel gauge sender (12V reference)
- Pin 2: Dark Blue–oil pressure sender (variable resistance)
- Pin 3: Tan/Black–check engine light (ECM-controlled)
- Pin 4: Pink–battery voltage (ignition-sourced)
- Pin 5: Light Green–parking brake switch
- Pin 6: Yellow–alternator field output (voltage regulator)
- Pins 7-9: Gray/Black, Brown/White, Orange–dash lamp illumination (dimmer-controlled)
- Pin 10: Dark Green/White–fuel pump relay control
- Pin 11: White–speedometer signal (VSS input)
- Pin 12: Black–ground reference
- Brown connector (B):
- Pin 1: Red–airbag warning light
- Pins 2-4: Blue/White, Orange/Black, Light Blue–ABS indicators
- Pin 5: Tan–seatbelt chime (3Hz pulse)
- Pins 6-8: Dark Green, Dark Blue/White, Pink/Black–turn signal inputs
- Pin 9: White/Black–high beam indicator
- Pin 10: Gray–fuel level sensor (ground return)
- Pin 14: Black–chassis ground
For tachometer and transmission range signals, focus on the vehicle’s ECM and TCM outputs. The tach signal (tan/black at ECM pin C2-24) splices into the gray connector’s Pin 24 (tan wire) via a splice near the steering column. Automatic transmission models route the PRNDL switch through the brown connector’s Pin 13 (light green/black), which activates the reverse lights and backs up the shift lever position.
Verify all grounds–cluster stability relies on clean connections at the firewall ground lug (G103) and the black wires at connectors A (Pin 12) and B (Pin 14). If gauges fluctuate, clean these points with a wire brush and apply dielectric grease. For intermittent issues, substitute the 10A “Instrument Cluster” fuse (fuse #10 in the under-dash block) before replacing components.
Tracing Trailer Electrical Connections for Stoplight and Directional Lamp Pathways
Locate the vehicle-side plug receptacle beneath the rear bumper, typically a 7-way round socket with four larger blade terminals at the bottom for lighting functions. Pinpoint the designated slots for brake lamps (commonly center-left) and turn indicators (outer-right) by referencing the embossed numbering or color-coded labels stamped into the housing. Use a multimeter set to continuity mode to verify circuit integrity by probing each terminal while an assistant activates the corresponding function inside the cab.
Inspect the trailer-side connector, confirming the harness wires match the vehicle’s pin assignments. Standard color codes apply: yellow (left turn/brake), green (right turn/brake), brown (marker lamps), and white (ground). Strip back insulation ¼ inch on suspect conductors, exposing copper strands to check for corrosion or fraying. Twist strands clockwise before soldering or crimping to prevent signal dropout under load.
Employ a circuit tracer for concealed wire runs. Clip the emitter to a known hot terminal, then sweep the amplified wand along the harness, listening for the tone shift at junction points or splice failures. Mark problematic segments with painter’s tape, noting resistance readings above 0.5 ohms as candidates for bypass grafting. For rear-mounted sensor modules, detach the distribution block to isolate parallel paths that may bleed voltage.
Test load capacity by connecting a 30-watt bulb to each circuit, verifying illumination brightness matches the tow vehicle’s original lamp output. Dim or flickering light indicates insufficient gauge wire–upgrade to 12 AWG for runs exceeding 15 feet. Secure all connections with adhesive-lined shrink tubing, applying heat until the sealant beads uniformly to prevent moisture ingress.
Identifying Aftermarket Modifications
Examine the frame rail for auxiliary relays or inline fuses spliced into the factory harness. Aftermarket brake controllers often tap into the stoplight feed via a purple wire–trace this conductor to its source at the pedal switch or hydraulic pressure sensor. Measure voltage drop across splices; readings above 0.2V mandate re-termination with gold-plated contacts.
Check ground bonding by temporarily routing a jumper wire from the trailer coupler to the tow vehicle’s negative battery terminal. If lamp function improves, excavate the corroded mounting point and replace with a zinc-plated ½-inch bolt secured through a pre-drilled chassis hole. Avoid self-tapping screws, which loosen under vibration.
Diagnosing Intermittent Failures
Wiggle each connector while toggling the turn signal. A momentary loss of function pinpoints a loose terminal–disassemble the plug, clean contacts with fine-grit sandpaper, then reinsert wires with slight lateral offset to ensure positive engagement. For persistent dropouts, swap the entire socket assembly; OEM replacements (ACDelco PT1429) include pre-wired pigtails for direct soldering.
Log resistance changes during temperature shifts by wrapping suspect wires in a damp cloth, then applying a heat gun in 10-second bursts. Expanding corrosion within splices manifests as rising ohms–excise such segments, splice in fresh wire using a Western Union knot, and seal with liquid electrical tape rated for -40°C operation.
