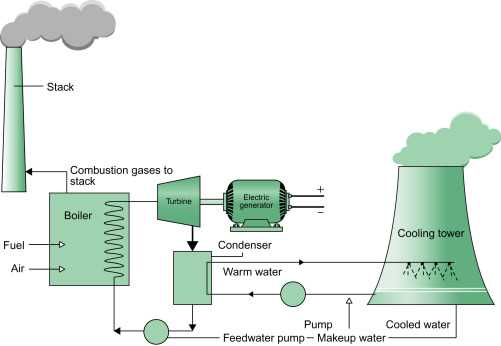

Detailed Schematic and Workflow of a Coal-Based Thermal Power Plant
Begin with a detailed layout of the fuel handling system. Coal–or its processed form like pulverized fuel–must be transported from storage yards to the combustion chamber using belt conveyors or pneumatic systems. A critical failure point here is material segregation; uneven particle sizes disrupt consistent burning, reducing boiler efficiency by up to 12%. Install vibratory feeders with load cells to maintain a uniform feed rate of 30–50 tons per hour, calibrated to the plant’s 600 MW output capacity.
Boiler design dictates thermal transfer efficiency. Supercritical units achieve 42–47% net efficiency by operating above 22.1 MPa and 374°C, while subcritical systems peak at 35–38%. Use spiral-wound furnace tubes for higher heat absorption rates–50% greater than smooth tubes–and ensure soot blowers operate every 4–6 hours to prevent ash buildup, which can drop efficiency by 5–8%. Flue gas temperatures should exit the economizer at 350–400°C to balance heat recovery and corrosion resistance.
Integrate a multi-stage turbine arrangement with controlled extractions. High-pressure turbines (HP) operate at 565°C and 16.7 MPa, while intermediate-pressure (IP) and low-pressure (LP) stages expand steam to 0.05 MPa. Critical tolerances include blade tip clearances (0.5–1.0 mm for HP turbines) and condenser vacuum (maintained at 720 mm Hg absolute). A 1% drop in vacuum raises heat rate by 200 kJ/kWh. Use titanium blades in LP sections to resist erosion from wet steam droplets, extending service life to 200,000 hours.

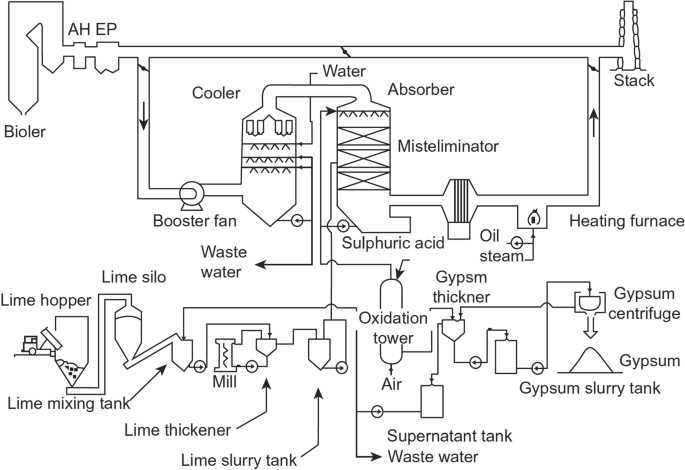

Prioritize electrostatic precipitators (ESPs) with specific collection areas of 100–120 m² per m³/s of flue gas. ESPs must achieve 99.9% particulate removal; plate spacing of 300 mm and operating voltages of 50–70 kV optimize performance. For sulfur oxide control, wet limestone scrubbers reduce SO₂ emissions to 50–100 mg/Nm³. Reagent ratios of 1.03–1.05 CaCO₃ to SO₂ ensure 95% desulfurization without scaling. Include a selective catalytic reduction (SCR) system upstream of the air preheater to cut NOₓ to 30 ppm, using ammonia injection at a 1:1 molar ratio.
Close the cycle with a closed-loop cooling system. Dry cooling towers reduce water consumption by 95% but increase auxiliary power demand by 3–5%. For wet cooling, maintain condenser tubes at 22–25°C to sustain sub-atmospheric pressure. Use admirality brass or titanium tubes in brackish water conditions; tube thickness should exceed 1.2 mm to prevent pitting corrosion. Implement a variable frequency drive (VFD) on cooling water pumps to adjust flow rates based on load, cutting parasitic losses by 15%.
Core Components of a Modern Energy Generation Facility
Begin with a high-efficiency pulverizer that grinds raw material into fine particles, ensuring 70% passes through a 200-mesh screen to optimize combustion. Install dynamic classifiers above the pulverizer to separate coarse fragments, returning them for re-grinding while allowing only the finest particles to proceed. This reduces unburned carbon loss by up to 12% and extends boiler tube life.
Position the furnace chamber with multiple burners arranged in opposed firing configuration to maximize turbulence and heat distribution. Use low-NOx burners with staged air injection to cut nitrogen oxide emissions by 30–40%, meeting EPA Tier 4 standards without requiring selective catalytic reduction in smaller units. Ensure refractory linings in high-temperature zones exceed 1,500°C rating to prevent slagging, particularly with high-ash content blends.

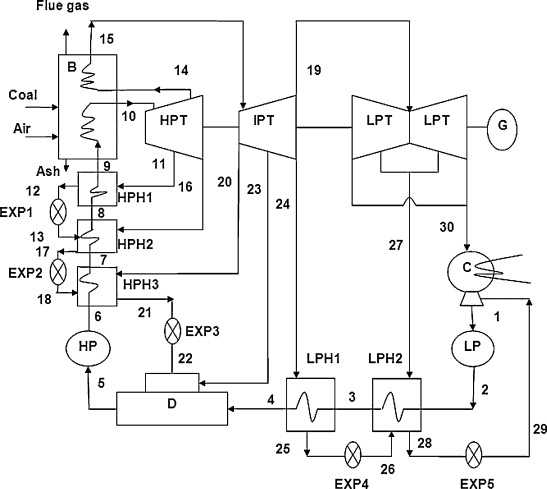

Integrate a supercritical steam generator operating above 22.1 MPa and 374°C to push thermal efficiency beyond 42%. Include reheater coils between high- and intermediate-pressure turbine stages to maintain steam dryness above 97%, preventing blade erosion. Design feedwater heaters in a cascading arrangement, with extraction steam tapped from successive turbine stages to preheat condensate in 6–8 increments, raising cycle efficiency by 3–4%.
Deploy electrostatic precipitators with specific collecting areas of 200–250 m² per m³/s of flue gas to capture 99.5% of fly ash. Follow with flue gas desulfurization using moist limestone injection, targeting 90–95% sulfur dioxide removal. Include a CO₂ scrubber bypass for units near carbon capture readiness, allowing retrofitting with amine-based absorption columns if future regulations demand emissions below 50 ppm.
Use tandem-compound turbine generators with reaction blading in high-pressure sections and impulse stages in low-pressure zones to handle varying steam volumes. Specify condensers with titanium tubes if cooling water carries chlorides above 1,000 ppm to prevent corrosion. Maintain condenser vacuum at 0.03–0.05 bar absolute using dual-stage steam jet ejectors or liquid-ring vacuum pumps for reliability during peak loads.
Implement distributed control systems with redundant master-slave processors to monitor combustion air ratios, steam pressures, and electrical outputs in real-time. Set alarm thresholds for key parameters: 5°C deviation in superheat temperature, 5% oxygen fluctuation in flue gas, or 1 bar pressure drop in feedwater. Use predictive analytics on historical vibration data from bearings and shaft seals to schedule maintenance before failures occur, reducing unscheduled downtime by up to 25%.
Critical Elements and Operational Flow in Energy Generation Facilities
Prioritize the boiler’s steam drum placement at least 60 meters above the turbine hall to ensure optimal gravitational feed and pressure stabilization. Use high-chromium alloy tubes (e.g., T91) in superheaters to withstand temperatures up to 560°C while minimizing corrosion from sulfuric acid condensation. Integrate a selective catalytic reduction (SCR) unit with a 90% NOx reduction efficiency, positioning it between the economizer and air preheater for maximum reagent penetration. Employ electrostatic precipitators with a 99.5% particulate removal rate, ensuring plates are rapped at 5-minute intervals to prevent ash buildup.
| Component | Optimal Specifications | Failure Risk Mitigation |
|---|---|---|
| Pulverizers | Roller mills with 70 mesh output, 3% moisture tolerance | Vibration sensors on bearings, bi-weekly trunnion inspection |
| Condenser | Titanium tubes, 0.7mm wall thickness, 25°C cooling water delta | Biocide dosing every 48 hours, tube leakage detection via helium sniffer |
| Deaerator | Spray-tray type, operating at 1.2 bar, 105°C feedwater | Dissolved oxygen monitoring at 5 ppb threshold, venting every 6 hours |
Align induced draft fans downstream of the flue gas desulfurization (FGD) system with backward-curved impellers to handle saturated gases at 45°C. Specify variable frequency drives (VFDs) on primary and secondary air fans to maintain a 3% oxygen excess in the furnace, reducing unburned carbon to under 5%. Implement a distributed control system (DCS) with redundant processors for boiler-turbine coordination, using PID loops tuned to a 0.2-second response time for load changes. Ensure the generator’s hydrogen cooling system operates at 3 bar pressure with purity maintained above 97% to prevent stator winding insulation degradation.
Step-by-Step Flow of Fuel Handling and Combustion in Energy Generation Facilities
Begin by designing a redundant unloading system with capacity to handle at least 120% of daily consumption rates. Use rotary car dumpers for rapid discharge (
- Crush feedstock to 50mm or less using single-stage breakers for sub-bituminous grades, or two-stage configurations (primary + secondary) for harder anthracite.
- Install vibrating screens post-crushing to remove fines below 6mm–this reduces boiler fouling by 30-40% and improves combustion efficiency.
- Store processed feedstock in silos with active flow aids (air cannons, fluidizing pads) to prevent bridging; maintain moisture levels under 8% to avoid spontaneous combustion risks.
Transport fines via dense-phase pneumatic systems (3-5 bar) for distances under 200m–these minimize dust emissions compared to dilute-phase alternatives. For longer routes (>200m), use enclosed drag-chain conveyors with automatic tensioning to reduce maintenance cycles. At the storage yard, implement stacked pile configurations with height-to-width ratios not exceeding 2:1 to prevent avalanches and ensure stable reclaim operations.
- Reclaim feedstock using rotary plow feeders for circular piles or crawler-mounted reclaimers for linear stockyards–both should integrate online moisture analyzers (NIR spectroscopy) to dynamically adjust soot blowing intervals.
- Feed pulverizers with variable-speed gravimetric feeders calibrated every 12 hours; deviation beyond ±1% triggers automatic recalibration or system shutdown.
- Monitor pulverizer outlet temperature between 70-90°C to prevent pyrolysis while ensuring complete devolatilization–this range balances throughput (10-15 TPH per mill) and fuel fineness (70% passing 200 mesh).
Introduce pulverized fuel to the furnace via low-NOx burners using separated overfire air (SOFA) ports positioned 25-35m above the burner zone. Configure SOFA damper angles at 25° for wall-fired units or 35° for tangentially fired systems to achieve staged combustion–this reduces NOx formation by 40-60% without requiring post-combustion scrubbers. Maintain primary-to-secondary air ratios at 1:3 for lean operations or 1:4 for high-volatile feedstock to optimize flame stability.
Manage furnace exit gas temperature (FEGT) between 1,050-1,150°C for subcritical boilers or 1,250-1,350°C for supercritical units–this prevents ash slagging on superheater tubes while maximizing heat transfer efficiency. Install acoustic temperature profilers at four vertical elevations to detect uneven combustion zones; fluctuations greater than 50°C trigger automatic adjustment of excess air (target 1.2-1.4 lambda). Routinely clean water walls with retractable soot blowers during low-load operations (30-40% MCR) to maintain thermal absorption rates above 4.2 MJ/kg of steam produced.
