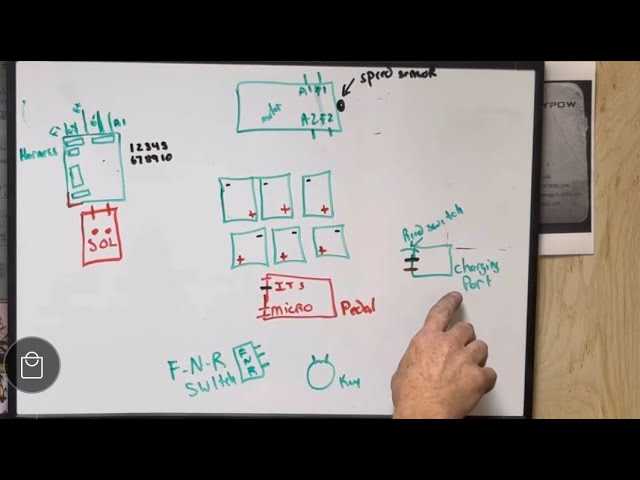

Complete 1995 EZGO 36 Volt Golf Cart Wiring Diagram Guide

Start by locating the main battery pack terminals–the 36-cell arrangement splits into positive and negative leads marked at the solenoid base. Trace the red cable from the forward terminal of the first battery pack to the solenoid’s thickest input lug; this is your primary power feed. A parallel black lead runs from the rear battery terminal to the controller’s B- post, grounding the system. Check for corrosion at these junctions–each connection should measure <0.5 ohms resistance with a multimeter, or voltage drop will disrupt acceleration.

The controller (typically a DX series unit) bridges the solenoid output to the motor via two heavy-gauge wires: field (smaller gauge, excites coils) and armature (larger gauge, handles torque load). Verify that the armature wire connects to the motor’s A1 lug, while the field wire targets A2–the polarity must match the diagram silk-screened inside the motor housing. Swapping these will burn out windings within minutes of operation.

Accessory circuits branch from the solenoid’s secondary lug. The horn, lights, and key ignition draw 12 amps collectively–inspect the inline fuse holder (often overlooked; located under the seat) for a 20-amp fuse. If accessories fail, test the purple “ignition hot” wire at the switch; a reading below 35V DC indicates a break in the dashboard harness or corroded bullet connectors near the throttle assembly.

For throttle signals, the white and green wires exiting the potentiometer must terminate at the controller’s designated micro-plug pinouts (pin 3 and 4 on most early models). Confirm continuity from the throttle pedal to the controller with the pedal fully depressed–a healthy reading spans 0-5V DC, rising smoothly. Intermittent hesitation usually stems from a frayed white wire inside the pedal mechanism, where repeated flexing weakens the insulation.

Replacement parts require exact matches: solenoid coils should pull 4.5-5.0 amps at 36V; controller MOSFETs must withstand 100-amp surges. Aftermarket controllers often lack overload protection–stick with OEM replacements unless upgrading to a 48-volt system, which demands recalibrating the entire charging circuit to avoid frying the onboard converter.

36V Golf Cart Electrical Schematic: Hands-On Troubleshooting

Start by disconnecting the battery pack’s negative terminal to prevent shorts–use a 10mm socket for the bolt on the frame rail. Verify the solenoid’s functionality with a multimeter: probe the large copper studs while engaging the throttle; a click without 36V output across both terminals signals a failed coil, requiring a $45 replacement (PN 28704G1). For intermittent power loss, inspect the forward/reverse microswitches behind the accelerator pedal–clean the contacts with 600-grit sandpaper if corrosion is visible, as oxidized surfaces disrupt the circuit path.

Key Connection Points and Fixes

• Controller Box: Check the white excitation wire (terminal 2) for 12V when the key is on–absence indicates a blown 20A fuse under the seat. Replace with an ATO blade fuse to restore speed control.
• Battery Interconnects: Tighten all 3/8″ lug nuts to 18 ft-lbs with a torque wrench; loose connections cause voltage sag under load, mimicking battery failure. Use dielectric grease on terminals to prevent sulfation.
• Charger Port: Test for 36V DC at the round plug’s outer pins with a multimeter–no reading suggests a corroded receptacle, which can be bypassed by splicing directly to the battery pack’s main leads (12-gauge THHN wire, soldered joints).
• Motor Brushes: Remove the motor cover plate; if brushes measure less than 1/4″, replace both springs and carbon blocks ($18/set PN 28708G1) to eliminate arcing and jerky acceleration.

Measure voltage drop across each 6V battery in the series: a delta exceeding 0.3V between any two cells confirms a bad unit–equalize charging won’t correct this; swap the weakest battery with a reconditioned one (specific gravity >1.265). For regenerative braking issues, trace the orange wire from the controller to the brake solenoid–if continuity is broken, solder a bridge using 14-gauge wire to the solenoid’s coil terminal.

Identifying the Primary Electrical Connector Assembly on a Mid-90s 36-Cell Golf Transport

Begin by raising the seat backward to expose the under-seat compartment. The central power connector grouping is bolted directly beneath the battery tray, near the rear edge of the frame rail. Use a 10mm socket to remove the retaining bracket–this component secures both the fuse block and the multi-pin plug that distributes current to the motor controller and accessories. Trace the heavy-gauge cables (typically 2/0 AWG) extending from the battery pack; these terminate in crimped ring connectors that fasten to the harness’s input studs.

The harness itself splits into three primary branches: a red-sheathed bundle feeding the forward/reverse switch, a black-sleeved set for the speed sensor, and a gray conduit leading to the solenoid and key assembly. Look for a cylindrical rubber grommet where these branches penetrate the chassis–this is the most frequent failure point for corrosion due to moisture ingress. Probe the connections with a non-contact voltage tester before disassembly; residual charge in the capacitors can persist for up to 30 minutes after system shutdown.

Key Landmarks for Quick Verification

• The white plastic fuse holder mounts adjacent to the harness’s main block, distinguishable by its clear window.
• The 20-pin rectangular connector on the controller’s left side mates with a matching female plug–misalignment here often mimics solenoid failure.
• Inspect the underside of the seat pan for chafed wires; original cloth insulation degrades into a fibrous residue after extended exposure to battery acid fumes.

Label each connector before separation–use masking tape and a permanent marker to annotate terminal numbers. The largest wires (8 AWG) handle traction current, while the smaller gauge (14–18 AWG) manage signaling to the reed switch and microswitches. If the transport exhibits intermittent power loss, focus first on the crimp joints at the battery-side studs; oxidation here creates resistance comparable to a loose connection. Re-seat all terminals with dielectric grease before reassembly to prevent future oxidation cycles.

Step-by-Step Color Coding for Classic 36V Golf Cart Power Linkages

Start by identifying the thick red cable emerging from the controller’s positive terminal–this is your primary power feed. Trace it directly to the battery pack’s first cell, where it connects to the positive post of the initial 6V unit. Confirm the connection with a multimeter set to continuity mode; the reading should show near-zero resistance.

Locate the orange wire bridging the negative terminal of the first battery to the positive terminal of the second. This link maintains the series chain, stepping up the system to 12V at this juncture. Ensure the crimp connectors are free of corrosion–clean with a wire brush and apply dielectric grease to prevent future oxidation.

Verifying Intermediate Connections

The yellow wire connects the second battery’s negative post to the third’s positive post, escalating the voltage to 18V. Follow the purple wire next, which links the third battery’s negative to the fourth’s positive, pushing the total to 24V. Use a socket wrench to tighten these connections to 10-12 ft-lbs; over-torqueing risks damaging the lead posts.

The blue wire completes the mid-span linkage by joining the fourth battery’s negative terminal to the fifth’s positive. At this point, the voltage reaches 30V. Inspect the cable insulation for cracks–replace any compromised sections immediately to avoid short circuits.

Finalizing the High-Current Path

The green wire connects the fifth battery’s negative to the sixth’s positive, achieving the full 36V configuration. Double-check this connection last; loose terminals here draw excessive current, overheating the cables. Secure with a torque wrench calibrated to 8-10 ft-lbs.

Trace the black thick cable from the final battery’s negative terminal back to the controller’s ground input. This establishes the return path for the circuit. Measure voltage drop across this link–any reading above 0.2V indicates resistance issues, requiring re-crimping or replacement of the terminal lug.

Label each connection with heat-shrink tubing matching the wire color for future reference. Test the entire setup by engaging the cart in forward motion; irregular acceleration suggests miswiring–revisit the sequence if issues persist.

Diagnosing Motor Circuit Faults in Early EZ Go Electric Carts

Begin by isolating the main fuse near the battery pack–corrosion at the fuse holder clips causes intermittent power loss. Use a multimeter set to 200 ohms to check resistance across the clips; readings above 0.5 ohms indicate pitted contacts requiring sanding with 400-grit emery paper or replacement of the holder. Inspect the solenoid plunger for sticking; apply dielectric grease to the internal spring if engagement feels sluggish or if the cart hesitates during acceleration.

Trace the negative return path from the speed controller to the pack’s negative terminal–loose or oxidized ring terminals at any junction introduce voltage drop. Secure connections with a torque wrench set to 8-10 in-lbs, ensuring star washers penetrate surface oxidation. If the cart surges at full throttle, test the throttle micro-switch by jumping the contacts with a 1k resistor; absence of surging confirms a faulty switch, while continued symptoms point to a degraded field coil requiring replacement.
