Complete 1996 Cadillac DeVille Radio Wiring Color Code and Pinout Guide

Start by locating the fuse block beneath the dashboard on the driver’s side–this model’s audio harness integrates directly with the vehicle’s central power distribution network. The primary 12-volt feed originates from fuse position C2 (10A), branching into a violet wire that connects to the head unit’s terminal B+. Verify continuity here before proceeding; corrosion on this circuit often mimics speaker failure.

Trace the yellow-with-black-stripe wire from the radio’s rear housing–this carries the ignition-switched power (labelled ACC). If the system fails to power on, probe this line at the harness connector while turning the key to the accessory position. A steady 12V reading confirms proper relay activation; absence suggests either a blown IGN fuse or a faulty ignition cylinder.

The ground connection anchors to chassis point G400, located behind the left kick panel. Scrape away paint or rust accumulation at this point to ensure a solid 0-ohm reading between the ground wire (black) and bare metal. Intermittent operation often stems from a compromised ground path, especially in humid climates where oxidation accelerates.

Speaker outputs follow a dual-channel setup: front left (gray/light blue) and front right (gray/light green) pairs terminate at factory-installed 6×9 door units, while rear outputs (gray/dark blue for left, gray/dark green for right) feed the decklid-mounted tweeters. Test each wire with a 1kHz sine wave signal–distorted audio indicates either a short in the door hinge grommets or a failed amplifier relay (RPO UQ3).

For aftermarket upgrades, bypass the proprietary data bus by tapping the orange wire (serial data) only if retaining steering wheel controls–otherwise, isolate this line to prevent dashboard error codes. Subwoofer integration requires splicing into the darker gray wire (sub out) at the head unit’s 16-pin harness; a line-level converter maintains proper impedance matching for aftermarket amplifiers.

Audio System Connection Guide for the 1996 Luxury Sedan

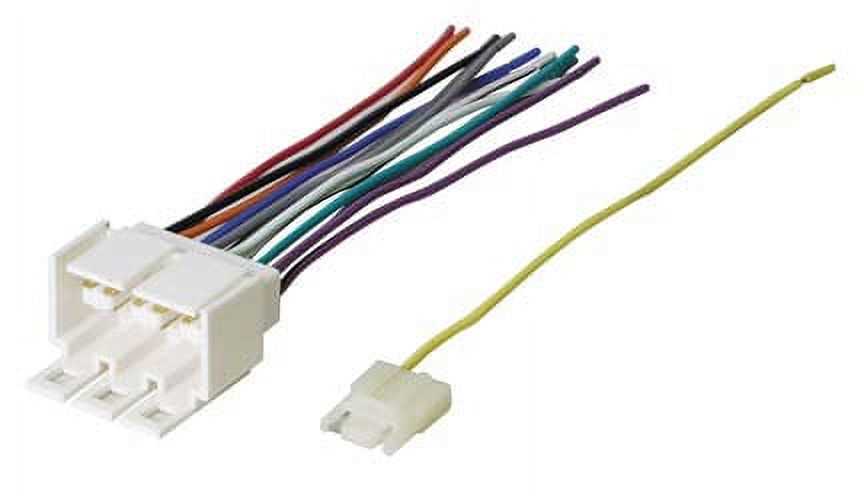

Locate the factory harness behind the sound unit’s mounting sleeve by removing the trim panel below the climate controls. Disconnect the battery’s negative terminal before touching wires to prevent short circuits. The main connector contains 12 pins, each serving a distinct purpose–match colors precisely when splicing an aftermarket head unit.

Key wire functions in the OEM harness:

• Yellow: Constant 12V power, maintains memory settings
• Red: Switched ignition power, activates system
• Black: Ground, connects to chassis or dedicated stud
• Orange/White: Illumination dimmer control, adjusts display brightness
• Gray/Red: Left front speaker (+), 2Ω impedance
• Gray/Black: Left front speaker (-)
• White/Red: Right front speaker (+), 2Ω impedance
• White/Black: Right front speaker (-)
• Green/Red: Left rear speaker (+)
• Green/Black: Left rear speaker (-)
• Purple/Red: Right rear speaker (+)
• Purple/Black: Right rear speaker (-)

Testing Connections Before Final Assembly

Use a multimeter to verify voltages–yellow should read 12V regardless of ignition state, while red requires the key in the ACC position. Probe ground wires to ensure ≤0.5V drop under load. Speaker wires should measure ~4V AC when the audio unit outputs a test tone. If values deviate, inspect fuses (locations: under-dash box, fuse #18 for audio system) and check for corroded contacts.

For vehicles with premium sound systems, an additional amplifier harness appears near the glove box. Four brown wires (LF/RF/LR/RR) carry low-level signals–tap these carefully if retaining the factory amp. Avoid direct speaker connections here, as improper splicing overloads the amplifier’s output stage. Lighter-gauge wires (brown/light blue) correspond to the phone mute and antenna trigger functions.

Secure all splices with solder and heat-shrink tubing rather than crimp connectors to prevent intermittent failures from vibration. Reinstall the dash trim in reverse order of removal, ensuring no wires pinched behind panels. Reconnect the battery last, then test all functions: preset stations, tone controls, and steering wheel audio buttons if equipped. Replace any blown fuses with identical amperage ratings.

Common pitfalls include mixing up illumination (orange/white) and power antenna (dark blue) wires, which can disable the antenna motor. If the display flickers, revisit the ground connection–use a star washer for clean chassis contact. For models with CD changers, the data bus runs on a purple/white wire; consult specific pinout if integrating third-party changers to avoid ECU errors.

Finding the Audio System Interface Plug on a Mid-90s Luxury Sedan

Begin by removing the lower dash panel directly beneath the climate controls. This section is secured with two 7mm screws near the driver-side knee bolster. Once detached, tilt the panel downward–avoid yanking, as it remains connected by a single white wiring loom for the courtesy lamp.

Behind the climate control module, locate a rectangular black connector attached to a bundle of multicolored wires. This is the primary harness for the sound system, measuring roughly 5cm by 3cm. The plug’s locking tab sits on the upper edge; depress it firmly while wiggling the connector free from its socket.

If the harness isn’t visible, trace the wires leading from the back of the head unit. They exit through a circular grommet in the firewall, bundled together with other cables. Follow this grouping upward–it merges with the main interface beneath the center console’s ashtray housing.

For sedans equipped with premium audio, a secondary gray connector may be present. It handles the amplifier feed and sits adjacent to the primary plug, distinguishable by its twelve-pin layout and thicker gauge wires. Ensure both are disconnected before servicing the head unit.

The harness typically carries these wire functions: solid yellow (constant power), red with white stripe (switched power), black (ground), dark green (antenna trigger), and light blue (amplifier remote). Verify each circuit with a multimeter–12V readings should appear on yellow and red/white leads when the ignition is in accessory mode.

If corrosion is present, clean the connector pins with an electrical contact cleaner. Avoid sandpaper; it can damage the gold-plated contacts. Reinsert the plug with steady pressure until the locking tab clicks. Partial engagement risks intermittent sound system failures.

Before reassembling, check for proper routing. The harness should avoid sharp edges near the pedal assembly and remain clear of the steering column adjustment lever. Secure loose sections with nylon ties to prevent rattles or chafing against metal surfaces.

Matching Harness Wire Colors to Head Unit Terminals

Locate the orange-striped (+) memory feed–this 12 V constant powers retainer circuits even when ignition is off; pair it directly to the red terminal on the stereo harness.

The dark green/white stripe carries switched accessory power through the ignition harness–route this to the yellow connector post to enable audio playback without draining the battery during key-off intervals.

Ground wires are universally black; splice the factory loom’s solid black lead into the aftermarket head unit’s black socket–ensure a clean, corrosion-free chassis bolt contact for noise-free operation.

Front-left speaker positive is tan with a black tracer; front-left negative is gray with a light blue stripe–connect these to the corresponding L(+) and L(–) outputs to preserve channel phase integrity.

Rear-right positive is dark blue with an orange stripe; rear-right negative is brown with a white stripe–terminate these leads onto the R(+) and R(–) pins to maintain balanced rear fill tonal balance.

Illumination control–light blue stripe on pink–feeds dash lamp brightness; attach this to the head unit’s dimmer input so LCD intensity matches instrument cluster at night.

Step-by-Step Guide to Removing the Factory Audio System Safely

Disconnect the vehicle’s battery terminals first–negative (ground) first, then positive. Use a 10mm wrench to loosen the clamps on both posts. Wait at least 15 minutes after disconnection to allow the internal capacitors in the head unit to fully discharge. Failure to do so risks damaging the circuitry or triggering airbag deployment errors. Store the cables away from metal surfaces to prevent accidental short circuits during removal.

Tool	Purpose	Alternative
Trim removal tool (plastic pry bar)	Gently separate dashboard panels without scratching surfaces	Flathead screwdriver wrapped in painter’s tape
Torx T20 driver	Remove mounting screws securing the unit	Small magnetic Phillips screwdriver
Needle-nose pliers	Extract wire harness clips without breaking tabs	Slotted screwdriver with padding

Locate the two outer trim pieces surrounding the climate control cluster–pry them outward starting from the bottom edge. Apply even pressure to avoid snapping the plastic clips. Once removed, the main dash bezel will lift away, exposing four Torx T20 screws anchoring the audio module. Unscrew them carefully, noting that one may be hidden behind a small access panel near the hazard light button. Pull the unit forward slowly while disconnecting the antenna lead, power harness, and speaker wires–label each connector with masking tape to simplify reinstallation. If resistance is felt, check for overlooked screws or clips before forcing extraction.
