Complete MOSFET Switch Circuit Guide with Diagrams and Practical Examples

Use an N-channel enhancement-mode semiconductor with a low R_DS(on) rating–below 20 mΩ for currents above 5 A–to minimize conduction losses. Select a gate threshold (V_GS(th)) between 2 V and 4 V to ensure reliable activation from 3.3 V logic outputs while avoiding false triggers from stray voltage. For inductive loads, place a freewheeling diode across the coil with a reverse recovery time under 50 ns to prevent energy spikes from damaging the drive stage.

Drive the gate through a 10 Ω resistor for currents up to 10 A to limit inrush current and overshoot; increase to 33 Ω if switching frequencies exceed 100 kHz. Maintain a gate-to-source capacitance below 1 nF to reduce Miller-effect delays during turn-off transitions. Ensure the gate driver supplies at least 10 V to fully enhance the channel–5 V logic suffices only for logic-level devices.

Ground the source terminal directly to the return path without intermediate traces; any inductance above 5 nH introduces parasitic oscillations at high di/dt transitions. For thermal stability, mount the device on a 10 mm² copper pad with 1 oz thickness–add vias to a secondary heatsink if power dissipation exceeds 2 W. Avoid PWM frequencies above 500 kHz unless using drivers with sub-10 ns rise/fall times to prevent incomplete channel saturation.

If controlling DC motors, add a 0.1 µF ceramic snubber across the load leads to suppress arcing when rapid polarity reversal occurs. Isolate gate signals from high-current paths using ground-plane separation or optocouplers with CMR above 10 kV/µs. Verify operation at worst-case ambient temperatures–check that V_GS(th) drift remains within ±15 % of nominal to prevent conduction at low drive voltages.

Designing a Transistor-Based Electronic Gate for Controlled Power Delivery

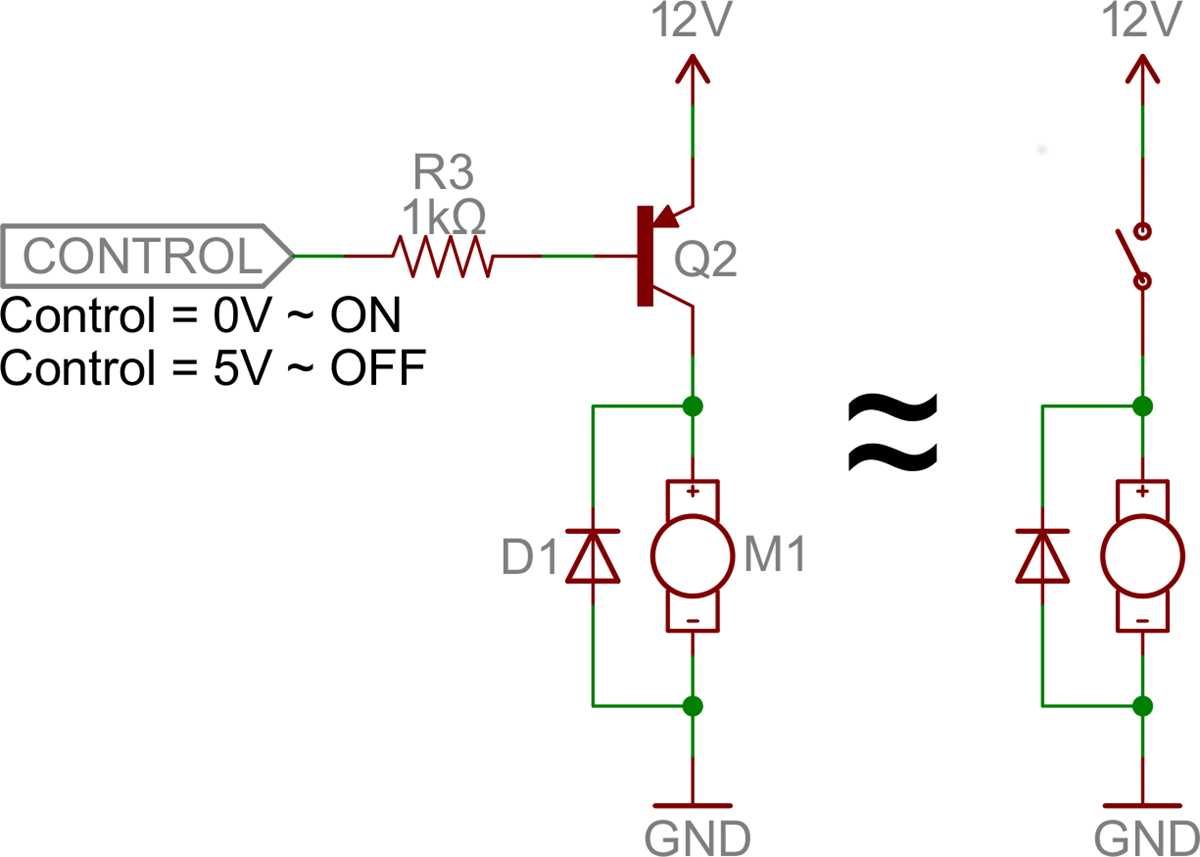

Select a low-threshold enhancement-mode variant for driving low-voltage loads–such as the IRLZ44N–with a gate-source threshold of 1–2V. This allows direct interfacing with microcontrollers operating at 3.3V or 5V logic levels without requiring an additional driver stage. For inductive loads like relays or motors, pair the transistor with a freewheeling diode (1N4007) placed antiparallel to the load to clamp voltage spikes exceeding the breakdown rating by 150% or more.

Determine gate resistance based on switching speed requirements. A 1kΩ resistor suits general-purpose applications, balancing turn-on time (~100ns) and gate capacitance (typ. 1.5nF for medium-power devices). For high-frequency toggling (100kHz+), reduce resistance to 100Ω to minimize propagation delays, but ensure the driving source can deliver at least 500mA transient current. Avoid exceeding the ±20V gate-source maximum to prevent oxide layer degradation.

Thermal and Layout Precautions

Mount the device on a 1oz copper pad of at least 2cm² for TO-220 packages or use a dedicated heatsink for continuous currents above 10A. Solder a 100nF ceramic capacitor directly between the drain and source terminals to suppress high-frequency noise, placing it within 5mm of the package leads. For pulsed applications, calculate duty cycle limits: a 60% maximum for ambient temperatures up to 70°C, derating linearly to 30% at 100°C.

Isolate high-power traces from sensitive analog or logic circuits on a PCB. Use 2mm spacing for voltages up to 100V and increase to 4mm for 200V+. Ground the source terminal via a dedicated return path to prevent ground bounce, which can cause false triggering. For fail-safe operation, add a 10kΩ pull-down resistor at the gate if the control signal is susceptible to noise or open-circuit conditions.

Choosing the Right Transistor for Power Control

For high-speed on/off applications, prioritize devices with gate charge (Q_g) below 20 nC. Lower Q_g reduces switching losses and driver requirements–ST’s STD17N62K3 (Q_g = 12 nC) or Infineon’s IRLZ44N (Q_g = 18 nC) suit 100 kHz+ designs. Verify gate-source threshold (V_gs(th)): 2–4 V ensures reliable turn-on with logic-level drives, critical for 3.3 V or 5 V microcontroller outputs. Avoid parts requiring 10 V gate drive unless isolation or higher voltage margins are needed.

Match the breakdown voltage (V_DSS) to your supply rail with a 30–50% margin: 30 V devices for 12 V rails, 60 V for 24 V, 100 V for 48 V. Over-specifying raises R_DS(on) and cost–Vishay’s SiHP15N50C (500 V) suits offline SMPS, while Nexperia’s PSMN0R9-25YLC (25 V) fits battery-powered tools. Check pulsed current ratings: short 10 µs pulses allow 3×–5× steady-state limits, but thermal impedance dictates safe duration.

Thermal resistance (R_θJC + R_θCS + R_θSA) directly impacts dissipation. TO-220 packages hit 2–5 °C/W junction-case; DPAK or PowerPAK SO-8 halve that with proper PCB copper. For continuous 10 A at 25 °C ambient, target DS(on) to stay below 125 °C junction temperature. Add a 0.1 °C/W margin for soldermask or uneven heatsink contact–traces should use 2 oz copper, minimum 10 mm² pad per watt.

Parasitic capacitance (C_iss, C_rss) shapes rise/fall times: devices with C_iss >1 nF need >1 A gate drivers for crisp edges. Avoid logic-level parts in linear mode–they exhibit higher R_DS(on) at elevated temperatures. For inductive loads, bypass the body diode with a Schottky (e.g., STMicro’s STTH100L06DI) to reduce reverse recovery losses (~30 ns vs 150 ns).

Step-by-Step Assembly for a Solid-State Control Element

Identify the control terminal–typically the gate–on your semiconductor device and verify its threshold voltage from the datasheet. For logic-level variants, ensure your microcontroller outputs at least 3.3V or 5V to fully drive the channel; standard devices may require 10V or more. If applying higher voltage loads, select a component with a breakdown voltage exceeding 1.5× the maximum supply voltage to prevent avalanche failure.

Connect the source terminal directly to the load’s return path or ground reference. Use a low-resistance conductor, such as 18 AWG stranded copper wire, for currents above 2A to minimize voltage drop. For pulse-width modulation, solder a 100nF ceramic capacitor between the source and gate terminals to suppress high-frequency transients that could latch the device into a linear region.

Route the input signal through a current-limiting resistor to the gate pin. Calculate resistance using:

• R_gate = (V_drive – V_gs(th)) / I_gate(max)
• Example: For a 5V logic signal, 2V threshold, and 10μA gate current, use ~300kΩ
• For inductive loads, add a flyback diode rated for 1.5× the peak load current across the drain-source path

Load Configuration and Power Delivery

Attach the load–motor, solenoid, or high-power LED–between the positive supply and the drain terminal. Match wire gauge to expected current:

1. 1–3A: 22 AWG
2. 3–10A: 18 AWG
3. 10–20A: 14 AWG with heatshrink tubing over solder joints
4. Above 20A: 12 AWG or busbar with anti-corrosion coating

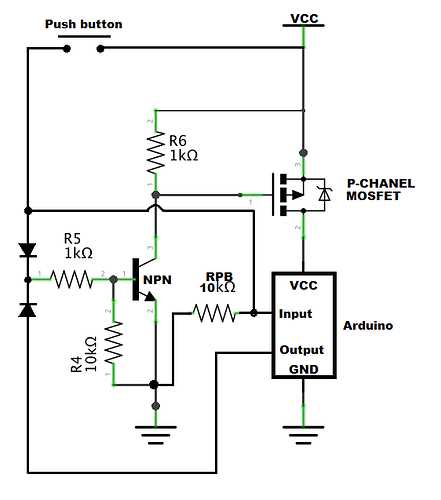

Power the supply via a regulated source with output ripple under 50mV_pp to prevent unintended triggering. For battery-operated designs, insert a P-channel enhancement-mode device at the supply rail to block reverse current during power-down sequences, safeguarding sensitive electronics downstream.

Final Verification and Safety Measures

Before energizing, verify continuity between all terminals and the load using a multimeter in diode test mode–gate-to-source should show high impedance, while drain-to-source should indicate body diode forward voltage (~0.7V). Apply power gradually while monitoring temperature: any rise above 60°C before reaching 50% of rated current indicates insufficient thermal bonding. Attach a TO-220 package to a 6cm² aluminum heatsink with thermal paste for dissipations above 1W. For switching frequencies above 10kHz, add a 1Ω series resistor to the gate drive to dampen ringing.

Calculating Resistor Values for Gate Drive in Transistor Control Configurations

Select a gate current-limiting resistor based on the driver’s output capability and the semiconductor’s gate charge specification. For a 12V drive source with a 5V threshold device, use the formula Rg = (Vdrive - Vgs(th)) / Ig, targeting 1/10th of the driver’s maximum sink/source current. Example: a 5A driver with a 20nC gate charge yields Ig = Qg / trise ≈ 1A for 20ns rise time, requiring a 7Ω resistor.

Key Parameters Affecting Resistance Choice

Parameter	Typical Value Range	Impact on Rg
Driver voltage (Vdrive)	5V–20V	Higher voltage increases current, allowing lower resistance
Total gate charge (Qg)	5nC–200nC	Larger charge demands higher current or longer switching time
Miller capacitance (Cgd)	20pF–500pF	Increases with voltage rating, requiring careful balancing
Switching frequency (fsw)	1kHz–1MHz	Affects power dissipation; higher frequency needs smaller Rg

For high-speed applications, split the resistor into two: one between driver and gate (R_{g_ext}), another across gate-source (R_gs) to minimize oscillations. A common ratio is 70:30 (R_{g_ext}:R_gs), e.g., 4.7Ω and 2.2Ω for a 11Ω equivalent. Ensure the driver’s peak current exceeds Ig = Vdrive / (Rg_ext + Rgs) by at least 2× to avoid saturation.

Verify calculations with an oscilloscope: measure rise/fall times (drive), and ringing frequency (>5× f_sw). Adjust R_g iteratively–reduce by 10% if switching is sluggish, increase by 15% if ringing exceeds safe margins. For 600V-rated devices, add a 1kΩ pull-down resistor to prevent false turn-on during transients.

Frequent Mistakes in Solid-State Relay Design and Corrective Measures

Choose the gate driver voltage appropriately–never exceed the maximum rating specified in the datasheet. A common error involves applying 12V to a component rated for 10V gate-to-source, degrading the oxide layer over time. Always verify the absolute maximum gate voltage and margin your design by at least 20% below this limit. For low-voltage logic signals, employ a dedicated driver IC with built-in clamping or a simple Zener diode to clamp overshoot.

Selecting the wrong package type can lead to thermal runaway. SMD variants like SO-8 and TO-252 dissipate less heat than through-hole options like TO-220 or D2PAK. If switching currents above 5A, either choose a larger package or attach a heatsink with thermal paste; otherwise, junction temperatures can rise beyond 150°C, causing parametric shifts or burnout. Always cross-check the RθJA (junction-to-ambient) value and ensure it matches your expected power loss.

Parasitic Inductance and Voltage Spikes

Long traces introduce parasitic inductance that generates voltage spikes during turn-off. For instance, a 50mm trace with a di/dt of 1 A/ns can produce spikes exceeding 50V, easily exceeding the breakdown voltage. Mitigate this by keeping gate and load traces as short as possible–preferably below 10mm–and using a freewheeling diode directly across the load. Add a small RC snubber (typical values: 10Ω + 1nF) across the drain-source to absorb transients.

Incorrect gate resistor values slow down transitions, increasing switching losses. A 0Ω resistor causes ringing, while a 1kΩ resistor lengthens turn-on time, raising conduction losses. Benchmark with a 10Ω–100Ω resistor, then fine-tune using an oscilloscope to balance rise/fall times. For high-speed applications, ensure the driver can supply peak currents of at least 1A to charge the gate capacitance rapidly.

Ignoring body diode characteristics leads to unintended conduction. During reverse polarity, the internal diode conducts with a forward drop of ~0.7V–this can trigger false triggering or latch-up in half-bridge setups. If reverse blocking is required, place an external Schottky diode in series (anode to ground) or select a component with a specified maximum diode current. Check the datasheet’s “Diode Continuous Current” rating and ensure it exceeds your worst-case scenario.

Neglecting layout symmetry in half-bridge configurations induces shoot-through. Even a 1ns mismatch in gate signals causes both devices to conduct simultaneously, drawing destructive currents. Use complementary gate drivers with matched propagation delays and routed traces of equal length. Add a small dead-time resistor (30Ω–50Ω) to ensure the upper and lower components never overlap. Verify timing with double-pulse testing to confirm safe operation margins.
