Complete Wiring Diagram for 1997 Chevy 1500 Ignition Switch Repair Guide

For troubleshooting power issues on a general motors light-duty truck from the late 90s, start by isolating the primary power distribution beneath the dashboard on the driver’s side. The ignition harness–typically a 10-pin connector–feeds the starter solenoid through the red/white (R/W) wire, which carries approximately 12 volts when the key is turned to the crank position. Verify voltage at pin 8 (white connector) before assuming failure; corrosion often mimics a faulty solenoid when the issue lies upstream.

If the starter relay clicks but the engine doesn’t turn over, check the purple (P) wire from the ignition cylinder to the neutral safety switch. A break here–common in models with column-mounted ignitions–will prevent current from reaching the starter. Probe both ends of the P wire with a multimeter set to continuity mode; resistance above 0.5 ohms indicates a partial short or frayed insulation. Replace the entire harness if corrosion penetrates the terminals.

For models equipped with an anti-theft system, the yellow (Y) and dark green/white (DG/W) wires at the key cylinder must maintain uninterrupted communication with the ECM. A faulty passlock sensor often triggers a no-crank condition, which the onboard diagnostics (OBD-I) will flag as Code 24 or 55. Bypass temporarily by connecting a 10K ohm resistor between the Y and DG/W wires, but repair the original circuit to avoid long-term security risks.

Ground paths deserve equal scrutiny. The black (BK) wire from the ignition switch attaches to the firewall near the brake booster; ensure the bonding strap isn’t fractured. Weak grounding can cause intermittent cranking, especially under load (e.g., cold mornings). Clean all grounding points to bare metal, secure with star washers, and apply dielectric grease to prevent oxidation.

If the starter engages but disengages prematurely, examine the starter motor’s B+ feed–a heavy-gauge orange (O) wire directly from the battery. Corroded terminals here reduce current delivery, leading to slow cranking or heat buildup in the solenoid. Replace the starter if amperage draw exceeds 250 A during cranking, as internal shorting damages the flywheel over time.

Electrical Schema for the C/K Series Truck Starter Circuit

Locate the pink wire (circuit 300) on the harness side of the steering column connector–this supplies constant power from the battery via fuse 11 (25A). Trace it to terminal B of the column plug; failure here causes no-crank conditions despite a functional starter relay.

Verify the yellow wire (circuit 1450) connects terminal F to the starter solenoid control circuit. Measure 12V here during engagement; zero voltage indicates a faulty neutral safety relay or open in the 4-pin harness between the firewall bulkhead and solenoid.

• Terminal A: Orange wire (circuit 10) feeds the ECM and fuel pump circuit–corrosion here mimics fuel delivery failures.
• Terminal C: Purple wire (circuit 900) triggers the starter relay coil; test continuity to chassis ground.
• Terminal D: Dark blue wire (circuit 439) carries ignition voltage to accessories; intermittent voltage drops signal loose column-to-chassis ground eyelets.

Replace the column plug entirely if terminals exhibit green oxidation or pitting–temporary cleaning with electrical contact cleaner masks underlying issues. Replace fuse 11 with a identical 25A rating; higher values bypass OEM thermal protection.

Locating the Proper Leads in Your Vehicle’s Starter Circuit Bundle

Begin by isolating the harness connector at the back of the column assembly. The plug typically contains five to seven terminals, but only four are critical for operation: the battery feed, accessory line, crank signal, and ground. Use a multimeter set to continuity mode to probe each pin while turning the key to each position–this reveals which wires correspond to which functions without relying on color coding.

The battery feed lead is the sole wire that maintains constant 12V voltage regardless of key position. Trace it back to the fuse panel; it often originates from fuse #19 (20A) on this platform. The crank signal wire will momentarily spike to 12V only when the key is turned to start–the surest way to identify it is by listening for the relay click under the dash during testing.

Verifying Termination Points Before Connection

• The accessory line: registers voltage at key position I (radio/lights) but drops when cranked.
• The ground may share a common pin or branch to the chassis; confirm with an ohmmeter against a known grounding bolt.
• Avoid assuming factory colors; aftermarket alarms or previous repairs frequently alter wire jackets.

Label each confirmed conductor with heat-shrink tubing marked with its function. If the bundle lacks a locking tab or has irregular pin spacing, compare it against a known-good connector from a salvage vehicle–mismatched harnesses from different trim levels (e.g., base vs. Z71) sometimes use inverted pinouts.

Step-by-Step Guide to Locating the Powertrain Control Connector

Begin by removing the lower dashboard panel beneath the steering column. Use a 7mm socket to unscrew the three bolts securing the panel in place. Pull the panel downward gently to avoid snagging any attached cables.

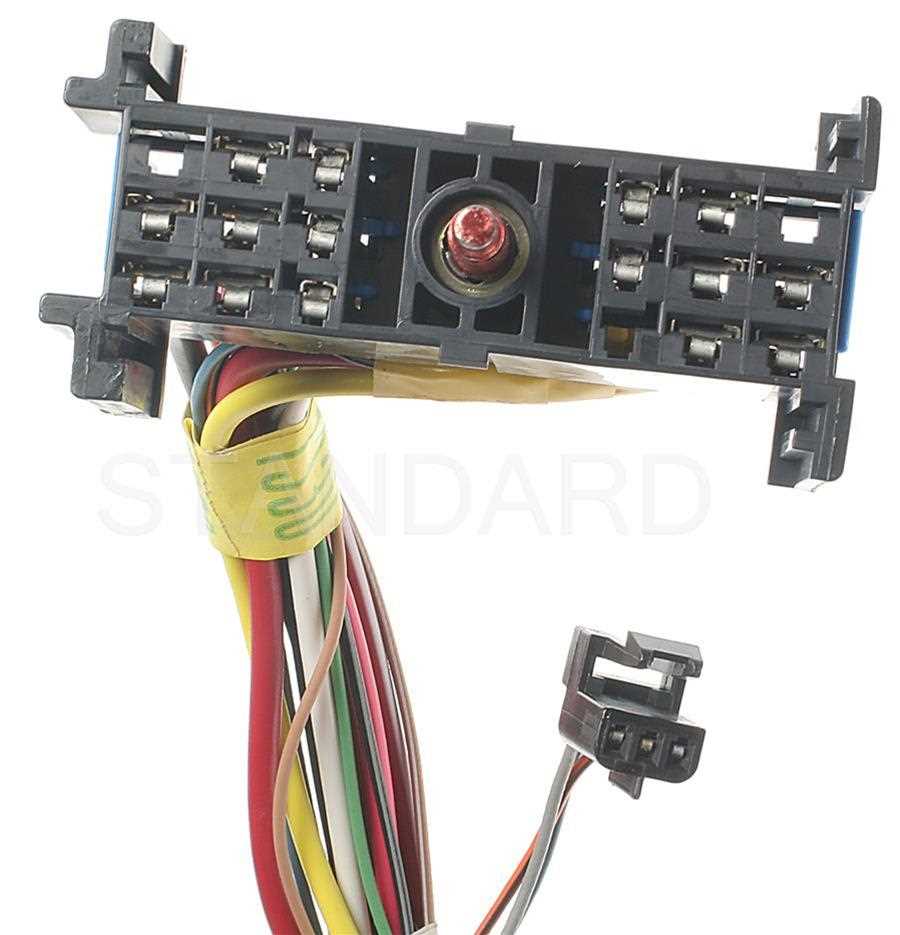

The connector sits directly behind the column shroud, typically near the firewall. Look for a rectangular plug with four to six wires–red, pink, yellow, and white stripes are common for this model’s electrical harness. Trace the wires upward to confirm they route into the steering column housing.

If the plug isn’t immediately visible, disconnect the battery first to prevent short circuits. Then, release the plastic tabs on the column shroud using a flathead screwdriver. Separate the upper and lower shroud halves to expose the wiring bundle.

Identifying the Correct Harness

The target connector will have a distinct locking tab. Press it inward while gently wiggling the plug free. Avoid tugging on wires; apply force only to the connector body. If resistance persists, check for additional hidden clips or screws.

Use a multimeter set to continuity mode to verify connections. Probe the corresponding pins on both sides of the plug–pinouts for this configuration are usually: terminal 1 (starter relay), terminal 2 (accessory power), terminal 3 (ignition feed), and terminal 4 (ground).

For stubborn cases, label each wire with masking tape before disconnecting. Reference a factory service manual for exact pin locations if colors appear inconsistent. Reassembly requires aligning the shroud halves precisely before reattaching the dashboard panel.

Test functionality by reconnecting the battery and cycling the key. Listen for the starter solenoid click and verify dashboard lights illuminate. If the engine fails to crank, recheck connections for bent pins or corrosion.

How to Verify Electrical Connections in Your Vehicle’s Starter Circuit

Disconnect the battery’s negative terminal before probing any terminals to prevent short circuits or damage to control modules. Use a digital multimeter set to the 20V DC range to measure voltage at the control harness while a helper turns the key to the “start” position. The red probe should contact the ignition feed wire (typically a yellow or pink conductor in GM applications), while the black probe grounds to the chassis or battery negative. Expect 10–12V during cranking; readings below 9V indicate a weak supply, corroded connections, or a failing relay.

Checking Continuity in Control Circuits

Set the multimeter to continuity mode (or 200Ω resistance) to test the integrity of the solenoid activation path. Probe between the starter solenoid’s small terminal and the ignition harness connector’s matching pin–consult the factory service manual for pin assignments, as colors vary by model year. A reading near 0Ω confirms an intact circuit; infinite resistance or values above 1Ω suggest broken wires, loose connectors, or a faulty neutral safety component. Inspect the entire run for chafing, especially where the harness bends near the steering column or firewall.

For voltage drop testing, reconnect the battery and have the helper hold the key in “start” while you measure across connections under load. Place one probe on the battery positive post and the other on the starter solenoid’s feed terminal during cranking. A drop exceeding 0.5V signals excessive resistance–common culprits include corroded battery cables, undersized wires, or a failing anti-theft module. Clean terminals with a wire brush and dielectric grease; replace any conductors showing green oxidation or brittleness.

Circuit Color Identifiers and Role Breakdown for GM Half-Ton Pickup

Verify feed lines by tracing the red (often labeled as R) conductor–this primary power source supplies 12V to the accessory bus under both RUN and START conditions; test continuity at the fusible link before assuming downstream faults. The yellow (Y) strand carries battery positive to the solenoid under cranking cycles alone–confirm it disengages during RUN to prevent starter damage. Ground loops frequently hide in the black/white stripe (BK/W) path: inspect its termination at chassis grommets for corrosion or loose crimps.

Color	Circuit ID	Voltage State	Key Troubleshooting Steps
Pink (P)	Constant battery positive	12 V always	Splice into fusible link segment; bypass with jumper to rule out resistive losses.
Light blue (L-B)	Accessory relay trigger	12 V in RUN only	Verify relay coil resistance (80-120 Ω); swap relay with known good unit if voltage drop exceeds 0.5 V across coil terminals.
Dark green/white (DG/W)	Neutral safety signal	Ground in PARK/NEUTRAL	Back-probe at transmission range sensor connector; clean contacts with DeoxIT if intermittent.

Intermittent RUN dropout often stems from the white/black stripe (W/B) ign feed oxidizing at splice points; expose 1 cm of insulation, apply dielectric grease, and crimp with gold-plated butt connectors rated for 20 AWG minimum. Remember: purple (P) and tan/black (T/B) paths route exclusively to dashboard modules–skip color-coding assumptions and cross-reference with harness pin-outs before attempting repairs.
