Complete Wiring Diagram Guide for 1997 Chevrolet Cavalier Electrical System
Start repairs by isolating the main fuse box under the dashboard on the driver’s side–labeled positions 12 through 18 handle the instrument cluster and ignition relay. If the fuel pump fails to prime, trace the orange wire from connector C2 to the inertia switch near the firewall; corrosion here disrupts current flow to the pump relay. Replace any connector exhibiting green oxidation; even minor resistance causes voltage drop across the circuit, leading to erratic sensor readings or failed starts.
Color codes follow a rigid scheme: pink (constant 12V power), black/white (ground), orange (fused battery), and dark blue (switched accessories). For headlight issues, verify the continuity of the light blue/white wire from the multifunction switch to the bulb socket–intermittent breaks here are common after 15 years of thermal cycling. Use a multimeter set to 200 ohms to confirm less than 0.5Ω resistance across any splice; higher values indicate wire fatigue or poor crimping.
HVAC blower motor problems often stem from a failed resistor block behind the glovebox. The brown/white wire carries power to the motor; if the fan operates only on high speed, replace the resistor or inspect the four-prong connector for melted terminals. A/C clutch engagement relies on the dark green/white wire from the pressure switch–measure at least 10V here during compressor activation, dropping to zero when the clutch disengages.
Transmission control module connections hide under the air filter housing. Disconnect the battery negative terminal before probing the yellow/black wire (shift solenoid A) and gray/black wire (solenoid B). Voltage should toggle between 0V and 12V during gear changes; static readings signal a faulty TCM or corroded ground at G101, located beneath the brake master cylinder. Always use heat-shrink butt connectors for repairs–electrical tape degrades under engine bay temperatures.
Electrical Schematic for the ’97 Compact Model: Hands-On Reference

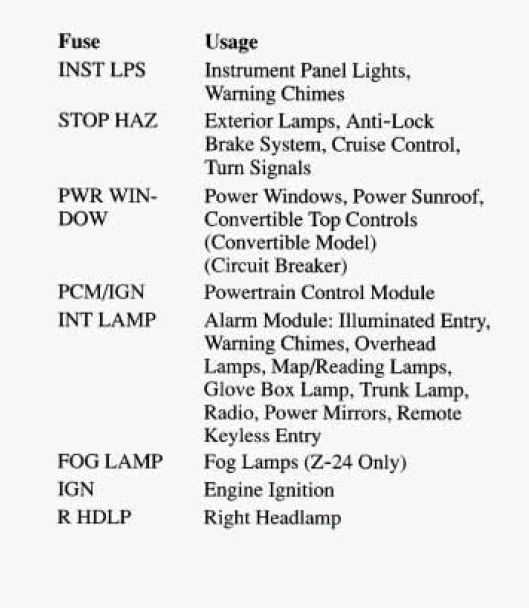

Start troubleshooting by locating the fuse block under the dashboard–driver’s side, near the parking brake. The 30-amp ignition fuse controls most engine control module functions. Remove it with needle-nose pliers, inspect the filament; if melted, replace with an identical rating before proceeding.
Trace the orange-striped wire from the ignition switch to pin 14 on the PCM connector C1. Resistance should read 0.2–0.5 ohms between the switch and PCM. Values above 2 ohms indicate corrosion at the bulkhead connector, requiring sanding terminals with 600-grit paper and application of dielectric grease.
For headlight circuits, consult the relay labeled “HDLP” on the under-hood fuse panel. The tan wire exiting the relay supplies power; splice into it 10 inches from the relay using a Scotchlok connector to tap auxiliary lights without disrupting factory routing.
Ground Points and Sensor Voltages
Three critical ground points exist: G100 (behind the engine block), G110 (driver’s side strut tower), and G200 (passenger kick panel). Scrape paint off each mounting area until bare metal shows, then secure with stainless-steel bolts tightened to 12 lb-ft.
Check the throttle position sensor while back-probing connector TPS-1. With ignition on, voltage should climb smoothly from 0.5V at closed throttle to 4.5V at wide open. Readings that jump or flatline confirm a worn potentiometer–replace the sensor, not the harness.
The crankshaft position sensor yields 1.5V AC when cranking; values below 0.8V signal a weak signal pickup. Unplug the sensor, measure resistance across its terminals: 900–1,200 ohms is acceptable. Open circuits require sensor replacement.
Radio and Instrument Cluster Fixes

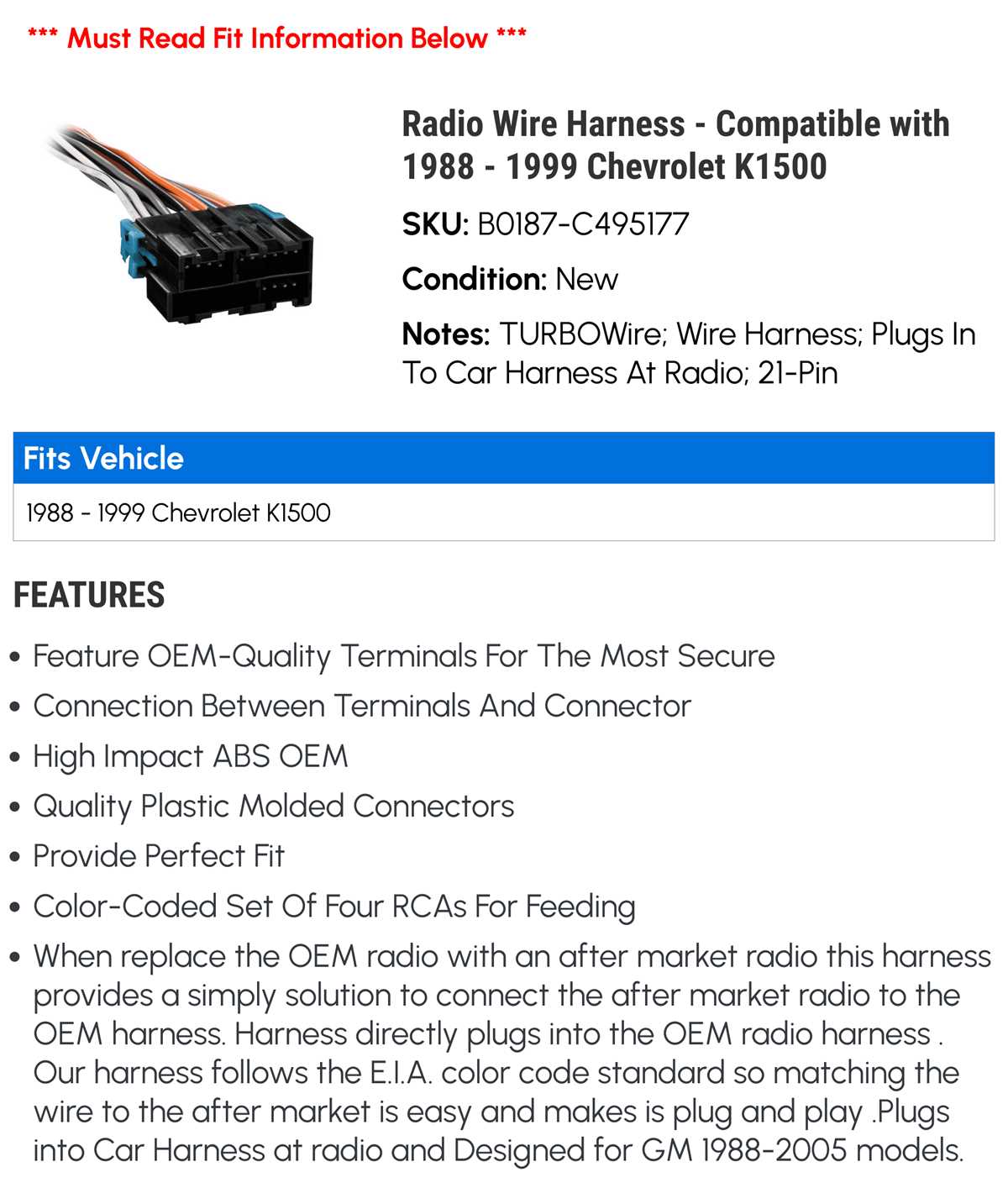

Memory-saver tools fail on these models. Pull the I/P fuse labeled “RADIO” before disconnecting the battery to prevent losing clock and radio settings. Reconnect within 10 minutes to avoid resetting the antitheft module.
For dimmer issues, probe the pink wire at the headlight switch connector with a test light while cycling the dimmer lever. If the light pulses irregularly, replace the switch; if steady, move downstream to the twilight sentinel module bolted behind the glovebox–unplug it and jumper pins A and C to force full brightness on dashboard illumination.
Locating the Authentic Electrical Blueprint for Your Mid-90s Compact Model
Start with the manufacturer’s authorized service portal–Helm Incorporated’s official documentation archive. Input the vehicle identification number (VIN) into their search tool at helminc.com to retrieve the factory-issued schematics. Subscription is required but grants access to the exact build specifications, including fuse assignments, harness routing, and connector pinouts. Avoid third-party scan tools that modify or approximate these details, as even minor deviations in circuit labeling can lead to diagnostic errors.
Alternate Sources for Verified Documentation
General Motors’ dealership network retains physical copies of the original repair manuals, often stored in their service department archives. Request a technician to locate the electrical segment (Section 8) of the *Chassis Service Manual*; dealers may provide photocopies for a nominal fee if the vehicle is no longer under warranty. Additionally, specialized automotive forums like GM Forum or LS1Tech host user-uploaded scans of these manuals, but cross-reference any downloaded files with the VIN-specific data from Helm to ensure compatibility with your specific trim and engine configuration.
For a non-subscription option, check public libraries in regions with high automotive industry activity–particularly those near former GM assembly plants. Libraries in Flint, Michigan, or Lordstown, Ohio, frequently catalog repair manuals for legacy models in their reference sections. Use the Library of Congress classification code *TL255.C4* for locating Chevrolet-related technical literature. If borrowing physically, prioritize manuals with a 1996–1998 publication date range, as pre-facelift and post-facelift circuit changes were minimal but critical for modules like the body control or powertrain sensors.
Critical Elements and Color Standards in the Mid-90s Sedan Electrical Network
Always begin diagnostics at the fuse block–specifically the under-hood junction marked as “PWR CTR” in service manuals. This central hub distributes voltage to the engine control module, cooling fan relay, and high-beam circuits. Check fuse positions F2 (20A) for the instrument cluster and F7 (10A) for the radio memory. If corrosion is present, apply dielectric grease to terminals after cleaning with contact cleaner.
Power Distribution and Ground Paths
- Orange (ORG): Ignition-switched 12V power; verifies integrity at the ignition switch (“C” terminal) and any splice points before branching to accessories.
- Red (RED): Constant battery voltage; trace from the positive terminal through the fusible link to the under-dash harness connector (C200). A drop below 11.8V here indicates a failing alternator or corroded battery cables.
- Black (BLK): Chassis ground; confirm secure attachment to the driver-side strut tower (G100) or rear quarter panel (G201). Poor ground causes erratic sensor readings–measure resistance under 0.5 ohms.
Sensor circuits rely on precise low-current signaling. The crankshaft position sensor (CPS) uses a Dark Blue (DK BLU) signal wire paired with a Tan/Black (TAN/BLK) reference; both must maintain continuity to the PCM (pin 68 and 76). If the engine stalls or misfires, probe these wires for voltage fluctuations (0.5–4.5V range). Replace the entire harness section if insulation is brittle or terminals show pitting.
- Locate the oxygen sensor (O2) connectors. Upstream (pre-cat) sensor uses Purple (PPL) for signal and Gray (GRY) for heater control; downstream (post-cat) sensor mirrors these colors. Contaminated or shorted O2 wires skew fuel trim–backprobe connectors while running to verify 0.1–0.9V oscillations.
- Transmission range sensor (TRS) wiring: Light Blue (LT BLU) (signal), Pink (PNK) (5V reference), and Brown/White (BRN/WHT) (ground). Misadjusted TRS causes delayed shifts–adjust linkage so the signal voltage aligns with gear selection (e.g., 0V in Park, 5V in Drive).
Exterior lighting circuits are prone to intermittent failures. Headlamps use White (WHT) for high beams and Light Green (LT GRN) for low beams–test for voltage drop across the bulb socket (under 0.2V). Turn signals flip-flop between Dark Green (DK GRN) (left) and Yellow (YEL) (right); a fast blink rate often traces to a corroded ground at the rear lamp assembly (G203).
For climate control issues, inspect the blower motor resistor block. The Dark Gray (DK GRY) wire carries variable voltage from the HVAC control head; each tap on the resistor block corresponds to a speed setting. Burnt resistor coils (common on high-speed settings) require replacement–confirm voltage at the resistor input while cycling the fan switch.
Step-by-Step Tracing of the Engine Electrical Connector Network
Locate the primary power distribution box under the hood–it’s the black plastic enclosure secured near the battery, marked with fuse ratings. Disconnect the negative battery terminal before handling any circuits to prevent shorts. Identify the main engine control module (ECM) connector, which is a 120-pin plug with a gray or tan housing; trace its wires backward to the firewall grommet where they enter the cabin. Use a multimeter set to continuity mode to verify each wire’s path, checking for breaks or corrosion at connectors, especially near the intake manifold where heat and moisture accelerate degradation.
Critical Pathways to Verify
Focus on the following high-priority routes: the injector harness (thin wires, typically orange or pink), which branches from the ECM to each fuel injector–inspect for chafing where it passes near the valve cover. The crankshaft position sensor (CKP) circuit uses a two-wire shielded cable (purple/white and yellow/black) snaking behind the harmonic balancer; ensure the shielding isn’t compromised. The ignition coil pack connectors (three wires each) often corrode; clean with dielectric grease and confirm resistance values (0.5–2 ohms for primary, 5–20 k ohms for secondary). For the alternator circuit, follow the heavy-gauge output wire (fusible link) from the B+ terminal to the starter solenoid and verify the 4-gauge ground strap between the engine block and chassis.
Terminate tracing by examining the transmission control module (TCM) if equipped–its 32-pin connector (usually blue) interfaces with the ECM via a serial data link. Probe pins 24 (yellow/black) and 25 (tan/black) with the ignition on but engine off; voltage should read 5V. If values deviate, suspect a faulty TCM or open in the data bus. Reconnect the battery only after completing all inspections, then start the engine to monitor live circuit behavior with a scan tool, watching for voltage drops or erratic signals at key sensors.
