Complete 1998 Chevy Blazer Radio Wiring Color Codes and Diagram Guide
For owners troubleshooting speaker connections or upgrading the receiver, pinpointing the correct color-coded leads is critical. The factory harness behind the dashboard clusters six key wires: yellow (constant 12V), red (accessory 12V), black (ground), gray (right front speaker positive), gray/black (right front speaker negative), white (left front speaker positive), and white/black (left front speaker negative). Additional pairs–green (right rear) and purple (left rear)–follow identical polarity standards. Verify continuity with a multimeter before splicing; mismatched connections risk amplifier overheating or blown fuses.

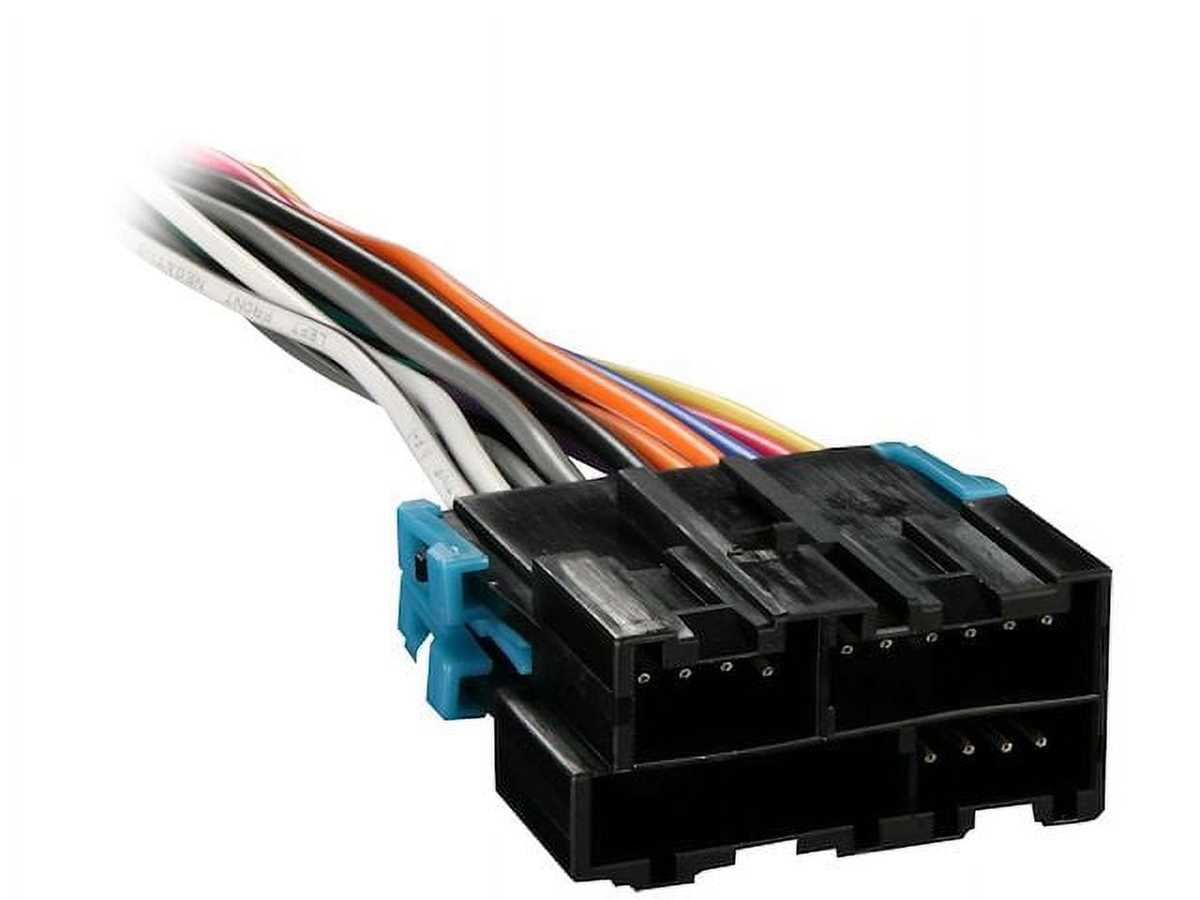

Replacing the stock unit with an aftermarket head unit requires an adapter harness (Metra 70-2003 or equivalent). This kit bridges the original plug configuration to standard ISO connectors, eliminating manual wire stripping. Strip only ¼ inch of insulation and crimp butt connectors for secure joints; soldering adds durability but risks melting factory clips if applied excessively. Avoid twisting exposed copper strands–this creates short-circuit hazards, particularly near the fuse block under the driver’s dash where excess vibration looms.
Factory chimes and theft-deterrent modules interface through light blue (chime signal) and dark blue/white (antitheft data) wires. Disconnecting these may trigger false alarms or disable the odometer display. For systems retaining the original cassette player, note the orange illumination wire (dash lights) and brown dimmer lead; both must remain intact to maintain dimming functionality. Should rear-seat entertainment or subwoofer amplifiers integrate later, splice into the pink rear speaker wire at the fuse panel–this carries a fused 12V feed tolerant of 30-amp loads.
Fuse access resides behind a removable panel left of the steering column. The radio circuit protects via a 10-amp fuse (position #17); swap with an identical rating if periodic shutdowns occur. Grounding deficiencies surface as static bursts or erratic volume swings–reconnect the chassis ground (bare braided cable) to unpainted metal near the firewall. For persistent interference, reroute signal wires away from ignition coils and fuel injectors; use split loom tubing to shield against EMI generated by the engine control module.
Stereo System Electrical Guide for the 1997-1999 GM Mid-Size SUV
Locate the constant 12V power wire (orange) at pin A6 of the factory harness–this line supplies uninterrupted voltage to retain presets. The switched accessory wire (yellow) sits at pin A7, delivering voltage only when the ignition is active. Ground connections (black) are grouped at pin A8; ensure bare metal contact with the chassis using a 10-gauge ring terminal to prevent signal interference. For aftermarket units requiring higher current, bypass the factory fuse with a 15A inline fuse on the orange wire to avoid blowing the 10A circuit.
Speaker outputs follow a non-polarized color code: front left positive (lt. green), front left negative (dark blue), front right positive (gray), front right negative (dk. green), rear left positive (brown), rear left negative (yellow), rear right positive (lt. blue), rear right negative (violet). Resistance across each pair should read 3-4 ohms; deviations suggest corroded terminals or shorts. Replace damaged wiring with 18-gauge OFC copper strands–never splice aluminum or mixed alloys, as they oxidize within 18 months under daily loads.
Anticipate harness variations on LS models equipped with premium audio–these include an additional purple/white wire at pin C3 for amplifier activation. If retaining the stock amplifier, bridge this wire to the aftermarket head unit’s remote turn-on lead (blue/white) using a 220-ohm resistor to prevent backfeeding 12V into the line-out converter. For vehicles with theft-lock, extract the EEPROM chip from the original unit and transplant it to the new stereo before first power-up to avoid locking the replacement system.
Finding the Audio System Connector in Your Mid-90s SUV
Start by removing the center console trim panel above the gear shifter. Two 7mm bolts secure it–one on each side near the climate controls. Once loosened, gently pull the panel forward to reveal three snap clips holding it in place. Disconnect the cigarette lighter wiring before fully removing the panel to avoid damaging the connector.
Directly behind this panel, you’ll find the vehicle’s main entertainment system harness. Look for a multi-pin plug with color-coded wires–typically orange, pink, dark blue, gray, and black. The connector is rectangular, about 2 inches wide, and often partially hidden by a protective plastic cover. If the harness isn’t immediately visible, check for a secondary clip-on bracket that may be holding it out of sight.
Key Landmarks for Identification
- The harness is positioned *below* the HVAC control module but *above* the transmission hump.
- Wires run downward through a grommet in the firewall–trace them if the harness isn’t obvious.
- Two ground points (bare metal with 10mm nuts) flank the harness on the driver’s side, useful for reference.
- For models with a factory theft-deterrent system, an additional inline fuse (15A) may be spliced into the power lead (pink wire).
If the connector remains elusive, tilt the driver’s seat fully backward for better access to the lower dash area. A small flashlight will help illuminate the workspace–shadows often obscure the harness in SUVs of this era. For vehicles with aftermarket modifications, label any cut or spliced wires before disconnecting; mismatched colors are common in non-OEM installations.
Color-Coded Installation Guide for Mid-90s SUV Audio System
Begin by disconnecting the negative battery terminal to prevent short circuits. Locate the factory harness behind the dashboard’s central panel–it’s typically secured with two 10mm bolts. Release the harness clip by pressing the tab inward while pulling gently.
Identify each lead using the following reference table. Verify connections with a multimeter set to 12V DC–probe the female connector terminals to confirm voltage or speaker output before splicing.
| Wire Color | Function | Expected Reading | Splice Method |
|---|---|---|---|
| Pink | Ignition-switched power | 12V when key is in ACC/RUN | Butt connector with heat shrink |
| Orange | Battery constant power | 12V at all times | Inline fuse (15A) before splice |
| Yellow | Left front speaker (+) | 4-8 ohms impedance | T-tap or crimp connector |
| Purple | Left front speaker (-) | Phase check with (+) | T-tap or crimp connector |
| Dark Green | Right front speaker (+) | 4-8 ohms impedance | T-tap or crimp connector |
| Gray | Right front speaker (-) | Phase check with (+) | T-tap or crimp connector |
| Light Blue | Remote turn-on | 12V when system is active | Butt connector with heat shrink |
| Brown | Dimmer control | Variable 0-12V | Solder and electrical tape |
Strip 6mm of insulation from each lead, twist strands clockwise, and apply rosin flux if soldering. For crimp connections, use a ratcheting tool to ensure proper compression–avoid cheap pliers that crush wires instead of sealing them.
Match aftermarket harness colors to factory standards. Most universal adapters follow a consistent scheme: red for switched power, black for ground, and white/brown for front left/right speakers. Cross-reference with a pinout tester if colors differ.
Ground the chassis lead (black) to a clean, bare metal point–sand away paint or corrosion first. A poor ground causes hiss, alternator whine, or intermittent failures. Test continuity between the wire and vehicle frame with an ohmmeter.
Reconnect the battery last. Power on the system, check all functions (volume, balance, fade), and secure harnesses away from moving parts or heat sources. Use split loom tubing for added protection if routing wires near sharp edges.
Essential Gear for Upgrading or Swapping Your Audio System in a Mid-90s SUV
Start with a soldering iron (30-60W) and heat-shrink tubing for secure, corrosion-resistant connections. Crimp connectors and wire strippers (18-22 AWG) won’t suffice–soldering prevents intermittent failures, especially with constant vibration. A multimeter (digital, auto-ranging) is critical to verify power, ground, and speaker wires before cutting anything. Without it, guessing risks blowing fuses or damaging the new unit’s circuitry.
Grab plastic pry tools (non-conductive) to remove dash panels; metal screwdrivers risk scratching surfaces or shorting hidden wires behind the console. A small flashlight or headlamp reveals tight spaces where factory harnesses hide. For stubborn bolts, keep a set of Torx drivers (T15-T20) and a ratcheting wrench (8mm-10mm); the dash often uses security fasteners that standard sockets won’t grip.
Electrical tape (high-quality, vinyl) and zip ties (4-inch, reusable) organize loose wires, preventing rattles or pinched harnesses. Label each wire with masking tape before disconnecting the old unit–factory colors rarely match aftermarket standards. If splicing into steering-wheel controls, a resistor kit (220-2.2k ohms) adapts variable resistance signals. Skip the “universal” adapters; they often cause erratic button behavior.
Common Pitfalls with Aftermarket Stereo Installation in GM Mid-Size SUVs
Incorrectly matching wire colors between the factory harness and new unit leads to silent speakers or blown fuses. The stock 9-pin connector uses orange for constant power, yellow for accessory, and gray with a black stripe for dimming control–swapping these with aftermarket pink or red wires risks damaging the head unit or vehicle electronics. Verify each circuit with a multimeter before connecting; aftermarket harness adapters rarely account for model-specific variations like retained accessory power circuits.
Skipping the amplifier bypass step on premium sound systems results in distorted audio or no output. Factory amplifier behind the rear passenger panel requires a separate trigger wire (often light blue) to activate–connecting speakers directly to the head unit without this signal sends unamplified sound, reducing quality or muting channels entirely. Check for hidden in-line fuses near the amp; if blown during installation, they prevent power delivery to the entire audio system.
Ignoring ground loop interference introduces persistent alternator whine. Connect the aftermarket ground wire (black) to the same bare metal point as the factory ground–using paint-stripped chassis locations like seat bolts ensures proper conductivity. Twisted speaker wires act as antennas for electrical noise; route them away from power cables and engine bay to eliminate audible hum at idle or high RPMs.
