Complete 1998 Ford Ranger Fuel Pump Wiring Diagram Guide for Repair

To troubleshoot or replace components in your vehicle’s fuel supply circuit, begin by locating the power distribution box beneath the dashboard near the fuse panel. The main relay (often labeled “EEC” or “fuel system relay”) is your first critical point–it controls voltage to the fuel module and must show 12V on the control side when the ignition is engaged. If readings are off, inspect the relay’s socket pins for corrosion or bent contacts; even minor resistance here disrupts operation.

The inertia switch, typically mounted in the passenger-side kick panel or behind the glovebox, serves as a safety cutoff. A sudden jolt (like a collision) triggers it, breaking the circuit. If the engine cranks but won’t start, press the reset button on this switch–it’s a common failure point often overlooked. Verify continuity across its terminals with a multimeter; if open, bypass it temporarily for testing (but replace it immediately afterward).

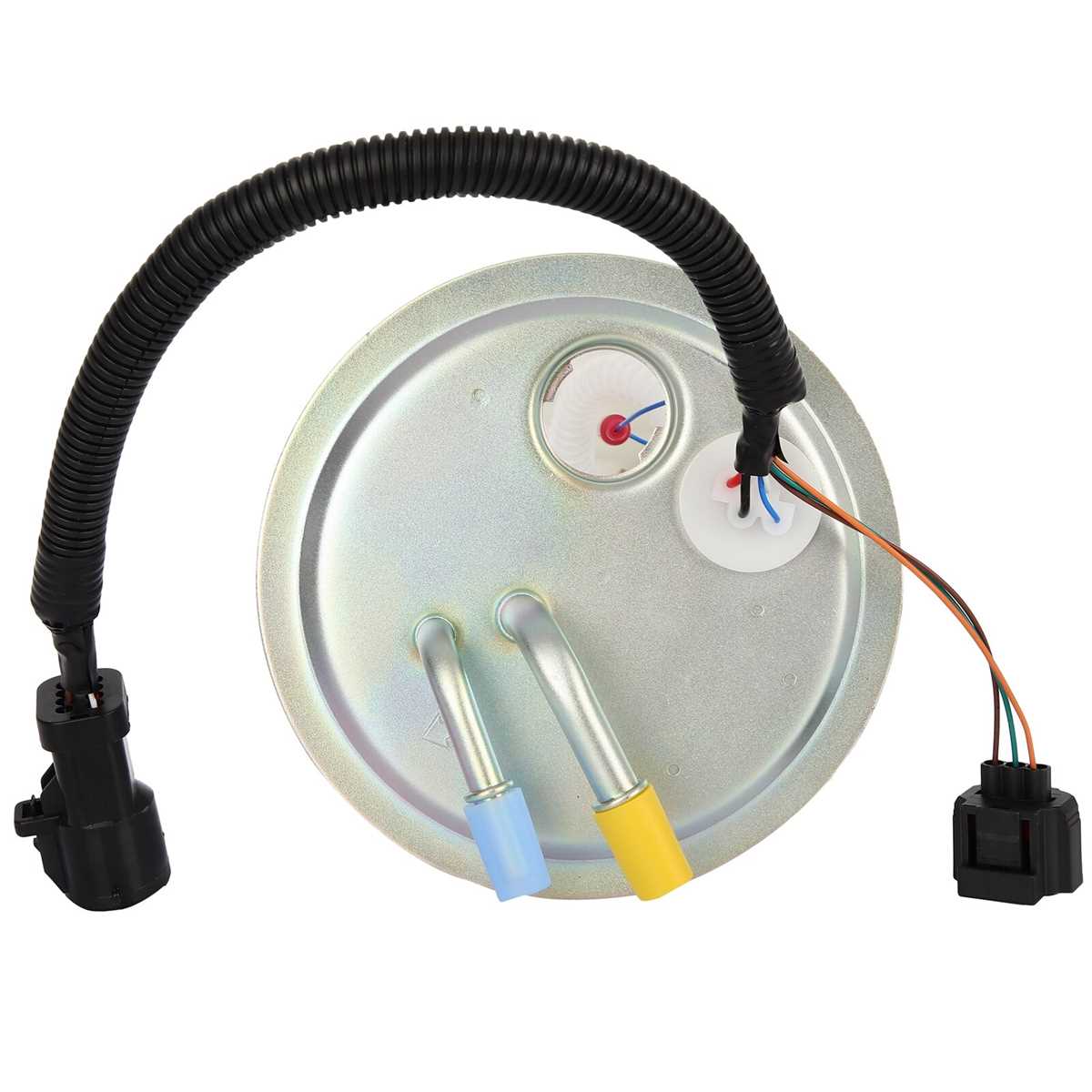

Follow the positive lead from the relay to the fuel tank’s sender assembly. The wiring harness at the tank uses a weatherproof connector with four to six pins–identify them using a repair manual specific to your model year:

• Pin 1: Constant 12V feed (from the relay)
• Pin 2: Ground return (often shared with the sender)
• Pin 3: Fuel level sender signal
• Pin 4: Pump motor ground (critical–high resistance here causes weak flow)

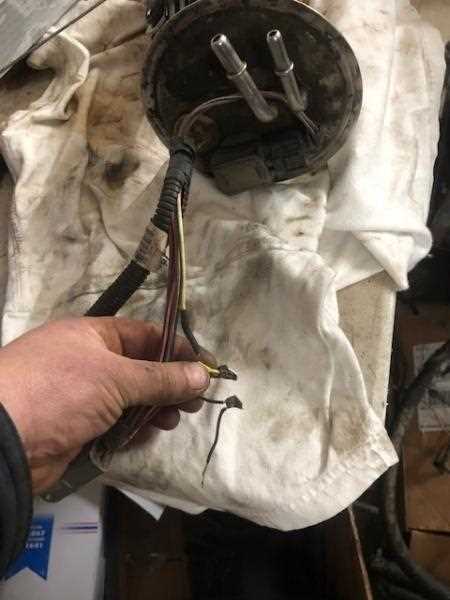

Strip back the harness shielding to check for chafed wires where it passes through the frame rail; rodents frequently gnaw through these lines in older trucks.

For the pump itself, measure current draw with the ignition on–normal range is 4–7 amps. Higher readings indicate a failing motor, while zero draw suggests an open circuit. If voltage is present at the harness but the pump is silent, rap the tank sharply with a mallet; a stuck armature may free itself long enough to confirm the diagnosis. Always drop the tank for visual inspection–debris or sediment clogging the strainer is a leading cause of no-start conditions.

Electrical Setup for Mid-90s Pickup Fuel Delivery System

Identify the inertia switch beneath the dashboard on the passenger side–it’s the failsafe that cuts power during impacts. This switch connects directly to the main relay, often labeled as “EEC” or “fuel injection relay,” located in the power distribution box under the hood. Disconnect the battery before probing connections to avoid shorts.

Trace the pink with black stripe wire from the inertia switch to terminal 87 of the relay; this feeds the fuel sender. From terminal 30, a dark green with yellow stripe lead runs to the tank module, delivering 12V when the ignition is on. Use a multimeter set to continuity mode to verify the path–resistance should read below 0.5 ohms.

Check the fuses labeled “FUEL” and “EEC”–typically 15A and 20A respectively–before assuming wiring faults. Corrosion on the relay sockets or ground points near the frame rail often causes intermittent failures. Clean contacts with electrical cleaner and apply dielectric grease to prevent future oxidation.

The PCM controls the relay by grounding terminal 86 through a yellow with light blue stripe wire. If the engine cranks but won’t start, probe this wire with the key in the “on” position–voltage should drop to near zero when the PCM activates the relay. A steady 12V here indicates a PCM fault or open ground.

For vehicles with manual transmissions, the fuel sender signal wire (white with brown stripe) runs separately to the gauge cluster. In automatics, this wire branches off earlier, feeding both the instrument panel and the transmission control module. Splices near the driver’s side kick panel are prone to chafing; inspect for bare spots.

Test the ground connection near the tank–usually a black wire bolted to the chassis. Resistance between this point and the negative battery terminal should not exceed 0.2 ohms. High resistance here causes erratic sender readings and slow priming. Scrape off paint or rust until bare metal is exposed for a solid connection.

If the relay clicks but the tank module doesn’t prime, bypass the inertia switch temporarily by jumpering its connector. If the system activates, replace the switch. For persistent no-start conditions, override the relay by manually energizing terminal 87 to 30 with a fused 16-gauge wire–this tests the pump directly. Pump current draw should stabilize between 4 and 7 amps; anything higher suggests a failing motor.

Color-coded wiring varies slightly between 2.5L and 4.0L engines. The 4.0L adds an additional gray with red stripe wire for the pressure sensor, which circumvents the inertia switch for limp-home mode. Refer to a Haynes manual for exact pinouts if modifying circuits–aftermarket alarms frequently alter these pathways.

Locating the Relay for the Electrical Supply Module and Its Terminal Guide

Check the central junction box under the dashboard on the driver’s side. The relay controlling the high-current circuit is relay #103, positioned in slot D2 of the fuse block–third row from the top, second column from the left. Labeling on the cover may read FP or Fuel Injector, but the actual designation is RL3. If the cover is missing, count slots starting at the upper-left corner.

• Pin 30 (heavy-gauge red wire): Constant 12 V from battery, fused at 30 A.
• Pin 85 (dark green/yellow stripe): Ground trigger from PCM, terminated at chassis G101.
• Pin 86 (light blue/orange stripe): Switched ignition feed, sourced from ignition switch terminal 5.
• Pin 87 (blue/white stripe): Output to module, protected by inline fuse #41 inside the engine bay fuse box.

For verification, probe pin 85 while cranking; voltage should drop below 0.3 V. If values exceed 0.8 V, inspect the ground path through the firewall bulkhead connector and G101 stud. Corrosion at G101 is common–clean the stud and reapply dielectric grease before reinstalling the ring terminal.

Alternative relay carriers exist in early variants: some trucks integrate the relay into the constant control module under the left fender near the battery tray. Labels on these modules read CCRM, and the relay is soldered directly to the board. Pin assignments remain identical, but tracing requires board-level continuity checks.

Replace the relay if contact resistance between pins 30 and 87 exceeds 0.2 Ω after cleaning. Use only part number F57A-14B201-AA or equivalent Omron G8HL-1A-AP–substitutes with higher coil resistance risk PCM damage.

1. Disconnect battery negative terminal.
2. Release relay from socket using a flat-bladed tool on retaining clip ears.
3. Examine socket terminals for melted plastic or verdigris–replace socket if damage is visible.
4. Install new relay, ensuring full seating with an audible click.
5. Reconnect battery and verify module response with a scan tool on PID FP_DC.

Locating the Electrical Pathways for Your Vehicle’s Injection System

Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Identify the relay block near the driver-side firewall–this houses the circuit switch for the low-pressure supply line. The main power feed typically originates from a pink wire with a black stripe (PK/BK) connected to fuse #24 (15A) in the under-dash panel. Follow this conductor backward to the inertia switch, usually mounted on the firewall or inner fender, which acts as a safety cutoff during impacts. Verify continuity here before proceeding; a tripped switch will halt current flow entirely.

• Trace the secondary lead from the inertia switch to the tank module–this is often a white wire with a violet stripe (WT/VT).
• At the sender unit, check for corrosion on the connectors; clean with electrical contact cleaner if oxidation is present.
• Use a multimeter to confirm 12V at the module’s power terminal with the ignition in the ON position.
• If voltage is absent, inspect the ground connection–a black wire (BK) bolted to the chassis near the tank assembly.
• For intermittent faults, flex the harness while monitoring voltage to detect internal breaks.

Replace any damaged sections with OEM-spec wiring and heat-shrink butt connectors to maintain integrity.

Verifying Electrical Supply at the Injection System Power Terminal

Locate the vehicle’s central harness junction near the rear cargo area–specifically the 6-pin oval connector labeled “FP” in service manuals. Probe pins 3 (white/pink stripe) and 4 (black/white stripe) with a multimeter set to 20V DC; voltage should read 12.0–14.5V during ignition-on and cranking cycles. If readings drop below 10.5V, trace resistance along the 10-gauge harness back to the inertia switch and EEC relay assembly, focusing on corrosion at the chassis ground splice (G103).

False triggers often stem from oxidized relay sockets or degraded fusible links–replace suspect relays only after confirming steady 9–12V at the relay coil terminals (pin 85 yellow/black wire, pin 86 orange/light blue) while cycling the ignition. Use a known-good 30A fuse inline with a test light to isolate intermittent opens; if the light flickers, inspect the main power feed from the battery distribution block for melted insulation near exhaust cross-members.

Troubleshooting Low-Current Scenarios

When voltage is present but below specification (8A), bypass the ground path by jumpering the black/white terminal directly to chassis; if operation stabilizes, grind the mating surface at ground eyelet G101 to bare metal and re-torque to 12 ft-lbs. Always re-seal connections with dielectric grease and heat-shrink tubing to prevent future galvanic corrosion.
