Complete Wiring Diagram Guide for 1998 Mercury Mountaineer Radio System

For vehicles manufactured in the late nineties with a factory-installed audio system, the wiring interface follows a standardized pinout configuration specific to Ford’s modular platform. The connector you’ll encounter behind the dash unit uses a 14-pin double-row harness–white for the main stereo harness and an additional 8-pin gray connector for amplified systems. If your model includes the optional Mach sound package, expect an extra 4-pin subwoofer harness tucked beneath the center console. Always verify connector colors against the vehicle’s service manual before making any modifications; misalignment during installation will trigger security features or damage the new unit.

Use a digital multimeter set to DC voltage (20V range) to confirm power leads. The permanent 12V feed (typically yellow) should register full battery voltage even when the ignition is off, while the accessory/switched 12V (usually red) drops to zero. The ground (black) must show 0.2V or less when measured against the chassis–any higher indicates corrosion or a weak connection. For models with factory CD changers, the data bus (orange/light blue stripe) requires precise termination; splicing directly into this wire without a proper resistance load will disable functionality.

If integrating an aftermarket head unit, acquire an OEM-to-universal adapter compatible with Ford’s Premium Sound models (SONY or Mach). These adapters include built-in load resistors to simulate factory components, preventing error codes. For amplifier-equipped versions, the remote turn-on lead (blue/white) must be connected to the new stereo’s corresponding wire–failure to do so will result in silent rear speakers. When splicing, solder and heat-shrink all connections; twist-and-tape methods degrade over time due to vibration and temperature cycles. Keep wire lengths identical to factory specs to avoid signal attenuation.

Refer to the vehicle-specific service diagram (often included in the adapter kit) for exact wire locations. If unavailable, trace the harness from the back of the factory stereo: left front speaker (gray/brown), right front (white/brown), left rear (gray/light blue), right rear (white/light blue). Polarity matters–reversing the leads will create phase cancellation, weakening bass response. For illumination retention, connect the orange with white stripe to the new unit’s dimmer circuit; this ensures the display brightness syncs with dashboard lighting.

Electrical Schematic for Your SUV’s Sound System

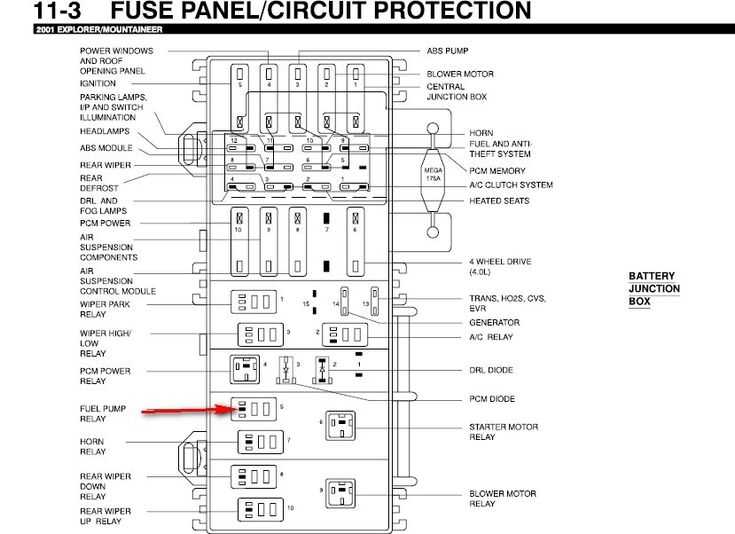

Start by locating the fuse box under the dashboard on the driver’s side. Pin 10 of connector C100 provides constant 12V power–test with a multimeter before proceeding. Ground connections typically terminate at bolt G303 behind the instrument panel; verify zero resistance for optimal performance.

For speaker outputs, use color-coded wires from the factory harness: front left (light blue/black stripe), front right (gray/light blue stripe), rear left (brown/white stripe), and rear right (dark green/red stripe). Avoid splicing directly; employ crimp connectors rated for 18-gauge wire.

Antennas require a dedicated lead (dark blue) with inline fuse protection–replace blown fuses only with identical 10A ratings. Signal amplifiers, if retrofitted, must connect to the ignition-switched circuit (yellow wire) to prevent battery drain.

Remove the climate control faceplate using a plastic pry tool before accessing the audio unit’s retaining clips. Disconnect the negative battery terminal first to prevent short circuits during installation. Label each wire with masking tape to simplify reassembly.

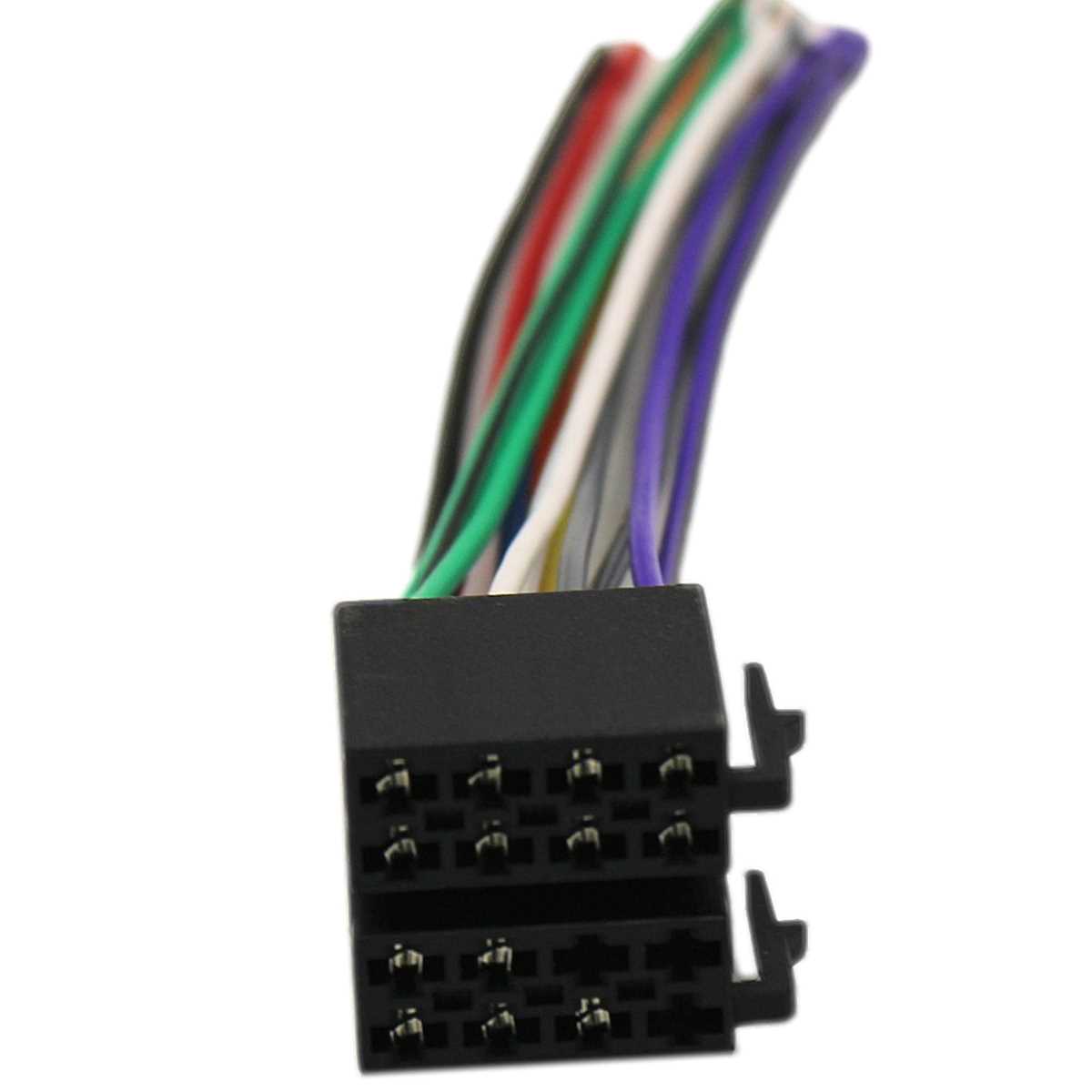

Aftermarket units often use ISO adapters for plug-and-play compatibility. Verify harness compatibility against the vehicle’s specific trim code (found on the driver’s side door jamb sticker) to avoid mismatched connector types.

Twisted pair wiring (two conductors wrapped together) reduces interference for premium audio systems. Route cables away from high-voltage ignition components and engine control modules to prevent static or signal degradation.

Use heat-shrink tubing rather than electrical tape for protecting soldered joints–apply heat evenly with a heat gun until fully sealed. Test each connection with a continuity tester before finalizing the installation.

Factory reset procedures vary by model: consult the owner’s manual for a three-second button hold on the volume knob. If error codes persist, disconnect the battery for 15 minutes to clear the system’s volatile memory.

Locating the Proper Audio System Power Link Adapter for OEM Unit Extraction

Begin by disconnecting the negative terminal from the vehicle’s battery to prevent short circuits during handling.

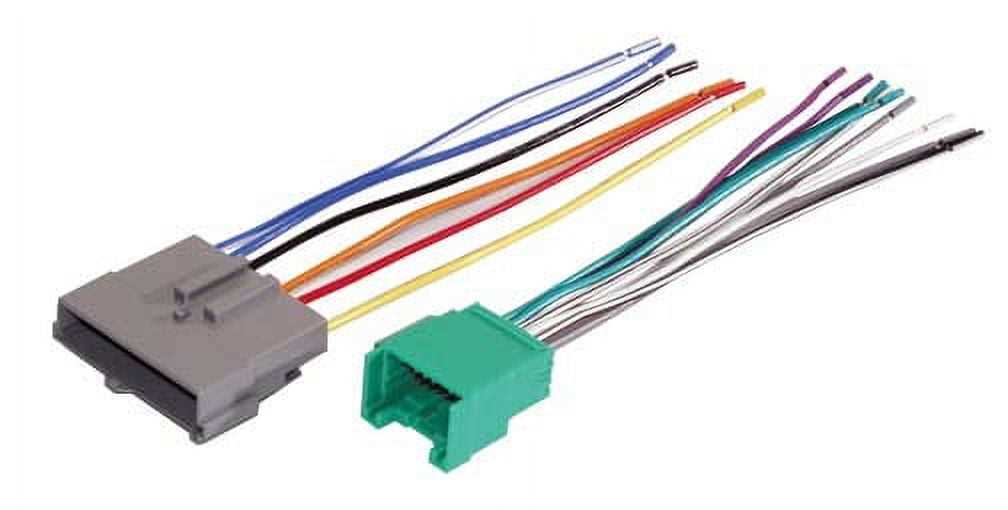

Inspect the rear of the factory-installed head unit for the correct plug type. Models with a single rectangular connector use a 10-pin Metra 70-1776 or Axxess ASWC-1 interface, while dual-port setups typically require Metra 70-1782 for the combined power and speaker harness. Verify pin alignment–misaligned connectors risk damaging the data bus or amplifier triggers.

• Single-port configurations: 10-pin (ISO-like) with power, ground, and speaker outputs grouped.
• Dual-port configurations: Separate 8-pin (power/illumination) and 12-pin (speaker/LF output) connectors.

Check for proprietary color-coding on the existing harness. Purple with a white stripe denotes constant power; solid yellow indicates illumination; black with a white stripe serves as ground. Non-standard colors (e.g., solid brown for mute) suggest factory integration requiring an adapter with built-in signal converters.

For vehicles equipped with premium sound systems, locate the amplifier harness behind the glove box or under the driver’s seat. This harness often uses a 16-pin round connector (e.g., Ford’s THX or JBL wiring) incompatible with generic adapters–Metra 70-5600 or Scosche FD16B1 interfaces resolve this.

1. Remove trim panels near the head unit to expose mounting screws (usually Torx T20 or 10mm bolts).
2. Slide the retaining clips outward using a DIN tool or flathead screwdriver.
3. Pull the unit straight out to access the harness connectors without straining wires.

Test voltage on the harness pins before attaching any aftermarket adapter. Use a multimeter: 12V on constant power, 5-8V on accessory leads, and 0V on ground with no parasitic draw. Inconsistent readings may indicate a blown fuse or faulty relay–consult fuse box diagrams (typically label #22 for radio circuits).

Pinout Breakdown: Factory Audio Harness Color Codes and Signal Roles

For accurate retrofitting or troubleshooting, match these color codes to the corresponding pins: solid yellow carries constant 12V+, solid red delivers switched ignition power, and solid black grounds the chassis. The pale blue/white stripe handles the left front speaker positive, while pale blue/orange stripe marks its negative counterpart–reverse polarity here will cancel audio. Dark green/white supplies the right front speaker’s positive lead, with dark green/orange carrying the return path. Rear signals split similarly: gray/light blue (positive) and gray/brown (negative) feed the left rear, while white/violet (positive) and white/orange (negative) serve the right. Dimmer control rides the solid gray wire, antenna activation the solid pink, and data communication the solid purple–crossing these risks module errors or no sound.

Test each wire with a multimeter set to DC volts: ignition-switched red should read 12V only when the key is on; yellow stays live regardless. Probe speaker leads for ~5-8V AC at moderate volume–absence confirms open circuit or blown amplifier. If upgrading, clip factory harness connectors to preserve OEM plugs for future reinstallation, and always secure connections with solder or crimp caps rated for 20 AWG.

Step-by-Step Guide to Bypassing the Factory Amplifier

Cut the speaker wires at the amplifier’s output terminals to isolate the built-in signal processor. Locate the amplifier beneath the vehicle’s dashboard on the passenger side, mounted near the firewall–it’s a black metal box, roughly 6×4 inches, with wiring harnesses connected to one side. Disconnect the 12-pin connector labeled “C308” by pressing the retaining clip and pulling firmly. Strip the insulation from the wires labeled “L+,” “L-,” “R+,” and “R-” (typically gray/light blue, gray/brown, white/light blue, and white/brown) to expose 5mm of bare copper.

Preparing Alternative Connections

Solder RCA inputs directly to the stripped speaker wires using 18-gauge shielded audio cable. Match the polarity: connect the positive terminal (“L+” or “R+”) to the center conductor of the RCA, and the negative (“L-” or “R-“) to the outer braided shield. Use heat-shrink tubing over each connection to prevent shorts–apply heat until the tubing contracts tightly around the joint. Test continuity with a multimeter set to 200 ohms; readings should show near-zero resistance between matched pairs.

• Tools required: wire strippers, soldering iron (40-watt), heat gun, multimeter, 18-gauge shielded cable (4-channel), 6mm heat-shrink tubing.
• Optional: Crimp connectors (if soldering isn’t preferred) require a crimping tool and dielectric grease to prevent corrosion.
• Caution: Do not connect RCA grounds together–this creates hum loops. Keep them isolated.

Route the RCA cables from the amplifier location to the head unit’s new output source. Drill a 3/8-inch hole in the firewall grommet (passenger side) for cable passage, ensuring no sharp edges contact the wires. Fish the cables through using a wire coat hanger or fiberglass rod. Secure them every 12 inches with zip ties to prevent rattling or pinching. Connect the RCA plugs to the aftermarket receiver’s output jacks–verify labels match (“Front L/R” and “Rear L/R”) to avoid phase cancellation.

1. Reconnect the vehicle’s battery after all connections are secured.
2. Power on the head unit and test each channel at low volume–no distortion should occur.
3. Adjust fader/balance to confirm all speakers function independently.
4. If noise persists, reroute RCA cables away from power wires or add a ground loop isolator between the head unit and amplifier bypass.
