Complete 2009 Chevy Malibu Radio Wiring Diagram and Color Codes Guide
Locate pin C2–second row, third position–on the 12-pin gray plug behind the head unit. This terminal supplies ignition-switched power (12V pink wire) to the amplifier. Verify continuity with a multimeter before connecting aftermarket equipment.
Identify the orange/black stripe wire in harness connector A16. This is the Class 2 serial data link; cutting it will disable OnStar and door-lock chimes. Use a T-tap splice rated for 22–18 AWG to integrate third-party telematics without triggering faults in the BCM.
Grounding points vary by trim. On LS models, use the steel tab behind the glove box (M6 bolt). LT and higher trims utilize the electronic module ground under the driver’s kick panel. Corrosion here mimics short circuits; clean with 300-grit sandpaper and apply dielectric grease.
Speaker outputs use dual-voice coil wiring: front doors carry 4-ohm tweeters bridged to 2-ohm woofers via 8-pin white connector (wires labeled FL+, FL-, FR+, FR-). Rewire with metallic braid shielded cables if migrating to component speakers to prevent EM interference on the CAN bus.
For retrofit installations, bypass the OnStar microphone by connecting the light blue pin (harness C1, position 10) to a 2.2kΩ resistor leading to chassis ground. This prevents BCM codes U2108 and C0710 while maintaining hands-free audio.
Chevy Sedan Audio System Connection Guide
Locate the 12-pin harness behind the factory head unit compartment–pins A (yellow), B (red), and C (orange) carry 12V constant, ignition-switched, and illumination power respectively. Match these to the aftermarket stereo’s corresponding wires using a T-harness adapter (Metra 70-2003) to avoid cutting OEM cables. Ground the black wire (pin D) directly to the chassis near the glove box screw for optimal signal stability.
Speaker outputs follow a consistent color code: front left (+) light blue, front left (-) dark blue stripe; front right (+) gray, front right (-) gray stripe; rear left (+) tan, rear left (-) tan stripe; rear right (+) green, rear right (-) green stripe. Confirm impedance (4Ω standard) before connecting to prevent amplifier overheating. If adding a subwoofer, splice the purple/white (pin M, subwoofer output) to a line-level converter or powered amp input.
For steering wheel controls, integrate a ASWC-1 interface module–connect the gray connector wire (pin L) to the module’s white input and the module’s output to the new stereo’s SWI wire. Test each function before finalizing the dash assembly; erroneous connections may trigger BCM errors visible via the Driver Information Center.
Finding Audio System Connector Points in a Mid-Size Chevrolet Sedan
Begin by removing the trim panel directly below the climate controls–this is secured with plastic clips. Use a trim removal tool to gently pry along the edges, working from the outer corners inward to avoid damaging the panel. Once detached, set it aside to reveal the backside of the head unit and its electrical interfaces. The primary harness plugs are color-coded: the larger 12-pin connector (usually gray or tan) handles speaker outputs, while the smaller 8-pin plug (often black or dark blue) carries power and accessory feeds.
- Gray/tan connector pin assignments (left to right, facing the plug):
- Front left speaker (+)
- Front left speaker (-)
- Rear left speaker (+)
- Rear left speaker (-)
- Front right speaker (+)
- Front right speaker (-)
- Rear right speaker (+)
- Rear right speaker (-)
- Illumination (+)
- Ground
- Battery constant (+)
- Accessory (+)
- Black/blue connector includes:
- Power antenna trigger
- Mute signal
- Data bus (Class 2)
- Backup lamp sense
- Unused (varies by trim)
If harness adapters aren’t pre-installed, trace the factory harness wires to their branching point behind the glovebox. Four distinct speaker leads split from the main loom–pair thick gauge wires with yellow/black stripes (front) and violet/black (rear) to identify rear channel feeds. For amplifier-equipped models, an additional 4-pin connector (light green) carries amplified outputs; verify these with a multimeter for ~4V on key-on.
Disconnect the negative battery terminal before probing connectors to prevent circuit damage. For aftermarket integration, match resistance ratings: OEM harness wires use 20-22 AWG for signals, while speaker wires are 16-18 AWG–mismatched gauges risk overheating or poor performance.
Standard Color Assignments for Vehicle Audio System Connections in the 2008 Chevrolet Sedan Variant
Begin installation by identifying the yellow wire–this carries constant 12V power from the battery and must connect directly to maintain memory functions. The red lead supplies switched 12V when the ignition activates, essential for turning the unit on and off with the vehicle. Ground the black cable to a clean metal surface on the chassis; inadequate grounding causes intermittent operation or noise interference.
Speaker outputs follow consistent color pairings: front left (+) light gray with (-) dark gray/black stripe, front right (+) light green with (-) dark green/black stripe, rear left (+) tan with (-) tan/black stripe, and rear right (+) purple with (-) purple/black stripe. Verify each pair before securing connections to prevent phase cancellation, which degrades sound quality.
Additional Circuit Functions and Variations
The orange wire typically delivers illumination control, dimming the display in sync with dashboard lights when the headlight switch activates; splice this only if retaining factory dimming is critical. Some harnesses include a brown antenna trigger wire, which automatically extends or retracts the power antenna–observe voltage presence before bypassing. If installing an aftermarket amplifier, the blue/white remote turn-on lead demands 12V to activate downstream components; connect this last to avoid premature power drain.
Avoid mixing positive and negative speaker terminals, as reversed polarity causes weak bass response and distorted midrange. After verifying all leads, use a multimeter to confirm each circuit carries 4-8 ohms impedance–lower readings indicate a short, while higher readings suggest an open connection. Secure soldered joints with heat-shrink tubing or electrical tape to prevent corrosion; stranded copper core wires flex better than solid variants, reducing breakage from vibration.
Step-by-Step Guide to Removing the Factory Audio System
Disconnect the vehicle’s negative battery terminal using a 10mm wrench to prevent electrical shorts. Wait at least five minutes to allow residual power to dissipate.
Pry off the trim panel surrounding the head unit with a plastic removal tool, starting from the bottom corners. Apply steady pressure to avoid cracking the dashboard fascia.
Locate the four retaining screws–two at the top and two at the bottom–securing the stock stereo. Use a 7mm socket or Torx T20 driver, depending on the fastener type. Set screws aside in a magnetic tray.
Slide the audio system forward carefully, exposing the wiring harness and antenna cable at the rear. Avoid forcing the unit; wiggle it gently if resistance is felt to ensure no clips remain engaged.
Press the release tabs on the wiring connectors and antenna plug, then detach them from the back of the unit. Label each connector with masking tape if retaining original harnesses for reinstallation.
For integrated climate controls, disconnect the auxiliary cables by squeezing the release tabs and pulling them straight out. Note their orientation for reassembly.
Store the removed system in a static-free bag if retaining for later use. Clean any debris from the mounting cavity before installing an aftermarket component.
Matching OEM Harnesses to Aftermarket Head Units

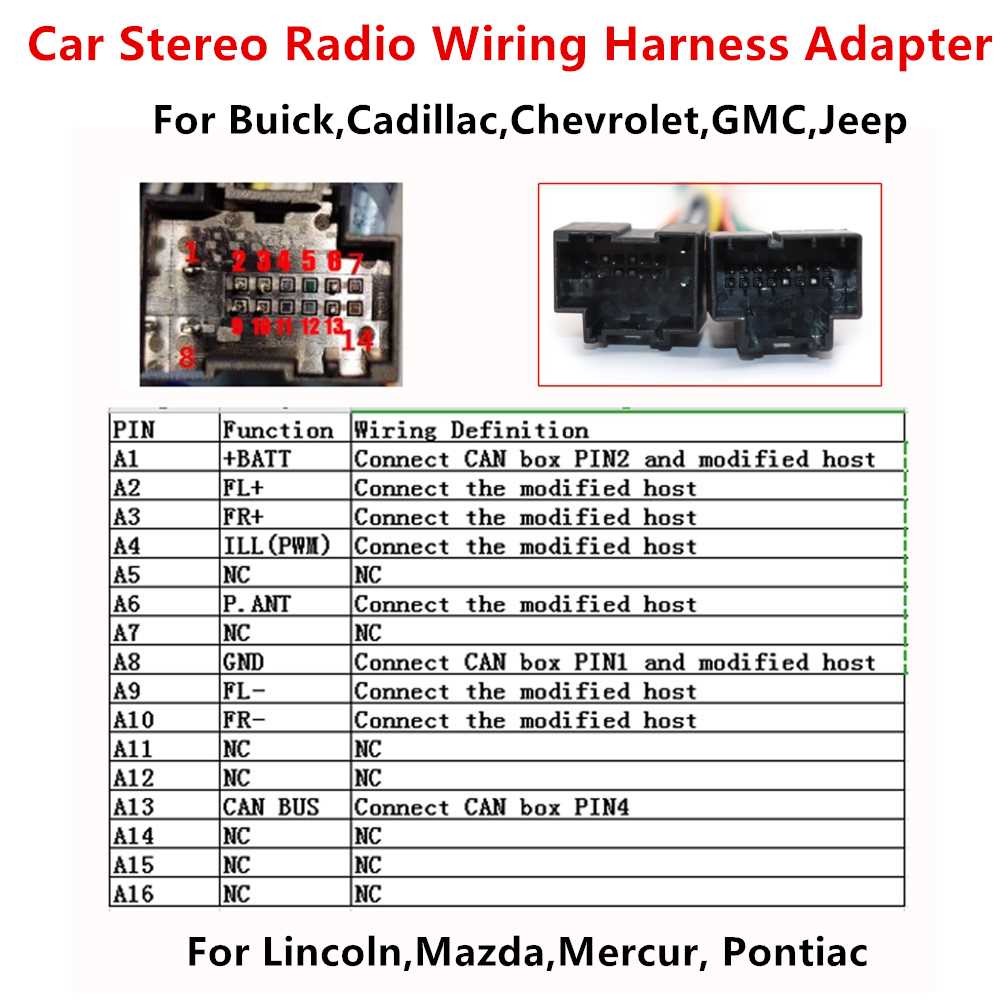

Verify the factory connector layout before selecting a third-party stereo. General Motors vehicles from this era typically use a 16-pin rectangular ISO-style plug with distinct pin assignments for power, speakers, and data. Measure each terminal’s voltage with a multimeter–constant 12V (red), ignition-switched 12V (yellow), ground (black), and speaker outputs should match the aftermarket harness adapter’s color codes. Adapters like Metra 70-2003 or Scosche GM02B preserve these connections without splicing.
| Factory Pin | Function | Third-Party Wire Color (Typical) |
|---|---|---|
| A8 | Battery + | Yellow |
| A4 | Ignition + | Red |
| A5 | Ground | Black |
| B2 | Front Left + | Gray |
| B1 | Front Left – | Gray/Black |
| B6 | Rear Right + | Violet |
| B5 | Rear Right – | Violet/Black |
Check for retained accessory power (RAP) data signals on pins A10 and A12–they control chimes and OnStar integration. If the new stereo lacks RAP support, splice a 330-ohm resistor between these pins to prevent error codes. Brands like Pioneer and Kenwood include RAP emulators in their GM-specific harness kits, eliminating the need for manual resistor installation.
Test speaker impedance with an ohmmeter–factory door drivers are usually 4-ohm dual-voice-coil, while aftermarket units expect 2-ohm loads. Use a wiring interface like PAC SNI-1 to bridge this mismatch without rewinding coils. Avoid tapping amp turn-on leads directly to ignition; instead, connect to pin A4 via a 1N4001 diode to prevent backfeed into the factory amp circuit.
