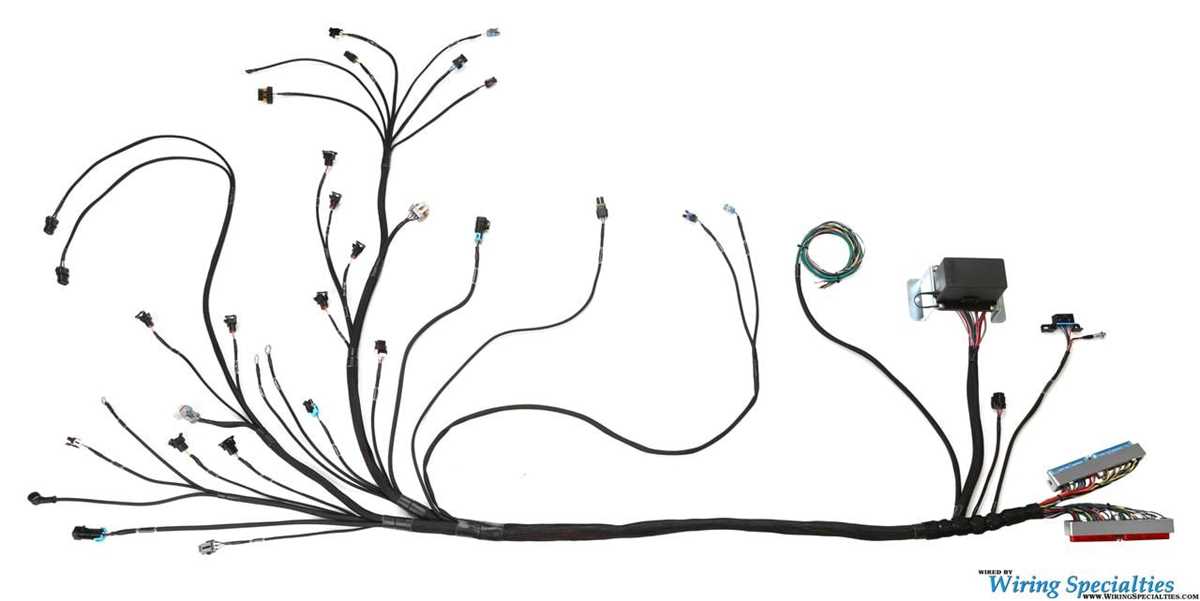

Complete Wiring Harness Diagram for 1999 Chevrolet 57 Vortec Engine Guide

Start by locating the main engine bay fuse block–typically mounted near the battery. The primary injection harness for the L31 powerplant branches from connector C1, a 14-way Weather-Pack terminal. Pin 1 delivers ignition voltage (12V), while pins 4, 5, and 12 handle injector signals. Use a multimeter to verify continuity between each injector and the PCM, ensuring resistance stays between 15–18 ohms. A drop below 12 ohms indicates internal shorting, requiring immediate harness replacement.

Trace the ignition feed wire (yellow/black stripe) from the ignition switch to the fuel pump relay. This circuit splits at the relay’s contact terminal (pin 87), supplying both the pump and the transmission control solenoid. If the engine cranks but doesn’t start, probe the fuel pump relay socket: pin 86 should show 12V during key-on, while pin 85 must ground through the PCM. Failure here points to a faulty ECM relay or corroded connections at ground G102.

Examine the oxygen sensor circuits next. The upstream sensor (bank 1) connects to PCM pins 23 and 24, while the downstream (bank 2) wires terminate at pins 25 and 36. Both circuits should read 0.45V (±0.1V) at idle when warm. If readings fluctuate erratically, inspect the gray 4-way connector near the exhaust manifold–common failure point due to thermal expansion. Replace the pigtail if insulation appears brittle or wires are discolored.

For torque converter lockup issues, focus on the transmission harness interface at the driver-side valve body. The tan/black wire (PCM pin 45) carries the TCC signal, while the orange/black (pin 44) monitors pressure. Monitor these at the PCM connector while cycling the brake pedal–the signal should toggle between 0V and 9V. Persistent 12V on pin 45 indicates a stuck solenoid, often caused by chafed wires within the transmission case.

GM LS1 Electrical Connector Layout Guide

Begin by locating the ECM (engine control module) under the driver-side dashboard on late ’90s GM trucks. Pinout identification is critical: connector C1 (grey, 24-pin) contains ignition and sensor feeds, while C2 (black, 32-pin) handles fuel injectors and miscellaneous outputs. Use a multimeter set to 200Ω to verify continuity between the ECM and harness terminals–expect 0.1Ω–0.5Ω for intact circuits. Replace any corroded terminals immediately; GM part #12084356 fits most connectors.

For ignition system tracing, focus on the ignition coil pack wiring: the tan/black wire (pin A8 on C2) supplies 12V from the ignition switch, while the pink/black wires (pins A9–A12) trigger individual coils. Injector resistance should read 12Ω–18Ω; readings outside this range indicate failed units requiring GM part #12562856. The MAF sensor (pin B10, grey connector) requires 5V reference voltage; measure between B10 and ground to confirm 4.8V–5.2V.

Oxygen sensor circuits demand attention: upstream (pre-cat) sensors use white wires (pins C4/C5) for signal return, while the downstream (post-cat) sensor utilizes grey/black (pin C6). Both require 0.4V–0.6V at idle; readings below 0.1V or above 0.9V suggest a failed sensor or wiring fault. The knock sensor circuit (pin A6) should show 3.3kΩ–4.7kΩ between terminal and ground; deviations indicate internal failure of GM part #10456624.

Ground connections are often overlooked but essential: verify the body ground strap near the driver-side headlight (black wire, pin A1 on ECM) and engine block ground (bare wire to transmission bellhousing). Resistance should be

Pinpointing Critical Sections in the GM LS-Series Powertrain Cable Assembly

Start by isolating the engine bay junction block, typically secured near the driver-side fender well. This molded hub houses two 12-terminal connectors–black for ignition signals and tan for sensor feedback loops. Label each wire color-code pair before separation: yellow/black (MAP sensor), dark green/white (throttle position), and pink (ignition power) demand immediate attention due to their role in fuel delivery and timing synchronization. Failure to re-secure these links after inspection guarantees extended crank cycles or ECM fault codes P0106-P0110.

Trace the alternator’s wiring subset directly to its rear-mounted voltage regulator. The bundle includes a large-gauge red cable (battery positive), a smaller brown/gray stripe (charging excitation), and a fusible link (orange, 14 AWG) that often corrodes at the crimp joint. Replace any frayed sections with 105°C cross-linked polyethylene insulation to prevent voltage drop under load. A multimeter reading below 13.8V DC at 2000 RPM confirms regulator or cable degradation.

• Injection spider assembly: Locate the 8-wire black connector beneath the intake manifold. Each pin corresponds to cylinder sequencing–misalignment triggers random misfires.
• Crankshaft position sensor: Gray/black wire pair, shielded against EMI with braided copper. Probe with an oscilloscope to verify a 5V square wave signal.
• Oil pressure sender: Single-wire (tan) return path–swap with a known-good unit if gauge readings fluctuate.

Examine the firewall bulkhead connector for brittle grommets. The main harness passes critical circuits through this juncture: red (main power), orange (fused ignition feed), and dark green (check engine light). Use dielectric grease during reassembly to prevent moisture intrusion. Absence of continuity in the dark green wire disables diagnostic feedback–ECM will enter limp mode. Test integrity by back-probing the OBD-II port pin 16 with a powered test light while cycling the key.

Step-by-Step Guide to Locating the Electrical Connector Junctions

Begin beneath the dashboard on the driver’s side, where primary engine control linkages converge. The central junction block–typically a rectangular plastic assembly–secures to the firewall with two 10mm bolts. Disconnect the negative terminal of the battery first; voltage remains in capacitors even after shutdown. Use a flashlight to trace the thickest bundle of cables: this cluster splits into three main branches–powertrain, sensor loop, and auxiliary circuits. Note color coding:

Branch	Primary Wire Colors	Pin Count
Powertrain	Red, Black, Yellow	8-12
Sensor Loop	White, Green, Purple	6-8
Auxiliary	Blue, Gray, Brown	4-6

Avoid tugging; gently depress retention clips with a flathead screwdriver.

Move to the engine bay–focus on the passenger-side fender well. Here, a secondary multi-port connector bridges the main loom to the fuel injection module and ignition coil packs. This junction is often encased in split-loom tubing, secured by zip ties every 6 inches. Cut ties with diagonal pliers, but retain them for reassembly. The coil pack connectors feature locking tabs; release these by pressing inward with thumb pressure while pulling outward. For the fuel injector rail, locate the inline rectangular connector–it snaps into a mounting bracket bolted to the intake manifold. Disconnect by sliding the red safety lock sideways 0.25 inches before pulling.

Under-Hood Junction Validation

Confirm all connectors by checking for corrosion or melted plastic–common failure points. Use dielectric grease on reconnection to prevent future oxidation. If resistance readings exceed 0.5 ohms, trace each wire back to its origin using a multimeter in continuity mode. The ECU main connector (oval, 52-pin) hides behind the glove box; remove the lower dash panel for access. Label every disconnected terminal with masking tape to avoid cross-wiring during reassembly.

Diagnosing Common Electrical Faults in GM 8.1L Power Systems

Start diagnostics by verifying ground connections at the engine block and chassis. Corrosion at G103 (near the starter) or G110 (passenger-side frame rail) causes voltage drops exceeding 0.2V, triggering random sensor faults. Use a multimeter to check continuity between grounds and the negative battery terminal–resistance should read below 0.5 ohms.

Inspect the fuel injector circuit for intermittent opens. Heat cycling often cracks the plastic harness sleeves near the cylinder heads, exposing wires to abrasion. Probe each injector’s two-pin connector with a noid light: a dim or flickering signal indicates a partial break. Replace the affected segment with Tefzel-wire rated for 200°C.

Mass Air Flow (MAF) sensor failure frequently mimics vacuum leaks. Symptoms include surging at idle and P0102/P0103 codes. Disconnect the sensor’s six-pin plug and measure voltage at terminal E (TP sensor reference)–should be 5V ±0.1V. A low reading suggests a short in the pink/black wire shared with the throttle position sensor.

Check the ignition coil control wires for chafing against the exhaust manifold. The purple/white wires (cylinders 1-4) and tan/white wires (cylinders 5-8) should have 1kΩ resistance between the PCM connector and coil packs. A reading above 3kΩ confirms internal breakage; splice in new 18-gauge TXL wire with solder and heat-shrink tubing.

Quick Tests for PCM-Related Glitches

Perform a fused jumper wire test on the red/white wire (pin 87) to rule out relay issues. Insert a 20A fuse between the wire and battery positive–if the engine cranks, the relay or ignition switch is faulty. Replace the relay first; aftermarket units often fail prematurely due to poor contact plating.

For cruise control malfunctions, probe the tan/white wire (pin C2) at the brake pedal switch. Voltage should drop to 0V when the pedal is pressed. A persistent 12V signal confirms a stuck switch–adjust or replace it. Verify the white/blue wire (pin A) at the cruise servo has 12V during activation; absence indicates a break in the dash-to-servo harness.
