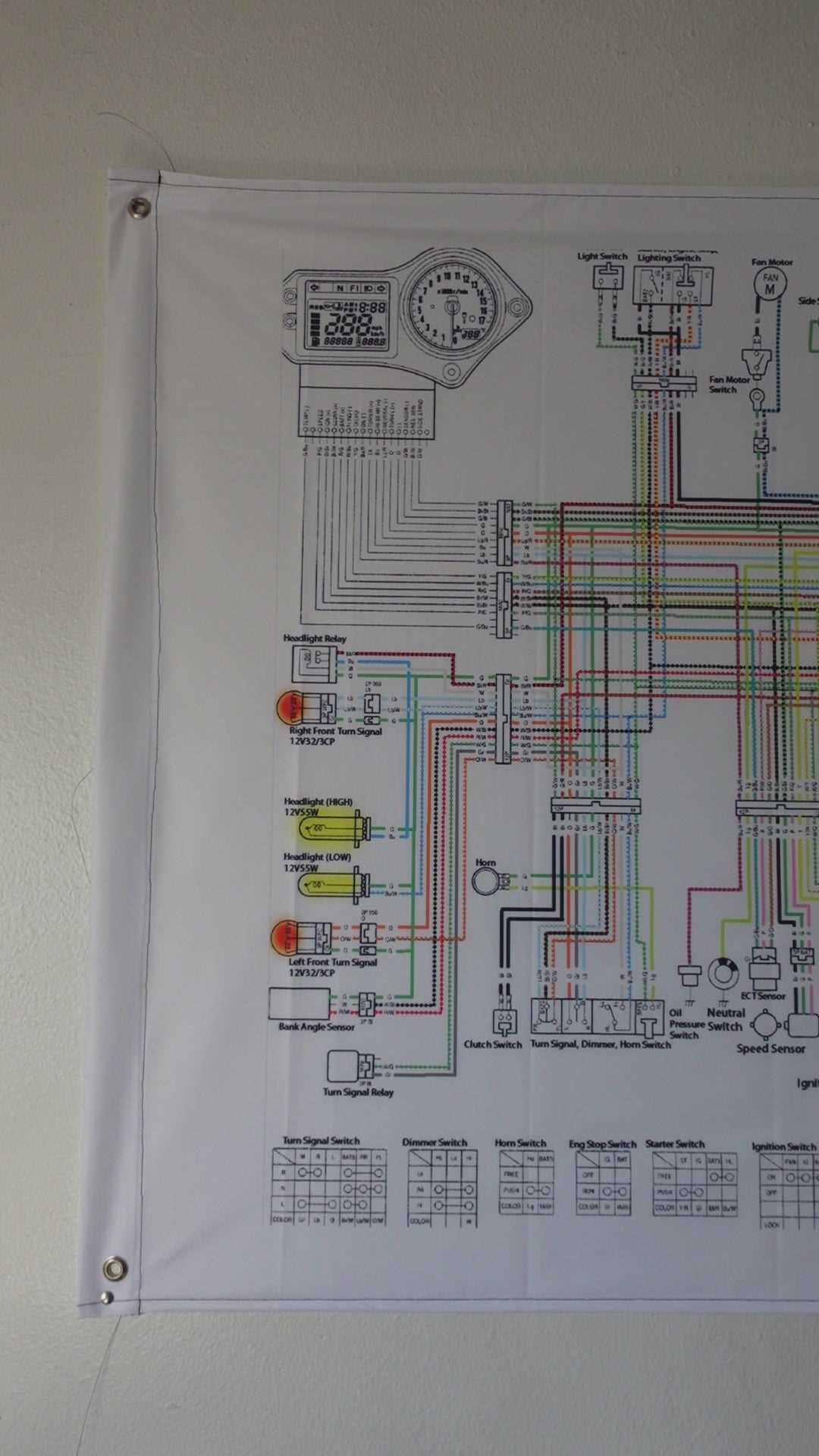

Complete 1999 Honda CBR 600 F4 Electrical System Wiring Guide Schematic
Begin troubleshooting with the main fuse block beneath the left fairing panel–this is ground zero for most electrical faults. The 30-amp fuse not only safeguards the ignition circuit but also feeds the turn signal relay and fuel pump. If corrosion is present on the fuse terminals, clean with a wire brush and apply dielectric grease before reassembling. A multimeter reading of below 12.5 volts here indicates a battery nearing failure, even if it still cranks the engine.
Trace the orange wire from the ignition switch to the ECU connector C3–pin 17 should register 12 volts when the key is in the ON position. If voltage is absent, inspect the brown/white ground wire at the frame under the seat; a loose or oxidized connection here mimics ECU failure symptoms. The secondary throttle position sensor receives power via a blue/red wire from the main harness; verify continuity at ECU connector C2, pin 19–open circuits here cause erratic idle behavior.
For lighting issues, focus on the yellow/black wire supplying the headlight relay. The high beam circuit runs through a separate blue wire to the left handlebar switch, while the low beam taps into a yellow wire. Check the relay socket for voltage drop–any reading above 0.2 volts under load warrants replacement. The taillight shares its ground with the license plate bulb; a single corroded point here dims both.
Charge system diagnostics start at the stator–measure AC voltage across the white/green and yellow/blue wires at 3,000 rpm. Expect 40-60V; readings below 35V necessitate stator replacement. The rectifier-regulator’s negative diodes often fail first–confirm this by probing the red/white wire for DC voltage while revving the engine. A value below 13.8 volts indicates charging circuit fault.
Always reference the color code legend when splicing–factory harnesses use striped wires with the primary color listed first (e.g., red/white, not white/red). Crimp connectors with insulated barrels and solder for high-current circuits like the starter solenoid’s black/yellow wire. Never bypass the sidestand switch–its green wire grounds through the engine case to prevent starter engagement while in gear.
Electrical Schematic Reference for the 1999 F Sport Bike
Locate the main fuse block under the seat–remove the left-side fairing panel first to access it without tools. The red/white wire from the ignition switch feeds directly into fuse 15 (15A), which powers the entire lighting circuit. Trace this line to confirm no corrosion exists at connector C101; a single drop of dielectric grease prevents voltage drop during wet rides.
Inspect the stator plug (3-pin white connector) before testing output. Connect a multimeter set to AC volts; at 5 000 rpm, each pair should read 45–65V–any deviation signals bad diodes. Replace the entire stator assembly if readings fluctuate more than 3V, as individual diode repair voids OEM warranty.
The turn-signal flasher, marked “HFL” on relay, sits behind the right inner fairing near the ECU. Swap it with a known-good 12V flasher if blink rate exceeds 120 flashes per minute–common aftermarket LED upgrades draw less current and require load resistors.
Check ground points G1 (frame, near battery) and G4 (sub-frame, left rear). Sand each until bare metal appears, then tighten to 14 Nm torque; loose grounds cause intermittent ECU resets during acceleration above 9 000 rpm.
For the fuel-injection circuit, probe yellow/blue wire at injector plug–should pulse 3.5–4.0 ms at idle on a warm engine. If duration exceeds 4.5 ms, verify air-intake temperature sensor resistance: 1.8 kΩ at 20°C dropping to 100 Ω at 80°C–values outside tolerance require sensor replacement.
Replace headlight bulbs with 55/60W H4 halogen units only; higher wattage melts the stock wiring harness inside three heat cycles. Route wires through the right fork leg to avoid pinching during compression; tie wraps every 100 mm prevent vibration damage to the small-gauge blue/green ignition coil trigger lead.
Locating the Primary Electrical Bundle Links on a Classic Supersport F4 Model
Begin beneath the seat by removing the tail section’s plastic cover–secured by two 10mm bolts and three plastic clips. The main harness emerges from the rear frame spine, splitting toward the left fairing stay; follow the thickest bundle (12–14 gauge wires) until you reach the first multi-pin connector below the subframe. This junction (white, 22-pin) interfaces with the ignition switch, turn signal relay, and rear light cluster–trace each branch before disconnecting to avoid ground shorts.
Under the fuel tank’s right-side fairing, near the steering stem pivot, sits the ECU connector (black, 33-pin). Dislodge it by pressing the retaining tab upward–avoid excessive force to prevent terminal damage. Adjacent, the starter solenoid’s single red wire (8 gauge) connects directly to the battery positive terminal via a fuse-protected link (30A); ensure the mating surface is free of corrosion before reattaching.
Identifying Key Electrical Components in the F4 Schematic
Begin by locating the main fuse block–typically positioned near the battery or under the seat panel. The F4’s primary protection relies on a 30A main fuse, which safeguards the entire system from overloads. Adjacent to it, you’ll find relays controlling high-draw circuits like the starter motor and fuel pump. Verify relay functionality by swapping with a known-good unit of the same type (e.g., 4- or 5-pin), as faulty relays often mimic dead circuit symptoms.
Trace the ignition system’s path from the ignition switch to the ECU and coils. The F4 uses dual ignition coils, each serving two cylinders (1/4 and 2/3 pairing). Inspect the wiring harness for brittle insulation, especially near the engine block where heat accelerates degradation. Use a multimeter to confirm coil resistance–primary windings should read 0.2–0.8Ω, secondary 10–16kΩ–deviations indicate internal failure. Below, critical sensor readings for reference:
| Sensor | Pin Color (Connector) | Expected Voltage/Resistance | Failure Symptom |
|---|---|---|---|
| TPS (Throttle Position) | Black/Red (signal), Black/White (ground) | 0.5–4.5V (idle to WOT) | Erratic idle, poor acceleration |
| IAT (Intake Air Temp) | Green/Red, Green/White | 3–5kΩ (20°C), 700–1kΩ (80°C) | Hard starting, rich mixture |
| CKP (Crank Position) | White/Green (signal) | AC voltage (~0.5V at cranking) | No spark, engine stall |
Focus on the charging system’s components: the stator, regulator/rectifier, and battery connections. The stator’s three-phase AC output (yellow wires) should produce 40–70VAC at 5000 RPM; lower readings suggest stator wear. The regulator/rectifier converts this to 13.5–14.8VDC–measuring below 13.2V at idle confirms charging issues. Corrosion at the battery terminals often causes voltage drops–clean with a wire brush and apply dielectric grease to prevent oxidation.
Diagnosing Spark Circuit Paths on the ’98 F Sport Bike
Begin by locating the ignition coils beneath the fuel tank–each coil pair serves cylinders 1/4 and 2/3 respectively. Disconnect the primary 3-wire harness connectors (black/yellow, white/blue, and black/white leads) from the coils and measure resistance between terminals: 0.2–1.0 ohms across primary windings confirms internal integrity. Test secondary output by probing the spark plug cap with a dedicated inductive meter–expect 8–14 kV pulses at idle; readings below 6 kV indicate fouled plugs or leaky coil seals. Replace O-rings around coil boots if combustion residue appears on the porcelain insulator.
Pinpointing ECU Signal Pathways
- Trace the white/blue trigger wire from coil terminals back to the ECM–this critical 5V pulsed signal originates at pin 12 (IG1) on the 33-pin black connector.
- Verify continuity to chassis ground via the black/white ground strap (pin 33) ensuring resistance under 0.5 ohms.
- Check the yellow/black power feed (pin 3) from the ignition switch for 12.8V in “ON” position; voltage drops below 12V suggest corroded battery terminals or faulty main relay contact.
- Inspect multi-pin injectors harness for chafing where it passes over the gear shift linkage–intermittent shorts here mimic ignition failure.
For intermittent misfires, bridge a jumper wire between the coil primary terminal and battery positive–if sparks resume, focus on the ECM ground plane or faulty crank position sensor. Avoid prolonged jumper use; it risks damaging the coil’s internal drivers. When replacing sensors, torque the crankshaft pick-up ring bolt to 18 ft-lbs–over-tightening distorts the reluctor wheel, causing erratic timing.
Diagnosing Common Lighting Circuit Issues Using the Schematic
Trace the headlight circuit from the fuse to the bulb socket. On the F4’s electrical layout, locate fuse #22 (15A) under the seat–if blown, inspect the yellow/red wire for chafing where it passes behind the steering stem. A multimeter set to continuity mode should confirm an open circuit between the fuse holder and the headlight relay (located near the battery). Measure voltage at the relay’s input (white/black wire); less than 11.5V indicates a corroded main harness connector near the ignition switch.
For turn signals, focus on the flasher relay (gray, three-terminal unit beneath the fairing). Probe terminal #1 (black/white) for battery voltage while operating the switch–absence suggests a broken ground path at the handlebar bracket. Terminal #2 (blue/red) should pulse between 0V and 14V; if static, replace the relay. Inspect the sender-unit wires (green/white at the rear) for rodent bites–common failure points behind the tail section, where insulation cracks expose strands.
Brake Light Circuit Checks
- Verify the rear brake switch (mounted above the pedal) closes under pressure–measure resistance across its terminals; infinite ohms means a faulty switch.
- If the light illuminates only with the front brake applied, splice into the front master cylinder’s yellow/green wire where it meets the main harness under the tank–voltage drop here exceeding 0.3V indicates corrosion at bullet connectors behind the instrument cluster.
- Test the brake lamp filament with a 12V test lead–if functional but unlit during pedal depression, scrutinize the brown/white wire at the tail light socket for intermittent open circuits caused by heat cycles melting terminal retainers.
