Best Open Source Tools for Creating Schematic Diagrams in 2024

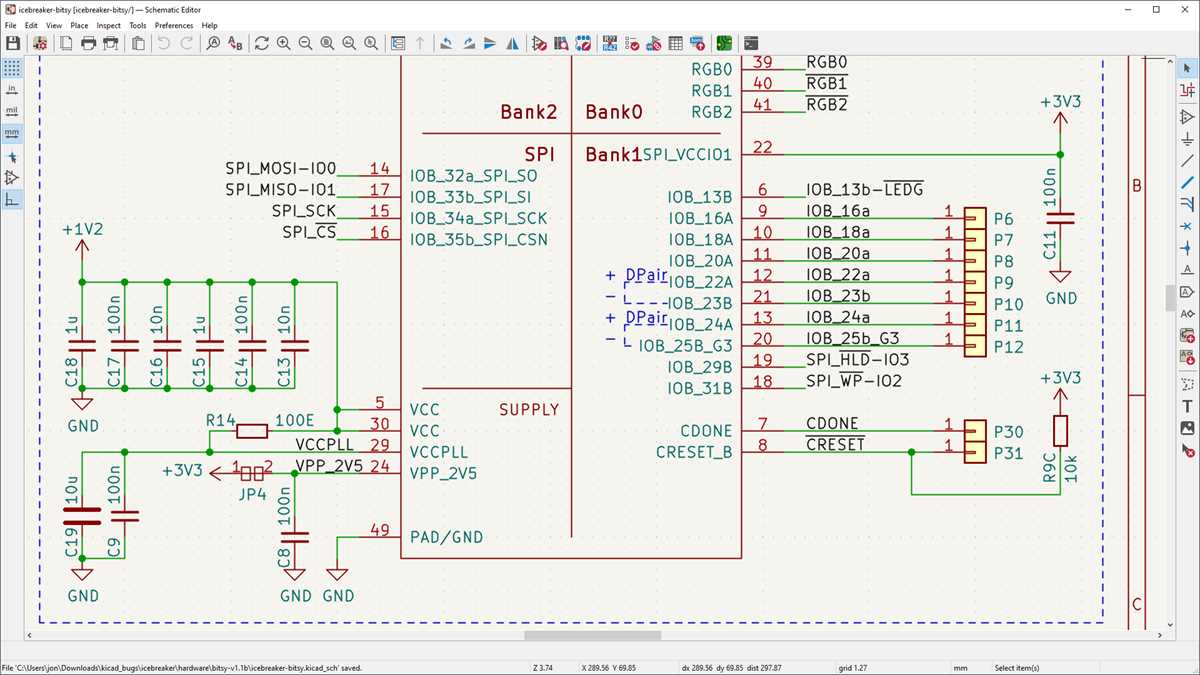

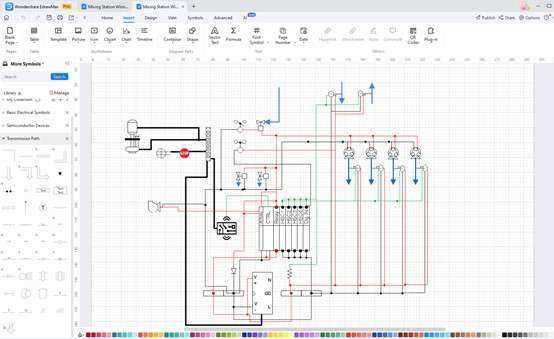

For engineers and hobbyists needing reliable applications to draft electrical layouts, KiCad leads with its mature feature set. Released under the GNU GPL v3 license, it provides an integrated environment for editing PCB designs alongside electrical blueprints. The built-in Eeschema module includes hierarchical sheets, netlisters for SPICE simulation integration, and forward/backward annotation–features typically locked behind paywalls in proprietary alternatives. Compatibility with Linux, Windows, and macOS removes platform barriers.

DrawIO (recently rebranded as diagrams.net) excels when quick, browser-based illustrations are required. Unlike desktop-bound tools, it syncs with Google Drive, Microsoft OneDrive, and GitHub repositories, enabling real-time collaboration. While primarily a general-purpose drawing utility, its customizable stencil libraries and SVG export support make it adaptable for basic circuit sketches. The free tier imposes no watermarks or resolution limits, differentiating it from freemium competitors.

LibrePCB fills a niche for those prioritizing version control and cross-platform consistency. Its schematic editor enforces strict layer-based rules, reducing errors during transition to PCB layout. The project emphasizes open file formats (plain text `.lpp` and `.lpf` files), ensuring long-term accessibility–an advantage over proprietary binary formats. Nightly builds provide early access to improvements like differential pair routing, though stability may vary.

For embedded systems designers, QElectroTech offers a lightweight, Qt-based solution with a focus on IEC standards. It includes pre-built libraries for symbols like microcontrollers (STM32, AVR) and passive components, accelerating workflows. The tool’s minimalist interface trades advanced features (e.g., simulation) for lower computational overhead, making it viable on older hardware.

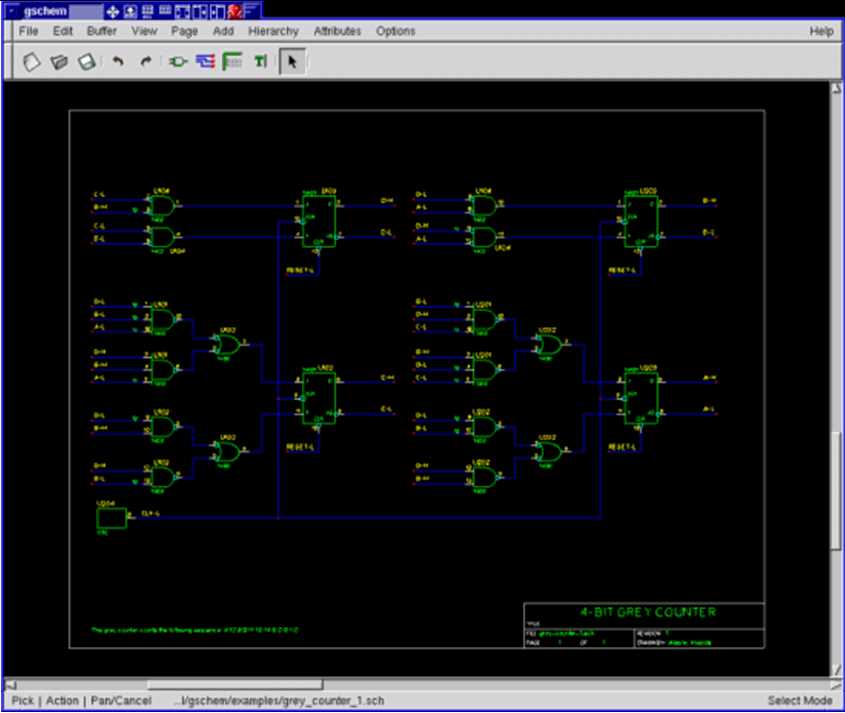

When integration with simulation tools is critical, ngspice (via gEDA gschem) bridges schematic capture with SPICE analysis. The combination supports netlist extraction directly from drawings, allowing users to validate circuit behavior without exporting files. While the learning curve is steeper than GUI-centric options, the CLI-driven workflow appeals to automation-focused users.

Best Free Tools for Electrical Circuit Visualization

KiCad stands as the most mature option for designing circuit layouts, offering a complete suite: schematic capture, PCB editing, and 3D board preview. Version 7 introduced native SPICE simulation, eliminating the need for external plugins. The built-in symbol and footprint editors allow full customization, while hierarchical sheets simplify complex projects. KiCad’s file format (.kicad_pro) remains human-readable, ensuring long-term compatibility and version control. For beginners, the official tutorials cover everything from basic resistor networks to microcontroller designs with BGA packages.

Lightweight Alternatives for Quick Drafts

CircuitJS1 runs directly in a browser, ideal for rapid prototypes without installations. Draw circuits with a drag-and-drop interface, then simulate instantly–click switches or adjust sliders to see real-time current flow. The tool supports passive components, logic gates, and basic ICs like the 555 timer, though it lacks advanced PCB routing capabilities. For documenting existing circuits, Fritzing provides pre-made component models (Arduino, breadboard layouts) but requires manual wiring; export options include PNG, SVG, and PDF for reports.

QElectroTech focuses on industrial automation diagrams, excelling at wiring diagrams for control panels. The library includes IEC symbols (contactors, relays, motors), and custom symbols can be created by editing XML files. Unlike KiCad, it doesn’t simulate or generate PCBs, but the auto-routing feature speeds up wiring tasks. Projects can be shared via a proprietary .qet format or exported to DXF for use in CAD tools. Users report better performance on Linux with the AppImage build compared to Windows installations.

For analog circuit analysis, ngspice integrates with gschem (part of the gEDA suite) to combine schematic entry with SPICE netlisting. Simulate op-amps, filters, or switching power supplies with parameters pulled from manufacturer datasheets (e.g., LTspice models). While the learning curve is steeper than CircuitJS1, ngspice’s accuracy surpasses browser-based tools, handling transient, AC, and DC sweep analyses. Pair it with XCircuit for professional-grade vector outputs, supporting LaTeX rendering for academic papers.

5 Best Free Visual Drafting Tools for Engineers and Designers

KiCad remains the most powerful circuit editor with no hidden limitations. It handles multi-page projects, hierarchical designs, and integrates a PCB layout environment. The built-in component library includes thousands of pre-built symbols, while the footprint editor allows custom part creation. Real-time electrical rule checks prevent common errors like short circuits or unconnected pins. KiCad exports Gerber files, netlists, and BOMs directly, eliminating the need for third-party conversion tools. For complex hardware projects, it outperforms proprietary alternatives costing thousands.

Key advantages over competitors:

• Native support for differential pairs, buses, and global labels
• Python scripting API for automation
• Cross-platform compatibility (Windows, macOS, Linux)
• Active development with frequent updates
• No locked features or watermarked exports

LibreCAD excels in precise 2D drafting for mechanical and architectural blueprints. Unlike raster-based editors, it uses vector graphics, ensuring infinite scalability without quality loss. The snap-to-grid and ortho tools accelerate drawing alignment, while layers organize designs efficiently. While originally forked from QCAD, LibreCAD stripped proprietary modules, offering a cleaner interface. The DXF compatibility ensures seamless file exchange with AutoCAD users. Recent updates added Bézier curves and improved hatch patterns, making it viable for production documentation.

Inkscape transforms technical sketches into polished illustrations with its SVG-based rendering. Engineers use it to refine block layouts, create custom symbols, or generate publication-ready graphics. The node editing tool adjusts vector paths with millimeter precision, and the alignment dialog simplifies component positioning. Extensions like “Gear Generator” automate repetitive tasks, while the PDF export retains vector fidelity. For non-circuit applications, Inkscape’s text-on-path and blend modes enable creative design work without sacrificing technical accuracy.

Draw.io (now Diagrams.net) simplifies flowcharts, system architectures, and process maps through its browser-based interface. The tool connects to Google Drive, OneDrive, or Dropbox, syncing changes automatically. A built-in shape library covers UML, BPMN, and network topologies, while custom stencils extend functionality. The “smart connectors” snap to objects dynamically, reducing manual adjustments. Unlike desktop tools, it requires no installation, making it ideal for collaboration. Recent updates added VS Code integration, allowing direct editing within development environments.

QElectroTech targets industrial control systems with specialized symbols for motors, relays, and PLCs. The project divides into an element editor (for symbols) and a diagram editor (for layouts). Unique features include automatic cable numbering and terminal block management. The tool exports documentation as PDFs with title blocks, making it suitable for technical manuals. While less known than KiCad, QElectroTech’s niche focus reduces bloat for control panel designers. It supports Linux, Windows, and macOS, with language packs for non-English users.

1. Download KiCad’s nightly builds to access experimental features like push-and-shove router
2. Use LibreCAD’s “Block” function to replicate modular designs across projects
3. Convert Inkscape’s SVG files to PDF/X for print-ready technical documents
4. Enable Diagrams.net’s offline mode by saving the HTML file locally
5. Check QElectroTech’s user manual for advanced scripting in Python

How to Install and Configure KiCad for PCB and Circuit Design

Download the latest stable version from KiCad’s official site. For Windows, select the 64-bit installer; on Linux, prefer the native package manager (e.g., sudo apt install kicad on Debian/Ubuntu). Mac users should grab the disk image (.dmg) and drag KiCad to the Applications folder. Avoid nightly builds unless debugging new features–they may introduce instability.

Run the installer and ensure all components are selected: EDA suite, footprint libraries, and 3D models. On Linux, confirm dependencies like wxWidgets and glew are installed automatically. Post-installation, launch KiCad to trigger initial library setup. The default paths work for most users, but advanced setups may require custom library directories–set these in Preferences → Manage Symbol/Fooprint Libraries.

Update the standard libraries via Plugin and Content Manager (accessible from the main window). Tick the boxes for kicad-symbols, kicad-footprints, and kicad-packages3D, then click Apply Changes. Missing libraries cause errors later, so verify the download completes without interruptions. For offline use, clone the GitLab repositories and point KiCad to local paths.

Configure grid and unit settings before starting a project. Press Ctrl+E in the editor to open Preferences → Common, set the grid spacing to 1.27 mm (50 mils) for through-hole components, and switch to millimeters or inches based on your workflow. Under Display Options, enable Polar Coordinates if designing circular boards. For precision, adjust the Snap to Grid tolerance–0.05 mm works for most SMD work.

Symbol and Footprint Assignment

Create a new project (File → New → Project) and open the board editor. Press A to add symbols; pin mapping depends on hand-matched symbols to footprints. Right-click any component → Properties → Footprint to assign one. KiCad’s CvPCB tool (deprecated in v7+) is replaced by inline assignment: filter footprints using wildcards (e.g., *SOP-8*) to narrow options. Always cross-check pin counts–mismatches break netlists.

Use the 3D Viewer (Alt+3) to validate footprints before routing. Disable Realistic Mode for faster rendering if GPU acceleration is slow. For custom footprints, open the Footprint Editor, draw pads/edges using the F.cu (front copper) layer, and assign properties like Pad Type (SMD/Through-hole) and Shape (rectangular/circular). Save to a personal library to avoid overwriting defaults.

Board Layout and Export

Define board outlines in Edge.Cuts layer using the Line or Arc tools. Critical dimensions: keep traces ≥0.2 mm for home etching; ≥0.15 mm for professional fabrication. Apply design rules (File → Board Setup): set Minimum Track Width to 0.25 mm and Clearance to 0.15 mm. Autoroute with Freerouting (external tool) by exporting Specctra DSN and re-importing the routed file.

Export Gerber files via File → Fabrication Outputs → Gerbers. Include these layers: F.Cu, B.Cu, F.Mask, B.Mask, F.SilkS, B.SilkS, Edge.Cuts, and Drills. Use Gerber Viewer (included) to verify no exposed copper or missing apertures. For assembly drawings, export Pick & Place files in CSV format. Fabricators like JLCPCB or PCBWay provide DRU files–download and load them under Board Setup → Design Rules to ensure manufacturability.

Backup project files frequently. KiCad saves in a .kicad_pro file (replaces older .pro), alongside .kicad_pcb and .kicad_sch. Archive libraries separately if modified, using File → Archive Project. For team collaboration, upload to version control (e.g., Git) and ignore *.bak files to reduce noise. KiCad’s native file format is human-readable–edit larger boards directly in a text editor if corrupted.
