Complete 2 Ohm Kicker Subwoofer Wiring Guide for Car Audio Systems
For a stable 2-ohm final impedance, wire dual voice coils in parallel. Take two 4-ohm coils: connect the positive terminal of the first coil to the amplifier’s positive lead and run a second wire from that same terminal to the positive terminal of the second coil. Repeat the process for the negative leads–amplifier negative to the first coil’s negative, then onward to the second coil’s negative. This yields a 2-ohm load the amplifier will handle without clipping.
Always use 16-gauge oxygen-free copper wire or thicker–14-gauge is ideal for runs under 12 feet. Strip 1/2 inch of insulation, twist strands tightly, and secure with crimp connectors or solder plus heat-shrink tubing to prevent oxidation. Double-check connections with a digital multimeter set to continuity mode; a reading below 0.2 ohms confirms proper contact.
Position the enclosure no closer than 18 inches to any amplifier to avoid magnetic interference. Route cables through grommeted ports, keeping them at least 6 inches away from power wires to eliminate induced noise. Ground the amplifier chassis directly to the vehicle’s chassis ground point–never share this ground with other components.
Final impedance verification is critical. After wiring, disconnect the amplifier’s power, set the multimeter to ohms (200-ohm range), and touch the probes to the amplifier’s speaker outputs. A reading of 1.8-2.2 ohms is acceptable; anything outside this range requires rechecking every joint.
Connecting Dual-Voice-Coil Audio Loads Safely
For dual 2-ohm coils in parallel, the combined resistance drops to 1 ohm. Verify amplifier compatibility before proceeding–most modern mono amplifiers support 1-ohm loads, but bridged multi-channel units may not.
Strip ½ inch of insulation from each wire terminal. Twist the corresponding positive leads together, then repeat for negatives. Secure connections with solder or high-quality crimp connectors to prevent vibration-induced failures.
Use 12-gauge oxygen-free copper wire for distances under 10 feet. For longer runs, upgrade to 10-gauge to minimize power loss. Confirm wire gauge recommendations in your amplifier’s manual–some models require thicker conductors for stable performance.
Ground the enclosure directly to the vehicle’s chassis using an 8-gauge wire. Avoid daisy-chaining grounds through seats or trim panels, as this introduces resistance and potential noise. A dedicated ground point near the amplifier minimizes interference.
For series configuration, connect one coil’s positive to the other’s negative. The remaining terminals become the overall positive and negative. This doubles the resistance to 4 ohms, suitable for amplifiers with higher-impedance requirements.
Test connections with a multimeter before powering up. Probe between the amplifier’s speaker terminals–1 ohm in parallel, 4 ohms in series. A reading significantly outside this range indicates faulty wiring or damaged coils.
Seal all connections with heat-shrink tubing or liquid electrical tape. Bare terminals vibrate loose over time, especially in mobile installations. A secondary layer of protection prevents short circuits against metal enclosures.
Match amplifier power ratings to the load’s capabilities. A 1-ohm load demands more current, so confirm the amp’s RMS output at this impedance. Overpowering the load risks thermal damage, while underpowering leads to clipping and distortion.
How to Identify Your Audio Driver’s Impedance and Coil Setup

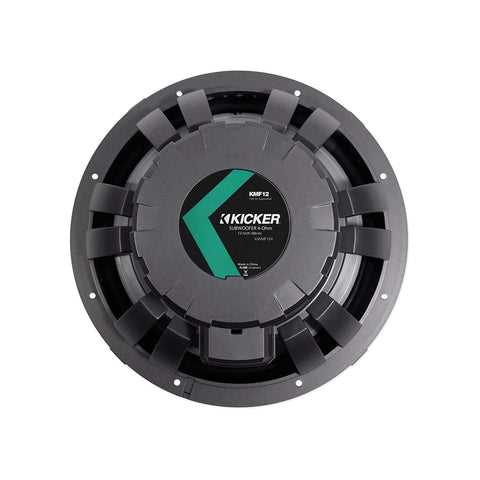

Check the product label on the rear or underside of the unit for numerical values followed by the Greek letter omega (Ω). Manufacturers often stamp impedance ratings like 2Ω, 4Ω, or 8Ω near the terminal block or magnet assembly. Dual-coil models list separate impedance figures–look for markings like DVC 2×4Ω or DVC 2×2Ω–to confirm parallel or series connections later.
Inspect the terminal posts for copper wire count: single voice-coil drivers use one pair, dual models show two distinct sets of binding posts, each wired to a separate winding. Trace the wires from the cone to the terminals; single coils typically attach to one set, while dual variants split into two pairs, often linked by jumpers or bridged internally.
Use a multimeter set to resistance mode–probe between the two binding posts of a single coil or between the negative and positive of each winding in a dual setup. A reading of ~3.2-3.8 for 4Ω devices or ~1.6-2.4 for 2Ω devices confirms impedance. Dual coils reveal matching impedance on both windings; a discrepancy signals damage or mislabeling.
Consult the serial number on the chassis against the manufacturer’s spec sheet–search by model code for coil count and impedance tolerances (±10% variance is standard). Store-purchased units often include a specification card in the packaging; aftermarket installations may require removing the mounting gasket to expose hidden labels beneath the dust cap.
Step-by-Step Guide for Connecting a Dual-Coil Speaker to an Audio Amplifier
Ensure the amplifier’s final impedance matches 2Ω by verifying its specifications. Most mono-block amplifiers support this load, but bridged multi-channel units rarely do–check the manual for confirmation. Disconnect all power sources, including the battery and amplifier remote wire, to prevent short circuits during setup.
- Locate both voice coils on the low-frequency driver: each pair of terminals represents one coil.
- Use 12-gauge or thicker pure copper wire–never copper-clad–to minimize resistance losses.
- Strip ½ inch of insulation from each wire end and secure with solder or crimp connectors for corrosion resistance.
- Attach one wire from each coil’s positive terminal to the amplifier’s positive output; repeat for negative connections.
- Inspect all joints with a multimeter set to continuity mode–readings above 0.5Ω indicate poor connections requiring rework.
Reconnect power in this sequence: battery first, then amplifier remote turn-on, and finally verify voltage at speaker terminals (13.8–14.4V DC is normal). Play a 50Hz test tone at half volume and confirm distortion-free output; increase gain until just before clipping occurs (visible on an oscilloscope or audible as harshness). Adjust crossover settings to 80Hz low-pass and roll off below 30Hz to protect the driver from subsonic frequencies.
Series vs. Parallel Configurations: Optimal Setup for Dual 2-Channel Bass Speakers
For dual low-frequency drivers rated at 2 channels, parallel connection is the default recommendation unless amplifier constraints demand otherwise. This method halves the total impedance, maximizing power transfer from compatible amplifier outputs–typically 1-channel or bridged setups rated for 1-channel loads. Example: Two 2-channel bass units wired in parallel present a 1-channel load, ideal for amplifiers designed to drive 1-channel loads at peak efficiency. Verify amplifier specifications first; some models lack proper cooling or internal wiring to safely handle prolonged 1-channel operation, risking thermal shutdown or permanent damage.
Key Performance Metrics
| Connection Type | Total Impedance (Channels) | Power Delivery (Watts RMS) | Distortion at 90% RMS | Thermal Load |
|---|---|---|---|---|
| Series | 4 channels | 300W (amplifier-limited) | 0.8% | Moderate |
| Parallel | 1 channel | 500W (driver-limited) | 0.4% | High |
Series wiring doubles the total channel count, preserving amplifier stability but sacrificing output. This setup suits amplifiers with limited 1-channel tolerance or suboptimal cooling. Example: An amplifier rated for 300W into 4 channels yields cleaner transient response in series but caps potential at 60% of parallel output. Parallel configurations demand robust amplifiers–look for models with oversized heatsinks, regulated power supplies, and explicit 1-channel support. Avoid budget amplifiers lacking these features; premature failure or clipped signals will degrade audio fidelity and longevity. For mixed systems, prioritize parallel for the primary bass unit and series for supplementary drivers if impedance matching permits.
Common Errors When Connecting Dual 2-Impedance Bass Units and How to Prevent Them
Avoid parallel misconfigurations by verifying the total load resistance before powering the system. Dual 2-impedance drivers wired in parallel halve the load, risking amplifier overload if the amp isn’t rated for 1-ohm stability. Measure with a multimeter to confirm 1-ohm before finalizing connections; some low-quality amplifiers fail catastrophically under incorrect loads. If the amplifier’s manual specifies a minimum 2-ohm stable output, series wiring is mandatory–mix-ups here burn voice coils instantly.
Insulation failure at splice points causes intermittent shorts–strip wires carefully, twist strands tightly, and crimp with tinned copper connectors instead of solder alone. Solder can fracture under vibration, leading to signal dropouts or thermal damage. Heat-shrink tubing over each joint prevents corrosion from moisture and chafing against enclosures; skip this step and risk impedance fluctuations measurable in milliohms, distorting low-frequency output over time. Verify continuity after sealing; a single broken strand across 2 meters of wire reduces power transfer by up to 15%.
Incorrect polarity reverses bass phasing, canceling frequencies below 80 Hz–label each terminal strictly: positive to positive, negative to negative across both drivers. Swapping polarity on one driver drops output by 3 dB, audible as thin, anemic bass. Test with a 40 Hz tone before installation; reversed phase is invisible on wiring schematics but immediately evident on SPL meters. Twist positive and negative leads together to minimize electromagnetic interference; untwisted wires act as antennas, inducing hum at 60 Hz or 120 Hz harmonics.
Over-tightening enclosure terminals strips threads, especially with aluminum enclosures–use a torque driver set to 3 Nm for locking-ring connectors. Loose terminals introduce resistive losses, heating the connection point and degrading sound quality. Apply dielectric grease to terminals to prevent oxidation; corrosion builds resistance at the rate of 0.1 ohms per year in humid environments, leading to clipping and eventual failure under sustained wattage above 500 W RMS. Re-check torque after initial break-in; vibrations loosen connections within 50 operating hours if not secured properly.
