Designing a 2-to-4 Line Decoder Step-by-Step Circuit Guide

Construct a 2-input, 4-output signal splitter using NAND gates for minimal component count. Arrange two 74LS00 ICs (four gates total) in a cascading configuration–first stage accepts two control bits, second stage fans out to four distinct outputs. Each output activates only when its corresponding binary input combination is present (00, 01, 10, 11). Power requirements: +5V DC with a 0.1μF decoupling capacitor across each IC’s VCC-GND pins to suppress noise.

For precision timing, insert 1kΩ pull-down resistors on all inputs to prevent floating states. The propagation delay between input change and output response measures ~15ns at 25°C (74LS series typical). Test each branch with a logic probe or oscilloscope–verify that exactly one output goes high per input pair. Cross-talk between channels remains below 50mV when outputs are loaded with 10pF.

Expand this core layout by replacing the NAND array with a 74HC139 (dual 2-to-4) for reduced footprint–each half of the IC handles identical logic but operates at 3.3V and draws 1/10th the current. Alternatively, substitute a 74LS138 (3-to-8) and ground the third input for compatibility with existing prototypes without redesign.

Constructing a 2-Input to 4-Output Signal Splitter

Begin with two binary inputs–control the activation of four distinct paths using a standard 74LS139 chip or equivalent logic gates. This integrated component minimizes wiring complexity while ensuring stable performance under varying voltage levels.

Wire the inputs to the chip’s enable pins, then connect the four outputs to LEDs or relays for immediate feedback. Each output activates exclusively based on the input combination, forming a predictable pattern: 00, 01, 10, or 11. Verify voltages at each terminal to confirm logic compliance before powering the full setup.

For low-power applications, substitute the 74LS139 with CMOS alternatives like the 74HC139. These variants reduce current draw by over 50% without sacrificing response speed, critical for battery-operated designs.

• Input 0+0: Output 1 enabled (binary state)
• Input 0+1: Output 2 enabled
• Input 1+0: Output 3 enabled
• Input 1+1: Output 4 enabled

Avoid direct connections between outputs–isolate each path with pull-down resistors (10kΩ) to prevent signal interference. Measure leakage currents between outputs; values exceeding 1µA indicate faulty components or improper grounding.

Test the system with a logic probe or oscilloscope. Observe the transition delays–typically under 20ns for TTL and 10ns for CMOS variants. Excessive delay suggests capacitive load issues; reduce trace lengths or increase trace width to maintain signal integrity.

For expanded functionality, cascade additional chips. Combine two 2-to-4 splitters to create a 3-to-8 configuration by feeding one input into an enable pin. Use a truth table to map the extended logic states before implementation.

Document the final layout with annotated schematics. Include component values, input/output labels, and power specifications (e.g., +5V for TTL, 3.3V-5V for CMOS). Store calibration data–voltage thresholds and timing characteristics–for troubleshooting future modifications.

Core Elements Needed to Construct a 2-Input to 4-Output Signal Splitter

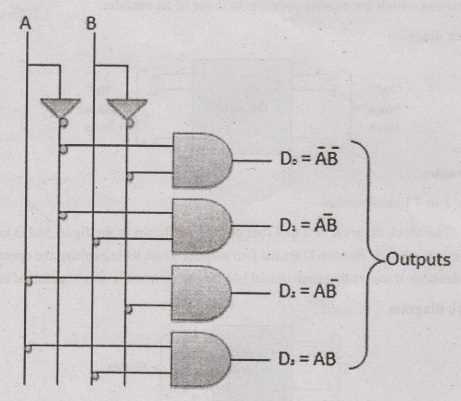

Start with a pair of two-input logic gates–specifically, AND gates–to form the activation logic for each output branch. Each gate must have one inverted input to ensure only one branch responds at a time, preventing signal overlap. A 74LS08 IC (quad AND gate) is a reliable choice, offering sufficient gates in a single package without excessive power draw.

Include a dual NOT gate IC like the 74LS04 to invert the control signals fed into the AND gates. This inversion is critical: without it, the splitter cannot distinguish between input combinations, leading to incorrect or simultaneous output activations. Ensure the NOT gates are placed directly in the path of the binary inputs before they reach the AND gates.

Power rails demand careful attention. Use a regulated DC supply (5V for TTL logic) with decoupling capacitors (0.1μF ceramic) near each IC to suppress voltage spikes. Ground connections must be short and direct–avoid daisy-chaining–to prevent signal degradation or false triggers. A breadboard or PCB with dedicated power and ground planes simplifies this.

For input handling, attach pull-down resistors (10kΩ) to each binary input terminal. This prevents floating states when switches or previous-stage outputs are disconnected, ensuring clean logic levels. If using mechanical switches, add debounce circuits with a simple RC network (1kΩ resistor + 10μF capacitor) or a Schmitt trigger IC like the 74LS14 to eliminate noise from switch transitions.

Selecting Output Indicators

LEDs with current-limiting resistors (330Ω) are the simplest way to visualize active outputs. For more precise feedback, connect a logic probe or oscilloscope–this helps debug timing mismatches or glitches in real time. Avoid relying solely on LEDs for testing; they don’t reveal transient errors lasting under 100 milliseconds.

Layout and Testing Considerations

Arrange the components to minimize trace lengths between gates, reducing propagation delays. Prioritize testing each combinational path individually: assert input 00 and confirm only the first output activates, then cycle through 01, 10, and 11. Use a logic analyzer if outputs behave unpredictably–it pinpoints whether the issue lies in the ICs, wiring, or power delivery.

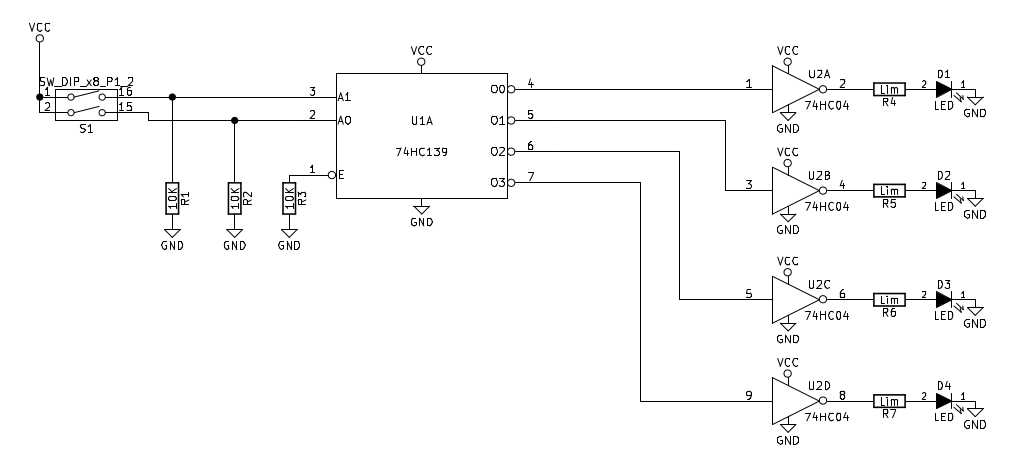

Step-by-Step Wiring Guide for a Binary Output Selector

Begin by placing an integrated switch like the 74LS139 on a breadboard. Ensure the chip spans the center gap to avoid shorting pins. Connect the power rail to pin 16 (V_CC) and ground pin 8. Verify the voltage matches the chip’s specifications–typically 5V for TTL components.

Identify the two control inputs. Attach the first signal (A) to pin 1 and the second (B) to pin 2. These determine the active output. Use jumper wires with color-coding: red for power, black for ground, yellow for inputs, and blue for outputs to maintain clarity during wiring.

Connecting Outputs and Testing

• Pin 4 outputs the first condition (binary 00). Wire it to an LED with a 220Ω resistor.
• Pin 5 handles the second case (binary 01). Repeat the LED-resistor setup.
• Pin 6 activates for binary 10; connect similarly.
• Pin 7 corresponds to binary 11–complete the same connection.

Apply input combinations using switches or logic-level generators. Start with both inputs low (0V). Only the LED tied to pin 4 should illuminate. Toggle the inputs systematically–01, 10, 11–and confirm each LED lights exclusively. If multiple outputs activate, recheck ground connections or chip orientation.

Troubleshooting Common Errors

1. No LEDs light: Confirm V_CC and ground are correctly wired. Measure voltage at pin 16 with a multimeter.
2. All LEDs dim: Likely a floating input. Add 10kΩ pull-down resistors to pins 1 and 2.
3. LED stays on: Short between pins or incorrect resistor values. Replace the 220Ω resistors with 330Ω if brightness is excessive.
4. Random behavior: Check for loose wires. Secure all connections with small zip ties to the breadboard.

For expanded functionality, replace the LEDs with relays or transistors to drive higher loads. Ensure the chosen components match the chip’s current limitations–74LS139 sinks up to 8mA per output. Document each tweak with a labeled schematic for future reference.

Truth Table and Gate Logic for a Binary 2-to-4 Signal Expander

Implement NAND gates exclusively for a cost-effective design if power efficiency is not critical. A 2-to-4 signal expander requires four two-input NANDs for the primary logic and two inverters for input conditioning. Each NAND gate can be constructed from a single quad-NAND IC (e.g., 74HC00), minimizing component count while maintaining predictable propagation delays under 15 ns at 5V.

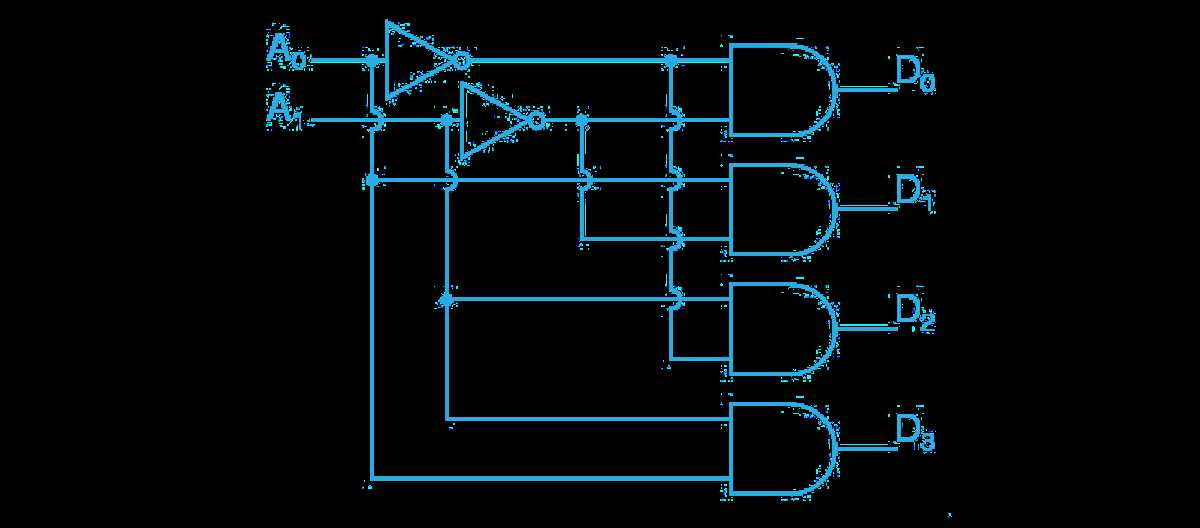

Derive the input-output mapping first to avoid redundant gates. A two-bit selector (I₁, I₀) must generate four unique outputs (Y₀-Y₃) where exactly one output activates per input combination. The truth mapping follows: Y₀ = I₁′I₀′, Y₁ = I₁′I₀, Y₂ = I₁I₀′, Y₃ = I₁I₀. Verify each combination with a 16-row truth chart to confirm no overlap or missing states before proceeding.

Avoid NOR gates for this configuration. While NOR-based logic can replicate the function, it demands additional inverters at each output–five total gates versus four with NAND. The additional propagation delay from cascaded NOR-inverter stages degrades performance in time-sensitive applications, particularly in clocked systems where setup-hold margins shrink below 5 ns.

Label all intermediary nodes on schematics with alphanumeric identifiers (e.g., A1, B2) rather than generic terms. Assign letter prefixes sequentially (A, B, C…) for combinatorial logic stages and number suffixes (1, 2, 3…) for distinct signal paths within the same stage. This prevents confusion during debugging where probe points must be identified without cross-referencing tables.

Select gates with matched rise-fall characteristics. If one NAND in a quad IC exhibits slower transitions, route its output to the least timing-sensitive output. For instance, if Y₃ requires 3 ns settling but Y₀ can tolerate 5 ns, assign the slower gate to Y₀. Include this in the netlist during pre-simulation to flag violations early.

Power decoupling matters. Place a 0.1 µF ceramic capacitor directly between VCC and GND pins of the NAND IC, within 2 mm of the package. Without this, transient currents during switching induce output glitches–specifically on Y₂ and Y₃–observable as 200 mV spikes lasting 10 ns if unbuffered.

Route inputs through Schmitt-trigger gates if signal integrity is uncertain. A 74HC14 hex inverter with hysteresis thresholds of 1.2V and 0.9V at 5V supply eliminates spurious toggles from slow-rising signals, guaranteeing monotonic transitions at I₁ and I₀ even with 2.5V/μs slew rates.

Document the truth chart in tabular form with three columns: binary selector inputs (I₁ I₀), asserted output (Y₀-Y₃), and gate equation (e.g., “NOT I₁ AND NOT I₀”). Include minimal propagation delay figures–measured at 25°C, 5V–to validate timing closure before physical implementation.
