Step-by-Step Guide to Wiring a 20 Amp Switch Correctly and Safely
Start with a 240-volt circuit breaker rated for 25 current units–this ensures a safety margin over the required capacity. Use 12-gauge copper conductors for the entire run; anything thinner risks overheating under consistent load. Label each wire at both ends: black for the live conductor, white for the neutral (if applicable), and bare or green for the grounding path. Verify all connections with a multimeter before energizing the system–readings should match expected voltage between each terminal pair.
Never rely on push-in terminals–screw-type clamps provide superior conductivity and longevity. Loop each wire clockwise around its screw before tightening; this prevents the conductor from being pushed out when the screw is torqued. Apply 10–12 inch-pounds of torque to each screw using a calibrated driver–over-tightening strips the threads, while under-tightening causes arcing. For double-pole configurations, ensure both hot legs are isolated from each other; accidental contact here creates a direct short.
Mount the control device in a dry, accessible location–avoid areas prone to moisture or excessive dust. Use a metal junction box if the environment demands fire resistance; plastic enclosures suffice for general indoor use. Align the box so the cover sits flush against the wall, preventing accidental damage to connections. If installing outdoors, seal all entry points with silicone-based caulk to block water ingress.
Test the setup in three stages: first with the circuit de-energized (checking continuity through the grounding path), then with partial voltage (confirming the neutral path), and finally at full capacity (monitoring for voltage drops under load). If replacement parts are needed, match the exact specifications–mixing brands or models often leads to intermittent failures. Keep a schematic nearby during installation; misrouting even a single wire can reverse polarity or disable safety features.
How to Install a 20-Circuit Toggle Mechanism Safely
Start by shutting off the power at the main breaker panel. Verify the circuit is dead using a non-contact voltage tester before handling any conductors. Use a 20-rated device (minimum 12 AWG copper wire) to ensure compatibility with the load capacity.
Strip 3/8 inch of insulation from the neutral (white), live (black), and ground (bare or green) conductors. Connect the ground first to the green screw terminal on the toggle frame. Twist the live conductor clockwise around the brass screw and tighten securely. Repeat with the neutral wire on the silver screw.
Common Wire Gauge and Load Limits
| Wire Gauge | Max Continuous Load (Watts) | Recommended Breaker Size |
|---|---|---|
| 14 AWG | 1440 | 15 |
| 12 AWG | 1920 | 20 |
| 10 AWG | 2880 | 30 |
Never exceed 80% of the breaker’s rated capacity for continuous loads. For example, a 20 toggle should not sustain more than 16 units of current indefinitely. Use pigtail connections for multi-device setups to prevent loose terminals.
For split-phase setups, label the black conductor on the secondary side with red tape to avoid confusion. Ensure all junction boxes are accessible and secured with the appropriate cover plate. Test the setup with a multimeter before restoring power.
If extending an existing circuit, match the new wiring gauge to the original conductor size. Copper-clad aluminum wires require spécial connectors to prevent corrosion. Avoid aluminum wires for 20 circuits due to expansion risks under load.
Troubleshooting Common Errors
Flickering lights often indicate a loose neutral connection–check the silver screw first. Overheating at the toggle suggests undersized wires or excessive load; downgrade the wattage or upsize the conductors. If the breaker trips repeatedly, inspect for short circuits in the attached appliances.
Grounding rods or cold water pipes alone are insufficient for circuits above 15 units–ensure a direct path to the service panel. Always cap unused wires with wire nuts to prevent accidental shorts. Use arc-fault breakers for installations in bedrooms or living areas as required by the latest electrical codes.
Tools and Materials Required for Installing a 20-Current Control Device
Select a multimeter with a minimum 600V AC rating to test live circuits before handling. Avoid cheaper models with inaccurate readings–verify its calibration by checking against a known voltage source like a wall outlet (120V/240V). A non-contact voltage tester is useful for quick safety checks but should not replace a multimeter for precise measurements.
For cutting and stripping conductors, use side-cutting pliers with insulated handles (rated for 1000V) and a wire stripper with gauge-specific slots. Avoid generic tools that crush conductor strands–opt for precision strippers like Klein No. 11057 or Ideal Industries 45-121. A fish tape (non-conductive, 50-foot minimum) helps route cables through tight spaces, especially in metallic conduits.
Critical Safety Equipment
- Arc-resistant gloves (Class 2, minimum 17 kV rating) for handling live terminals.
- Safety goggles with ANSI Z87.1 certification–cheap lenses crack under impact.
- Insulated screwdrivers (e.g., Wera Kraftform or Wiha) with VDE certification for terminal tightening.
Source 20-current rated electrical boxes (metallic for durability, non-metallic for outdoor use). For indoor installations, 4″ square boxes with 21-cubic-inch capacity accommodate wiring splices comfortably. Outdoor projects demand NEMA 3R-rated enclosures with gasketed lids to prevent moisture ingress. Use weatherproof covers even for temporary setups.
Conduit options: Rigid metal conduit (RMC) for high-durability applications, or electrical non-metallic tubing (ENT) for easier bending in tight spaces. Secure cables every 4.5 feet with conduit straps (UL-listed, corrosion-resistant). Avoid zip ties–they degrade under UV exposure. For terminating conductors, use screw-type or push-in wire connectors (UL 486C listed) that accept 12-10 AWG solid or stranded copper.

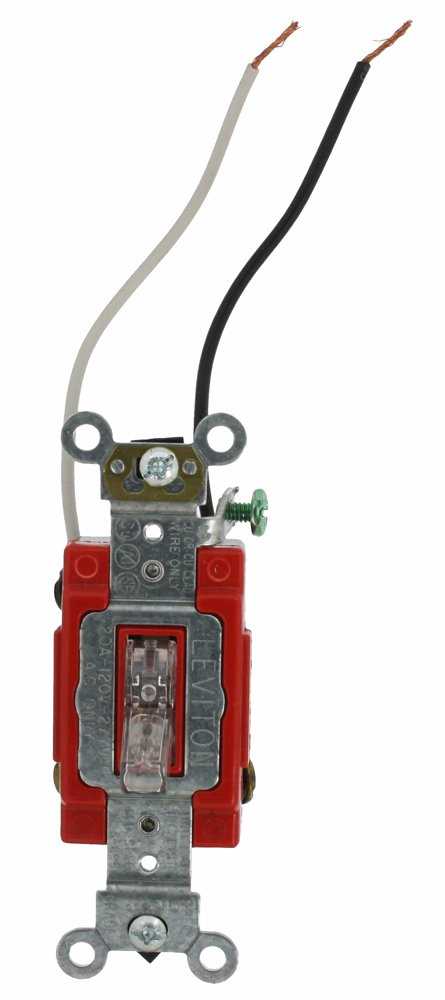

How to Install a 20-Current Single-Pole Control Device Safely
Cut off power at the circuit breaker feeding the circuit you’ll modify–confirm no voltage remains by testing both incoming and outgoing terminals with a non-contact tester before proceeding.
Identify the supply line entering the box–this carries the live conductor (typically black or red) along with the neutral (white) and ground (bare/green)–then separate it from the load cable leading to the fixture or outlet.
Attach the live conductor from the supply to the brass terminal on the device, securing it tightly with a screwdriver–no exposed copper should remain outside the terminal. Loop the conductor clockwise around the screw for the best grip.
Connect the load conductor (also live) to the remaining brass terminal–ensure no insulation is stripped beyond the terminal’s seating area to prevent short-circuit risks. Tuck both conductors neatly into the box, avoiding contact with other metals.
Fasten the neutral and ground conductors from both supply and load lines together using a wire nut–ground must also attach to the device’s green terminal if it contains a bonding screw. Twist strands firmly, trim any excess, then cap them securely.
Push the folded conductors back into the box carefully–fold them in a zigzag pattern to maximize space without pinching any wires. Secure the device to the box with mounting screws, ensuring it sits flush against the wall without strain.
Restore power at the breaker and test the device by toggling it several times–verify the attached fixture or outlet operates correctly and no arcing or heat builds near connections. If sparks appear or burning smells emerge, cut power immediately and recheck all terminations.

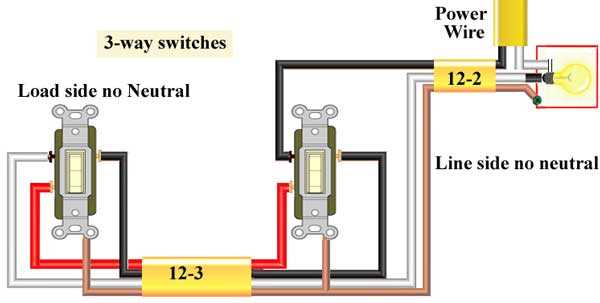

Proper Installation of a 20-A Current Three-Position Toggles
Start by shutting off the circuit at the breaker panel–verify absence of power with a voltage tester before handling any conductors. Connect the common terminal of the first toggle to the live feed wire using a 12-gauge conductor terminated with a wire nut, ensuring no exposed copper remains.
Run a traveler conductor between the brass-colored terminals of both toggles, securing the connection with pliers to prevent loosening under vibration. Use solid 12-AWG copper wire for this link, avoiding stranded wire which can weaken connections over time.
Attach the second toggle’s common terminal to the load (e.g., lighting fixture) with a wire of matching gauge and insulation rating. Label both travelers clearly–mistaking them for neutral or ground wires leads to short circuits or improper operation.
Ground both toggles by linking their green terminals to the circuit’s grounding bus bar via bare or green-insulated 12-gauge wire. Twist grounds tightly and cap them; loose grounds risk intermittent faults or fire hazards when currents exceed 15 A.
Test the setup before enclosing: flip each toggle independently–both positions should toggle the load on/off without flickering or buzzing. If the circuit behaves erratically, recheck all terminals for loose strands or reversed travelers.
Use a clamp-on multimeter to confirm current draw stays below 18 A under full load; exceeding this trips breakers or damages toggle contacts. Replace any worn screws or backstab connectors to maintain 20-A carrying capacity.
Seal the installation with a faceplate that meets NEC 2023 codes–plastic plates suffice for dry locations, but use metal plates in damp areas to prevent corrosion of terminal screws over prolonged high-current cycles.
