Step-by-Step Schematic for 1999 Chevrolet S-10 Manual Shift Stick Assembly
Locate the connector harness behind the center console–it’s a 6-pin Molex plug with color-coded leads: yellow (backup lights), purple (reverse switch), light green (neutral safety), dark blue (starter solenoid), and two black grounds. Verify continuity with a multimeter before disassembly; corrosion on the purple wire is the most frequent failure point.

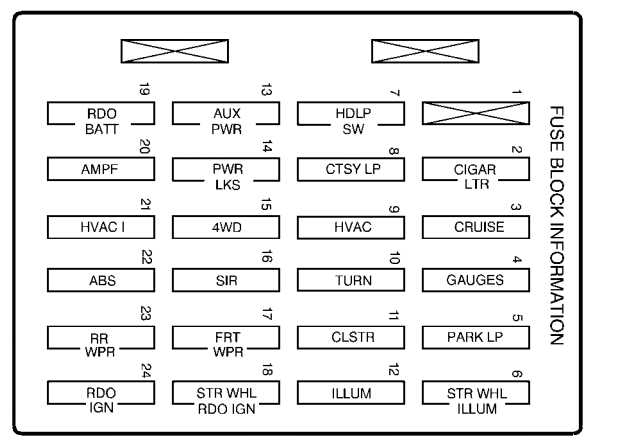

The shift interlock solenoid (part #22626036) mounts on the transmission bracket, triggered by the ignition circuit via a 10-amp fuse (position 17 on the under-dash panel). If the selector won’t budge from Park, check voltage at the solenoid terminals–absence indicates a blown fuse or broken wire at the steering column connector (pin C4).
For manual linkage adjustments, remove the transfer-case skid plate. The pivot ball (torque spec: 22 ft-lbs) connects the shift rod to the transmission lever. Loosen the clamp bolt, align the rod so the gear indicator matches the actual position, then tighten. Misalignment causes gear grinding; replace the plastic bushing (PN 10242810) if play exceeds 1/8 inch.
Schematics vary between 2WD and 4WD models–2WD uses a single cable for 2-3 gear shifts, while 4WD adds a vacuum-operated engagement circuit (diode-protected relay near the firewall). Trace the vacuum lines with colored tape (red for manifold, blue for actuator) to avoid routing errors. Disconnect the battery negative terminal before probing any circuit.
Technical Layout of Transmission Linkage on a Late 90s GM Compact Pickup
Begin by locating the shift lever assembly beneath the console–identify the four primary rods connecting the lever to the transmission: reverse, 1st-2nd, 3rd-4th, and 5th. Each rod links to a specific selector fork inside the transmission via a ball-stud at the lever end and a threaded adjuster on the transmission side. Verify rod lengths against factory specs: reverse (14.75 in), 1st-2nd (12.62 in), 3rd-4th (10.50 in), 5th (8.38 in). Misaligned rods cause grinding or missed gears–use a caliper to confirm measurements before adjusting.
| Rod Position | Length (inches) | Adjuster Type | Critical Clearance (mm) |
|---|---|---|---|
| Reverse lockout | 14.75 ± 0.03 | Threaded sleeve | 3–5 (between rod and lockout bracket) |
| 1st-2nd selector | 12.62 ± 0.03 | Threaded sleeve | 1.5–2 (from pivot to transmission case) |
| 3rd-4th selector | 10.50 ± 0.03 | Crimp-style | None–ensure rod sits flush in fork |
| 5th selector | 8.38 ± 0.03 | Threaded sleeve | 2–4 (from rod end to case gasket surface) |
Disconnect the battery ground cable before removing the console–exposed rod ends risk shorting against the chassis. Label each rod with painter’s tape (e.g., “1-2,” “R”) to prevent misinstallation. If replacing rods, note the reverse lockout rod uses a unique spherical bearing at the transmission end; aftermarket replacements often omit this, causing rattling or failed engagement. Install new rods dry, then apply red thread locker to adjusters–torque to 18 lb-ft max.
Test lever travel in neutral before starting the engine: reverse should require deliberate upward pressure to engage, while 1st-2nd should snap crisply. If gears grind when cold, suspect worn selector forks or a warped pressure plate–inspect fork wear patterns with a flashlight (look for shiny grooves >0.5mm deep). For intermittent 5th-gear pop-outs, tighten the transmission mount bolts to 45 lb-ft; loose mounts allow case flex, misaligning forks. Replace any rod showing >0.125in deflection under 10 lb load.
Finding the Gear Selector Unit and Parts in a 1999 S-10 Pickup with Stick Control
Begin by removing the center console trim panel using a flat-head screwdriver–pry carefully at the rear clips first, then work forward to avoid breaking tabs. The gear selector assembly is secured by four 10mm bolts accessible once the console is lifted; two near the base of the shifter, one beneath the reverse gear lockout housing, and the last adjacent to the transmission tunnel’s shift linkage bracket. Disconnect the electrical connector for the backup light switch before unbolting to prevent wire strain.
- The pivot ball sits on a spherical bearing pressed into the transmission housing–inspect for cracks if resistance is felt during gear engagement.
- Shift rods connect to the selector fork via slotted linkages; verify alignment by ensuring the white nylon bushing on the rod isn’t worn beyond 0.5mm of its original thickness.
- Dust boots should be replaced if splits exceed 3mm–compromised boots allow debris into the transaxle, accelerating internal wear.
- The reverse lockout solenoid mounts on the passenger side of the shift tower–test resistance (4-6 ohms) if reverse gear fails to engage.
Locating and Verifying Wiring for the Gear Position Sensor Circuit
Start with the T10 connector beneath the console near the selector lever assembly. Pin 36 (light green wire) carries the sensor signal–probe it with a multimeter set to DC voltage while cycling through positions; readings should range from 0.5V (reverse) to 4.5V (overdrive). If values plateau, inspect the wire for chafing where it routes alongside the transmission tunnel.
Trace the brown/white wire from pin 42 back to the transmission case. This ground reference must show continuity to chassis ground–less than 0.2Ω resistance. A corroded ring terminal at the transmission mounting stud is a common failure point; clean or replace it if resistance exceeds specifications.
Examine the 22-pin connector at the powertrain control module. Pin 78 (yellow/black) receives the position signal–jump it momentarily to pin 42 with a fused wire while monitoring scan tool PIDs. If the gear indicator updates, the fault lies between the sensor and PCM; if unchanged, suspect PCM internal circuitry or a broken yellow/black wire near the firewall bulkhead.
Disconnect the 8-way sensor connector at the transmission. Measure resistance across pins A (sensor input) and B (ground)–values should be 1.8–2.2kΩ in neutral, dropping to 200–300Ω in drive. Outside these ranges, replace the sensor; if within range, shift focus to power supply continuity on the pink wire (pin C).
Follow the pink wire to the ignition feed at fuse block E. A 10A fuse supplies 12V when the key is ON–verify voltage at the transmission connector with the ignition active. No power suggests a blown fuse, broken pink wire at the steering column splice, or a faulty ignition switch contact.
Inspect the two remaining wires (gray at pin D, orange at pin E) tied to the reverse light circuit. Both should show 12V only in reverse–use a test light to confirm illumination. If one wire shows voltage in other gears, a short exists; isolate it by separating the harness sheath near the transmission tail housing.
Label each wire at both connectors before disconnecting anything. Misrouting gray or orange wires to the sensor pins will trigger false reverse lights–verify connections against a pinout reference before reassembly.
Check the harness clamps near the exhaust pipe. Heat-damaged wires may appear intact but have melted insulation; gently flex the bundle while monitoring sensor readings–intermittent drops confirm a compromised section requiring splice repair.
Removing and Examining the Gear Selector Assembly: A Direct Approach
Disconnect the battery’s negative terminal first–this prevents accidental shorts while handling the console wiring harness. Use a 10mm wrench to loosen the clamp but avoid removing it entirely; store the cable aside in a secure location to prevent contact with metal surfaces.
Locate the center console retaining bolts beneath the gear boot. These are typically recessed behind plastic trim panels. Remove the trim by gently prying with a flathead screwdriver, starting at the rear edge where the clips are least resistant. Document clip positions if reinstallation seems uncertain.
Lift the gear boot upward to expose the locknut securing the selector assembly. Rotate the locknut counterclockwise using a 12mm socket and extension–use penetrating oil if corrosion is present. Keep the nut and washer together to avoid misplacement. Once loose, slide the selector rod upward through the housing, noting its alignment for reassembly.
Inspect the housing interior for wear, particularly around the detent grooves. Look for:
- Cracks or deformation in plastic bushings
- Excessive play in the rod’s lateral movement
- Metallic debris collected at the base
- Discoloration indicating heat damage
Polish minor rough spots with 400-grit emery cloth; replace parts if grooves exceed 1mm depth.
Handling Electrical Components
Disconnect the backup lamp switch by releasing the tab on the wiring connector–pull straight outward to avoid bending pins. Label connector orientation if multiple plugs exist. Probe terminals with a multimeter: continuity should read near zero ohms when the lever is in reverse. Replace the switch if readings are inconsistent.
Clean the housing bore thoroughly. Use brake cleaner to remove old grease, focusing on the detent pockets where grime accumulates. Apply fresh lithium-based grease sparingly–overapplication attracts dust. Check the reverse lockout mechanism for smooth engagement; lubricate the pivot point if stiffness is detected.
Reinstall components in reverse order, ensuring the selector rod aligns with the alignment marks made earlier. Torque the locknut to 18 ft-lbs. Test shift patterns before securing the console: each gate should engage with crisp feedback. If resistance is felt, retry alignment–misalignment typically causes the lever to bind in third gear.
