Complete 2000 Dodge Ram Headlight Wiring Diagram and Color Codes Guide
Start by locating the main power distribution box under the hood–positioned near the driver’s side firewall. The high-beam relay and low-beam relay are critical components; remove the cover and identify fuse slots labeled H/LP HI and H/LP LO. Verify fuse ratings (typically 20A) before proceeding. If corrosion is present, clean terminals with a wire brush or electrical contact cleaner–oxidized connections cause intermittent failures.
Follow the wiring harness from the fuse box to the headlamp switch, mounted on the left side of the dashboard. Disconnect the switch’s electrical connector to inspect pins for damage. Use a multimeter set to continuity mode to confirm signal paths: probe pin A (power input) and pin F (ground) should show near-zero resistance. If values exceed 0.5 ohms, replace the switch.
Trace the driver-side headlight bulb socket wiring back to the front junction block, typically secured near the grille. Splice connections here are prone to fraying–inspect each wire segment for exposed copper. The yellow wire with a dark stripe carries low-beam current; test voltage at the socket should read 12V when activated. If readings drop below 11V, check the alternator output or battery charge level.
For passenger-side issues, repeat the steps but focus on the light blue wire with a white stripe–this supplies high-beam function. Grounding points near the front bumper must be bare metal; scrape away paint or rust at the contact surface. Use dielectric grease on connections to prevent future corrosion.
If both lights fail simultaneously, inspect the integrated power module (IPM)–a black rectangular unit beneath the driver’s side dashboard. This component manages all lighting circuits; overheating often triggers erratic behavior. Replace it if resistance tests show irregular values (normal range: 2-5 ohms).

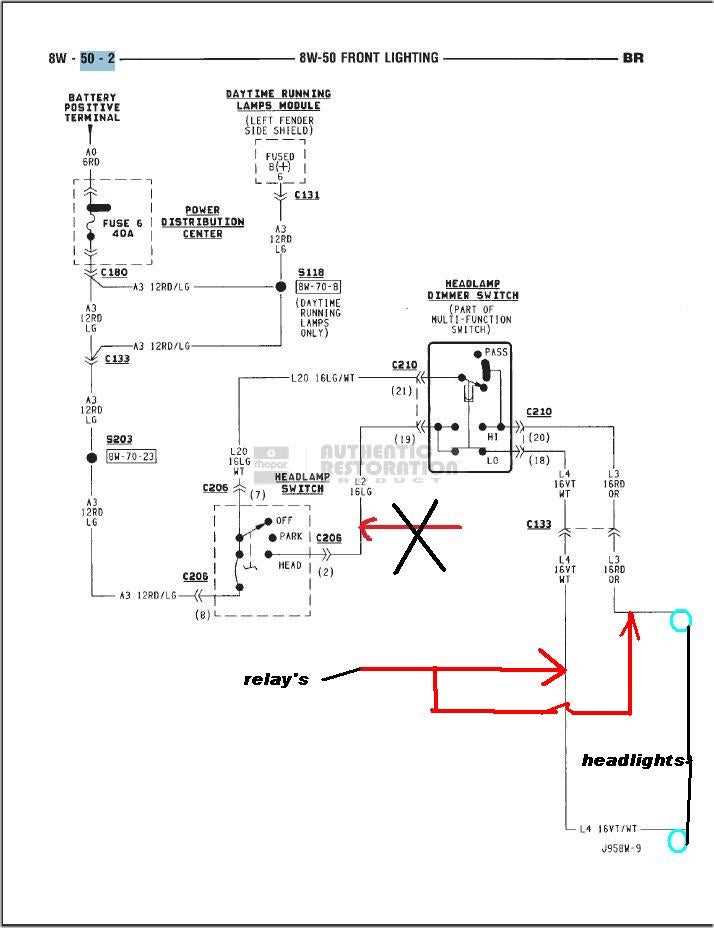

Electrical Schematic for 1999-2001 Pickup Front Lamp Circuits
Locate the central relay box under the hood near the battery. The factory harness splits at the left inner fender: terminals 85 (white/orange) and 86 (black/tan) feed the low-beam control module, while 87 (red) carries fused battery voltage. Trace these wires to connector C201–Pins B1 and B2 supply 12V to the bulb sockets through 1.5 mm² cables. If voltage drops below 11.5V at the socket, check the fusible link (20A) behind the instrument cluster.

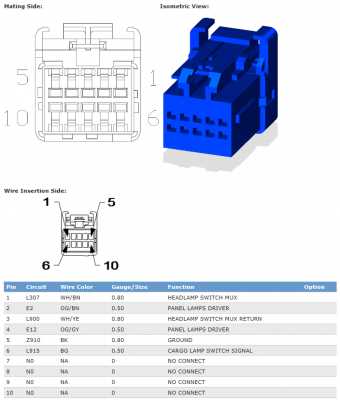

Key Connector Pinouts
- C201 (Male, 4-pin): B1 = Low-beam +12V (white/light blue), B2 = Ground (black), B3 = High-beam +12V (dark blue), B4 = Parking +12V (brown)
- C202 (Female, 2-pin): A1 = Fog lamp switch (yellow/black), A2 = Dash indicator +12V (pink)
- Ground points: G301 (left frame rail, 12mm bolt) and G302 (radiator support, M6 screw). Clean corrosion with dielectric grease or replace fasteners every 30,000 miles.
For composite assemblies (factory option code A95), the daylight sensor taps into the dimmer switch via a violet stripe wire. Cut this trace if installing aftermarket HIDs–relay kits require separate fused inputs (minimum 30A relay rated for 40A inrush). Splice the high-beam circuit using T-taps between the dimmer and headlamp assembly; avoid solderless connectors on gauge wires smaller than 1.0 mm².
Use a 4.5-digit multimeter with a 10A fuse to verify amperage. Low beams draw 5.2A per side at 13.2V, high beams 7.8A. If readings exceed 9A, inspect for melted bulb holders or frayed insulation–replace the entire pigtail (OEM part #56048024AA) rather than repairing damaged strands. Tape splices with adhesive-lined heat shrink (3:1 ratio) and stress-relieve loops behind the grille.
Finding the Front Light Assembly Connectors on a First-Gen Heavy-Duty Pickup
Begin by removing the plastic retaining clip securing the front fascia near the grille. The main harness plug sits behind the assembly’s inner panel, directly adjacent to the blinker unit. Disconnect the negative battery terminal before handling connectors to prevent short circuits. For models with fog lamps, trace the upper-most bundle–it terminates in a 6-pin weatherpack connector, distinguishable by its orange color and distinctive latch mechanism.
Connector Identification by Side
| Location | Pin Count | Color Code | Notable Features |
|---|---|---|---|
| Driver Side | 4 | Black (ground), Yellow (high beam), White (low beam), Red (park) | Square housing, snap-lock tab |
| Passenger Side | 4 | Black, Blue (high beam), Gray (low beam), Brown (park) | Rectangular shape, single retaining clip |
| Fog Light (if equipped) | 6 | Orange base, Black (ground), 2x Violet (output), Gray (switch feed), Light Blue (relay) | Circular locking collar, anti-corrosion gel fill |
Check for melted insulation or bent pins prior to reattachment–common failure points stem from vibration at the bulkhead entry point near the hood latch striker. Use dielectric grease on terminals to prevent moisture ingress, particularly on the fog lamp harness which routes closest to the wheel well splash zone.
Step-by-Step Wire Color Coding for Dual-Filament Lamp Systems
Locate the dark green/black stripe wire–this feeds the dual-intensity bulb’s primary filament (brighter output) under standard driving conditions. Connect it directly to the relay’s switched power input via a 15-amp fuse to prevent voltage drops during simultaneous operation.
Yellow/orange tracer denotes the secondary filament circuit, designated for reduced output. Splice this into a separate 10-amp fuse lead tied to the dimmer stalk’s “low” position, ensuring polarity matches the lamp socket’s pin configuration (typically center terminal for secondary burn).
Verify ground integrity through the bare black or black/tan stripe wire. Crimp this to a chassis stud near the assembly’s mounting bracket using a ring terminal; corrosion-resistant grease prevents intermittent failures common in high-humidity climates.
For relay-triggered setups, route the light blue/white stripe wire from the column-mounted switch to the coil terminal. This signal activates the brighter output relay; confirm continuity with a multimeter (12V expected at key-on, engine off).
Gray/violet stripe handles brightness retention during daylight running. Link this to an auto-reset circuit breaker rather than a fuse to accommodate transient current surges when switching between filaments. Avoid shared grounds with cooling fans or audio systems to eliminate cross-talk.
Test each circuit with a non-powered probe before energizing. Tap the brighter lead (dark green/black) against a known 12V source–bulb should illuminate at full intensity. Repeat for the secondary filament (yellow/orange) using the dimmer switch to confirm independent operation.
Seal all connections with adhesive-lined heat shrink tubing, overlapping wire insulation by 5mm. Label splices with permanent marker (e.g., “H-Beam In,” “L-Beam Out”) to simplify future troubleshooting without requiring schematic references.
Locating and Verifying Lighting System Relays and Circuit Protectors in the Power Distribution Center
Start by finding the vehicle’s main electrical hub, typically tucked beneath the instrument panel on the driver’s side or adjacent to the battery tray. Use the owner’s manual or an official fuse layout reference–avoid generic online images, as positions shift between model years.
Trace the front illumination circuit routes: low-beam and high-beam paths begin at a dedicated relay, often marked with labels like “LAMP” or “HDLP.” These cube-shaped relays occupy slots in the upper half of the box. Remove the box cover and check for stamped identifiers beneath each relay; if absent, cross-reference with the manual’s numbered grid.
Examine the circuit protectors (blade-style fuses) sized at 20A or 30A, depending on the illumination type. Low beams commonly use 20A protectors, while high beams or fog units may share a 30A protector. Insert a 12V test light into the protector’s test ports while the switch is activated–if the light glows, the protector is intact; if not, swap with an identical rated spare.
If illumination remains inactive despite verified protectors, test relay functionality. Pull the suspect relay and use a multimeter set to continuity mode. Probe terminal 85 (coil ground) and 86 (coil power)–a closed circuit confirms internal coil operation. Next, check terminals 30 (power in) and 87 (power out) for continuity when energized; an open circuit indicates relay failure.
Alternative Testing Without Tools
Swap a known functional relay from another system (e.g., horn or A/C) into the suspect slot. If the front lights activate, replace the defective relay immediately–avoid prolonged operation, as faulty units can overheat adjacent wiring.
For vehicles with daytime running lamps, verify an additional 15A protector located adjacent to the main lighting cluster. Locate the DRL module, often mounted near the front bumper or radiator support–it modulates current before directing it to the bulbs. If both primary lamps and DRLs fail, inspect this module’s input and output wires for corrosion or disconnection.
When inspecting the power distribution center, scrutinize the backside of the box for melted plastic or discolored terminals. Overloaded circuits often exhibit charring around relay sockets or protector slots–clean contacts with electrical-grade sandpaper, then apply dielectric grease before reinstalling components.
Final step: activate the lighting switch and measure voltage at the bulb sockets. Use a multimeter on DC scale–black probe to chassis ground, red probe to socket’s center pin. A reading of 12V–14V confirms proper current flow; lower voltages suggest wiring resistance or insufficient charging system output.
