Complete 2000 Honda Civic Radio Wiring Color Diagram and Pinout Guide
For seamless integration of an aftermarket head unit into your compact sedan, begin by identifying the power wires. The constant 12V feed is a yellow conductor, typically fused with a 10A rating–verify this with a multimeter before disconnecting the factory harness. The switched ignition wire (red) supplies voltage only when the key is in the “ACC” or “ON” position, preventing battery drain. Ground connections use a black cable; ensure it terminates to bare metal, sanded free of paint or corrosion for stable current flow.
Speaker outputs follow a consistent color scheme across most models: front left (gray for positive, gray/black for negative), front right (white and white/black), rear left (green and green/black), and rear right (purple and purple/black). Avoid splicing into the factory amplifier if present–locate the direct speaker harness behind the dashboard center stack to bypass potential signal degradation. Check wire gauges: power cables should be 18-16 AWG, while speaker leads require 22-20 AWG for optimal fidelity.
Illumination control (orange or orange/white) adjusts display brightness in sync with the instrument cluster. For vehicles equipped with a factory mute feature, a blue/white wire transmits the signal–connect this to your new head unit’s corresponding input to retain hands-free functionality. If integrating steering wheel controls, use a dedicated adapter harness (metra ASWC-1 or equivalent) instead of direct splicing to prevent voltage mismatches. Always test connections with a 5-ohm resistor before finalizing splices to confirm speaker polarity.
Retain the factory antitheft code if removing the original unit–this prevents ECU lockouts. For ISO-style connectors, match the pin configuration precisely: A1 (constant power), A4 (ground), A7 (switched ignition), A8 (illumination), and speaker outputs on rows B and C. If wires lack clear labeling, trace them back to the harness at the back of the dashboard using a wiring reference chart specific to your sedan’s trim level. Never rely on wire colors alone–cross-reference with a voltmeter or continuity tester.
Installation Guide for Audio System Electrical Connections in a 2001 Model Variant

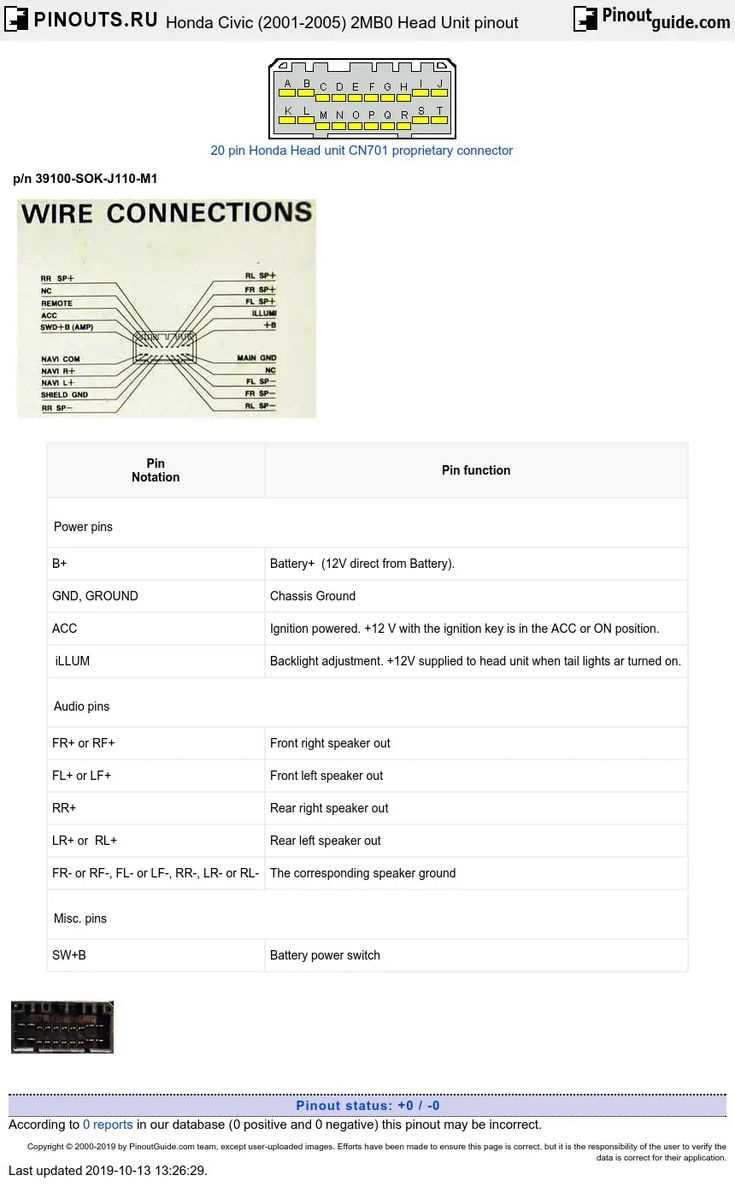

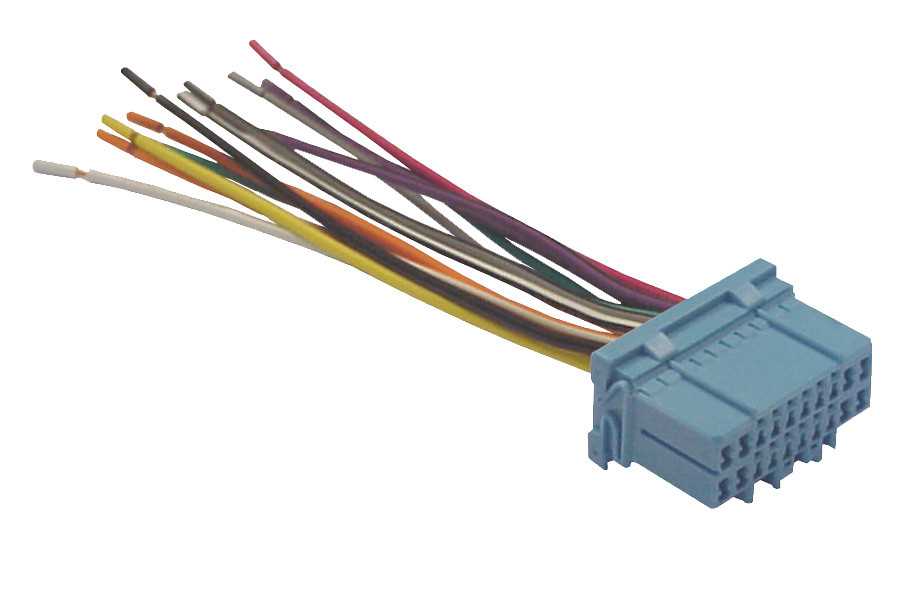

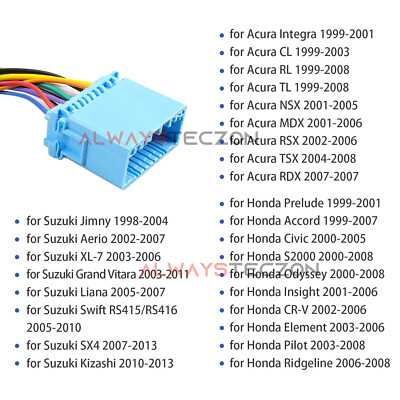

Identify the correct wiring harness adapter by matching connectors: the factory plug uses a 14-pin Metra 70-1721 or Scosche HON02 for aftermarket integration. Cutting original wires voids OEM warranty–splice only with solder and heat-shrink tubing rated for 150°C to prevent oxidation at connection points. The constant 12V power lead (typically yellow) demands a minimum 18 AWG wire gauge to handle 10A draw with a 120% fuse rating (15A); locate this behind the dashboard’s fuse block, tapping Fuse #13 (10A) for safer power distribution.
| Wire Color | Function | Connection Point | Voltage (Key On) |
|---|---|---|---|
| Yellow | Battery +12V (Memory) | Fuse #13 via butt connector | 12.6V |
| Red | Accessory +12V | Ignition switch harness (purple/white) | 11.8-13.2V |
| Black | Ground | Chassis (near glove box, 10mm bolt) | 0V |
| Blue/White | Power Antenna/Amplifier | Radio harness pin 7 | 12V when powered |
| Gray/Black | Front Left Speaker (+) | Door speaker harness (pin 1) | 4-8Ω impedance |
Use a multimeter to verify each circuit before finalizing connections–reverse polarity on speaker wires (gray/black vs. gray) causes phase cancellation, reducing audio clarity by up to 40%. For amplifier installs, route the blue/white remote turn-on wire directly to the head unit’s harness to avoid voltage drop; avoid tapping into the cigarette lighter circuit, as its 15A fuse may overload under peak bass demands (20Hz-20kHz signals). Secure all wires with loom tubing to prevent chafing against the HVAC ductwork, a common failure point in mid-trim models due to sharp metal edges.
Locating the Factory Audio System Connector Behind the Dashboard
Remove the lower trim panel beneath the climate controls first–it snaps off with minimal force. Use a plastic pry tool to release the clips along the top edge, then pivot the panel downward to expose the bundle of cables tucked behind the stock head unit. Look for a white or gray rectangular plug with 16–20 pins; this is the main harness interface. If obscured by foam insulation or zip ties, gently pull aside the excess to trace the wires to their origin.
Key Landmarks for Identification
- Directly above the hazard switch cutout, the harness runs vertically along the metal support brace.
- A small black grounding screw secures a bare wire loop–follow it upward to find the harness tie-in.
- On dual-DIN models, the connector sits flush against the head unit’s rear frame; mono-DIN variants position it slightly to the right.
- Locate the constant 12V lead (solid yellow, ~2.5 mm thick) as an anchor point for further mapping.
Disconnect the battery’s negative terminal before handling any connectors to prevent short circuits. If the harness appears recessed, remove the head unit’s mounting cage by unscrewing the four 10 mm bolts–this grants full access to the wiring cavity. Label each wire with masking tape based on factory codes (e.g., “ILL” for illumination, “ACC” for accessory) to streamline reattachment. For vehicles with integrated security chips, ensure the new interface includes a bypass module or compatible data line to avoid error codes.
Measure the exposed wire length–if less than 8 cm, splice an extension using 18-gauge stranded copper wire and heat-shrink tubing. Test continuity with a multimeter before finalizing connections; resistance should read for power leads and for speaker wires. Reassemble in reverse order, verifying clip engagement at each trim piece to prevent rattles.
Understanding Electrical Connection Codes in Your Vehicle’s Sound System
Locate the yellow wire–this carries constant 12V power, critical for memory retention in aftermarket head units. Verify it with a multimeter (set to DC voltage) before connecting; a reading below 11.5V indicates a weak battery or corroded terminal requiring cleaning. Pair this with the red wire, which supplies power only when the ignition is active–confusing these will result in drained battery or no power to the device.
Ground connections demand scrutiny: the black wire must attach directly to bare metal, avoiding painted or coated surfaces. Use a ring terminal crimped tightly, then secure with a bolt rated for electrical applications. Resistance above 0.2 ohms here introduces noise, notably a low-frequency hum during operation. If symptoms persist, relocate the ground to a different chassis point, preferably closer to the audio equipment’s mounting location.
Speaker wires follow a consistent but non-standard color scheme: white (front left positive), white/black stripe (front left negative), gray (front right positive), gray/black stripe (front right negative), green (rear left positive), and green/black stripe (rear left negative). Purple handles the rear right channel: purple (positive), purple/black stripe (negative). Strip only 3-5mm of insulation; excess bare wire creates short risks when bundled. Twist strands clockwise before inserting into connectors to prevent fraying.
Accessory functions are often overlooked: the blue wire (with or without a white stripe) activates power antennas or amplifier turn-on signals. Connecting this incorrectly forces the amp into constant operation, overheating components. For vehicles with factory amplifiers, identify the orange wire–this carries illumination control (dimmer) and must integrate with the dashboard lighting circuit to sync brightness levels.
Troubleshooting Mismatched Color Codes
Factory harnesses occasionally deviate from aftermarket standards. If colors differ, rely on function testing: use a 9V battery to briefly touch wires to a small speaker–positive wires produce a click. Note polarity reversals in older models; some manufacturers swapped +/- designations. For ambiguous connections, consult the harness adapter’s pinout chart rather than assuming continuity based on wire color alone.
Step-by-Step Connection Guide for Aftermarket Head Unit Installation
Disconnect the negative terminal of the vehicle’s battery before handling any electrical components. This prevents short circuits and damage to the new equipment or existing vehicle systems.
Remove the factory dashboard trim using plastic pry tools to avoid scratching surfaces. Start from the bottom edge and work upward, releasing clips incrementally. Store screws and clips in labeled containers to simplify reassembly.
Identify the harness adapter matching the vehicle’s make and model. Connect the adapter’s color-coded wires to the aftermarket unit’s harness by splicing or using crimp connectors. Verify each connection against the reference chart for power, ground, speaker, and accessory wires.
The constant 12V wire (typically yellow) powers memory functions–connect it directly to the battery or a fused circuit. The switched 12V wire (often red) activates with the ignition. Ground the black wire to a bare metal point, ensuring no paint or corrosion interferes.
Attach speaker wires (front/rear, left/right) to the corresponding outputs, maintaining polarity. Reversed leads cause phase cancellation, weakening sound. Test each channel with a 1 kHz tone before securing connections.
For steering wheel controls, integrate a compatible interface module. Follow the module’s wiring schematic to link its inputs to the vehicle’s control wires. Calibrate the module via its included software if necessary.
Reinstall the dashboard trim, pressing firmly until all clips snap into place. Reconnect the battery, then power on the unit to verify display, audio, and accessory functions. Adjust balance, fade, and equalizer settings to confirm speaker outputs before finalizing the setup.
