Step-by-Step 24V Trolling Motor Plug Wiring Guide with Diagram

Use a color-coded harness for immediate identification: red for positive leads, black for negative. Standard 12-14 AWG marine-grade cable prevents voltage drop over 10-foot runs–any thinner risks overheating under sustained load. Verify polarity with a multimeter before finalizing connections; reverse polarity will damage speed controllers.

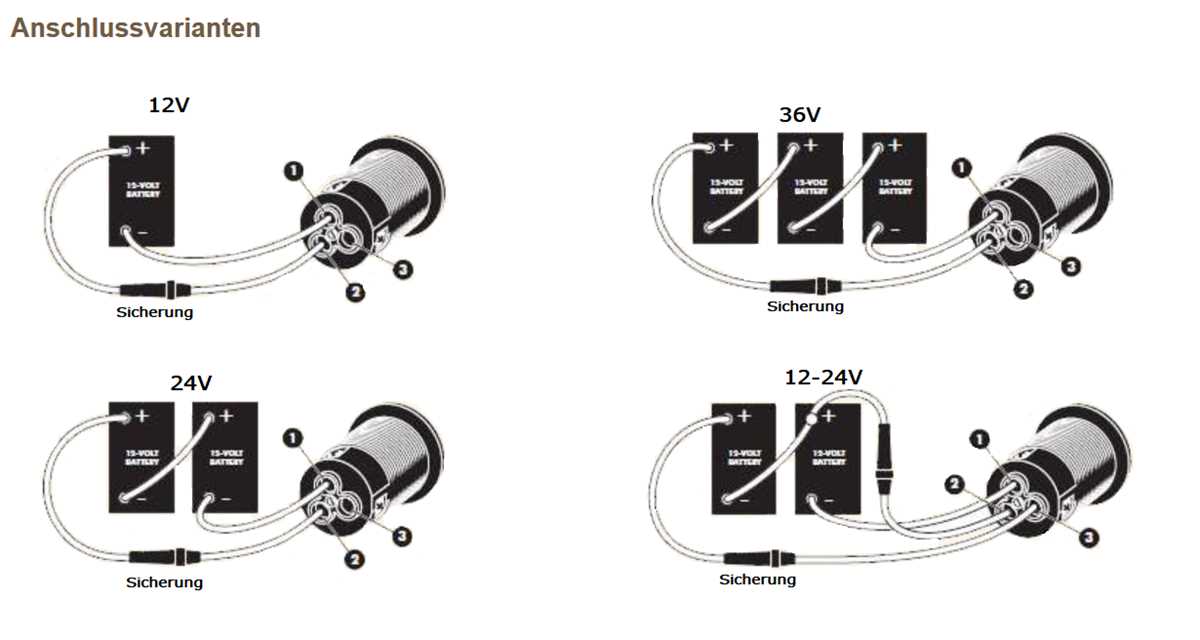

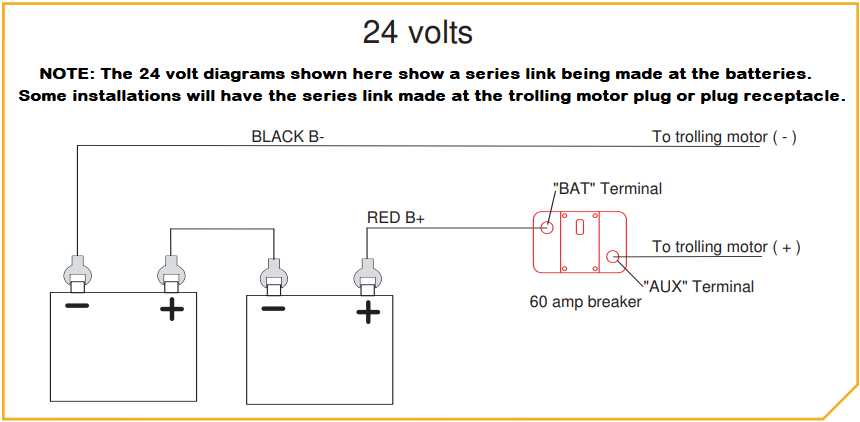

Match terminal sizes to avoid loose contact: Anderson SB50 connectors handle 50A continuous current, while smaller 35A models require heat-shrink tubing to seal exposed strands. For dual-battery setups, link batteries in series–positive of one to negative of the next–to achieve the required 24VDC output. Avoid parallel connections unless balancing charge states.

Secure all joints with marine-grade solder or crimped terminals, then insulate with adhesive-lined heat shrink. Exposed copper corrodes rapidly in saltwater environments. Route cables away from sharp edges and moving parts, using stainless steel zip ties every 18 inches to prevent chafing. Test under load before final deployment; expected current draw should match the thrust unit’s specifications within ±5%.

For quick-disconnect systems, ensure the male-female pair locks mechanically–vibration can loosen standard push-fit connectors. Use dielectric grease on contacts to repel moisture and maintain conductivity. If integrating a fuse, place it within 7 inches of the power source to protect the entire circuit.

Connecting a Dual-Battery Power Connector: Step-by-Step Guide

Use a 360-degree circular connector with a twist-lock mechanism rated for 30 amps minimum if operating in freshwater or 50 amps for saltwater conditions. Match terminal polarity precisely: the red (positive) cable connects to the brass screw post, while the black (negative) hooks to the zinc-coated one. Verify the battery bank delivers 22–25.2 A·h to prevent voltage sag under load.

Cut the harness conductors to identical lengths–no more than 12 inches from each link–to minimize resistance losses. Strip 5 mm of insulation, twist the strands tightly, then apply heat-shrink tubing infused with adhesive backing before crimping fork terminals. Position a multimeter probe on each joint and confirm

Install an in-line 60-amp circuit breaker within 7 inches of the power source’s positive lug–never substitute with a fuse. Route cables away from bilge edges, steering pivots, and outboard tilt mechanisms using spaced nylon clamps every 18 inches. Seal all exposed connectors with dielectric grease, ensuring the connector housing forms an IP67-rated seal when mated.

Before final connection, load-test each bank independently with a 20-amp draw for 3 minutes; monitor for heat buildup at terminals. If temperatures exceed 35 °C, recheck crimps and reclamp. Label each bank’s breaker “Port” and “Starboard” to prevent accidental cross-connection that can damage onboard electronics.

Document the exact terminal sequence–left clamp: battery 1 positive; right clamp: battery 2 negative; center sleeve: ground return–and store this reference inside the console hatch. Re-check the entire setup after every 30 operational hours, especially after exposure to high surge currents or corrosive spray.

Matching the Right Conductors for Your 24V Marine Power Connector

Locate the thickest cables first–these are your primary current carriers, typically color-coded red for positive and black for negative in most standardized setups. Confirm polarity by tracing each conductor back to its origin on the battery bank; verify with a multimeter set to DC if markings are unclear or absent. Crossed connections will immediately trip a fuse or damage components, so isolate each lead before testing continuity.

Key Visual and Functional Markers

Scan for embossed symbols or stripes–manufacturers often stamp “+” or “–” near the insulation or use raised ridges on the positive cable sheath. Smaller auxiliary wires, if present, may serve ignition or battery-sensing circuits; these usually have thinner gauges and lighter insulation hues (e.g., yellow, blue). Avoid relying solely on color schemes; manufacturers like Minn Kota, Newport, and MotorGuide revise palettes across models released in different years, so cross-reference with the specific model’s technical sheet.

Secure connections with marine-grade heat shrink tubing after verifying terminals–standard electrical tape degrades under saltwater exposure within weeks. Trim frayed strands before crimping; even a 1 mm gap between copper filaments increases resistance, causing voltage drop under load. Test the assembled connector by running the system at half throttle for five minutes; an abnormal temperature rise (above ambient +15°C) signals a faulty joint requiring immediate rework.

Step-by-Step Connection Guide for a 24V Marine Propulsion System Connector

Identify the correct terminal configuration by referencing the manufacturer’s color-coding before making any splices. For most 2-pole circular connectors, the positive lead uses a red or orange wire, while the negative (ground) is black or brown. Strip 6–7 mm of insulation from each wire end, then twist the strands tightly to prevent fraying. Secure terminals with a crimp tool rated for 16–14 AWG marine-grade copper, ensuring no exposed threads remain. Apply heat-shrink tubing (minimum 4:1 ratio) over the crimped joint, heating evenly until adhesive seals fully. Avoid twisting the wires together without crimping–this risks corrosion and intermittent failure under load.

Step	Tool/Material	Verification Method
Insulation stripping	Wire stripper (adjustable)	Visual check: no nicks on conductor
Terminal crimping	Crimp tool (ratcheting)	Tug test: 5 kg pull without slippage
Heat-shrink application	Heat gun (dual temperature)	Transparency check: adhesive visible at ends
Connector mating	Torque screwdriver (0.5 Nm)	Multimeter continuity test: <0.2 Ω

Attach the assembled leads to the connector body only after confirming polarity with a multimeter set to Ω mode (probes on each terminal–correct pairing shows <0.5 Ω). For connectors with locking rings, hand-tighten first, then use a spanner to torque to 1.2 Nm–over-tightening strips threads. Seal the wire entry with waterproof silicone grease (NLGI #2) to prevent moisture ingress. Test under load by operating the system at half power for 60 seconds; monitor for voltage drop (>0.3 V indicates poor contact). Replace the connector immediately if resistance exceeds 0.5 Ω or if heat surpasses 40°C during operation.

Critical Errors to Sidestep When Connecting a Dual-Cell Marine Propulsion System

Mixing polarity during assembly guarantees immediate failure. Verify each conductor’s path with a multimeter before securing terminals–positive (red) links to the battery’s upper terminal, negative (black) to the lower. Reversing this disrupts current flow, risks short-circuiting, and can permanently damage the onboard electronics. Use heat-shrink tubing on exposed joints to prevent corrosion from saltwater exposure, a frequent yet overlooked cause of intermittent power loss.

Precision in Component Selection

• Opt for 10-gauge marine-grade cable rated for 30A continous draw–thinner wires overheat under sustained load.
• Avoid twist-on connectors; crimp-style terminals with silver-plated copper withstand vibration and moisture far better.
• Ensure the receptacle’s IP67 rating–anything less invites water ingress, leading to voltage drops or circuit breaks.
• Test the entire setup with a load (e.g., 20A for 10 minutes) before final installation; undetected resistance in connections wastes energy and reduces thrust by up to 15%.

Essential Gear and Supplies for Hooking Up a 24V Marine Propulsion Connector

Start with a 10-12 AWG marine-grade cable–stranded copper core with tinned coating resists corrosion in saltwater. Pair it with heat-shrink tubing (1/4” diameter, adhesive-lined) for sealed connections; avoid electrical tape, as it degrades under UV and moisture. A crimping tool (ratcheting, with interchangeable dies) ensures proper compression–never use pliers or wire strippers for this step. Include ring terminals (tinned copper, 10-12 AWG, 6-8mm stud size) for secure fastening to the power source, and butt connectors (insulated, heat-shrinkable) for splicing. Verify polarity with a multimeter (auto-ranging, with diode test function); digital models provide clearer readings than analog. For the connector itself, choose a waterproof, two-pin design (e.g., Anderson SB50, 50A rating)–avoid plastic housings prone to cracking. Keep wire cutters (flush-cutting) and a soldering iron (60W, temperature-controlled) on hand for clean joints, though soldering isn’t mandatory if crimping is done correctly.

Add anti-corrosion grease (zinc-based) to terminal surfaces before assembly–this doubles connection lifespan in wet environments. For wire management, use zip ties (UV-resistant, 5” length) and cable clamps (rubber-lined, stainless steel screw) to bundle and secure runs along the vessel’s structure. A small wire brush helps clean terminal posts before attachment, while denatured alcohol removes flux residue after soldering. Store tools in a waterproof tackle box to prevent rust; include spare terminals and heat-shrink sleeves in case of errors. Avoid guesswork–label both wires at origin and destination points with marine-grade heat-shrink labels to prevent miswiring.
