Complete Electrical Wiring Guide for 2000 Toyota Tundra with Detailed Diagram

Start with official factory service manuals–these contain verified circuit maps for each system, including engine controls, lighting, ignition, and accessory connections. Avoid aftermarket booklets; they often summarize critical details incorrectly. For late ’99-production vehicles with early-year designation, check both pre- and post-facelift wiring sections, as minor harness revisions occurred mid-cycle. Focus on color-coding standards: solid red typically carries constant battery voltage, while striped wires (red/white, yellow/black) denote switched power or grounds.

Key high-current relays–starter, EFI main, and A/C clutch–are grouped behind the driver-side kick panel. Trace each relay socket pinout using a multimeter in resistance mode to confirm continuity maps between pins 85 (coil ground) and 86 (switch signal). Fusible link integrity is critical; inspect the 100-amp main link near the battery and smaller 30-amp links under the hood for corrosion or heat damage.

For troubleshooting intermittent faults, isolate circuit segments using a fused jumper wire. Connect one end to a known good power source (battery positive) and touch the other to suspect connectors–hesitation or component activation pinpoints the break. Pay special attention to ground distribution: body grounds are consolidated at G101 (left frame rail, near rear cab mount), while transmission and engine grounds terminate at G102 (bellhousing threads). Corrosion here mimics wiring failures.

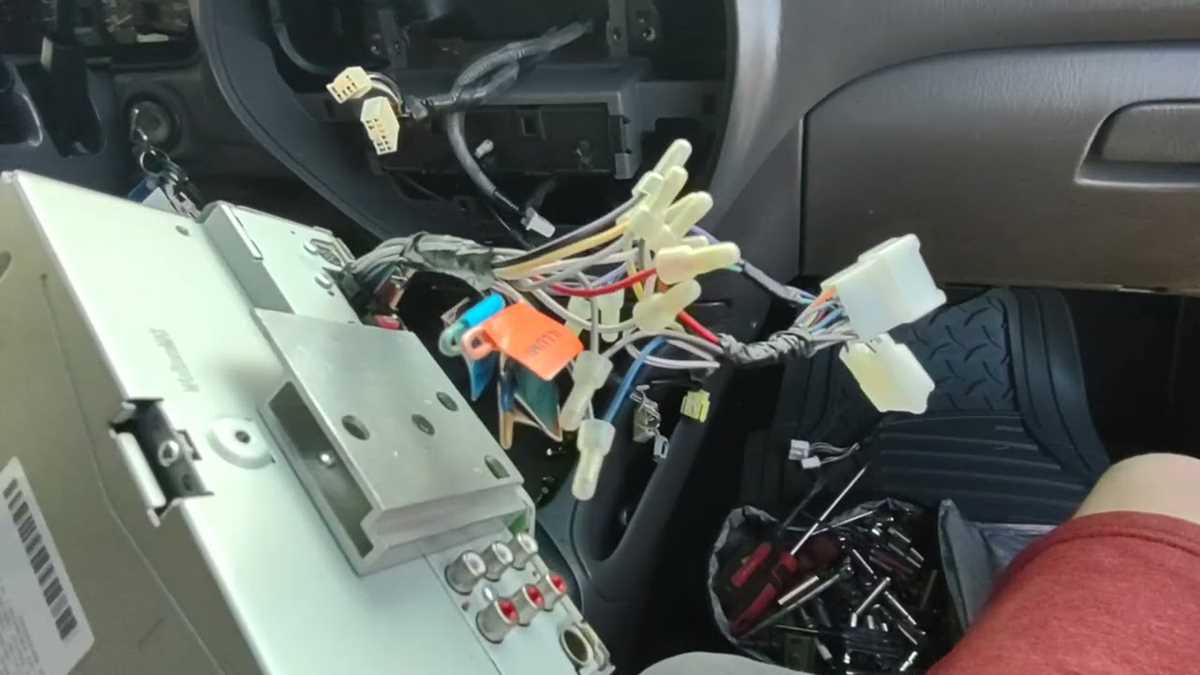

Harness routing diagrams reveal hidden connectors, like the transmission range sensor connector tucked behind the valve cover. Label each connector with tape notes before disassembly–misplaced pins can trigger limp-mode or non-start conditions. For integrated systems (keyless entry, cruise control), cross-reference individual module diagrams; inputs from the ignition switch and brake pedal position sensor follow distinct but interacting paths.

Use a digital schematic viewer to filter individual circuits (headlights, oxygen sensors, trailer wiring). Zoom into junction points–JP2, near the driver-side strut tower, consolidates multiple body harnesses. Verify connector genders: male pins on sensors (TPS, MAF) must align with female harness receptacles; reversed polarity damages ECUs. If printing, select “actual size” settings–scaled diagrams distort critical pin spacing metrics.

Electrical Schematics for First-Gen Full-Size Pickup: Key Insights

Begin troubleshooting with the main fuse block under the hood–specifically fusible link #3 (30A) for the ECU and fuel pump circuits. A blown link here mimics ignition failure, yet the starter crank remains unaffected. Use a multimeter set to 200Ω continuity mode to verify integrity without removing the link; probe both terminals of the link holder while the key is off. Resistance above 0.3Ω indicates corrosion or a partial open, common after prolonged exposure to coastal air.

Locate the instrument cluster harness connector (C10) behind the left kick panel. Pin assignments are color-coded: yellow/black (B+) feeds the tachometer, green/white (MIL) signals ECU faults, and pink (illumination) dims panel lights at dusk. If gauges fluctuate or backlighting flickers, splice a 10-watt bulb between pink and ground–the temporary load reveals weak alternator diodes or frayed dash loom. Replace the loom if fray exceeds 15% of strand diameter.

• Ground junction G1 (driver’s side firewall): serves powertrain control module, O2 sensors, and transmission shift solenoids. Corrosion here causes erratic shifting and P0420 codes. Clean the stud with a wire brush, apply dielectric grease, and torque to 12 Nm (not lb-ft).
• Tail lamp circuit: brown (taillight) and red/black (brake) wires share a common splice under the rear bumper–chafing against the frame causes intermittent braking signals. Wrap exposed sections with heat-shrink adhesive tubing and reroute 20mm away from sharp edges.
• Ignition coil primary resistance should measure 0.4–0.7Ω across terminals. Secondary resistance (pin to tower) must read 10.8–14.2kΩ. Readings outside spec necessitate coil replacement, not merely cleaning connectors.

For auxiliary lighting retrofits, tap into the relay R5 (headlamp low beam) at the under-dash fuse box. The relay’s 87 terminal provides switched 12V during daytime running lights–ideal for LED pods without triggering CAN bus errors. Avoid tapping the high-beam circuit; its transient voltage spikes exceed 16V, damaging aftermarket controllers.

ABS module ground (G2) is located behind the front valence near the brake master cylinder. Corrosion here triggers traction control malfunction lamps yet leaves the ABS pump inactive. Scrape the chassis ground pad to bare metal, apply star washers, and resecure with zinc-coated fasteners. While servicing, inspect the tone ring teeth for missing or bent segments–each tooth deviation beyond 0.3mm falsely triggers fault codes C1234 or C1235.

Finding the Right Electrical Layout for Your Full-Size Pickup Variant

Begin by identifying your specific trim level and optional packages–SR5, Limited, or Base–since factory-installed equipment like trailer wiring, premium audio, or keyless entry alters circuit paths. Check the certification label on the driver-side door jamb for the model code (e.g., V8WD22 for double cab, 4.7L V8 with 4WD). This code unlocks the precise schematic bundle in service literature.

For 2000MY vehicles built before August 1999, request the early-release supplement (Pub. No. RM1009U) from technical libraries or OEM-partnered suppliers. Schematics in this supplement reflect pre-production fuse box pin assignments and ignition switch variations missing from standard manuals. If your VIN’s 8th digit is a “T” or “W,” cross-reference the factory alternator output wire–pink-red stripe–against the later models’ solid pink trace.

• Early production (Jan–Jul): Upfitter relays share a 15A fuse with daytime running lamps.
• Late production (Aug–Dec): Relays migrate to a dedicated 20A circuit labeled “AFOG” in the fuse block diagram.
• Double cab variants include an additional harness splice behind the rear seat for power window modules; expect a Y-joint with yellow-blue conductors not present on access cab layouts.

Access the body electrical section by matching the interior color scheme to wire insulation shades–early cab models use light gray instrument panel plugs with dark gray main harness connectors, while later variants switch to black-with-white-stripe coding. Probe connector C64 (passenger kick panel) for a constant 12V red-white lead; discrepancies here indicate a mid-year splice revision for alarm system retrofits.

When sourcing diagrams, prioritize documents that include ground distribution tables. The front frame rail near the driver-side shock tower hosts G101, a critical earth point common to ABS, ECM, and headlamp assemblies. Verify this point’s torque specification (12–15 ft-lb) before diagnosing parasitic draws or intermittent sensor faults.

For aftermarket modifications such as remote start or LED upgrades, overlay the stock diagram with a transparent layer to trace affected circuits–rear defogger grids on Limited trims route through the roof harness via a separate connector behind the rear dome light, omitting this connection will trip the 10A “HTR” fuse.

Decoding Chromatic Markings in Pickup Electrical Blueprints

Locate the power distribution schematic for the vehicle’s harness–typically segmented by system groups like lighting, ignition, or sensors. Each conductor is identified by a base hue paired with a stripe or tracer (e.g., “B-Y” for black wire with yellow stripe). Solid colors represent primary circuits, while striped variants denote secondary paths or ground returns. Verify the legend: “B” universally signifies black, “G” green, “W” white, but manufacturers occasionally invert striped notation (yellow/black vs. black/yellow) for specific modules.

Cross-reference the schematic’s connector callouts with physical terminals. Terminal blocks labeled “C” followed by a number (e.g., C101) correspond to inline splices or junction points; these nodes often consolidate multiple striped conductors. For example, a pink wire with blue stripe (P-B) at connector C203 might feed both the rear defroster relay and the HVAC blower motor–trace its path to avoid misrouting during repairs. Use a multimeter set to continuity mode, probing from the pinout back to the fuse panel, to confirm polarity.

Prioritize three critical distinctions: thick gauge wires (4–10 AWG) handle high-current loads (starter, alternator, main fuse links), medium wires (12–18 AWG) support accessories (windows, seats), and thin wires (20–22 AWG) signal data (sensors, ECU). A solid red wire (R) in the engine bay nears the alternator delivers ~14V unregulated; the same red with white stripe (R-W) in the dash feeds the ignition switch–mistaking these can fry the instrument cluster. Always cross-verify against service bulletins–some later production builds relabeled striped wires for OBD-II compliance.

Step-by-Step Guide to Tracing the Powertrain Control Unit Connection Routes

Locate the vehicle’s fuse box beneath the dashboard on the driver’s side. Remove the cover by pressing the retaining clips. Identify the 15-amp IGN fuse–this supplies power to the ECU when the ignition is turned on. Use a multimeter set to 20V DC to verify voltage; probe the fuse’s contacts while the key is in the ON position. A reading below 12 volts indicates a faulty relay or blown fuse requiring replacement.

Trace the main harness from the fuse box toward the engine bay. Follow the thickest bundle of wires–this contains the primary power and ground leads for the control module. Look for a cylindrical connector (typically gray or black) secured near the firewall. Disconnect it by pressing the locking tab; pull firmly but avoid twisting to prevent terminal damage.

Inspecting the Hub Connection

Examine the ECU’s plug for corrosion or bent pins. Clean terminals with electrical contact cleaner if oxidation is present. Check for continuity between the battery negative terminal and the ground wire (usually black or brown) using a multimeter. Resistance should measure near zero ohms–higher readings confirm a poor ground, requiring sanding of the mounting surface or tightening of the bolt.

Identify the sensor feeds branching from the main harness. The crankshaft position signal (voltage pulse) originates from a reluctor ring near the harmonic balancer. Probe this wire (often yellow with a red stripe) while cranking the engine; expect a fluctuating 0.5–5V AC signal. Absence of voltage suggests a broken wire or faulty sensor–test the sensor separately with an ohmmeter (resistance should be 800–1200 ohms).

Follow the throttle position sensor circuit from the ECU plug. This wire (typically green with a white stripe) carries a 0.5–4.5V signal. Back-probe the connector with the ignition ON to measure voltage–closed throttle should read ~0.5V, wide open ~4.5V. Deviations point to a misadjusted throttle body or damaged wiring. Adjust the sensor by loosening screws and rotating until the correct reading is achieved.

Verifying Signal Integrity

Test the oxygen sensor heater circuit. The ECU controls this via a relay; locate the heater wires (white or gray) and measure resistance between them (should be 10–40 ohms). With the engine warm, probe the signal wire (black) for 0.1–0.9V fluctuations–steady voltage indicates a lean/rich condition or a dead sensor. Replace if the heater element fails the resistance test.

Confirm the injector pulse width by connecting a noid light to the fuel injector plugs. Crank the engine–the light should flash rapidly. No flashing means the ECU isn’t sending a trigger signal (check the pink/red wire for 12V with ignition ON). If power is present, the control module may be faulty. Swap with a known-good unit to isolate the issue.

Document each wire’s path and color codes using a wiring schematic tailored to your vehicle’s build year. Label junctions where wires split–common failure points include near exhaust manifolds (heat damage) or suspension components (chafing). Secure loose wires with zip ties away from moving parts and heat sources to prevent future failures.
