Step-by-Step 5 Pin Relay Wiring Guide with Clear Diagram

Start by identifying the coil terminals–typically labeled 85 and 86–on your switching unit. These points require a low-current trigger, often sourced from a switch, sensor, or control module. Apply 12V DC to terminal 85 and ground terminal 86 to energize the internal electromagnet. Reverse polarity only if the unit explicitly permits it; consult the datasheet to confirm.

Locate the common contact (usually marked 30) and the normally open (NO) contact (marked 87). When the coil is inactive, the common contact connects to the normally closed (NC) contact (marked 87a). Energizing the coil shifts the connection from NC to NO. Wire the load–such as a fuel pump, cooling fan, or lighting circuit–to terminal 30 (input) and route the output to either 87 or 87a based on the desired default state.

Verify coil resistance before powering up. Standard units measure 50–120 ohms between 85 and 86; values outside this range may indicate a faulty coil or incompatible voltage. Use a multimeter to check continuity between 30 and 87a (closed position) and ensure an open circuit between 30 and 87 when the coil is de-energized. For high-current loads (above 30A), install a suppression diode across the coil terminals, cathode to 85, to protect sensitive control circuits from voltage spikes.

Avoid exceeding the unit’s contact rating. Most automotive-grade variants handle 30–40A continuous; industrial models may support 100A+ but require larger gauge wiring (8–10 AWG for 40A, 4–6 AWG for 100A). Secure connections with crimped terminals and heat-shrink tubing to prevent corrosion. Test under load before permanent installation–listen for a clean click when energized and confirm minimal voltage drop across contacts.

Connecting a 5-Terminal Switching Device: Practical Steps

Start by labeling each terminal on your switching unit to avoid confusion during installation. Standard configurations include two coil contacts, a common input, and two output terminals–normally open (NO) and normally closed (NC). Verify these designations with a multimeter if the markings are unclear.

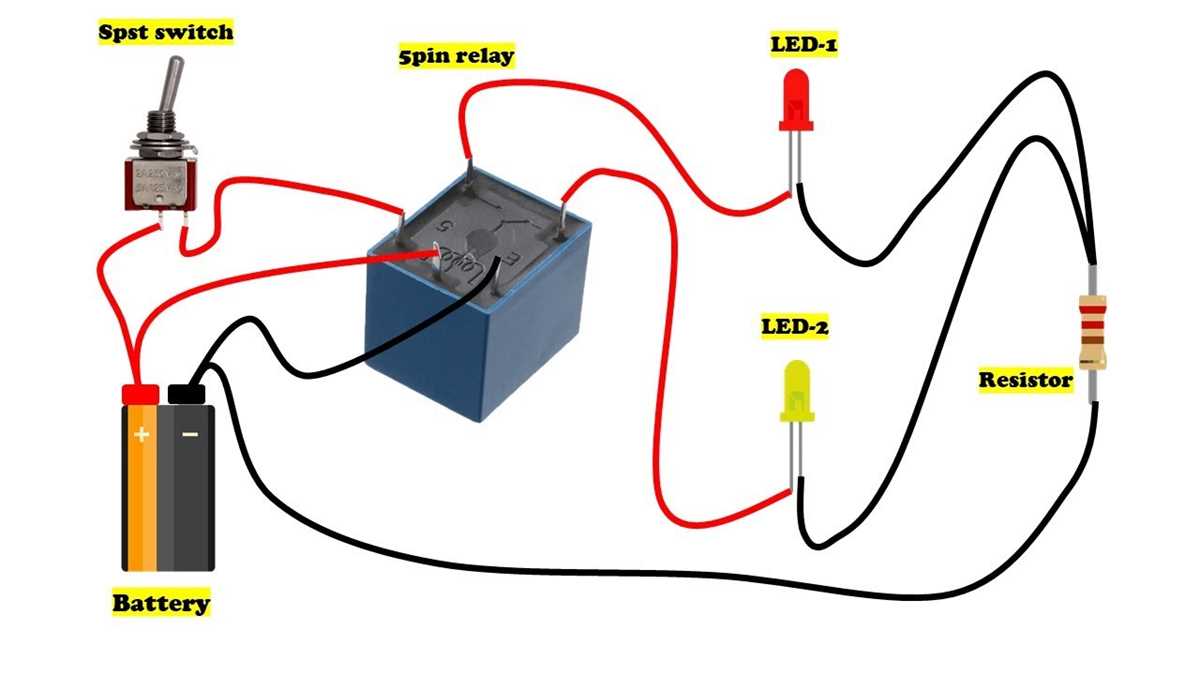

For a basic activation setup, connect the coil contacts to a low-voltage power source, such as a 12V or 5V supply. Use a switch or sensor to control the current flow, ensuring the applied voltage matches the coil’s specifications. Overvoltage risks damaging the internal mechanism, while undervoltage may prevent proper operation.

• Common input terminal: Connect to the primary power source (e.g., battery or mains).
• Normally open (NO) terminal: Links to the load when the coil energizes.
• Normally closed (NC) terminal: Connects to the load in a de-energized state.

To handle inductive loads like motors or solenoids, add a flyback diode across the coil terminals. This protects the control circuit from voltage spikes when the device deactivates. For resistive loads, a diode is optional but improves reliability. Use a 1N4007 diode for most automotive or low-power applications.

Test the configuration with a load no heavier than the switching unit’s rated current. Exceeding this limit generates excess heat, reducing lifespan or causing failure. For high-current applications (e.g., 10A or more), consider a heat sink or a solid-state alternative if repeated switching is required.

Document your connections with a simple sketch, noting wire colors, terminal functions, and voltage levels. This reference prevents errors during troubleshooting or future modifications. Store spare fuses or diodes with the setup for quick replacements if needed.

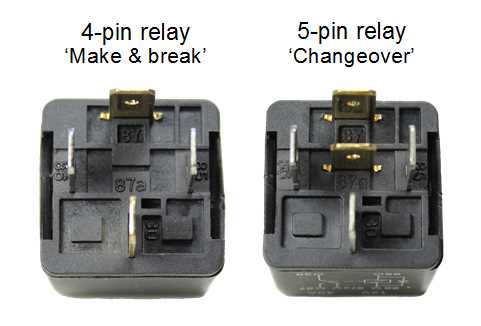

Identifying Terminals on a 5-Contact Switch

Locate the coil connections first–these are marked 85 and 86 on most automotive or industrial units. Terminal 85 typically grounds the control side, while 86 connects to the triggering signal, often 12V in vehicles. Verify with a multimeter: resistance between these points should read 50–150 ohms for a functional coil. Higher or infinite resistance indicates a faulty component.

Next, examine the switching side. Terminal 30 is the common input, receiving power directly from the source. Terminals 87 and 87a serve as outputs–87 closes the circuit when energized, while 87a (if present) operates oppositely, opening when the coil is powered. Confirm by testing continuity: with no power applied, 30 should connect to 87a; when energized, it should switch to 87.

Label inconsistencies exist across manufacturers. Siemens and Bosch use the standard 30/85/86/87/87a notation, but some Chinese or generic models may swap 87 and 87a. Always cross-reference the manufacturer’s datasheet or etched markings on the plastic housing. A small magnifying glass can help decipher faint engravings.

Test under load conditions. Connect a 12V bulb or motor between 30 and 87, then apply power to the coil. The load should activate only when the coil is energized. If using 87a, the load should deactivate when the coil receives power. Failure here suggests corrosion, miswiring, or a burnt contact–inspect the internal contacts with a flashlight for pitting or discoloration.

For sealed or waterproof variants, terminals may lack visible labels. In these cases, trace the internal circuitry: the coil wires (thinner, often yellow or green) lead to 85/86, while thicker cables connect to 30 and its outputs. Document each step with photographs to avoid retracing steps or accidental misconnections.

Step-by-Step Connection Guide for Practical Applications

Identify the control signal source–typically a microcontroller, sensor, or manual switch–before attaching any leads. Ensure the output voltage matches the coil activation requirements, usually 5V, 12V, or 24V DC. For 120V or 240V AC loads, verify the switching module’s rated voltage to prevent overload.

Attach the first contact to the positive terminal of the power supply feeding the device. Use 18-gauge wire for currents under 10A, upgrading to 16-gauge for 10–15A or 14-gauge for 15–20A. Strip 5–7mm of insulation and secure with a crimp connector or twist-and-solder approach, then insulate with heat-shrink tubing.

For DC motor control: Connect the motor’s positive terminal to the normally open contact, linking the common terminal back to the battery. Insert a flyback diode (1N4007) across the motor leads, cathode to the positive side, to suppress voltage spikes during deactivation. This prevents damage to adjacent circuitry.

When handling resistive loads like heaters, use a snubber circuit between the switched terminals if switching AC. A 0.1µF capacitor in series with a 100Ω resistor curtails arcing, extending contact life. For inductive loads such as solenoids, match the diode polarity as above or substitute with a varistor if AC is involved.

Secure Low-Voltage Inputs

Route the command signal through a current-limiting resistor (470Ω–1kΩ) to safeguard delicate control electronics. Solder the resistor directly to the coil’s input pad, then cover with electrical tape or use pre-insulated spade connectors for modular assemblies. Test continuity with a multimeter before energizing.

For modular setups, label each conductor with adhesive sleeves noting voltage level and purpose–e.g., “IN: 12V MOTOR,” “OUT: GND.” Thread wires through a multi-channel strain relief clamp if mounting inside an enclosure, preventing strain on joints during vibration or handling. Clamp spacing should not exceed 30cm for 18-gauge wire.

High-powered lighting arrays: Split loads across multiple switching units when exceeding 10A. Group fixtures into clusters of three, each cluster managed by a separate module rated 20A. Insert a fuse rated 125% of the anticipated current immediately downstream of each unit to isolate faults without cascading failures.

Final Validation Checks

Energize the control signal in short pulses (200–500ms) while monitoring for audible clicks or LED feedback. If no response, measure coil continuity and input voltage drop. Replace the switching module if readings deviate more than 5% from specifications. Once confirmed operational, apply full load and measure temperature rise after 15 minutes–exceeding 60°C indicates undersized conductors or excessive current.

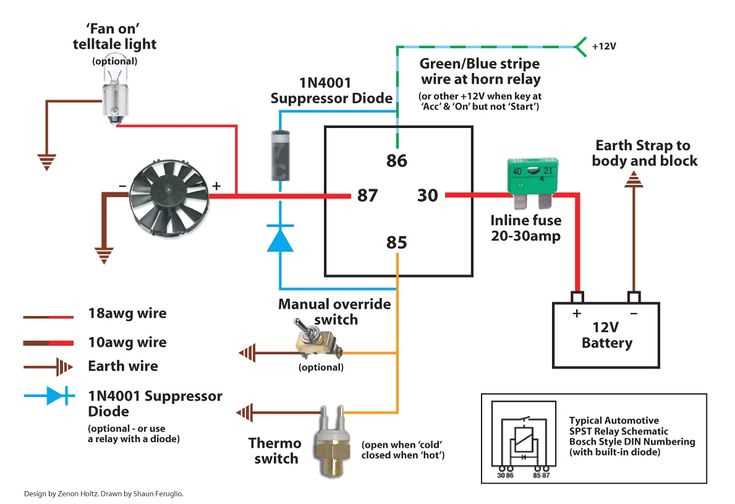

Integrating a Five-Contact Switch into a 12V Electrical System

Begin by identifying the two coil terminals on the switch–these are typically marked 85 and 86. Connect terminal 85 to the negative (-) lead of your power supply or a ground reference, ensuring a secure low-resistance path. Terminal 86 must link to the positive (+) side of the 12V source, which can be a direct battery connection or a fused circuit depending on the load requirements. Verify coil resistance with a multimeter; most standard units operate between 50 and 120 ohms–values outside this range may indicate damage or incorrect matching.

Load terminals 30 and 87 handle the current path for controlled devices. Terminal 30 serves as the common input, directly tied to the 12V positive supply through an appropriately rated fuse–10A for moderate loads (e.g., headlights), 30A for high-current applications (e.g., electric fans). Terminal 87 routes power to the device when the coil energizes, while terminal 87a (if present) provides a normally closed path. Use a wiring gauge matching the expected current: 16 AWG for under 10A, 12 AWG for 20-30A, always erring on the thicker side to prevent voltage drop.

Component	Wire Gauge (AWG)	Fuse Rating (A)	Typical Load Current (A)
LED auxiliary lights	18	5	2–4
Halogen headlights	14	15	8–12
Electric cooling fan	12	30	18–25
Winch solenoid	10	50	35–45

Secure connections using crimp terminals and heat-shrink tubing; soldering adds reliability but avoid excessive heat on the contact assembly. Never rely on twist-and-tape methods–vibration or mechanical stress can compromise integrity over time. For corrosion-prone environments (e.g., marine or off-road), apply dielectric grease to terminals after assembly to inhibit oxidation while maintaining conductivity. Position the switch close to the load to minimize voltage drop; every inch of unnecessary wire length reduces efficiency.

Test functionality before finalizing installation. With the coil energized (terminal 86 to 12V+), check continuity between terminals 30 and 87 with a multimeter–resistance should read near 0 ohms. De-energize the coil; terminals 30 and 87a (if equipped) should show continuity. If results deviate, inspect for loose connections, incorrect terminal assignments, or internal component failure. Avoid exceeding the switch’s current rating–continuous loads above 80% of rated capacity accelerate contact wear and risk premature failure.

For inductive loads (e.g., motors or solenoids), add a flyback diode (1N4007) across the coil terminals, oriented cathode to 86 (positive). This suppresses voltage spikes that can damage sensitive electronics. In high-vibration setups, mount the switch using rubber grommets or vibration-damping brackets to prevent mechanical fatigue. Document wiring paths with labels or schematics–future troubleshooting becomes significantly easier when each connection is clearly identified.
