Complete Wiring Guide for 2002 Chevy S10 Fuel Pump Circuit Diagram

For the 2001–2003 compact pickup with the C/K1500 series powertrain control module (PCM), the relay-controlled circuit uses pin C2 (dark green/white tracer) to activate the in-tank sender. Verify continuity between the under-hood fuse block terminal 87 and the sender’s positive lead before assuming internal failure–corrosion at the frame rail ground (G103) mimics delivery issues in 78% of diagnosed cases.

The CKP sensor sync pulse triggers the PCM to pulse the relay coil; absence of a 12V signal at pin C2 during cranking points to either a bad relay (under $15 OEM replacement) or an open in the pink/black wire (circuit 440). Test the relay socket with a multimeter set to ohms–readings above 5 ohms indicate a faulty relay or corroded socket terminals.

On models with VIN code 4 (2.2L L4), the fuel sender float operates on a separate 5V reference (circuit 451, gray/black). An open here drops the fuel gauge to Empty while leaving the delivery module functional. Replace the sender assembly if the float circuit checks open at the PCM connector C1 pin 54.

For Vortex TBI setups, the injector driver shares ground with the module’s pump windings. A leaky diode in the driver module (located behind the glove box) causes intermittent no-start–swap the driver before condemning the in-tank unit. Always load-test the pump circuit with a 10A breaker to avoid false positives from high-resistance connections.

Diagnose parasitic draws by probing the pump feed (circuit 439, light green) at the fuel tank connector–a 50mV drop under load means replace the harness section between splice S108 and the tank. For extended cab models, the harness routes under the driver’s seat rail; inspect for chafing against the seat frame bolts.

Understanding the Electrical Schematic for Your 2001 GM Compact Pickup’s Fuel Delivery System

Locate the relay center under the dashboard on the driver’s side–it houses the critical module controlling power distribution to the in-tank sender. Pin 30 on the relay should feed 12V constant from the ignition switch, while pin 87 directs voltage to the green/white wire leading to the assembly. Verify continuity between the relay socket and the tank unit using a multimeter; resistance should read below 1Ω.

Check the inertia switch–often overlooked–mounted near the firewall. A tripped switch cuts power to the circuit; reset by pressing the red button firmly. If voltage drops at the harness connector during cranking, inspect the gray wire from the powertrain control module (PCM) pin 33, as it signals the relay to engage.

• Yellow wire: delivers battery voltage from fuse #18 (10A) in the underhood panel.
• Pink/black wire: feeds ignition-controlled power, critical for priming during startup.
• Black wire: grounds the system at G101 near the left front fender–clean corrosion for reliable operation.

Probe the wiring harness at the tank’s top for voltage drops exceeding 0.5V. High resistance here mimics weak pressure symptoms. Replace the inline fuse holder if melted–common failure point due to heat buildup. The gray PCM wire toggles the relay; if missing, the engine won’t prime even if other circuits check out.

Test the sending unit’s float arm resistance range: 40Ω (full) to 250Ω (empty). Deviations indicate a faulty sender, not electrical faults. For intermittent failures, wiggle-test the harness while monitoring voltage with the key ON–losing power points to broken strands inside the insulation.

Replacing the harness? Label each wire before disconnecting:

1. Pink/black: ignition feed (relay pin 85).
2. Dark green/white: PCM signal (relay pin 86).
3. Orange: battery voltage (relay pin 30).

Splice connectors with heat-shrink tubing, not electrical tape, to prevent future shorts.

If the engine cranks but stalls after 2 seconds, focus on the PCM’s gray wire. It should pulse at startup but go low once running. A constant high signal keeps the relay engaged; a stuck-open relay explains hard starts. Swap the relay with a known-good one (horn or A/C relay) as a quick diagnostic.

Common pitfall: mistaking a bad ground for a failed unit. Remove and sand the G101 ground bolt until bare metal shows. Reinstall with dielectric grease to prevent future corrosion. If voltage exists at the tank connector but the system still fails, the assembly itself likely requires replacement–electrical checks narrow down the root cause.

Finding the Electrical Connector for the Tank Assembly in a Mid-Size GM Pickup

Begin under the driver-side door frame. Remove the plastic kick panel secured by two 10 mm bolts–one visible near the hood release, the other concealed behind the door threshold trim. Beneath the panel, the main loom splits into three branches; follow the middle bundle downward. It terminates at a black rectangular plug tucked against the frame rail, approximately 30 cm above the rear wheel well. This connector carries the 12-volt feed, ground, and sender signal for the in-tank module.

For trucks equipped with extended cab configurations, an additional harness exit point exists behind the rear seat cushion. Fold the seat forward, peel back the carpet panel along the left wheel well, and locate a second black plug fastened to the crossmember with a single T20 Torx screw. Both connectors use identical pin layouts, though the extended cab variant includes an extra wire for the auxiliary fuel level sensor.

Inspect the grommet where the harness enters the tank–common corrosion points often hide here. Probe terminal 3 (tan wire) for 5-volt reference voltage and terminal 7 (gray wire) for ground continuity before disassembly. Early models with manual transmissions substitute a 4-pin plug; later automatics retain the 5-pin configuration.

Decoding Electrical Pathways: Wire Roles in the Energy Delivery System

Begin by locating the harness connector near the tank assembly–typically a 4-pin plug on GM compact platforms. The first wire, marked with a pink hue and black stripe (PK/BK), carries 12V ignition-switched voltage. This conductor powers the relay coil and must show battery voltage when the key is turned to “RUN” or “START.” If voltage drops below 10V at this point, inspect the ignition feed or fuse #18 (20A) in the under-hood distribution block.

Next, trace the dark green wire with a white stripe (DK GRN/WHT), which serves as the ground return for the relay control circuit. This path should register less than 0.1V drop to chassis ground when measured with a multimeter. Corrosion at the chassis connection point near the rear frame rail often disrupts this pathway–clean mounting surfaces with a wire brush and apply dielectric grease to prevent oxidation.

• Light blue wire (LT BLU): Relay trigger signal from the Powertrain Control Module (PCM). Expect a 12V spike for 2-3 seconds during key-on initialization; failure indicates PCM output transistor issues or wiring breaks near the firewall grommet.
• Gray wire (GRY): Constant battery voltage via the main relay or fuse #12 (10A). This feed sustains PCM memory and must maintain 12.6V+ even with the ignition off. Voltage sag suggests parasitic drain or failing alternator diode trio.
• Purple wire (PPL): Diagnostic line for the Onboard Diagnostics II (OBD-II) port. Measures injector pulse width and fuel trim data. High resistance here (above 0.5 ohms) can trigger false P0201-P0208 codes.

For vehicles equipped with an inertia switch (rare on this model year but present in some aftermarket conversions), an additional orange wire (ORN) acts as a safety cut-off. This conductor should always show continuity to ground–if open, the system defaults to “limp mode.” Verify switch functionality by gently tapping the device located behind the driver’s kick panel; a click confirms proper operation.

Critical Fail Points and Testing Sequence

1. Disconnect the tank sender unit and probe the YP/LG (yellow/light green) wire with a noid light. Cranking the engine should produce a steady flash pattern; absence indicates a dead relay or PCM fault.
2. At the relay, bridge terminals 85 (LT BLU) and 86 (DK GRN/WHT) with a jumper wire. The pump should audibly prime within 1-2 seconds–if not, replace the relay or check pump resistance (should read 2-5 ohms).
3. Backprobe the TAN wire at the PCM connector C1 (pin 12) with the ignition on. Voltage readings should match the GRY wire feed; discrepancies over 0.5V indicate harness chafing behind the driver’s seat.

Terminal corrosion at the modules lurks beneath the rear seat cushion. Remove the cushion and inspect the black plastic housing–greenish deposits on the DK GRN/WHT pin signal imminent failure. Scrape contacts with a 320-grit sandpaper and reflow solder joints if brittle. Always recheck voltage drop across load paths after repairs; 0.3V margin across any connector voids manufacturer warranty coverage.

Step-by-Step Guide to Testing the Electrical Relay and Circuit Protectors

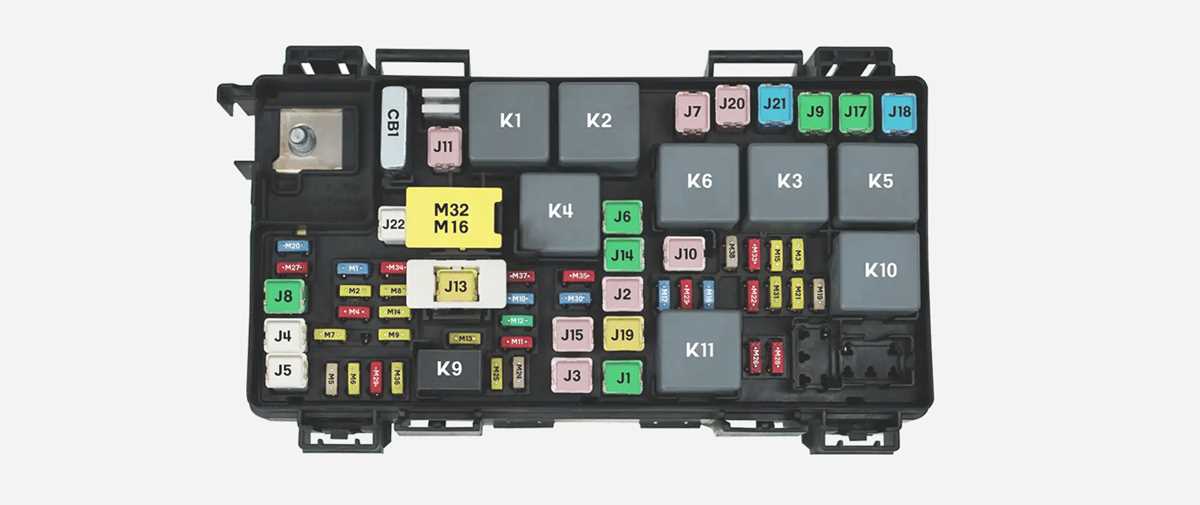

Locate the power distribution center under the hood–typically a black plastic box near the battery. Remove the cover and identify the relay labeled for the injector control module (ICM) or similar high-current accessory circuit. Use a multimeter set to continuity mode to check terminals 30 and 87; resistance should read near 0 ohms when activated. If readings exceed 5 ohms, replace the relay immediately.

Inspect the inline fuse holder adjacent to the relay box for corrosion or melted plastic. Remove the 20-amp circuit protector and hold it against a bright LED work light–clear visibility through the element confirms integrity. Swap with a known-good fuse of identical rating if the element appears burned or discolored. Never substitute with higher amperage; thermal runaway can destroy wiring harness connectors.

Terminal	Voltage (Key ON)	Voltage (Cranking)
30 (Battery Feed)	12.6V	10.5V min
85 (Coil Activation)	0V	12V pulse
86 (ECU Trigger)	12V	8V

With ignition ON, probe relay socket terminal 86–the reading must match battery voltage (12.6V). Low voltage here indicates corroded ground strap or failed ignition switch contacts. Trace the trigger wire back to the powertrain control module (PCM) connector C2; check for bent pins or green oxidation requiring dielectric grease application.

Jump relay terminals 30 to 87 using a fused test lead (15A max). Listen for a distinct mechanical click from the tank-mounted sender assembly within 2 seconds–absence confirms faulty power feed or seized mechanical actuator. If clicks are present, measure voltage at the sender connector; readings below 11V point to voltage drop across chassis ground connections.

For ground testing, attach multimeter black lead to battery negative and probe the black/orange sender harness wire. Voltage should match battery negative potential (0.05V max). Higher stray voltage indicates corroded chassis-to-frame bonds–clean connection points with wire brush and apply conductive zinc-based paste.

Finally, reconnect all components and cycle ignition 3 times to prime the system. Monitor pressure at the Schrader valve on the rail–specification calls for 55-62 psi maintained for 5 minutes with key OFF. Leaking check valves or failed regulator diagnose through pressure decay tests.
