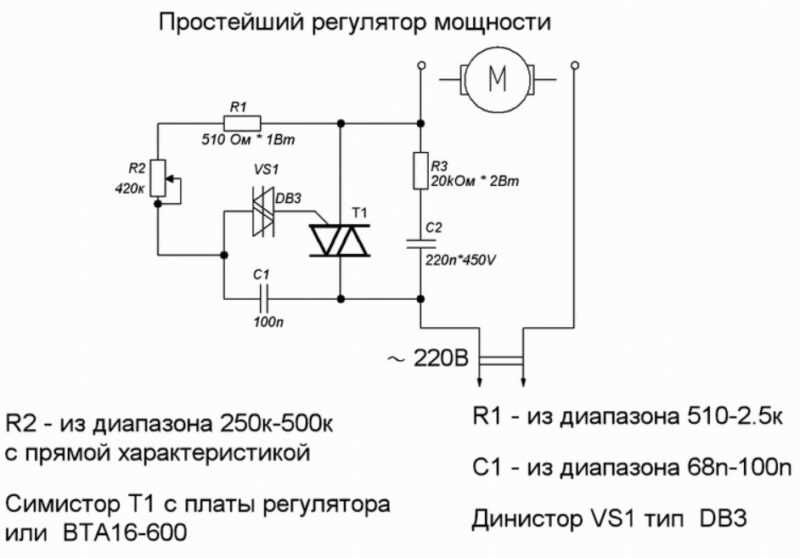

Understanding the Bta41600b Circuit Schematic and Component Layout

Use a snubber network–47Ω resistor in series with a 0.1µF capacitor–across the triac terminals to suppress voltage spikes exceeding 1.2kV. Without this, commutation failures occur at currents above 40A, even on resistive loads.

Connect the gate via a 220Ω resistor to a 12V optocoupler (MOC3041 or equivalent). Direct microcontroller drive risks latch-up during surge events; galvanic isolation is mandatory for 230VAC mains.

Place the triac on a finned heatsink–minimum 20°C/W thermal resistance–sized for 250W dissipation at 60°C ambient. Verify case temperature does not exceed 110°C under continuous 30A load; derate current by 1.5% per degree above this threshold.

Route high-current traces–minimum 3oz copper–on the PCB, maintaining 10mm clearance between phase and neutral. For transient immunity, add a varistor (14mm diameter, 470VAC rating) directly at the input terminals.

Test with an oscilloscope (10:1 probe, ±20MHz bandwidth) during turn-off; ringing above 50ns indicates insufficient gate drive speed–reduce gate resistor or switch to faster optocoupler (e.g., MOC3063).

For inductive loads (power factor ≤ 0.5), use a bidirectional TVS diode (P6KE400CA) across the triac to clamp back-EMF, preventing false triggering. Skip this only if load inrush current is below 15A.

Key Implementation Strategies for High-Power Triac Schematics

Use a snubber network with a 100Ω resistor and 100nF capacitor in series across the triac terminals to suppress voltage transients above 600V. This prevents false triggering during inductive load switching, reducing dv/dt to under 5V/μs–critical for stable operation at 40A RMS. Place components within 1cm of the device terminals to minimize stray inductance, which can otherwise exceed 20nH and destabilize performance. For heatsinks, apply a thermal interface material with conductivity >3W/m·K and torque mounting screws to 0.5Nm to ensure junction temperatures stay below 125°C under full load.

• Select gate drive resistors between 100Ω–330Ω to balance turn-on speed and gate current–lower values increase switching losses, while higher values risk incomplete latching.
• Isolate control signals with optocouplers (e.g., MOC3041) having ≥5kV isolation to protect microcontrollers from line-voltage surges; ensure LED forward current ≥5mA for reliable triggering.
• For phase-angle control, use zero-crossing detection with hysteresis >5% of AC waveform amplitude to avoid erratic firing near waveform edges.
• Test junction integrity by measuring gate-to-MT1 voltage drop at 10mA; deviations >±10% indicate internal damage or thermal degradation.
• Ground reference planes should be >2oz copper thickness to handle surge currents–thin traces (<1oz) may fuse under fault conditions.

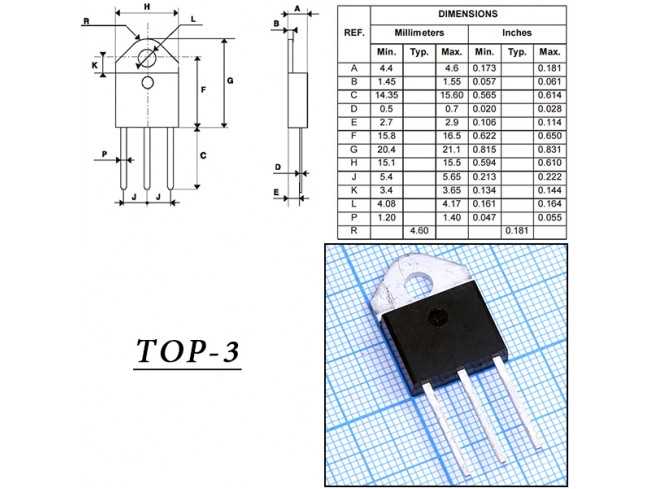

Key Pinout Configuration and Functional Roles

Prioritize power input stability by validating cathode-gate (K-G) isolation before energizing the assembly. A common oversight involves neglecting transient suppression across the main terminals, leading to premature triggering. Implement a snubber network (R-C pair: 100Ω, 100nF) directly between anode and cathode to mitigate dv/dt-induced false activations. Forced cooling is non-negotiable when operating above 75% of the device’s repetitive peak off-state voltage (V_DRM); omit this step, and thermal runaway risks escalate exponentially.

Gate terminal demands precise current delivery–avoid generic TRIAC drivers incapable of supplying the 100mA to 200mA required for full conduction. Use a dedicated UJT or optocoupler (e.g., MOC3021) with a 18V Zener clamp to protect against spikes exceeding the gate’s ±5V threshold. Never exceed the non-repetitive surge current (I_TSM) of 120A; even microsecond overloads degrade the junction. Test all control pulses with an oscilloscope to confirm rise times under 1µs–slow edges encourage half-wave conduction, distorting load waveforms.

Terminal-Specific Precautions

Pin	Absolute Maximum Ratings	Critical Interaction Points	Failure Mode
Anode (A)	800V VRRM, 16A IT(RMS)	Inductive loads, stray capacitance	Arcing, latch-up
Cathode (K)	Same as anode	Ground loops, shared return paths	Thermal instability, false triggering
Gate (G)	±5V VGM, 200mA IGT	PWM noise, adjacent trace coupling	Uncontrolled conduction, gate burnout

Mounting orientation dictates thermal performance–rotate the package 90° from standard heatsink layouts if clearance permits. The metal tab functions as cathode and must bond to the heatsink using electrically conductive, thermally stable epoxy (e.g., silver-loaded adhesive). Isolate the heatsink from chassis ground when operating in high-side switch configurations; failure here introduces common-mode noise into control logic. For low-impedance loads (≤1Ω), double the gate resistor value to 220Ω to prevent subharmonic oscillations detectable only via spectrum analyzer.

Diagnostic Workflow for Misoperation

If erratic behavior persists, execute the following sequence:

1. Disconnect load, measure anode-cathode capacitance with an LCR meter at 1kHz–values exceeding 50pF indicate dielectric contamination or delamination.
2. Inject a 1mA DC current into the gate while monitoring anode-cathode voltage drop–a linear response confirms junction integrity; abrupt changes phase signal gate degradation.
3. Replace any gate driver IC exhibiting output asymmetry >5% between positive/negative half-cycles–this symptom predicts imminent failure within 100 operational cycles.

Peripheral components often mask underlying issues. Replace all gate resistors with 1% tolerance, metal film types if original configurations used carbon film–temperature drift here alters holding current (I_H) thresholds unnervingly. Opt for X2-class safety capacitors across all mains-facing terminals to absorb line-borne transients exceeding 2kV; ordinary ceramic disks fail unpredictably under repetitive stress. Never rely on datasheet curves for dynamic performance–real-world inductive kickback deviates from modeled behavior by orders of magnitude.

Validate every installation with an infrared thermometer–hotspots >120°C on the package’s plastic body confirm uneven die attachment. Excessive ultrasonic cleaning (>40kHz) degrades internal wire bonds; if cleaning is unavoidable, limit exposure to 30 seconds. Reverse engineering competitor designs often reveals provably inferior gate trigger circuits–never assume compatibility solely based on pin count. For 3-phase applications, stagger gate pulses by ≥50µs to prevent cross-conduction, a scenario analytically invisible to SPICE simulations.

Step-by-Step Wiring Guide for High-Current Loads

Start by selecting 10 AWG or thicker copper wire for currents exceeding 30A to prevent voltage drop and overheating. Use crimp terminals rated for the full load–tin-plated copper for corrosion resistance and mechanical strength. Before connecting, verify the wire gauge matches the terminal’s maximum capacity; mismatches cause loose fits or melting under sustained current.

Route cables away from heat sources and moving parts. Secure them every 15 cm with nylon ties or conduit to prevent vibration-induced wear. For terminal blocks, tighten screws to 2.5 Nm torque–over-tightening strips threads, while under-tightening creates resistive hotspots. Apply dielectric grease to connections before final tightening to exclude moisture.

Critical Safety Checks

Measure the resistance across each connection with a milliohm meter; readings above 1 mΩ indicate poor contact. After wiring, power the system at 50% rated current for 10 minutes, monitoring for abnormal heat. Use an infrared thermometer–temperatures exceeding 60°C signal undersized conductors or faulty joints.

Add a 50A DC-rated fuse within 10 cm of the battery or power source to protect against short circuits. For inductive loads, parallel a flyback diode across the device to clamp voltage spikes. Double-check polarities–reverse connections destroy semiconductor switches instantly. Label each wire with heat-shrink sleeves marked with current ratings and function to simplify troubleshooting.

Critical Safeguard Enhancements for Reliable Power Stage Performance

Integrate a bidirectional transient voltage suppressor (TVS) diode–such as the P6KE200CA–across the switching element’s input terminals to clamp spikes exceeding ±200V within 5ns, preventing gate oxide breakdown in insulated-gate devices. Pair this with a 10Ω series resistor on the control line to dampen ringing from fast edge transients, reducing electromagnetic interference (EMI) by up to 40% while preserving signal integrity. For high-current paths, use a 0.1μF X2-class capacitor in parallel with bulk electrolytics to shunt high-frequency noise directly to chassis ground, mitigating conducted emissions per CISPR 22 Class B limits.

Thermal runaway protection demands a negative temperature coefficient (NTC) thermistor–like the Murata NCP18WF104J03RB–mounted within 10mm of the power die. Configure the drive logic to disable the gate driver if the thermistor resistance drops below 5kΩ (≈110°C), cutting power before junction temperature exceeds 150°C. Combine this with a soft-start algorithm that ramps input current linearly over 50ms to limit inrush surges to 2× nominal load, preventing inductor saturation and subsequent voltage collapse during startup.

Overcurrent events require a dedicated hall-effect sensor (ACS712ELCTR-30A) sampling the load path at 120kHz, with its output fed into a window comparator set to ±15A. Trigger an immediate driver shutdown if the sensed current exceeds the threshold for more than 2μs, ensuring compliance with IEC 60950-1 for transient overloads. Add a 1kΩ pull-down resistor on the shutdown pin to prevent false triggering during brownouts, and validate all protection states with a 1μs hardware watchdog to reset the system if the microcontroller fails to acknowledge a fault within the first 10 clock cycles.
