Complete 2002 Ford Explorer Fuel Pump Wiring Diagram Guide with Connections

Start troubleshooting by locating the inertia switch under the left rear trim panel–common failure point for silent no-start conditions. Disconnect the 10-gauge orange wire at the tank sender unit and measure voltage: 12.5V at key-on-engine-off confirms power from fuse 102 (20A) through the central junction box. If absent, trace backward to the GEM module pin 27 (dark blue/orange stripe). Bypassing the GEM with a 10A inline fuse often restores function during diagnostics.

For pulse signals, backprobe the gray/black control wire at the pump relay (R601). Using a 300Ω load resistor, verify switching frequency: 200-250 Hz at 2,000 RPM indicates proper PCM modulation. Replace the relay if coil resistance exceeds 90Ω or contacts show erosion. Note the splice location at A237 near the left kick panel–corrosion here mimics pump failure. Apply dielectric grease to terminals during reassembly.

Current draw testing reveals common pathology: 4.2-4.8A at 13.8V suggests a healthy circuit; spikes above 6A or drops below 3A confirm internal turbine degradation. Use a dedicated load tester rather than frame-grounded multimeter–the ECU’s ground sensing at pin 58 requires a floating negative lead. For installations, splice 14-gauge wire into C304 (tan/white) directly from the accessory delay timer to prevent voltage drop on dual-tank configurations.

Ground path integrity demands inspection: bare the chassis connection at G103 (right frame rail) and verify

Electrical Schematic for Mid-Size SUV Fuel Delivery System

Locate the inertia switch on the passenger-side kick panel–it’s the primary safety cutoff for the energy flow to the tank sender assembly. Disconnect the battery’s negative terminal before probing any circuits to prevent shorts or accidental activation of the relay. The switch features two connectors: a pink wire (terminal 30) delivers constant power from the main fuse block, while a dark green/light green stripe (terminal 87) carries the signal to the module beneath the rear seat.

Test the relay by swapping it with the horn relay–both use identical 30A SPST units (Ford part #F5TZ-13A602-A). Remove the rear seat cushion to access the in-tank assembly’s wiring harness; the connector has three pins: a grey wire (voltage input), a black/orange stripe (ground), and a purple wire (signal return to the instrument cluster). Probe each pin with a multimeter set to 20VDC–expect 12.5V on the grey wire when the ignition is toggled to RUN.

If voltage is present but the unit doesn’t prime, inspect the filter sock for debris. A collapsed sock restricts flow, triggering a 5-second prime cycle followed by shutdown. Replace the sock if clogged (OEM part #F67Z-9H307-AA). The sender’s float arm should move freely through its arc; resistance should measure 35–250 ohms across the purple and black/orange wires as the level changes.

The power distribution box under the hood contains fuse #27 (20A) for the circuit–verify it’s intact. A blown fuse often points to a short in the dark green/yellow stripe wire running along the frame rail to the tank assembly. Use a tone generator to trace the wire; repair any chafed sections with heat-shrink tubing and solder.

Ground issues frequently cause intermittent operation. The black/orange wire terminates at G105 on the chassis rail near the rear wheel well–scrape paint to bare metal if corrosion is visible. Apply dielectric grease to the connector after cleaning. The grey wire’s source is the fuel pump relay, which receives a trigger signal from the PCM when the crankshaft position sensor detects rotation.

For voltage drop testing, connect the multimeter’s positive lead to the grey wire at the tank assembly and the negative lead to the battery post. Drop should not exceed 0.2V during prime; anything higher suggests resistance in the pink wire’s path from the fuse block. Replace the wire if damaged, using 14-gauge TXL-rated copper core.

The instrument cluster interprets the purple wire’s signal to display level. If the gauge reads empty despite a full tank, measure resistance directly at the sender–33 ohms indicates full. A faulty cluster can be bypassed by installing a standalone gauge sender paired with a 0–90 ohm variable resistor for bench testing.

Reassembly requires securing the tank straps with 15 ft-lb torque and ensuring the harness grommet in the body floor is intact to prevent moisture ingress. Reconnect the inertia switch only after confirming all repairs; a false trigger during testing can damage the relay contacts.

Finding the Electrical Connector Points for the Storage Chamber Supply Circuit

Start by removing the rear seat cushion–press down firmly on the front edge near the latch and pull upward to release the clips. The access panel is located beneath, secured with four 10mm bolts. A small indicator sticker marks the spot directly above the reservoir assembly.

Trace the main feed lines from the tank module upward toward the vehicle’s frame rail. The primary connector cluster is encased in a black plastic shroud, fastened with a single T20 Torx screw. Disconnect the negative terminal from the battery before handling any live circuits to prevent sparks near combustibles.

Identify the two critical junctions:

• The inline sender unit harness (gray 4-pin plug) near the left shock tower–pins 1 and 3 carry voltage to the sender.
• The supply module relay interface (larger 8-pin connector) adjacent to the rear axle, containing power, ground, and signal circuits.

Use a multimeter set to 20V DC to verify continuity at the relay socket–terminal 87 should show 12V when the ignition is in the ON position. If voltage is absent, inspect the fuse box (position #24, 20A) and the inertia switch, a red button beneath the driver’s kick panel that resets with one press.

Label each connector before separation to avoid misinstallation. The smaller sender harness uses a friction clip; depress the tab on the side while pulling outward. The main module plug requires a flathead screwdriver to release the retaining clip–insert the tool at a 45-degree angle into the slot above the latch and pry gently.

Check for corrosion at the terminals using a contact cleaner. Pins showing green oxidation or pitting must be scraped clean with a brass wire brush–never use steel wool, as it can leave conductive residue. Reconnect in reverse order, ensuring the O-ring on the main plug seats fully to prevent moisture intrusion.

For hidden splices, follow the thin white tracer wire from the module upward along the chassis brace. A factory splice joint is wrapped in yellow tape and tucked behind the rear trim panel, often missed during quick inspections. This junction merges the low-level sensor circuit with the main feed–damage here mimics sender failure symptoms.

Locating Supply and Return Conductors in the Fuel Delivery System

Trace the primary feed line by locating the violet/pink conductor (18-gauge) at the tank sender unit–this carries 12V ignition-switched voltage from the central junction under the driver-side dash, relay terminal 87. Verify continuity with a multimeter set to DC volts while cycling the key; expect a brief 2-5 second pulse before the control module cuts power if no crank signal is detected. If voltage drops below 10.5V during this test, inspect the fused link (10A) in the underhood distribution box labeled “FUEL 2” for corrosion or blown filament.

Ground Path Verification

Identify the black/yellow stripe wire at the sender’s ground eyelet–this terminates at chassis point G103, adjacent to the spare tire well. Clean the mating surface with a wire brush and apply dielectric grease before reattaching; resistance should not exceed 0.2 ohms when measured between the sender housing and battery negative. For troubleshooting intermittent drops, probe the ECU’s pin 44 (light green/red) while monitoring the ground conductor–erratic readings indicate internal module failure or frayed splice near the rear axle crossmember.

Secondary power confirmation requires back-probing the relay socket: insert a test light into terminals 30 (constant 12V) and 85 (triggered by PCM via gray/white wire). A lit test light at 85 confirms the ECM is energizing the coil, while failure suggests an open in the tan/light blue wire or faulty ECM output. For 4.0L SOHC models only, check the inertia switch (mounted behind the kick panel) for tripped status–depress the reset button if the red button protrudes more than 2mm.

Step-by-Step Electrical Path Verification for the Motor Relay

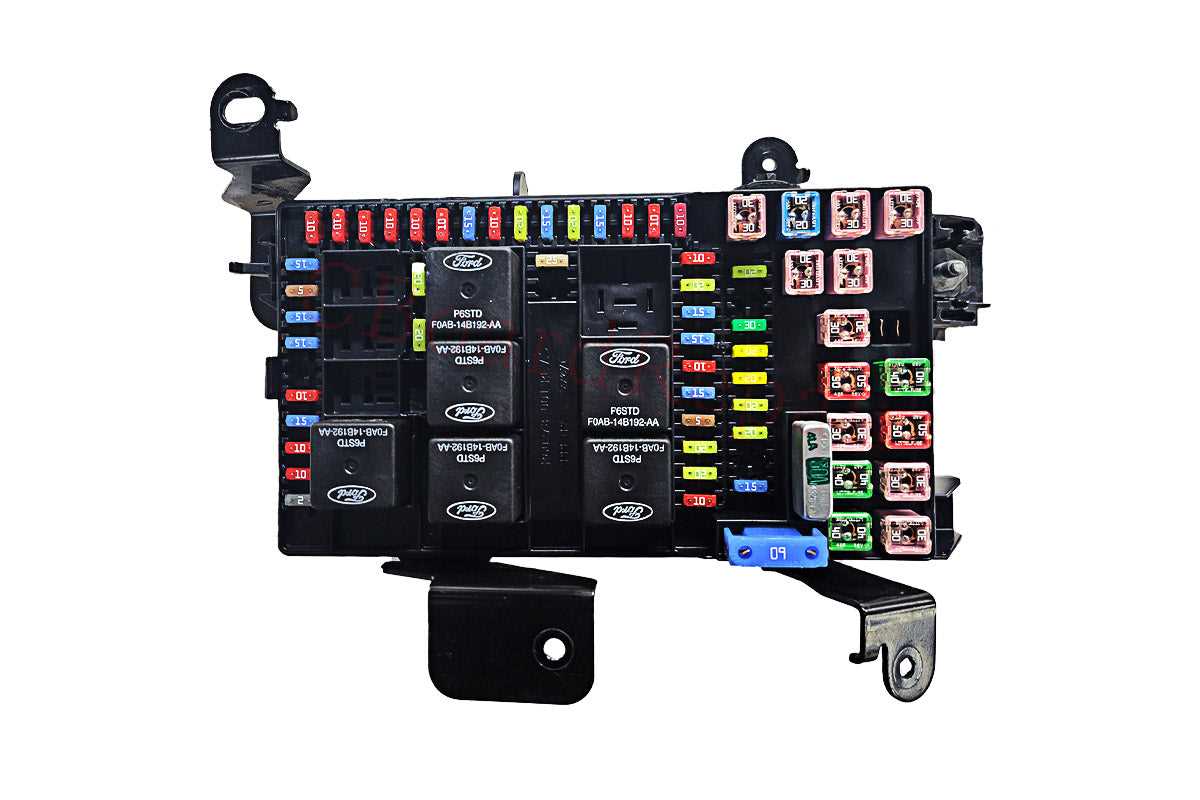

Locate the central power distribution module under the vehicle’s dashboard near the left kick panel. Remove the black plastic cover by releasing the three retaining clips; this exposes the relay bank. Identify the relay labeled “MOTOR CONTROL” (usually the third slot from the left in row two). Extract it by pulling upward firmly to access the socket terminals. Probe terminal 85 with a multimeter set to 12VDC–it must register power when the ignition is in the “ON” position.

• Terminal 86 connects to ground (chassis or dedicated ground bus). Verify continuity with the engine block using the ohmmeter function; resistance should read less than 0.5 ohms.
• Terminal 30 receives constant battery voltage (12.6V+). Trace the red wire back to fuse F34 (20A) in the under-hood junction box–test for voltage drop exceeding 0.2V.
• Terminal 87 outputs to the submersible circuit via a violet/yellow striped conductor. Follow this wire to the tank sender assembly; ensure the connector is corrosion-free before reconnecting.

Activate the relay temporarily by bridging terminals 85 and 86 with a jumper wire. Listen for a distinct clicking sound confirming internal contact closure. If absent, replace the relay; confirmed failed units exhibit internal coil resistance deviating more than ±10% from the specified 50-80 ohms. For accurate readings, remove the relay entirely and measure between the coil pins using dedicated relay testers–digital multimeters may introduce transient inaccuracies during high-current switching scenarios.
