Complete HEI Distributor Wiring Guide with Step-by-Step Diagram

Begin by locating the primary power source–a 12-volt battery connection–directly to the coil’s positive terminal. Use a minimum of 10-gauge wire for this link to handle current spikes without voltage drop. Avoid daisy-chaining power through accessories; route a dedicated line from the battery or an ignition-switched circuit to prevent parasitic draws. Secure all connections with crimped and soldered ring terminals, followed by heat-shrink tubing to eliminate corrosion risks in high-vibration environments.

Ground the coil’s negative terminal to the engine block using 8-gauge wire, ensuring the path is free of paint, gaskets, or insulating materials. A poor ground can introduce misfires under load, especially above 3,000 RPM. For multi-coil setups, isolate each coil’s ground to a single clean mounting point; shared grounds create interference between cylinders. Test resistance between the coil terminal and block with a multimeter–values above 0.5 ohms indicate a compromised ground.

Route signal wires from the distributor or crankshaft sensor to the ignition control module using shielded twisted pair. Maintain at least 15 cm separation from high-voltage leads (spark plug wires) to prevent inductive noise. For engines with forced induction or high-compression ratios, add a relaxation oscillator (0.1 µF capacitor) across the sensor’s output to filter erratic signals during detonation conditions. Label all wires at both ends with heat-resistant markers before final assembly; traceability saves hours of troubleshooting.

For variable timing systems, confirm the ECU’s trigger signal matches the ignition module’s input requirements. Some OEM modules expect a square wave between 0-5V, while aftermarket units may require 0-12V. Adjust the ECU’s output polarity or amplitude using a Schmitt trigger circuit if misfires occur at specific RPM bands. Always static-test the system before startup: disconnect the fuel pump, crank the engine, and verify spark at each plug with a dedicated spark tester–not just visual inspection.

Final checks include load-testing under real conditions. Monitor coil temperatures after 10 minutes of continuous operation above 4,000 RPM; readings above 80°C suggest inadequate heat dissipation or overdriving. Replace the ignition module’s mounting hardware with non-conducive fasteners (e.g., nylon) if mounting directly to the block to prevent short-circuit paths. Document all modifications with photographs and voltage readings–future diagnostics depend on baseline data.

Complete Ignition System Connection Manual

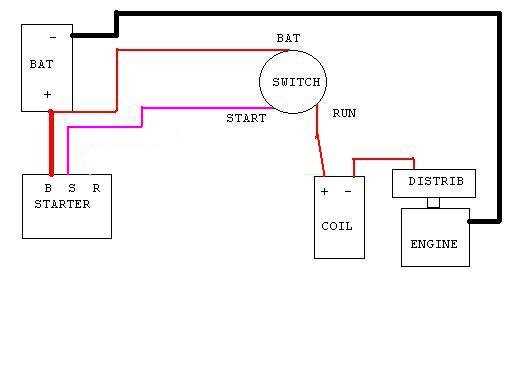

Start by locating the ignition coil’s positive terminal–typically marked “+” or “BAT” on GM-distributed units. Connect a 12-gauge red wire directly to the battery’s positive post, ensuring no splices between the terminal and power source. This minimizes voltage drop, which can reduce spark efficiency by up to 15%. Avoid routing this line near moving components or sharp edges; secure it with adhesive-lined clamps every 12 inches.

Critical Wire Routing Practices

• Ground path: Attach the coil’s negative terminal (“-” or “TACH”) to the engine block using an 8-gauge black wire, terminating within 3 inches of the coil. Scrape paint or corrosion from the contact point to ensure resistance below 0.5 ohms.
• Tachometer hookup: For aftermarket tachometers, splice into the coil’s negative terminal with 18-gauge wire, using a 1K-ohm resistor in series to prevent signal interference. Omit the resistor only if the gauge specifies a “direct coil input” requirement.
• Distributor pick-up: Verify the white (stator) and green (reference) leads from the distributor are routed away from high-current wires. Twist these pairs at 2 turns per inch to cancel electromagnetic interference.

For engines with electronic fuel injection, isolate the ignition system’s wiring loom from injector harnesses by at least 6 inches. Cross-coupling can induce false timing signals, causing misfires at RPMs above 3,500. Use spiral-wrap or loom tape to bundle related wires, avoiding zip ties on sharp edges.

Test resistance across the coil’s primary circuit with a multimeter: expected values range from 0.3 to 1.0 ohms. Readings outside this range indicate internal shorts or corrosion in connections. For secondary circuit checks, probe the coil tower with a high-impedance meter; healthy readings fall between 6,000 and 15,000 ohms. Replace the coil if values exceed 20,000 ohms.

1. Disconnect the battery before servicing to prevent accidental shorts.
2. Label all connections with heat-shrink tubing or wire tags for future reference.
3. Apply dielectric grease to connectors exposed to moisture or road salt.
4. After installation, crank the engine while monitoring spark plug voltage with an inductive tester. Weak spark below 10kV at idle requires rechecking grounds and coil resistance.

Identifying Ignition Module Connections for Popular Engine Configurations

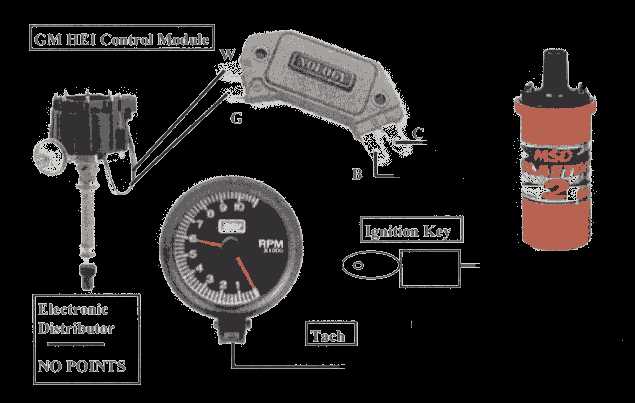

For GM’s 350 SBC (Small Block Chevy), locate the four-pin connector on the distributor housing. Pin A (brown wire) connects to the ignition coil’s negative terminal. Pin B (red/white stripe) carries 12V from the ignition switch. Pin C (white) handles the tachometer signal. Pin D (black) grounds the system. Verify voltage at Pin B with the ignition on–readings below 11V indicate a faulty relay or corroded wiring.

• Ford 302 (5.0L Windsor): The Duraspark II module uses a six-pin connector. Pins 3 and 5 (orange wires) supply 12V ignition power. Pin 2 (white/blue stripe) links to the coil’s positive terminal. Pin 6 (black/light green stripe) grounds the module. Pins 1 and 4 (violet and red wires) control spark timing–swap these if the engine runs backward.
• Chrysler 318 (LA Engine): The electronic ignition features a three-pin connector. Pin 1 (black/yellow stripe) connects to the coil’s negative terminal. Pin 2 (purple) carries the timing signal. Pin 3 (black) grounds the system. Test for continuity between Pin 1 and the coil–resistance above 0.5 ohms reveals a bad connection.
• Toyota 22R (2.4L): The igniter has two primary connections. The black/white stripe wire attaches to the coil’s negative side. The black/yellow stripe wire carries 12V from the ignition. Check for 5V at the igniter’s trigger wire (white/blue stripe) when cranking–absence suggests a faulty pick-up coil.

For Mopar’s 360/400 big blocks, the earlier “Lean Burn” systems differ from later Electronic Spark Control. Early models use a dedicated control box mounted near the battery. Later versions integrate the module into the distributor, reducing wires to three: 12V supply (blue/dark blue stripe), coil lead (green), and ground (black). If swapping from carbureted to fuel-injected ECUs, bypass the ballast resistor–these engines expect full 12V at the coil.

When diagnosing Chevy Vortec 5.7L (L31) distributors, note the unique “Opti-Spark” configuration. The seven-pin connector breaks down as: Pins 1-2 (orange/purple) 12V supply, Pin 3 (tan/black) tach signal, Pin 4 (gray) crank sensor, Pins 5-6 (black) grounds, and Pin 7 (white) coil feed. Probe Pin 7 with an oscilloscope–expect clean 1-5V square waves at idle. Absence of signal indicates a failed optical sensor requiring distributor replacement.

1. Label all wires before disconnecting. Photograph connections alongside a millimeter ruler for scale.
2. Clean connector terminals with electrical contact cleaner and dielectric grease. Oxidation causes 80% of intermittent failures.
3. Use a digital multimeter (not a test light) for voltage checks. Set to 20V DC scale, probe between signal wires and ground while cranking.
4. Compare readings against factory specs. GM’s HEI expects 10.5-12.5V at the 12V input; Ford’s Duraspark tolerates 9V minimum.
5. For resistance tests, disconnect the battery. Pick-up coils measure 500-1500 ohms (varies by engine–consult service manual).

Precision Color Mapping for Ignition System Assembly

Connect the battery-positive lead (typically red) directly to the coil’s “+” terminal before addressing any other connections. Verify the wire gauge meets or exceeds 12 AWG to prevent voltage drop under load. Strip 1/2 inch of insulation, crimp a solder-sealed ring terminal, and secure it with a stainless steel bolt torqued to 8-10 in-lbs. Avoid twist-on connectors–corrosion resistance demands mechanical compression.

Route the distributor’s primary trigger cable (yellow with a green tracer) to the “TACH” or “-/S” coil post. Use heat-shrink tubing with adhesive liner over the splice; standard vinyl tape degrades within 18 months under hood temperatures. For GM’s 4-pin modules, align the pink/black stripe wire to the “P” terminal and the solid pink to “N.” Cross-check with a multimeter: continuity should read

Ground the system via a dedicated 10 AWG braided strap bolted to bare metal chassis–never trust factory paint or powder coating. Scrape contact surfaces to bare steel, apply dielectric grease, and use a star washer to pierce oxidation layers. Locate the ground within 18 inches of the control module; longer runs invite inductive interference above 5,000 RPM. For Ford-compatible systems, the black/orange stripe wire must terminate at the module’s “G” post, not the coil.

Separate high-energy cables from signal lines by at least 2 inches. Bundle sensor wires (purple/white for tach output) in split-loom tubing; braided sleeving traps moisture. When splicing, stagger joints by 3 inches to prevent chafing. Test resistance across coil windings: primary should register 0.4–0.6 ohms, secondary 6,000–12,000 ohms. Readings outside this range indicate internal shorts or open circuits–replace the component immediately.

Label each terminal with laser-printed polyester tags during assembly. Markings must include wire gauge, origin/destination, and heat rating (minimum 125°C). For forced-induction setups, upgrade to silicone-jacketed cable (250°C rating) and route along the firewall’s uppermost path to avoid exhaust manifold proximity. Secure bundles every 6 inches with paper-backed tape; nylon zip ties melt at 85°C and restrict expansion/contraction cycles.
