1998 Ford Ranger Brake Line Routing and Schematic Guide
For accurate repairs on this vehicle’s stopping system, begin by locating the master cylinder connection points. The primary circuit splits at the firewall–front lines route directly to each caliper, while the rear circuit passes through a proportioning valve before reaching the drums. Verify torque specs for all fittings: 10-12 ft-lbs for steel tubing connections, 15-18 ft-lbs for flexible hose attachments to calipers or wheel cylinders.
Trace the rear hydraulic path from the master cylinder to the load-sensing valve, typically mounted near the rear axle. This component modulates pressure to prevent premature wheel lockup. If corrosion is present, replace sections with double-walled steel tubing (SAE J1047 standard) rather than attempting to clean existing lines. For the front circuit, inspect flexible hoses for bulges or cracks–inner lining failure often manifests as a soft pedal.
Study the ABS module (if equipped) near the brake booster–its two incoming lines correspond to front and rear circuits. Label each line before disconnection to avoid misrouting during reassembly. Use DOT 3 or DOT 4 fluid exclusively; cross-contamination with silicone-based fluids damages seals. Flush the entire system with denatured alcohol, then compressed air, to remove debris before refilling.
Critical measurements: rear wheel cylinders require 1.0-1.2 mm clearance between shoes and drum. If adjusting the parking brake cable doesn’t restore proper tension, check the compensator lever at the frame rail–this pivot often seizes due to road salt intrusion. Replace all copper washers under banjo bolts; reuse risks fluid leakage over time.
Hydraulic Circuit Layout for 1996–2000 Compact Pickup Models
Locate the master cylinder under the hood, mounted on the firewall’s driver side–split reservoirs feed front and rear circuits separately. Front tubes run to a proportioning valve (black cylindrical unit, 4 ports, near the left frame rail) before branching: one segment routes 90° downward to the left caliper, the other continues straight to the right caliper via a 12 mm brass union. Rear pipes follow the driveshaft tunnel; the left segment splits at the axle housing into a 3 mm stainless steel flex hose for the drum, while the right segment mirrors this setup with a shorter rigid pipe (65 cm) before transitioning to flex at the same junction. Always check torque specs: steel fittings 12–15 ft-lbs, aluminum fittings 7–10 ft-lbs.
| Section | Material | OD (mm) | Routing Notes |
|---|---|---|---|
| Front, driver | Nickel-copper | 4.76 | Drops behind radiator support; 18″ flexible coupling at strut tower |
| Front, passenger | Bundy tube | 4.76 | Parallels frame rail; single crimp joint beneath engine mount |
| Rear, left | 4130 steel | 3.18 | Clips to spare tire well bracket; 6-port tees join drum circuit |
| Rear, right | Zinc-coated | 3.18 | Shielded by driveshaft tunnel; flared at axle tube exit |
Finding Hydraulic Tube Pathways on the 1998 Courier Pickup
Begin by raising the vehicle on a stable lift or jack stands–ensure the front end is elevated at least 18 inches for clear access beneath the chassis. The primary fluid conduit runs from the master cylinder along the driver’s side frame rail, secured by metal clips spaced approximately 12–16 inches apart. Follow this path rearward until it splits near the fuel tank mounting plate; one branch diverts downward to the rear axle, while the other continues along the rail toward the anti-lock valve (if equipped). On 4×4 models, an additional segment loops upward near the transfer case before descending to the front calipers–note the 90-degree bend secured by an 8mm bolt near the steering linkage. Use a flashlight to trace each segment; corrosion or worn clips often indicate leak points.
Identifying Clip Locations and Common Failure Points
Check these critical clamp positions: 3 inches behind the front shock absorber, 6 inches forward of the rear leaf spring shackle, and directly beneath the transmission crossmember where routing sharpens. Stainless steel variants typically last longer, but rubber-coated sections near the exhaust manifold degrade faster due to heat. If replacing a damaged segment, match the exact diameter (3/16″ or 1/4″) and bend radius–aftermarket tubing cut too short will kink when routed over suspension components. Always bleed the system afterward, starting with the wheel cylinder farthest from the reservoir.
Key Front Hydraulic Tube Elements and Junctions in Your Vehicle
Begin inspection at the master cylinder, where the primary fluid outlet splits into two segments. The front circuit uses a 6mm steel conduit with double-walled construction–verify integrity by checking for seams or bulges near the firewall grommet. Dual-proportioning valves immediately follow, positioned on the driver-side frame rail; confirm they’re securely mounted to prevent vibration-induced leaks.

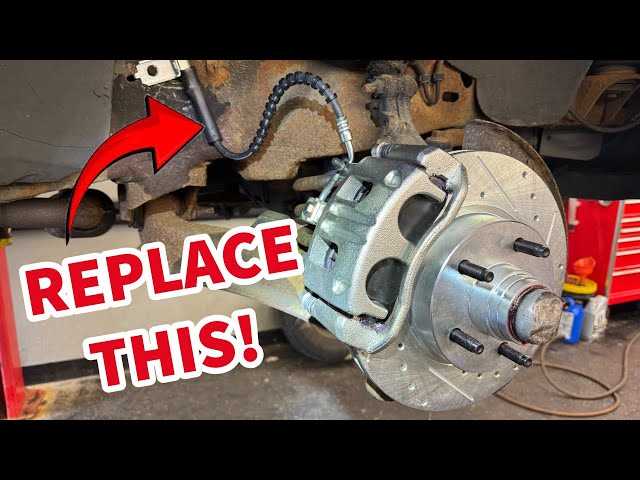

Trace the piping from the valve block toward the wheel wells. At each front caliper, the tubing transitions to a flexible hose (typically reinforced rubber or braided stainless steel), terminated with banjo fittings. Ensure these joints use copper crush washers–replace if flattened or discolored. The hose-to-caliper connection often corrodes internally; grip the hose firmly and rotate the fitting counterclockwise to detach without twisting the rigid section.
Critical Connection Points
Locate the hard-line junction near the sway bar mount. Here, a T-fitting distributes pressure to both wheels–inspect the brass fitting threads for stripping. Any play or moisture here indicates failure. Further along, the conduit passes through a chassis clip secured with a 10mm bolt; rust here can seize the line, requiring PB Blaster before removal.
For anti-lock systems, trace the secondary piping to the modulator assembly–look for a smaller 4mm branch bolted to the frame. This segment uses metric ISO flares; mismatched fittings will rupture under 1,500 PSI test pressure. Always use flare-nut wrenches (14mm and 17mm) to avoid rounding fasteners, especially where the line exits the engine bay.
When replacing sections, match the original routing precisely. The OEM layout curves around the front crossmember–avoid sharp bends, which restrict flow. Use a tubing bender for 45° angles at connection points. Pre-flare ends with a single-action tool to prevent leaks; install new components dry first to align threads before final torque (11-14 ft-lbs).
Test the circuit by pumping the pedal three times, then hold–sponginess suggests trapped air. Bleed valves at each caliper should release steady fluid, not intermittent bubbles. Replace any rigid sections showing exterior scaling, even if intact; micro-fractures develop beneath corrosion. Always cap open ends during repairs to prevent contamination.
Mapping Hydraulic Conduit Routes and Connection Nodes in Rear Assemblies
Begin inspection at the master cylinder output port–locate the primary distribution block beneath the driver’s side frame rail, typically secured by a 10mm bolt. Trace the metallic conduit toward the rear axle; it splits at a junction approximately 12 inches forward of the fuel tank. Use a flare-nut wrench (11mm) to disconnect the fittings for clearer access, noting residual fluid drainage.
Critical Junction Points
- The proportioning valve (mounted on the left frame rail near the cab) divides pressure between front and rear circuits. Verify function by pressing the pedal–unequal resistance indicates valve failure.
- A secondary split occurs at the axle housing, where the conduit branches toward each wheel cylinder via flexible hoses. Check for corrosion at these connection points; replace if pitting exceeds 20% of surface area.
- Wheel cylinders connect via banjo bolts–inspect washers for deformation. Copper crush washers often degrade; torque bolts to 15-18 ft-lbs.
Follow the rigid tubing along the underbody, securing clips every 18-24 inches. Corrosion commonly develops where lines cross suspension components; remove rust with a wire brush and apply dielectric grease to prevent recurrence. Avoid bending tubing during reinstallation–kinks restrict flow, leading to delayed response. For replacement sections, use double-flared 3/16″ steel tubing; single flares risk leaks.
- Measure exact lengths before cutting original conduits–add 1” for flare overlap.
- Use a tubing cutter, not a hacksaw, to prevent burrs.
- Deburr the interior with a reamer; confirm smooth passage with a drill bit shank.
- Flare ends with a 45° double-flare tool–misaligned flares cause seepage.
- Pressure-test the system with 900-1,000 psi via a handheld bleed kit before reinstalling wheels.
At the rear axle, flexible hoses attach to hard lines via threaded fittings–inspect for cracks in the rubber. The left hose typically feeds a short rigid segment before reaching the cylinder, while the right often includes an additional 90° bend. Route replacements above suspension arms to avoid chafing; secure with original-style clamps. Bleed wheels starting with the furthest cylinder (right rear) to prevent cross-contamination of air pockets.
Understanding Pressure Valve and Proportioning Valve Layout
Check the front-to-rear split in the hydraulic circuit first–this system in most pickup configurations uses a primary valve to modulate force between axles. The proportioning unit on this model typically mounts near the master cylinder or along the frame rail, identified by its cylindrical housing with inlet and outlet ports. If rear actuation feels overly aggressive or delayed, the valve’s piston spring may be corroded or misadjusted.
Disassemble the valve only after testing inlet pressure with a gauge: attach it to the caliper-side port while another measures output at the wheel. Ideal front-to-rear pressure drop should be 30-40% under full pedal force; deviations above 50% indicate faulty metering. Replace seals if fluid bypasses the piston or if the valve body shows pitting deeper than 0.2mm.
When reinstalling, orient the valve with the arrow marking flow direction–reversing it causes premature rear lockup. Torque the mounting bolts to 18-22 ft-lbs using thread locker on steel components. After assembly, bleed the system in this sequence: master cylinder, valve, rear circuit, then front, ensuring no air traps form at the proportioning junction.
For performance modifications, swap the factory valve for an adjustable aftermarket unit. Newer designs let you tweak the rear bias via a knob or screw, useful when towing or carrying uneven loads. Avoid generic valves; confirm compatibility with the existing master cylinder bore size–mismatches alter pedal feel drastically.
Corrosion is the main failure point: inspect the valve body yearly if storing the vehicle in humid climates. Flush the circuit with fresh DOT 4 every 24 months, even if no contamination is visible–old fluid absorbs moisture, lowering the boiling point and compromising valve response under hard stops.
If diagnosing uneven wear on drum components, measure pressure at the wheel cylinders first. Low rear pressure with normal front readings confirms a proportioning malfunction, not shoe adjustment issues. Replace the entire valve assembly rather than attempting internal repairs–aftermarket rebuild kits often fail prematurely.
Keep a vacuum bleeder tool on hand; manual bleeding of the valve’s internal chambers requires precise timing between pedal strokes and fluid release. Air trapped in the proportioning section creates a spongy pedal that worsens with each actuation–ignoring it risks complete rear circuit failure during emergency maneuvers.
