Ford F350 Trailer Wiring Diagram 2002 Complete Electrical Guide
Begin with the standard 7-way round connector–pin assignments are non-negotiable. Power (12V) sits at the top center, ground at the bottom, left turn/brake on the left, right turn/brake on the right, and reverse lights at the bottom right. Verify each circuit with a multimeter before splicing; a single misplaced wire strands the entire system. OEM schematics label the power wire as “battery feed” (red) and ground as “frame ground” (white)–cross-check against factory color codes to avoid aftermarket mismatches.
For dual-rear-wheel models, integrate a dedicated relay to handle brake controller current. Use a 30A fuse between the relay coil and ignition-switched source; failure risks overheating the brake module. Locate the factory harness under the driver-side dashboard–“blue/white” stripe marks the brake signal output. Solder connections, then heat-shrink; crimping fails under vibration. Test trailer lights at every stoplight during the first 100 miles; looseness in connectors causes intermittent failures.
Add a separate 12V auxiliary circuit if running heavy accessories–winches, refrigerators–via the integrated power distribution block. Mount the block near the battery, using 4-gauge wire for draw exceeding 20A. Isolate circuits with individual fuses; shared fuses cascade failures. Ground directly to the chassis rail, not body sheet metal; corrosion at body mounts disrupts digital signals. Check voltage drop across each circuit; anything above 0.2V indicates resistance–clean terminal surfaces with a wire brush, then apply dielectric grease.
Connecting Your Heavy-Duty Pickup’s Tow Package Correctly

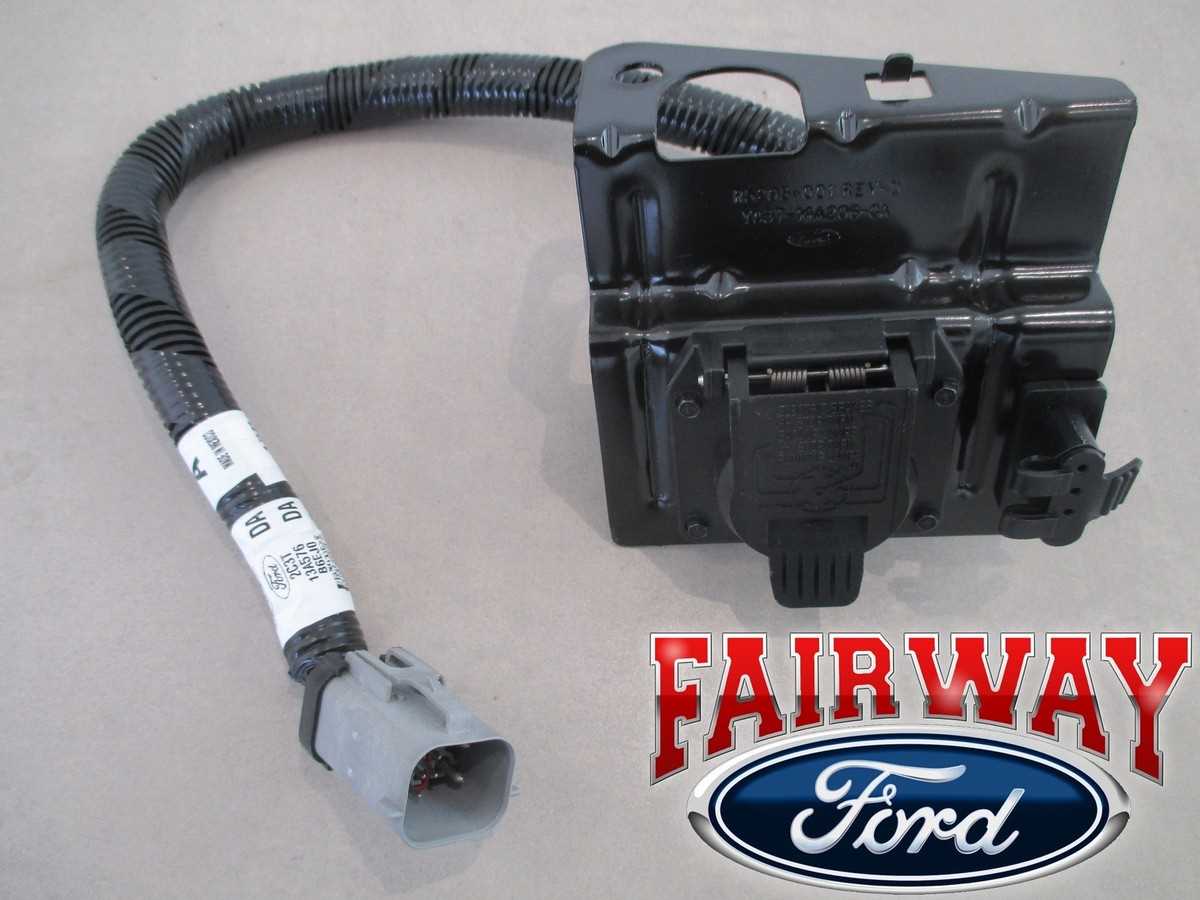

Begin by locating the factory-installed 7-pin connector under the rear bumper–typically integrated into the rear crossmember or secured beside the license plate mount. Verify the presence of all seven wires: yellow (left turn/brake), green (right turn/brake), brown (running lights), white (ground), blue (electric brakes or auxiliary), red (12V power), and black (battery charge line). Use a multimeter to confirm voltage on each pin; readings should match the vehicle’s taillight signals when activated.
The ground wire (white) must attach directly to bare metal on the frame, preferably near the connector. Sand away paint or rust at the attachment point to ensure a solid connection; a weak ground causes intermittent failures in lighting and brake function. Avoid relying on bolted-on components like tie-downs or exhaust hangers–these may corrode over time.
- Blue wire: Connects to brake controller output if equipped. Test by engaging manual override on the controller–voltage should spike to 12V under braking.
- Red wire: Powers trailer accessories (e.g., winches, interior lights). Fuse this circuit at 30A near the battery to prevent shorts.
- Black wire: Charges the trailer battery during towing. Add a 40A fuse within 7 inches of the battery terminal for safety.
For older camper setups lacking a 7-pin plug, splice into the existing harness using heat-shrink butt connectors. Match wire colors precisely: yellow to yellow, green to green, etc. Do not rely on “close enough” color coding–some aftermarket systems reverse brown and green locations. Double-check each function (turn signals, brake lights, hazards) before finalizing connections.
If the pickup has an integrated brake controller (common in diesel variants), access the module under the dashboard–usually mounted left of the steering column. The factory connector uses a white/blue stripe wire for brake output; verify continuity with a test light while pressing the brake pedal. Replace the controller if the light flickers or remains dim, indicating internal faults.
Troubleshooting Common Issues
- Dim or flickering lights: Clean all ground connections and inspect for frayed wires near the connector. Replace corroded pins; OEM plugs can be ordered under part number F81Z-14A411-AA.
- No brake signal (blue wire): Check the brake controller’s fuse (10A) under the hood. If intact, probe the controller’s output wire while braking–zero voltage suggests a failed unit.
- Intermittent running lights: Inspect the brown wire’s path along the frame rail, especially near suspension components where chafing occurs. Wrap exposed sections with loom tubing.
After splicing or repairs, seal all connections with dielectric grease to prevent oxidation. Avoid silicone-based sprays–they attract dirt and degrade wire coatings over time. Store wiring schematics (available via Motorcraft or Mitchell1) in the glovebox for future reference; annotated diagrams save hours during roadside repairs.
For trailers with surge brakes, confirm the blue wire outputs 12V only when the brake pedal is pressed. Some hydraulic systems require a dedicated brake controller; bypassing this causes premature trailer brake wear. Upgrade to a proportional controller (e.g., Tekonsha P3) if towing loads exceeding 7,500 lbs–these adjust output based on deceleration, reducing trailer sway.
Decoding the 7-Pin Electrical Connector Configuration
Start by verifying pin assignments with a multimeter–ground pins (typically white) should show near-zero resistance to the chassis. The brown wire delivers running lights; test it by activating tail lamps and checking for 12V. Auxiliary functions (blue) often control electric brakes; ensure it pulses when the brake controller engages. Reverse lights (green or purple) require activation of the vehicle’s backup circuit–confirm voltage only when shifted into reverse.
Label each connector leg before disconnecting: incorrect reinstallation can short circuits or disable safety features. The yellow and green circuits frequently handle left and right turn signals; swap them, and directional indicators will flash erratically. Use dielectric grease on connections to prevent corrosion–especially in high-moisture environments. A loose or oxidized pin will cause intermittent failures, mimicking bulb issues.
For heavy-duty payloads, confirm the 12V power (red) can sustain continuous load–upgrade the fuse to 30A if adding winches or cargo lights. Pin 7 (black) is commonly reserved for battery charging; route it through a dedicated relay if wiring auxiliary batteries to avoid parasitic drain. Avoid splicing into existing circuits–tap directly from the battery with an inline fuse for clean power delivery.
Match the harness to OEM schematics: aftermarket adapters often relabel pins differently. A misaligned green wire can trigger false turn-signal warnings on modern dash displays. Test all functions sequentially–running lights, brakes, signals–before finalizing the connection. Replace any damaged wire with marine-grade 12-gauge cable to prevent voltage drop under load.
Step-by-Step Guide to Locating the Factory Harness Coupling
Begin by removing the interior trim panel beneath the rear bumper on the driver’s side. Use a trim removal tool to avoid damaging clips–this panel conceals the primary coupling point. If resistance is felt, gently pry upward near the edges where fasteners are typically positioned.
Identify the factory harness bundle exiting the vehicle’s frame rail. Trace it forward until you reach a rectangular black connector, usually mounted alongside the spare tire carrier or tucked behind the bumper support beam. This is the main junction you need.
Inspect the connector closely–look for a 7-pin or 4-pin layout. Pin configuration varies, but standard layouts include:
| Pin Position | Function | Wire Color |
|---|---|---|
| 1 | Left turn / stop | Yellow |
| 3 | Right turn / stop | Green |
| 4 | Tail lights | Brown |
| 7 | Backup lights | White/red |
Disconnect the coupling by pressing the release tab on the side. If corrosion is present, apply contact cleaner and work the connector repeatedly to restore conductivity. Do not force removal–twist gently if stuck.
On models with integrated brake controllers, a secondary inline coupling may exist near the rear axle housing. Access requires dropping the spare tire; look for a sealed gray box with a threaded lid. Remove the lid to reveal the auxiliary connector.
Verify continuity between the harness and vehicle chassis using a multimeter. Probe the ground wire (typically white) against a clean metal surface–resistance should read below 5 ohms. If higher, clean the connection point until values normalize.
Reassemble after confirming all connections. Secure the coupling with zip ties to prevent vibration damage, routing wires away from exhaust components or moving suspension parts. Test signal functions before finalizing installation.
Alternative Junction Locations
For cab-and-chassis variants, the coupling may reside behind the rear cab wall. Remove the interior access panel adjacent to the rear window–look for an exposed harness with pigtail leads extending downward.
On crew cab models, check behind the rear seat riser. Fold the seat forward and peel back the carpeting to reveal a covered junction box with labeled terminals. Match pin functions to the earlier table before splicing.
Standard Conductor Hues for Heavy-Duty Towing Connectors
Verify circuit integrity by matching each pin’s lead to its designated hue before splicing or troubleshooting. The industry-standard seven-way connector on this model splits into dual voltage systems–12V auxiliary and brake/turn circuits–each governed by distinct color schemes. Begin with the ground wire: a solid white conductor connects to the trailer frame or dedicated ground post. This serves as the reference point for all other connections; improper grounding causes intermittent faults or complete signal loss.
- Yellow (Left Turn/Brake): Links to the vehicle’s left-hand turn signal and braking lamp circuit. Test continuity with a multimeter by activating the turn signal or depressing the brake pedal.
- Green (Right Turn/Brake): Mirrors the yellow’s function but controls the opposite side. Confirm polarity against the yellow–reversing these wires swaps turn signals unexpectedly.
- Brown (Running Lamps): Carries power to tail, side marker, and license plate illumination. A dim or flickering output often traces back to corrosion at the connector or a failed bulb.
- Blue (Auxiliary/Electric Brakes): Supplies 12V to the trailer’s brake controller. Thicker gauge (typically 12-10 AWG) prevents voltage drop under load; verify with the controller’s manual for amperage limits.
- Black (12V Power/Charge): Delivers constant 12V for battery charging or auxiliary equipment (e.g., refrigerators). Fuse this circuit at 20-30A–shorts here risk melting insulation or igniting fires.
- Red/Orange Stripe (Reverse Lamps): Activates backup lights (if equipped). Some aftermarket converters omit this; ensure compatibility before rewiring.
Critical Troubleshooting Steps
Inspect each conductor for frayed strands or brittle insulation–common near the connector housing where chafing occurs. Use dielectric grease on pin contacts to prevent oxidation, especially in humid climates. For intermittent issues, bypass the existing connector by probing each wire directly at the vehicle-side harness with a test light. If the brake signal triggers but the trailer’s lights remain off, suspect a severed ground or defective bulb socket.
Adapt color codes when interfacing aftermarket controllers or international trailers. For example, European systems often swap brown (ground) and blue (reverse); cross-reference with the manufacturer’s pinout. Avoid relying on “universal” adapters–measure voltage at each terminal to confirm functions. If the blue wire fails to engage the trailer brakes, check the controller’s gain settings or inspect for a blown fuse in the truck’s power distribution box.
Label all wires with heat-shrink tubing before finalizing connections. For custom configurations (e.g., adding LED strips or winch circuits), splice into the black (12V) circuit only if the charging system can handle the additional load–otherwise, install a relay tied to the ignition-switched power source.
