Saturn SL1 2002 Exhaust Manifold Secondary Air Injection System Schematic Guide

Replace the faulty diverter valve first–common failure in this model causes erratic pressure in the upstream emissions system. Locate the valve under the left-side cylinder head flange, identifiable by its two 8mm bolts and single vacuum line. Use a 3/8″ ratchet with a 6″ extension to access it without removing adjacent components. Disconnect the vacuum line only after releasing pressure by carefully prying the retaining clip with a flathead screwdriver. Installation requires a new O-ring; lubricate it with silicone grease before seating the replacement valve.

Inspect the check valve assembly mounted near the firewall, secured by three 10mm bolts. Corrosion buildup often restricts airflow, triggering the P0410 or P0411 codes. Remove the bolts with a swivel socket–standard sockets won’t fit the tight clearance. Clean the valve seat with a wire brush and compressed air before reinstalling. If the diaphragm is cracked (visible as a hairline fracture under direct light), replace the entire unit; aftermarket kits include updated seals resistant to exhaust gas condensation.

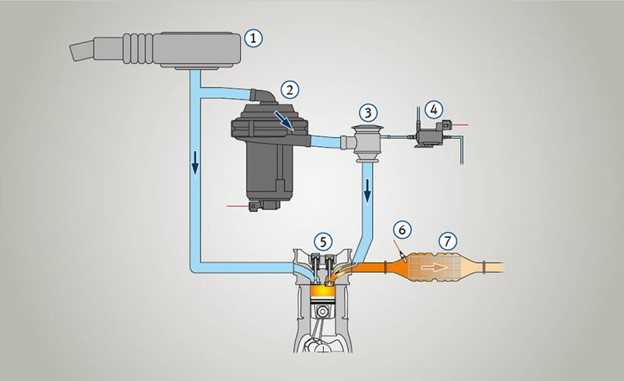

Trace the secondary airflow path from the pump to the exhaust ports using a multimeter set to 200 ohms. Probe the pump’s electrical connector–readings below 10Ω indicate internal winding failure. The pump is located behind the front bumper cover, accessible after removing four 10mm bolts and two plastic retainers. Disconnect the electrical harness first; the wiring harness grommet often tears during removal–inspect it and apply dielectric grease to prevent water intrusion. Replace the pump if amperage draw exceeds 12A or if the impeller shows visible scoring.

Verify the relay’s operation by swapping it with the horn relay–identical part numbers. The relay controls power to the pump and is prone to overheating. Locate it in the underhood fuse block, third row from the front, right-side slot. If swapping the relay restores function, replace it with an upgraded 40A version to prevent recurrence. For intermittent faults, probe the relay socket with the multimeter–voltages below 11.8V at terminal 30 suggest a corroded ground connection, traceable to the chassis bolt behind the battery tray.

Inspect the exhaust flange gaskets between the precat and downpipe for leaks. Leaks often mimic secondary system failures by triggering lean codes. Remove the two 14mm nuts securing the flange; use penetrating oil if seized. Replace the gaskets with multi-layer steel variants–OEM fiber gaskets degrade within 60,000 miles. Torque the nuts to 25 lb-ft in a star pattern to prevent warping. For persistent leaks, apply high-temperature sealant at the flange interface, avoiding contact with oxygen sensors.

Test the pressure sensor output on the emissions control module (ECM). Connect a scan tool to pin 39 (secondary pressure signal) at the ECM–readings should fluctuate between 0.8V and 4.8V during pump operation. Static readings indicate a clogged line or failed sensor. The sensor is located on the engine block’s passenger side, adjacent to the oil filler cap. Disconnect the electrical connector (gray clip) and single vacuum line before removing the two T20 Torx screws. Replace the sensor if readings remain static after cleaning the vacuum port with a 0.5mm drill bit.

Understanding the Thermal Distribution Assembly and Emission Control System in the 2001 S-Series Variant

Begin troubleshooting by locating the thermal distribution assembly’s downstream oxygen sensor–positioned between the catalytic converter and the secondary pump housing unit. This sensor monitors gas composition and directly influences the vacuum-operated diverter valve’s behavior. If readings fluctuate erratically or display a consistent lean/rich bias, inspect the sensor’s wiring for frayed insulation or corrosion at connector pins C3 and C4, which are prone to oxidization due to exhaust heat exposure.

The pulse-width modulated pump, labeled as component P-7 in service manuals, requires a minimum voltage of 12.4V to engage properly. Verify power delivery at fuse F12 (10A) in the under-hood junction box; a voltage drop below 11.8V may trigger intermittent failure codes such as P0410 or P0418. Use a multimeter with a 200mV resolution when probing the pump’s ground circuit–any resistance over 0.3 ohms indicates a poor chassis connection necessitating terminal cleaning or wire replacement.

Examine the check valve assembly (often mistaken for a simple one-way gate) for carbon buildup, particularly in colder climates where unburned hydrocarbons solidify. A blocked valve restricts flow, causing backpressure that can crack the stainless steel runner flanges. To test functionality, disconnect the vacuum line at port V-9 and apply regulated 15 psi air pressure–the valve should seal completely when closed and release with an audible click when opened. Replace if seal integrity is compromised.

For diagrams, reference section 6E of the GM service manual, which illustrates the integrated flow paths with color-coded lines: red for primary exhaust gases, green for diverted streams, and blue for purge air. The diverter’s solenoid (part #216-394) operates on a 30% duty cycle; adjust scan tool parameters to log voltage spikes during activation. Persistent failures often trace back to insufficient grounding at engine block stud G-16–ensure threads are clean and torque to 18 ft-lbs.

When replacing gaskets between the thermal assembly and cylinder head, use a graphite-impregnated variant (OEM #24502438) instead of standard composite models to prevent warping from thermal cycling. Apply high-temp sealant sparingly–excess material can break off and clog the purge system’s micro-channels, leading to reduced efficiency. Pre-treat new bolts with anti-seize compound, but avoid contact with sealing surfaces to maintain proper clamping force.

For diagnostic road tests, monitor live data streams at 2,500 RPM under partial load; the purge system should engage within 120 seconds of cold start. If engagement is delayed or absent, probe the ECM’s pin 37 to check for a 5V reference signal–absence confirms a wiring fault or faulty power relay (R-2). Always clear adaptive fuel tables after repairs to prevent skewed air-fuel ratio adjustments from persisting post-maintenance.

Identifying Bolt Configuration and Seal Requirements for the Primary Header Assembly

Begin by measuring the stud arrangement around the flange–six fasteners secure the cast-iron outlet to the cylinder head, spaced in a staggered 5-1 pattern. The upper row contains three M8×1.25 bolts (thread pitch critical), while the lower row aligns two M10×1.5 studs flanked by a single M8×1.25 bolt on the outboard side. Use a vernier caliper to confirm center-to-center distances: 43.2 mm between the upper trio and 67.5 mm between the lower pair, with the outboard fastener offset 22.8 mm vertically from the adjacent stud.

Seal Material and Torque Sequence

Opt for a multi-layer steel gasket (MLS) with a thickness of 0.5 mm ±0.05 mm–aftermarket part #GM-17113596 or equivalent–compatible with 1.9L SOHC engines. Apply anti-seize compound (nickel-based) to all threads before installation. Tighten in a spiral pattern starting at the geometric center, progressing outward: initial torque 15 Nm, final torque 25 Nm ±2 Nm. Recheck after engine heat cycling (10-15 minutes at 2000 RPM) to compensate for thermal relaxation.

Inspect the flange surface for warpage using a straightedge and feeler gauges–maximum deviation 0.05 mm across the entire mating plane. Replace the gasket if residual compression exceeds 10% of original thickness. For cracked flanges, source OEM replacement (casting #5475613) or aftermarket alternatives (Dorman 674-360) with identical bolt-hole spacing and coolant passage alignment. Avoid universal gaskets with mismatched port diameters (±0.3 mm tolerance for primary runner openings).

Procedure for Removing the Supplemental Emissions Control Pump Assembly

Wear heat-resistant gloves before handling components near the thermal converter. The pump housing retains heat for over 30 minutes after engine shutdown, posing burn risks.

Disconnect the battery ground terminal to prevent accidental pump activation during disassembly. Use a 10mm wrench to loosen the cable clamp; store the fastener in a magnetic tray to avoid loss.

Label all electrical connectors before separation. The pump motor uses a two-pin plug, while the pressure sensor employs a three-terminal connection. Pinch the release tabs to free each connector without bending the terminals.

Component	Connector Type	Release Method
Motor	2-pin flat	Squeeze sides
Pressure monitor	3-pin triangular	Press plastic clip
Solenoid valve	2-pin rounded	Pull straight

Remove the intake hose clamp at the air cleaner box using a 7mm socket. Slide the hose off the pump inlet, inspecting the internal mesh filter for debris accumulation. Clean or replace if particles exceed 2mm diameter.

Support the weight of the auxiliary emissions unit with a floor jack. Two bolts secure the bracket to the cylinder head; access slots require a 12mm swivel socket for removal. Rotate the assembly clockwise 45 degrees to clear the mounting boss.

Trace the vacuum lines back to the intake plenum. The larger 8mm diameter hose connects to the check valve, while the 6mm line leads to the diverter solenoid. Mark both with masking tape to ensure correct reinstallation. Use needle-nose pliers to compress the retaining clips; pull hoses straight to avoid damaging the barb fittings.

Inspecting Internal Components

Cut the crimped ends of the promotion pipe with aviation snips at a 45-degree angle, leaving 2cm of clearance from the welded joint. The internal one-way flap exhibits fatigue cracks after 80,000 miles; replace if separation exceeds 1mm.

Examine the pump impeller for vane erosion. Rotate the shaft by hand–binding indicates bearing failure or carbon deposit buildup. Lubricate with molybdenum disulfide grease if replacement isn’t immediately required.
