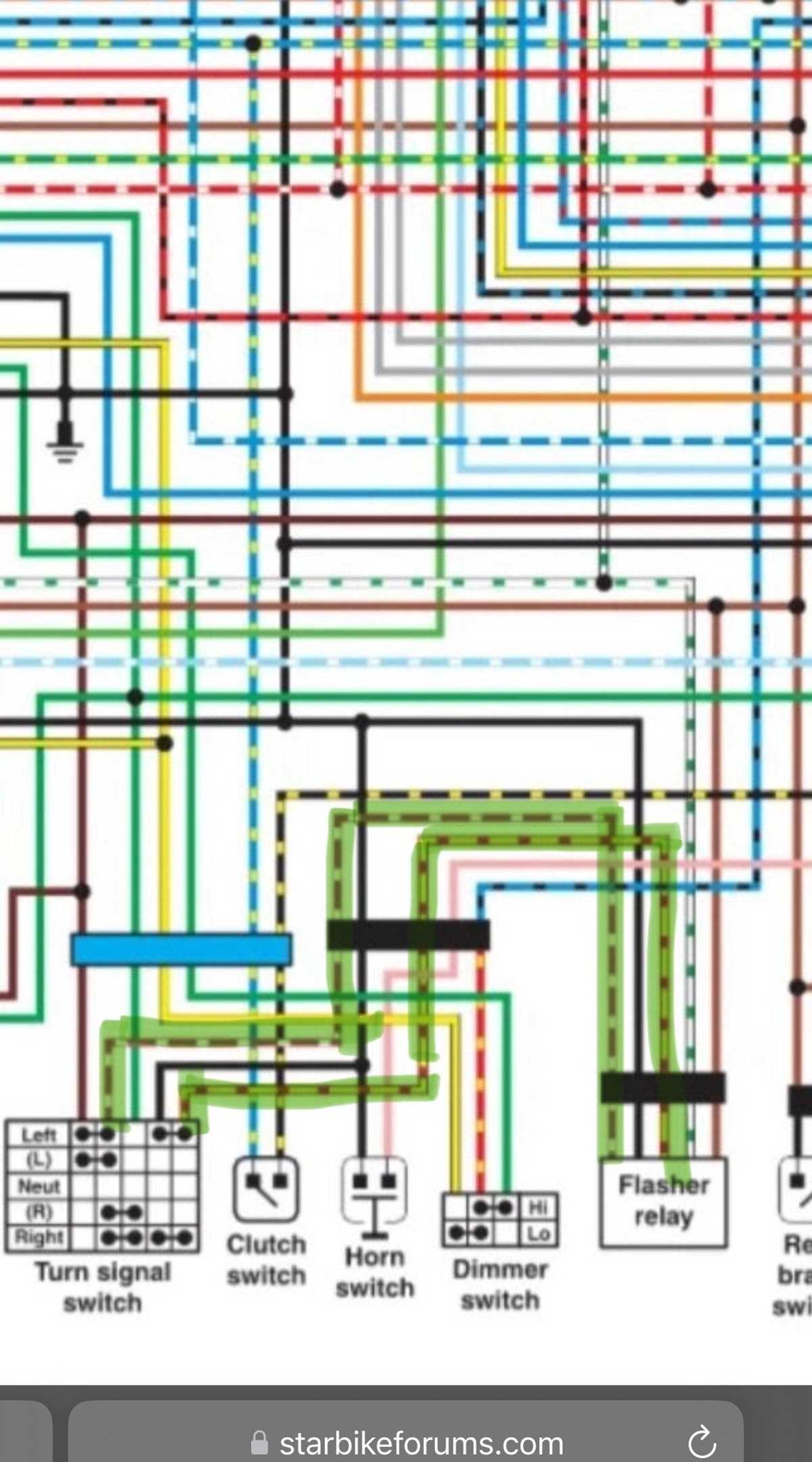

Complete Yamaha V Star 650 Wiring Diagram Guide for 2002 Model
Locate the main fuse block beneath the seat–it houses critical connections for ignition, lighting, and charging systems. The fuse ratings range from 10A to 30A, with color-coded wires simplifying tracing: yellow for stator output, green for ground, and red/white for battery positive. Verify each connection with a multimeter before disassembly; resistance readings should not exceed 0.5 ohms for grounds or 12.6V for live circuits.
Disconnect the battery negative terminal first when servicing. Focus on the rectifier-regulator–this component manages voltage spikes up to 14.5V under load. Check for corroded terminals, especially on the three-phase stator output (three yellow wires). Replace the entire wiring harness if insulation shows cracking–aftermarket reproductions often use thinner gauge wire (18AWG vs. 16AWG), reducing current capacity.
Use the headlight as a diagnostic tool: dim output at idle (below 12.8V) signals stator, rectifier, or battery failure. The turn signal relay clicks 60-120 times per minute; irregular rhythms indicate worn solenoids. For aftermarket LED upgrades, bypass the flasher unit entirely–inject a variable resistor (3 ohms) in series to prevent hyper-flashing. Ignore “plug-and-play” adapters–they neglect load balancing, risking ECU damage.
Trace ground connections to the engine case–poor conductivity here mimics stator failure. Clean contact surfaces with abrasive pad and apply dielectric grease before reassembly. The spark plugs operate at 12,000V; improper wire routing near moving parts (minimum 50mm clearance) causes misfires. For persistent electrical issues, map the circuit branch-by-branch using a toner probe–start at the battery and move outward.
Electrical Schematic for the Classic 1999-2003 Cruiser: Key Connections
Start by locating the main fuse box beneath the seat–it houses the 30-amp fuse protecting the entire charging and ignition system. If the bike won’t start or accessories cut out, check this first before tearing into individual circuits. The fuse box connects directly to the battery’s positive terminal via a thick red wire; corrosion here mimics symptoms of a dead battery, so clean terminals with a wire brush and dielectric grease annually.
Trace the ignition switch wiring harness–it splits into three primary branches:
- Red/white (12V constant) powers the clock, side stand relay, and fuel pump. Interruptions here cause fuel starvation.
- Brown/white (accessory) feeds the taillight, license plate bulb, and instrument cluster. Flickering lights often stem from a loose ground at the rear fender or corroded bullet connectors under the seat.
- Black/white (ignition) activates the coils, starter solenoid, and CDI unit. A fault here triggers erratic spark or no-start conditions.
Use a multimeter set to continuity mode to verify each branch; readings should drop below 1 ohm when switching between terminals. If resistance spikes, splice in new 16-gauge copper wire, matching the original gauge to prevent voltage drop.
For the lighting circuit, the left-turn signal uses light green/white while the right uses light green–swap bulbs to isolate bulb failure from harness issues. The regulator/rectifier (mounted near the rear cylinder) converts AC stator output to 14.5V DC; test output by probing the yellow wires at idle–healthy readings range 13.5-14.8V. Voltages below 13V indicate a failing stator or shorted diode.
Critical splice points to inspect:
- The white/black wire behind the headlight bucket–chafing against the frame causes headlight flicker. Wrap with high-temperature loom tape.
- The blue/white wire at the right handlebar switch–connects to the front brake light; clean the spring-loaded contact with contact cleaner monthly.
- The orange wire at the starter solenoid–corrosion here drains battery overnight. Disconnect, file terminals, and reassemble with anti-seize compound.
Solder all repairs; crimp connectors loosen over time, especially in the 40-amp starter circuit where vibration is highest.
Finding Key Electrical Links on a Classic 150ci Cruiser
Begin beneath the seat by tracing the primary loom bundle. It exits the rear fender housing near the license plate mount and splits into three distinct plugs–color-coded white, black, and green–just forward of the taillight assembly. Each connector serves distinct systems: the white handles rear lighting and turn signals, the black interfaces with the ignition and charging circuits, while the green ties into the solenoid and starter relay.
Identifying Critical Junction Points
- Locate the frame rail connector beneath the right-side cover. This single 12-pin plug bridges the engine’s sensors, fuel pump relay, and left-hand bar controls. Gentle tugs will separate the halves, but avoid excessive force–corrosion often fuses them. Apply dielectric grease when reassembling.
- Inspect the lower fork area for a thick rubber-gasketed connector. This houses the main power feed from the battery and includes fused links for the headlight and horn circuits. Stubborn retention clips require slight downward pressure to release.
- Follow the front fender sub-loom to the headlight bucket. A smaller, three-pin plug governs the high/low beam and running lights; it’s typically tucked behind the fork brace.
Near the steering neck, a thinner two-wire harness enters the instrument cluster. This connection carries neutral light and speedometer signals. Disconnect it by squeezing the retaining tabs inward while pulling straight out–twisting damages the delicate terminals. Replace any brittle wiring if insulation cracks are visible.
Check the engine block’s left side for a pair of small plugs adjacent to the stator cover. One manages the charging circuit; the other relays ECU signals. Label each before detaching, as accidental swaps lead to no-start conditions. A 10mm socket removes the stator cover for deeper loom inspection if corrosion is suspected.
- Verify connector integrity with a multimeter. Pin-to-pin resistance should read below 2 ohms; higher values indicate internal corrosion.
- Use contact cleaner on terminals showing tarnish. Spray liberally but avoid oversaturation–excess fluid can seep into wiring insulation.
- Secure looms with zip-ties away from moving components like the drive belt and suspension linkages. Chafing here can create intermittent shorts.
Decoding Electrical Conductor Hues for the Classic 2002 V-Twin Cruiser
Start troubleshooting by matching the primary battery feed cable–typically a thick, red-dyed lead emerging directly from the positive terminal. This conductor supplies continuous voltage to the ignition switch and main fuse block even when the key is off, so verify its continuity first using a multimeter set to DC voltage.
Trace the two black wires with white stripes: one routes from the ignition module to the starter relay, while its twin departs the handlebar kill switch. Both carry ground reference; spotting corrosion at their ring terminals–the ones secured under frame bolts near the rear cylinder head–often resolves intermittent starting faults.
| Conductor Color | Component Terminal | Voltage Readings Key-Off / Key-On |
|---|---|---|
| Red | Main fuse block (30 A input) | 12.6 / 12.3–14.2 V |
| Black-white stripe | Ignition coil ground lug | 0 / 0 V |
| Yellow | Alternator stator output (AC side) | 0 / 12–50 V AC |
| Green | Sensor ground common point | 0 / 0 V |
Inspect the pair of orange leads attached to the stator assembly behind the left-side crankcase cover. These deliver alternating current to the regulator-rectifier; expect 18–32 V AC when revving above idle. If readings drop below 15 V AC, remove the cover and check for frayed winding insulation or loose spade connectors.
Locate the grey wire running from the neutral sender on the transmission’s lower left side; it connects to the dash indicator lamp cluster. A simple continuity test–grounding this lead should illuminate the neutral light–confirms sender functionality without dismantling the transmission housing.
Follow the blue and white striped cable departing the right-hand handlebar switch cluster; this controls high-beam illumination. A known weak point is the bullet connector tucked beneath the headlight bucket–oxidation here dims both headlamp filaments, mimicking a faulty bulb.
Examine the brown wire with yellow stripe feeding the turn signal flasher relay mounted beneath the seat pan. Low voltage on this lead (below 11 V with key on) frequently stems from a corroded instrument cluster pin or undersized extension harness splice near the rear fender.
Step-by-Step Guide to Tracing the Ignition Circuit on a Classic 650cc Cruiser
Locate the bike’s main fuse box under the left side cover–remove the plastic panel by unsnapping two clips near the rearward edge. Identify the ignition fuse (typically 10A) and confirm continuity using a multimeter set to ohms. A dead fuse indicates a short upstream; probe both terminals with the key off to pinpoint corrosion or broken connections.
Disconnect the battery negative terminal first, then follow the thick red cable from the positive post to the ignition switch–trace its path along the frame downtube, noting any splices or wraps in electrical tape. At the switch, verify the three wire positions: red (input), black/white (output to coils), and black/red (kill switch override). Use a test light to check for 12V at the black/white terminal with the key turned to “ON.”
Identifying Coil and Sensor Connections
Trace the black/white wire from the ignition switch to the coil assembly–split into two smaller gauge wires (yellow/red and white/blue) at a junction near the steering stem. These feed the dual ignition coils; test each for resistance (3–6 ohms primary, 10–15k ohms secondary). Deviations suggest internal coil failure or compromised insulation from pinched wires along the fork tubes.
Examine the pulser coil connections beneath the left engine cover–two thin wires (gray and black) lead to the ignition control module. Probe these at the connector with the multimeter in AC volts while bumping the starter; readings below 0.3V AC indicate a faulty pickup coil requiring replacement. Check for pinched wires where they route behind the cylinder head, a common failure point.
Reconnect the battery and insert the key, testing voltage at each component sequentially: switch output (12V), coil primary (12V), pulser coil (0.5–0.8V AC). If voltage drops at any stage, isolate the wire section between the last known good point and the failure. Common trouble spots include the rectifier connections (white and green wires) and the ignition module ground (black wire) screwed to the frame–clean threads thoroughly to restore conductivity.
Complete the test by verifying spark at both plugs–pull plug wires and ground the plug bodies to the cylinder head. Crank the engine; a bright blue spark confirms intact circuitry. No spark at one cylinder necessitates swapping coil connectors to diagnose a bad coil versus a broken wire. Reassemble meticulously, ensuring wires avoid sharp edges like the clutch cable adjuster and exhaust studs.
