Complete 2003 Chevy S10 Stereo Wiring Color Code and Installation Guide

For immediate results, locate the radio harness connector behind the dash on the driver’s side–typically a rectangular plug with 12 pins labeled A through M. Use a multimeter to identify live circuits: pin A (constant 12V), pin B (switched power), and pins C and D (grounds). Factory color codes follow this pattern: yellow (B+), purple (illumination), light green/black (speakers), and dark green (antenna). Match these to aftermarket harness adapters marked for GM vehicles to avoid splicing.

Front door speakers connect via two pairs of wires–gray/black and gray (right), tan/black and tan (left)–each carrying positive and negative signals. The rear speaker wiring splits into light green/black and light green (left), dark blue/black and dark blue (right). Test each pair with a 1.5V AA battery to confirm polarity before finalizing connections; reversed wires will produce weak or distorted sound.

If the factory radio lacks auxiliary inputs, bypass the CD changer port–located behind the unit–by tapping into pins 4 (ground), 5 (left audio), and 6 (right audio) of the 20-pin connector. Use shielded RCA cables to prevent interference from the vehicle’s electrical system. For amplifier integration, splice the gray/black wire (speed-sensitive volume) to maintain original audio adjustments.

Common failures include blown fuses (instrument panel fuse #12, 10A) and corroded ground points beneath the driver’s seat. Replace fuse holders if melted plastic is visible–aftermarket stereos often exceed factory power ratings. For vehicles with OnStar, preserve the telematics module by leaving pins G and H (data bus) untouched unless downgrading to a basic head unit.

Pre-wired harness kits for this model are available from retailers like Metra (part #70-2003) and SCOSCHE (GM-01B). These adapters include labeled leads for power, speakers, and antenna, reducing installation time to under 30 minutes. Verify compatibility with the vehicle’s RPO codes–particularly UQ3 (premium sound) or UQ7 (Bose system)–to ensure proper signal processing.

Color-Coded Wiring Guide for Your Mid-Size Pickup Audio System

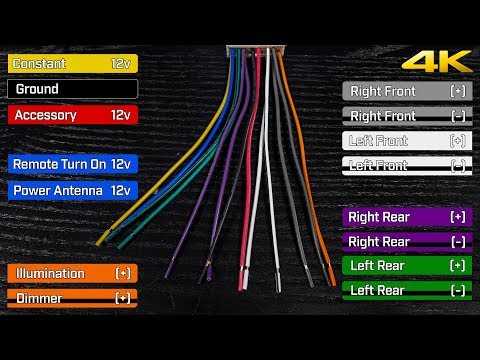

Locate the factory harness behind the dash panel on the driver’s side. The 12-pin connector contains these key leads:

• Yellow (B+): Constant 12V power–connect directly to battery via 10A fuse.
• Red (Accessory): Switched 12V–triggered by ignition. Pair with yellow for memory retention.
• Black (Ground): Secure to unpainted chassis metal using a 14-gauge ring terminal.
• Orange/White (Illumination): Dims dashboard lights in sync with headlight activation.
• Gray (Left Front +) and Light Green (Left Front –): Speaker outputs.
• Dark Green (Right Front +) and Tan (Right Front –): Speaker outputs.
• Purple (Right Rear +) and Light Blue (Right Rear –): Speaker outputs.
• Brown (Left Rear +) and Pink (Left Rear –): Speaker outputs.

Verify resistance between speaker wires–should read 4 ohms (±0.5Ω). Crossed polarity causes phase cancellation, reducing bass response. For aftermarket units, splice using crimp connectors or solder joints, then insulate with heat-shrink tubing. Avoid twist-and-tape methods; vibrations loosen connections over time.

If retaining the factory amplifier (located under the driver’s seat), identify the 4-pin connector:

1. Dark Blue (Remote Turn-On): Sends signal to amp when head unit powers on.
2. White (LF), Green (RF), Purple (RR), Brown (LR): Low-level RCA-type inputs–adapter harness required for most aftermarket decks.

Test all connections with a multimeter before reassembling the dash. Set voltmeter to DC 20V: probe yellow and black wires–should register ~12.6V. Turn ignition on; red wire must show voltage drop ≤0.5V when cranks. Blown fuses (typically 10A or 15A) indicate short circuits–trace each wire path if overcurrent persists.

Common pitfalls:

• Bypassing the orange/white wire disables dimming–dash lights stay at full brightness.
• Mixing red and yellow wires drains battery in
• Grounding to painted surfaces causes intermittent static or power loss.
• Skipping the amplifier harness retains steering wheel controls but mutes rear speakers.

For manual climate control models, the antenna trigger is the light blue wire–connect to aftermarket head unit’s power antenna output or motorized antenna lead. Static systems use the pink wire instead–verify with antenna extended/retracted test.

Final checklist:

• Fuse all new power connections.
• Secure loose wires with zip ties 6″ apart.
• Route speaker wires away from HVAC ducts and sharp edges.
• Recheck all connections after 50 miles–vibration loosens initial crimps.

Finding the Audio System Plug Behind the Instrument Panel

Remove the two 7mm bolts securing the lower dashboard trim panel beneath the steering column. This panel conceals the harness interface for the sound unit–gently pull it downward to detach the clips, then set it aside. The harness port is typically positioned directly behind the climate control vents, toward the driver’s side.

Disconnect the negative terminal from the battery before handling any connectors to prevent short circuits. Locate the white or gray 12-pin rectangular plug; it may be tucked behind a small plastic shroud or partially obscured by the HVAC housing. If the plug isn’t immediately visible, follow the bundle of cables exiting the back of the head unit–it will lead to the harness junction.

Use a flashlight to scan the upper left quadrant of the dash cavity, near the fuse box. The connector often has a distinct latch mechanism; press the tab to release it from the mounting bracket. Some models feature a secondary support clip–check for a small plastic retainer holding the plug in place against the firewall.

Trace the power lead–usually a thick red or yellow wire–to verify the correct harness. If additional modules (like an amplifier or CD changer) were factory-installed, adjacent plugs may be present. Avoid forcing connections; mismatched harnesses can damage the vehicle’s electrical system.

The ground wire (black) should terminate near the harness connector. Follow it to confirm the harness is the primary audio interface rather than a secondary loom for lighting or sensors. On rare occasions, the plug may be routed through a channel in the chassis–gently probe with your fingers to guide it free without bending pins.

For dual-cab models, the harness might be positioned slightly higher, requiring removal of the center console or glove compartment trim. Check for a small access panel above the pedal assembly if standard methods fail. Label each wire with masking tape before disconnecting to simplify reassembly.

Test the connection by probing the wires with a multimeter–constant 12V should register on the power lead with the ignition on. If no voltage is detected, verify the fuse (position 13 in the under-dash panel) hasn’t blown. Reconnect the battery last, ensuring all terminals are secure.

Reinstall the trim panels only after confirming the harness is fully seated. Misalignment can cause rattles or intermittent signal loss. Store removed fasteners in a magnetic tray to avoid losing screws during reassembly.

Understanding Color-Coded Connections in Your Pickup’s Audio Installation

Begin by identifying the yellow wire–this is your constant 12V power feed, critical for preserving radio presets and clock settings when the ignition is off. Splice it directly to the battery’s positive terminal or an ignition-switched fuse with a 10A fuse inline to prevent voltage spikes. Avoid tapping into accessory circuits, as shared loads (like interior lights) can cause memory loss or erratic behavior during engine cranks.

The red lead serves as the switched 12V input, energized only when the key turns to the “ACC” or “RUN” position. Connect it to the vehicle’s accessory circuit (e.g., cigarette lighter fuse) using a fuse tap for safety. For aftermarket upgrades, pair it with the orange illumination wire (typically dimmable) to sync dashboard brightness–this ensures the head unit’s display dims in sync with the instrument cluster when headlights are on.

Speaker and Ground Wires: Polarity Matters

Match these pairs precisely:

– Left front (+): Light green

– Left front (–): Gray

– Right front (+): White

– Right front (–): Violet

– Left rear (+): Brown

– Left rear (–): Yellow

– Right rear (+): Dark blue

– Right rear (–): Tan

Crossing polarities or skipping the factory premium amplifier (if equipped) will result in phase cancellation, weak bass response, or distorted output. Strip no more than 1/4″ of insulation and crimp with gold-plated connectors to resist corrosion–especially in rear speaker leads routed through the cab’s firewall grommet.

Locate the black chassis ground within 18″ of the radio’s mounting location, preferably to a bare metal bolt securing the dash framework. Sand the contact point to bare metal, apply dielectric grease to the connection, and tighten with a star washer to ensure a vibration-proof bond. Avoid grounding to painted surfaces or near fuel lines, as resistance above 0.1 ohms can introduce alternator whine or induce ground loops.

Amplifier and Mute Controls: Hidden but Critical

If the truck came with a factory amp (common in extended-cab models), the light blue wire acts as a remote turn-on lead–route it to the aftermarket head unit’s blue/white output. Omitting this connection leaves rear speakers silent. For vehicles with automatic transmission, the pink wire connects to the reverse light trigger (activation mutes audio during backup camera engagement). Use a T-tap connector here; cutting the OEM harness risks disabling safety features like backup sensors.
