Complete Wiring Diagram for 2004 Chevrolet Impala Starter Installation Guide

Begin troubleshooting by disconnecting the battery’s negative terminal to prevent accidental shorts. Locate the black solenoid wire (typically marked with a yellow stripe) on the motor assembly–this carries the critical trigger signal from the ignition switch. If voltage drops below 10 volts at this connection during cranking, inspect the cable for corrosion at the engine block ground or a failing relay in the under-hood fuse box.

Trace the purple feed wire (14-gauge, often labeled “S” on harness connectors) back to the steering column. A loose connection here mimics a dead battery–check for melted terminals or a worn ignition cylinder. Replace the switch if turning the key only produces a faint click with no motor engagement. The neutral safety switch, spliced into this circuit, must also conduct properly; test continuity with the transmission in “Park” or “Neutral” using a multimeter set to ohms.

For alternator integration, verify the red-brown fusible link (12-gauge) remains intact. Arcing at this junction can drain the system even when the engine’s off–inspect for heat damage where it joins the starter’s main positive post. Upgrading to a 4-gauge relay kit resolves chronic voltage sag if OEM components show wear. When reassembling, torque solenoid bolts to 25 ft-lbs and apply dielectric grease to terminal connections to prevent future moisture ingress.

Electrical faults often misdiagnosed as mechanical failure include:

• A swollen 60-amp alternator fuse in the junction block

• Chafed wires near the exhaust manifold

• Incorrectly routed grounds from the body to frame

Measure parasitic draw above 50 milliamps with the system at rest to rule out aftermarket accessories drawing excessive current.

Electrical Connections for the GM Sedan’s Starting Circuit

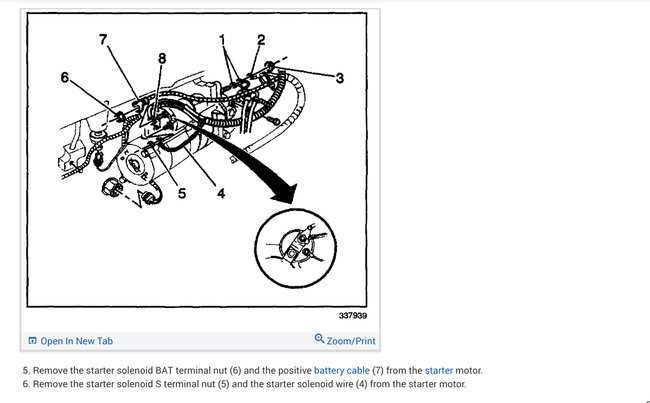

Begin by locating the solenoid attached to the motor housing–trace the thick red cable from the battery positive terminal directly to its first connection point. This primary feed wire carries 12V and must maintain a minimum gauge of 4 AWG to prevent voltage drop during cranking. Verify clean, corrosion-free connections at both ends; even minor oxidation can introduce resistance that disrupts activation.

Next, identify the smaller purple wire (circuit 14 on GM schematics) exiting the ignition switch’s “START” position. This trigger lead engages the solenoid relay and must show continuity when the key is turned fully clockwise. If voltage is absent, inspect the neutral safety switch on the transmission linkage–adjust or replace if misaligned. A faulty switch often mimics a dead circuit.

Relay and Fuse Considerations

Check the engine compartment fuse box for a 10A fuse labeled “CRANK” or “IGN 1.” This protects the control path from the ignition cylinder to the relay. If blown, suspect a short in the violet trigger wire or solenoid coil. Temporary bypass tests (jumper wire from battery positive to relay input) can isolate the issue but never leave bypassed during operation–fire risk is high.

Locate the starter relay, typically a cube-shaped component near the under-hood fuse panel. Swap it with an identical functioning relay (e.g., horn or cooling fan) to confirm failure. The relay’s 85 and 86 pins should read ~75–120 ohms when measured–any infinite resistance indicates an open coil. Replace if defective.

Finally, ground paths demand equal attention. The motor casing must bond securely to the chassis via a braided strap or bolted connection. Rust or paint at these points can introduce intermittent grounding. Scrape surfaces clean and apply dielectric grease to prevent future oxidation. Test voltage drop across the ground while cranking–values above 0.2V indicate resistance that requires correction.

For diagnostic clarity, use a multimeter in DC volt mode. Probe the purple wire at the relay while an assistant cranks the engine–acceptable readings should mirror battery voltage (12–14V). If voltage drops below 10V, suspect battery health or starter draw exceeding 200A (a common failure point for worn units). Record all measurements in a systematic sequence to avoid overlooking marginal shorts.

Always disconnect the battery negative terminal before servicing electrical components. Even with the engine off, residual current can damage modules or create sparks–especially critical when handling fuel system wiring near the starter area. Reconnect only after verifying all connections are tight and free of frayed or exposed conductors.

Pinpointing Electrical Connector Hues and Hookups in Your Sedan

Locate the solenoid’s primary feed at the rear of the ignition assembly–it’s the thick red cable with a fuse link. This conductor delivers battery voltage directly; confirm its integrity with a multimeter set to 12V DC before proceeding. A secondary purple strand, often overlooked, branches from the ignition switch and activates the solenoid relay; trace it back to the switch harness to rule out corrosion at the connector.

On the solenoid itself, identify two smaller terminals: the yellow lead (trigger) and the thin black wire (ground return). The yellow strand carries signal voltage from the relay; test for 10-12V when the key is turned to “start.” If voltage drops below 9V, inspect the relay contacts for pitting or the fusible link near the battery. The ground must register zero ohms to the chassis–any resistance above 0.2Ω indicates a compromised connection.

Harness-to-Engine Bay Junctions

Follow the main loom beneath the intake manifold to locate the light blue wire paired with white tracer–this duo routes through the bulkhead connector (C101) and interfaces with the PCM. Disconnect the C101 plug to check for water intrusion; corrosion here mimics starter failure symptoms. Clean terminals with electrical contact cleaner, not sandpaper, to avoid damaging the tin plating.

Inspect the positive battery cable’s orange fusible segment where it attaches to the solenoid stud. Verify the stud is torqued to 10 Nm; overtightening distorts the terminal base, causing intermittent voltage loss. Replace any terminal showing green oxidation–standard copper spades won’t suffice; use tinned marine-grade connectors rated for 100A continuous draw.

Step-by-Step Guide to Locating the Engine Crank Relay and Protection Device

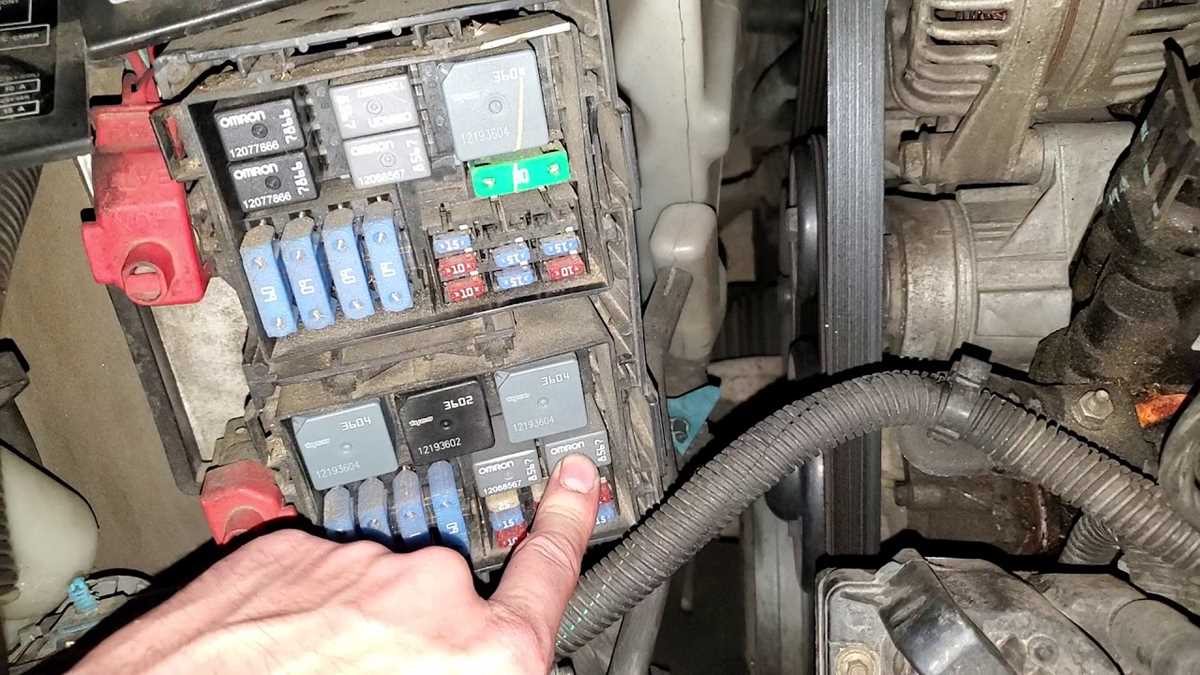

Begin by opening the main under-hood distribution box, typically mounted near the driver-side fender. Inside, you’ll find a black plastic cover secured by two clips–release them to access the internal components. The crank relay is usually labeled “CRANK” or marked with a symbol resembling a small square with a diagonal line, positioned in one of the upper slots. Verify its location by referencing the legend printed on the underside of the cover.

If the relay isn’t present in the primary box, check the secondary fuse panel mounted on the left side of the dashboard, behind a small kick panel. Removal requires a 7mm socket or flathead screwdriver to pry off the panel. Here, the relay may be nestled among other electrical modules, often sharing space with the horn or cooling fan relays. Look for a 40-amp maxi-fuse labeled “IGN 1” or “ST IGN,” as this frequently serves as the primary protection device for the cranking circuit.

• Relay identification: Color-coded terminals (85, 86, 87, 30) with 85/86 connected to the ignition switch and 30/87 handling the high-current path to the solenoid.
• Fuse verification: Use a multimeter set to continuity mode–place probes on both fuse terminals to confirm a closed circuit.
• Box organization: If relays appear swapped, consult the owner’s manual for exact slot assignments, as misplacement can prevent engine turnover.

For vehicles with aftermarket security systems, an additional inline fuse may exist near the battery or along the positive cable. Trace the red wire (10 AWG or thicker) from the solenoid back to its origin–this often leads to a secondary fuse holder hidden beneath the air intake or behind the radiator support. Cutting away zip ties or removing a single 10mm bolt may reveal this component.

Testing and Replacement Protocol

Once located, test the relay by swapping it with a known functional unit of the same type (e.g., Bosch/Standard H relay). If the engine cranks afterward, the original relay is faulty. For fuses, visually inspect the filament for breaks or use a test light to probe both ends–no illumination indicates a blown device. Always replace with the exact amperage rating to avoid electrical fires.

If issues persist, inspect the relay socket for corrosion or melted plastic. Clean contacts with a wire brush and apply dielectric grease before reinserting the relay. For stubborn cases, follow the wiring harness from the relay to the ignition switch–look for chafed wires near the steering column or bulkhead connectors, where shorts frequently develop.

1. Disconnect the battery negative terminal before servicing any electrical components.
2. Label all removed relays/fuses with their positions to ensure correct reinstallation.
3. Check for TSBs (Technical Service Bulletins) if recurrent failures occur, as some models had manufacturer updates for this circuit.

How to Test the Activation Relay for Proper Electrical Flow

Disconnect the battery’s negative terminal first to prevent short circuits. Locate the relay unit on the power assembly–typically mounted near the engine block or fuse panel. Use a multimeter set to DC voltage (20V range) to verify incoming power at the relay’s input terminal. Probe the terminal connected to the ignition feed line; it should read between 12.4V and 12.6V when the key is turned to the “crank” position.

Check the relay’s control circuit by testing the signal wire that triggers the solenoid coil. Connect the multimeter’s positive probe to the control terminal and the negative probe to a clean chassis ground. With the ignition in the “start” position, voltage should momentarily spike to 9V–12V, then drop as the relay engages. If readings remain below 8V, inspect the ignition switch, fuse, or wiring for voltage drops.

Ground Path Verification

Ensure the relay’s ground return path is intact. Attach one multimeter lead to the relay’s ground terminal and the other to the battery’s negative post. A reading above 0.1V indicates excessive resistance–clean corrosion from connectors or replace the ground strap if necessary. Poor grounding is a common failure point, causing intermittent relay function.

Test output voltage at the relay’s load terminal while attempting to engage the system. The multimeter should display full battery voltage (minus a 0.2V–0.5V drop) when the relay closes. If output remains near 0V, the relay’s internal contacts are likely pitted or welded shut–replace the unit immediately to avoid drain on the electrical system.

Bench Testing Procedure

Remove the relay for bench testing. Apply 12V directly to the coil terminals using a jumper wire. Listen for a sharp click indicating proper electromagnetic activation. Use the multimeter in continuity mode to confirm the load terminals connect when powered and disconnect when de-energized. If the relay fails this test, it’s defective; no repairs are viable for sealed units.

Inspect the relay socket for heat damage or melted plastic. Replace the socket if contacts show signs of arcing. Lubricate replacement contacts with dielectric grease to prevent future corrosion. Reinstall components, reconnect the battery, and verify operation by monitoring voltage at the relay during a simulated engagement cycle.

If voltage tests pass but the system still fails to engage, shift focus to mechanical components. Check for binding in the drive gear or excessive resistance in the flywheel ring gear. Voltage alone won’t diagnose physical obstructions–manual rotation tests may be required to isolate the issue.
