Complete 2004 Chevy Trailblazer Headlight Wiring Diagram and Color Code Guide
Check the fuse first–blown circuit protector F4 (20A) in the under-dash panel causes total blackout. Replace it with an identical rating; generic fuses risk overheating the harness.
Locate the multi-function switch behind the steering column: gray connector C2, pins B3 (high beam), B4 (low beam), B5 (ground). Test continuity with a multimeter; under 0.5 Ω confirms intact path. Any reading above 2 Ω signals corroded terminals–clean with electrical contact cleaner, not sandpaper.
The body control module (BCM) on the passenger kick panel manages lamp relay activation. Probe X5 connector, pin J1 (white wire) for 12V during headlamp activation. Missing voltage identifies a faulty BCM; reflash before replacing. Follow TSB #04-08-42-001 for reprogramming steps.

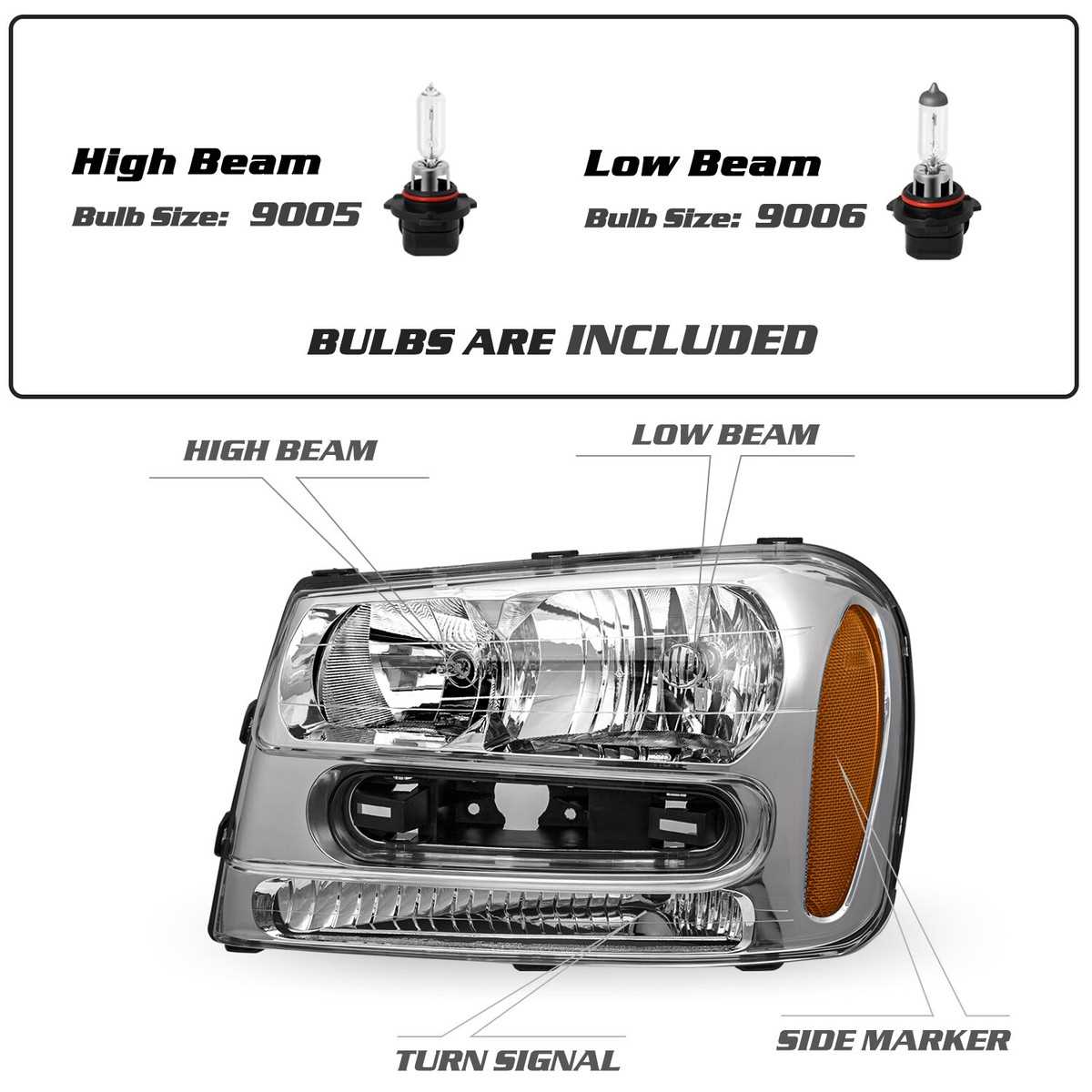

Front bulbs use 9006 (low beam) and 9005 (high beam) filaments–verify socket polarity: flat tab aligns with ground lug inside housing. Reverse polarity melts the bulb’s base in under 30 minutes. Apply dielectric grease to terminals to prevent oxidation.
Avoid splicing into the tan/white feed wire that runs from the junction block to the driver-side lamp; it carries the full load. Instead, tap the fused link at the engine bay for auxiliary lighting. Cross-reference color codes with 1999–2006 Chevrolet GMT360 platform schematics–later year diagrams share identical pinouts.
If the left lamp flickers, inspect the bulkhead connector behind the battery tray. Green corrosion on terminal 30 (black/light blue wire) disrupts current. Replace the connector housing; solder splices introduce resistance variance.
Understanding Your Vehicle’s Front Lamp Electrical Schematic
Locate the main fuse box under the dashboard on the driver’s side–terminal 30 connects directly to the DRL module, while terminal 40 feeds the low-beam circuit. Trace the orange wire (14-gauge) from the battery to the combination switch; this carries constant power even when the ignition is off. If voltage drops below 11.8V at connector C2 (gray 8-pin), inspect the 15A fuse labeled “HDLP LO” in the under-hood relay center.
For high-beam operation, the dark blue wire (12-gauge) runs from the multifunction stalk to relay K17, then splits: one path powers the driver-side lamp via connector T5 (20-pin), the other feeds the passenger-side through T6. Replace K17 if resistance exceeds 0.3 ohms–factory specs demand less than 0.2 ohms between terminals 85 and 86. Bulb failure often stems from corroded ground points: clean G300 (behind left kick panel) and G400 (right frame rail) with 120-grit sandpaper and dielectric grease.
Common Failure Points and Quick Fixes
Check the brown wire (16-gauge) at splice S301 if both lamps flicker–this indicates a faulty ground at the chassis. Use a multimeter set to continuity mode to verify integrity between the headlamp socket and the nearest body ground; readings above 0.5 ohms require retermination. The daytime running light module, mounted near the steering column, frequently fails due to thermal cycling–replace it with OEM part #15896520 to avoid voltage leakage.
When diagnosing dim illumination, focus on the light green wire (18-gauge) at connector C101. Voltage should read 13.2–14.5V at pin 5 when the engine runs; lower readings point to a bad alternator diode trio. For intermittent outages, flex the wiring harness near the left fender–broken strands often hide beneath the insulation. Secure repaired sections with adhesive-lined heat shrink tubing, ensuring waterproof seals at all connections.
Selecting the Right Electrical Connector for Your Mid-Size SUV
Begin by locating the vehicle’s service manual section under “front illumination assembly” to cross-reference the OEM part number. Most models use a 12-pin rectangular connector with a locking tab; verify the pin count matches the existing harness by counting the terminals before purchasing.
Check for color-coding discrepancies–older variants may have solid-colored wires (e.g., solid brown instead of brown/white stripe), while newer replacements follow standard GM coding. Use a multimeter to confirm each wire’s function: low beam (terminal 2, yellow), high beam (terminal 3, green), and ground (terminal 8, black).
Compatibility with Aftermarket Options
Avoid universal adapters lacking a dedicated ground wire for fog lamps–these often fail to meet OEM voltage tolerances. Stick to direct-fit connectors from AC Delco (PN 15252546) or Dorman (PN 84762) for factory-level reliability. Third-party plugs with tin-plated contacts resist corrosion better than copper in humid climates.
Inspect the harness length; some aftermarket kits add excess wire, requiring trimming to prevent interference with the cooling fan. Measure the distance from the lamp socket to the main harness junction–ideal length is 14–16 inches. Longer runs risk chafing against the radiator support.
Installation Pitfalls and Verification
Before disconnecting the old connector, label each wire with masking tape to avoid misalignment. A common error is swapping the high-beam and fog-light circuits, which can trigger bulb failure warnings on the dashboard. After reconnecting, test both beams and turn signals with the engine off to confirm proper polarity.
If the new harness includes a weatherproof seal, ensure it’s fully seated over the socket–exposed terminals corrode within months in coastal regions. For models with daytime running lights, verify the dedicated relay (under the driver’s side kick panel) clicks audibly when activated; silence indicates a fuse or relay issue.
Replace any brittle wire insulation near the connector–this area is prone to cracking from heat cycles. Use heat-shrink tubing rated for 221°F (105°C) to seal repairs. Avoid electrical tape, which degrades faster under UV exposure.
For vehicles with adaptive lighting, confirm the harness includes the motor control wires (gray/white stripe for vertical adjustment). Missing these will disable auto-leveling, which is required by law in some jurisdictions. Consult a scan tool to clear DTCs after installation, especially B2610 (lamp circuit failure).
Identifying Front Lamp Circuit Connections by Hue
Locate the harness connector behind each front illumination unit–it houses four primary leads. Disconnect the battery’s negative terminal before probing. Use a multimeter set to 12V DC to test terminals: the dark green wire delivers low-beam power, light blue feeds high-beam current, yellow carries ground return, and brown supplies parking light voltage. Cross-reference with this pinout:
| Wire Color | Function | Expected Voltage (Key On) |
|---|---|---|
| Dark Green | Dipped Beam | 12V |
| Light Blue | Full Beam | 12V |
| Yellow | Chassis Return | 0V |
| Brown | Side Marker | 12V |
Strip 5mm of insulation from each lead, twist ends clockwise, and crimp with weatherproof butt connectors matching wire gauge (16-18 AWG). Apply dielectric grease inside connector shells before mating. Reattach harness, then activate each lighting mode individually while observing functionality. If bulbs fail to illuminate, trace the corresponding circuit using a 12V test light–start at the fuse block (fuse #12 for dipped beam, #11 for full beam) and follow the path toward the lamp assembly.
Diagnosing Front Lamp Circuit Problems in Your Mid-Size SUV
Start by verifying the bulb socket for corrosion or melted plastic. Remove the assembly and inspect the contacts–oxidation appears as white or green deposits. Use a small wire brush and electrical cleaner to restore conductivity. If the issue persists, test the socket with a multimeter set to continuity mode; a reading above 0.5 ohms indicates resistance that needs replacing.
Check the fuse block under the dashboard for blown units. Locate the relevant slot (typically labeled “HDLP” or “EXTLP”) and remove the fuse with needle-nose pliers. A broken filament confirms failure–replace only with the same amperage rating (usually 15A or 20A). If the new fuse blows immediately, a short circuit exists in the harness or switch, requiring further tracing with a test light.
Inspect the combination switch on the steering column stem. Turn the stalk to high beams while observing the dimmer relay–listen for a distinct click. No click suggests a faulty switch or wiring break. Disassemble the column shroud and probe the switch connectors with a multimeter. Voltage should jump from 0V to 12V when toggling between modes. Replace the switch if readings remain static.
Examine the ground connection near the front bumper support. Locate the black wire attached to a bolt or chassis point–rust or loose attachment causes intermittent failure. Scrape paint and corrosion from the mounting surface, then secure the wire with a new star washer. Confirm repair by testing both low and high beams while wiggling the harness.
Trace the main harness along the driver-side frame rail for chafing or rodent damage. Look for exposed copper strands beneath the protective sheath–cover repairs with shrink tubing rated for automotive use. Pay special attention to junctions near the radiator support and under the battery tray; these areas are prone to moisture intrusion that accelerates wire decay.
Tracing the Front Light Control Module and Power Distribution Points
Start under the dashboard on the driver’s side. The main electrical hub is bolted behind a plastic kick panel, secured by two 10mm screws. Remove the panel to reveal the fuse block–this is where the high-beam relay (typically labeled “H-LP HI” or “R5”) is seated alongside low-voltage safeguards.
The relay socket is positioned in the upper row, third slot from the left in most layouts. If the relay isn’t visibly marked, probe slots 30 (power input) and 87 (output to lamps) with a multimeter set to 12V continuity–healthy connections show near-zero resistance when the switch is engaged. A faulty relay often clicks once but fails to deliver current; replace it with an exact OEM-spec unit (usually ACDelco AR132 or equivalent).
Adjacent to the relay, the primary lighting fuse sits in slot F12 (25A). Check for a blown strip–blackened or melted means a short in the front harness, commonly near the bulb housing or chassis ground. Pull the fuse with needle-nose pliers; if the metal link is intact, test voltage drop across the blade terminals while an assistant cycles the lamps–any reading below 12V indicates resistance in the circuit.
Common Pitfalls in Wiring Paths
- Ground straps (G101) beneath the left front fender often corrode. Scrape paint off mounting points and re-secure with star washers to prevent voltage loss.
- Connector C3 (behind the left lamp assembly) has brittle seals–apply dielectric grease after reseating to stop water ingress.
- The daytime running module (DRM) splices into the low-beam feed; if this module fails, jumper pins 3 and 5 at the DRM connector to bypass it temporarily.
Locate the secondary fuse block under the hood, near the battery. The hood-mounted distribution box contains larger safeguards–F6 (30A) feeds the lighting circuit. Inspect for bulging or discolored cases; these fail under load from excessive draw or component fatigue. A known weak point is the splice where the main harness enters the driver-side headlamp assembly–insulate any exposed wires with heat-shrink tubing to prevent chafing against the chassis.
- Disconnect the battery negative terminal before handling live circuits.
- Label each connector before unplugging–color coding alone isn’t reliable.
- Use a probe with a sharp tip to avoid piercing insulation when back-probing relay slots.
- If voltage tests pass but lamps remain dark, check the dimmer stalk switch–remove the steering column shroud to access its 4-pin connector (gray plug) and test for continuity between pins C1 and C2 in the high-beam position.
