2005 Cadillac Escalade Radio Wiring Diagram and Electrical Connection Guide

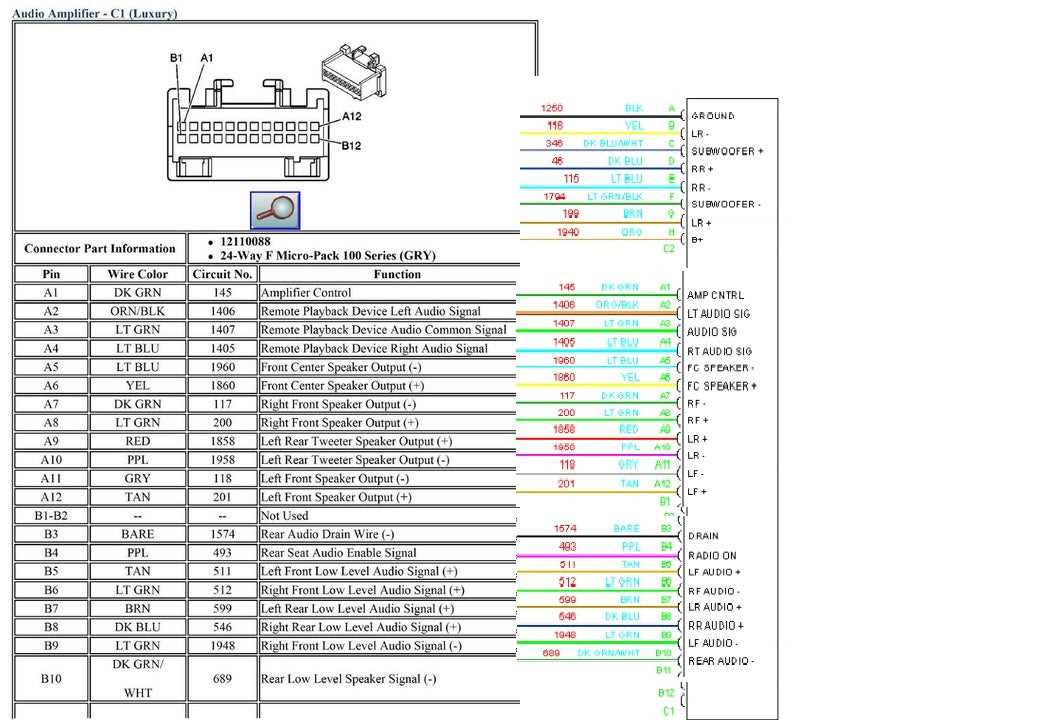

The wiring configuration for premium infotainment installations in flagship GM platform-based trucks follows a distinct pattern. Pin assignments for the Bose amplifier interface, rear seat entertainment harness, and OnStar integration can be found at connectors C1 and C2 of the vehicle’s central module. These connection points are located behind the driver-side kick panel–remove the lower dash trim to access them. Use a multimeter set to continuity mode to verify signal paths between the head unit and amplifier before splicing any new components.
Color-coded wires in this system follow a standardized scheme: yellow for constant power (12V), red for ignition-switched power (accessory), black for ground, gray/purple stripe for left front speaker (+), and gray/black stripe for left front speaker (-). The Bose-specific harness will have an additional twisted pair for rear satellite radio signals–these must be matched precisely to avoid phase cancellation. Always disconnect the negative battery terminal before probing or modifying connections to prevent short circuits.

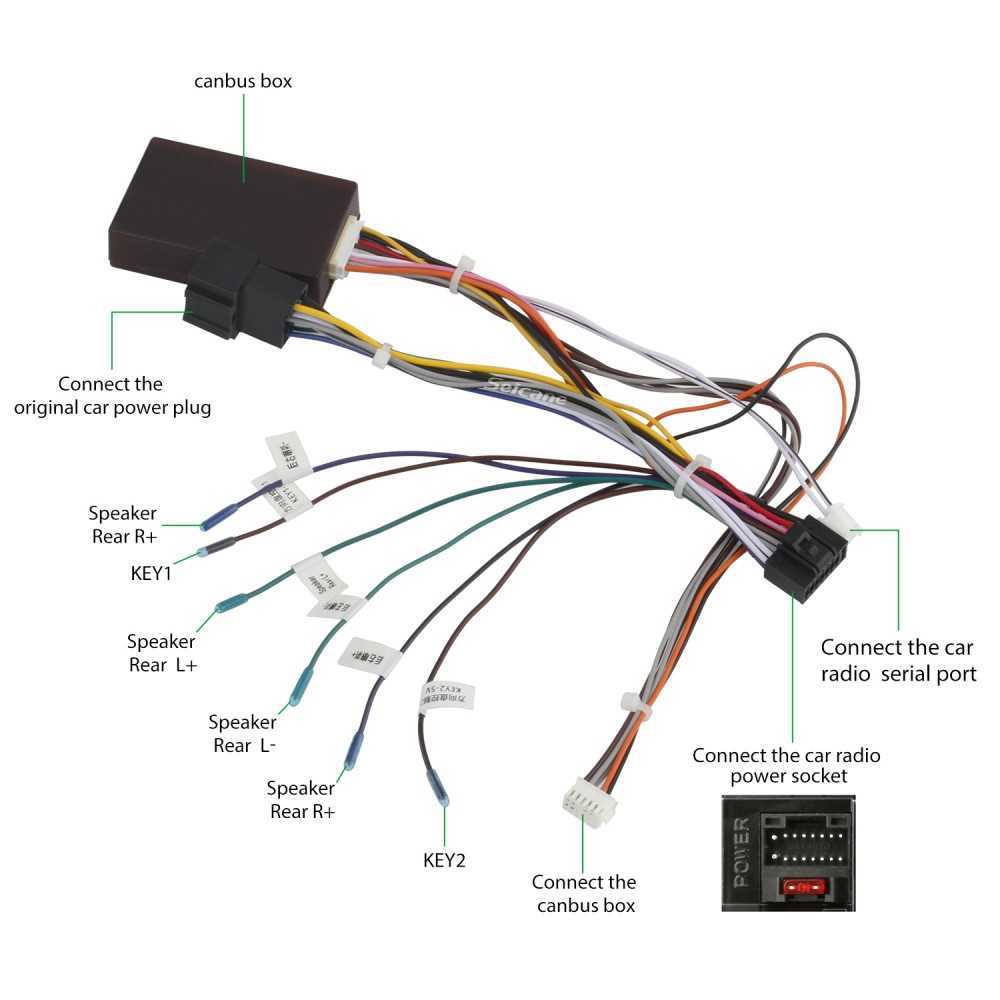

For aftermarket upgrades, the factory-equipped Class II data bus must remain intact. Interruptions will trigger error codes in the body control module, disabling climate controls and instrument cluster functions. If replacing the stock unit, ensure the new interface includes a CAN bus emulator or retains the original harness stub to maintain vehicle networking. Failure to do so risks draining the battery due to parasitic draws from unresolved module communications.
Schematics for this model’s sound system are best sourced from GM service bulletin #04-08-44-017 or trusted third-party manuals like Mitchell OnDemand. Online forums may offer partial diagrams, but these often omit critical details like fuse ratings (typically 20A for audio circuits) or relay locations. Always cross-reference multiple sources before making irreversible changes.
Connecting Aftermarket Sound Systems in Luxury SUVs: Pinout Reference
Locate wire harness connector C1 behind the main unit–white 24-pin plug with latching tab at 3 o’clock. Use these pin assignments: Pink stripe (pin 3) delivers switched 12V ignition feed, solid yellow (pin 12) carries constant battery voltage rated 20A, and gray stripe (pin 5) grounds the chassis. For speaker outputs, front left (+) orange stripe (pin 18), front left (-) blue stripe (pin 22), rear right (+) tan (pin 10), rear right (-) dark blue (pin 7). Steering wheel controls communicate on light blue stripe (pin 2) with serial data bus; retain factory resistor module to prevent “Service Vehicle” warnings.
| Connector Pin | Wire Color | Function | Wire Gauge | Max Amperage |
|---|---|---|---|---|
| 3 | Pink stripe | Switched power | 18 AWG | 10A |
| 12 | Solid yellow | Battery constant | 16 AWG | 20A |
| 5 | Gray stripe | Ground | 14 AWG | N/A |
| 18 | Orange stripe | Front left speaker + | 20 AWG | 5A |
| 2 | Light blue stripe | Data link | 22 AWG | 1A |
Crimp Deutsch DT terminals for reliable connections–avoid solder-only joints that risk cold solder cracks under vibration. Label every termination with heat-shrink tags color-matched to harness wires. For amplifier integration, splice RCA signal leads into harness wires purple stripe (left channel) and green stripe (right channel) at connector C2, retaining factory noise suppression capacitors on signal return lines to eliminate alternator whine.
Finding the OEM Audio System Power Interface Plug
Begin by disconnecting the vehicle’s negative battery cable to prevent short circuits while working. The main harness plug for the factory sound unit is positioned behind the center stack, directly behind the climate control module. Use a trim removal tool to carefully detach the lower dash panel below the climate controls–pry at the edges where plastic clips secure it, avoiding force near the hazard-light switch.
Once the panel is removed, locate the white or gray 24-pin connector linked to the head unit. It sits vertically on the right side of the cavity, often flanked by smaller harnesses for the amp and antenna. Gently depress the locking tab on the top of the plug to release it from the receptacle. If resistance is felt, verify no adjacent wires or clips obstruct separation before applying additional force.
Identifying pin layout: Pins 1-4 handle constant power, ground, and illumination; pins 5-8 manage speaker outputs (front left, front right, rear left, rear right); pins 9-12 support data communication and steering wheel controls, while the remaining pins vary by trim level, often dedicated to amplified systems or navigation interfaces. Use a multimeter to confirm voltage on pin 1 (12V) and continuity on pin 2 (ground) before proceeding.
Alternative Access Points
For models with rear entertainment systems, a secondary harness may reside behind the rear seat storage compartment. Remove the storage bin liner to reveal an additional plug, typically black or dark blue, serving the rear amplifier. Trace wires upward using a flashlight–connections may run along the B-pillar trim, secured with zip ties or adhesive clips. Always cross-reference findings with a pinout chart specific to the vehicle’s build date to account for mid-year revisions.
Understanding Audio System Cable Color Standards for Installation
Locate the constant 12V feed by tracing the yellow wire–this supplies uninterrupted power regardless of ignition state. Verify with a multimeter; voltage should remain steady at 12V when the vehicle is off. Avoid mistaking this for accessory wires, which typically follow red or orange striped patterns, as those only engage when the key is turned.
Ground connections use black or brown cables, often paired with a bare copper end. Secure these directly to the chassis near the audio unit’s mounting bracket, sanding away paint or corrosion for a solid contact. Poor grounding causes humming, distortion, or erratic operation–test continuity before finalizing connections.
Front speaker wires split into pairs: left positive (gray or light gray) and negative (gray with stripe), right positive (white or off-white) and negative (white with stripe). Rear channels follow green (positive) and green/black (negative) for left, purple (positive) and purple/black (negative) for right. Cross-check with a 9V battery–touching the leads to each pair should produce a clear click from the corresponding speaker.
Amplifier remote turn-on is managed via a blue wire, sometimes marked with a white stripe. This triggers the amp when the ignition activates; misrouting can drain the battery or prevent sound output. Separate the antenna control lead (solid blue) if present–it powers retractable antennas and should not be confused with the remote signal.
Dimmer-controlled illumination typically uses orange or orange/black cables. These adjust display brightness in sync with dashboard lights; incorrect connection results in static brightness or no illumination. Factory harnesses may combine this function with other signals–use a wiring reference specific to the trim level to avoid errors.

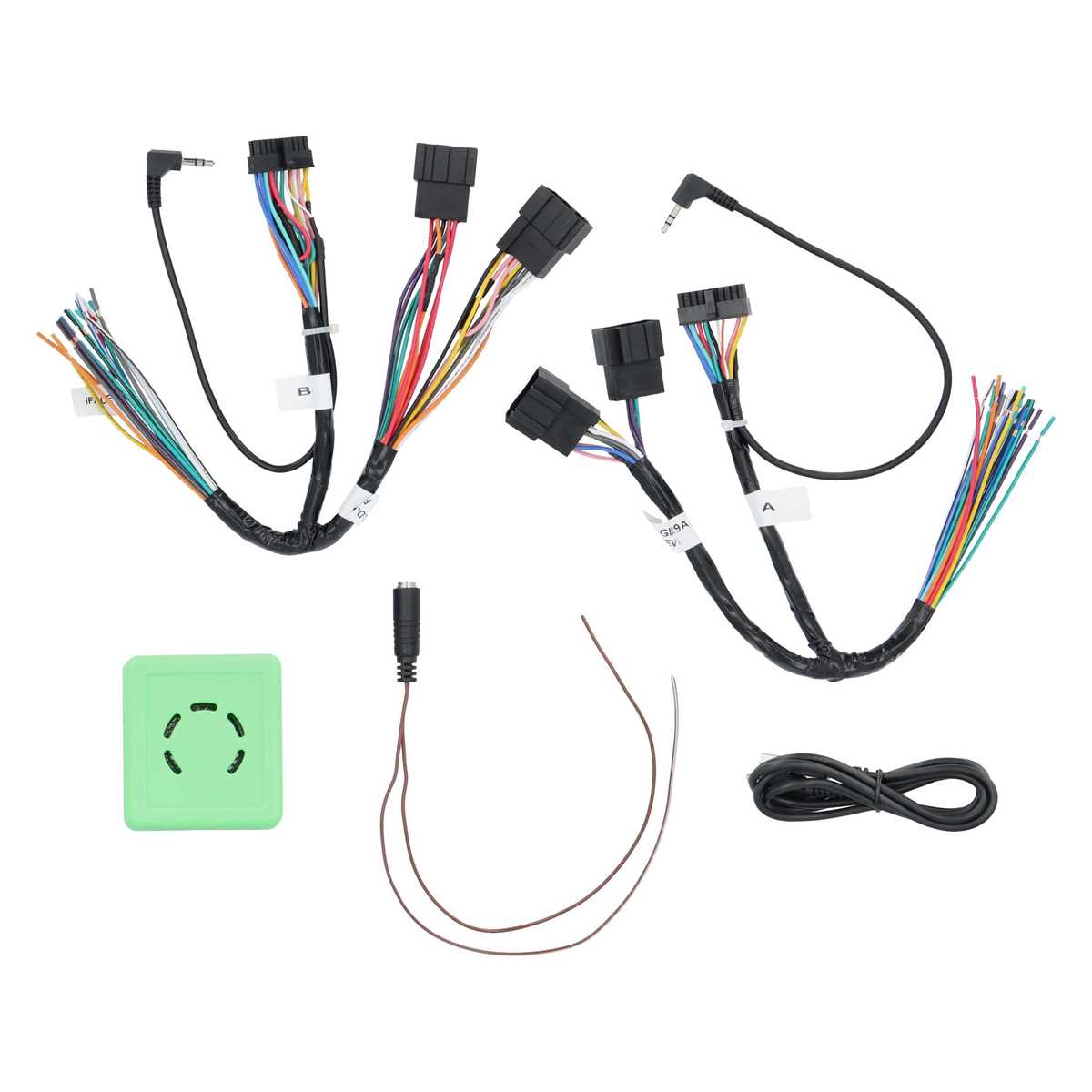

For aftermarket integration, bypass wire harness adapters eliminate splicing but may alter color codes. Compare adapter labels against factory standards–some third-party units reverse positive/negative speaker leads or repurpose accessory wires. Always confirm polarity with a tone generator or multimeter before securing connections.
Step-by-Step Removal of the Factory Entertainment Center
Disconnect the negative terminal of the battery first to prevent short circuits. Locate the 10mm bolt securing the dashboard trim around the audio head unit–it’s typically hidden behind the climate control panel or ash tray cover. Use a trim removal tool to gently pry the surrounding fascia, starting from the lower corners, then working upward to avoid cracking the plastic clips.
Once the trim is removed, you’ll expose four Torx T20 screws fastening the head unit to the mounting bracket. Remove these screws carefully–two at the top and two at the bottom. Slide the unit out no more than three inches before reaching the wiring harness at the rear; pulling too far may damage the connectors.
- Release the wiring harness by pressing the tab on the back of the plug.
- Detach the antenna cable by unscrewing the threaded connector.
- If present, unclip the ground wire attached to the chassis.
For vehicles with an integrated amplifier or digital signal processor, additional steps are required. Check the lower dash cavity for a secondary wiring loom–this may include power feeds, speaker outputs, and fiber-optic cables for premium systems. Label each connector with masking tape to avoid confusion during reinstallation.
Before fully removing the unit, inspect the mounting cage for obstructions. Some models include a support bracket or anti-theft bolt near the bottom; remove this last. Store all hardware in a labeled bag to ensure nothing is misplaced when installing the replacement system.
Integrating a New Sound System with Your Luxury SUV’s Electrical Network
Begin by locating the factory connector behind the dashboard’s center stack, typically a 12-pin or 16-pin plug with color-coded leads. Match the aftermarket harness to these pins using a solderless connector kit–avoid twisting wires directly, as vibration can loosen connections over time. Identify the constant 12V (yellow), accessory (red), ground (black), and amplifier trigger (blue/white) wires first, as these are critical for basic functionality.

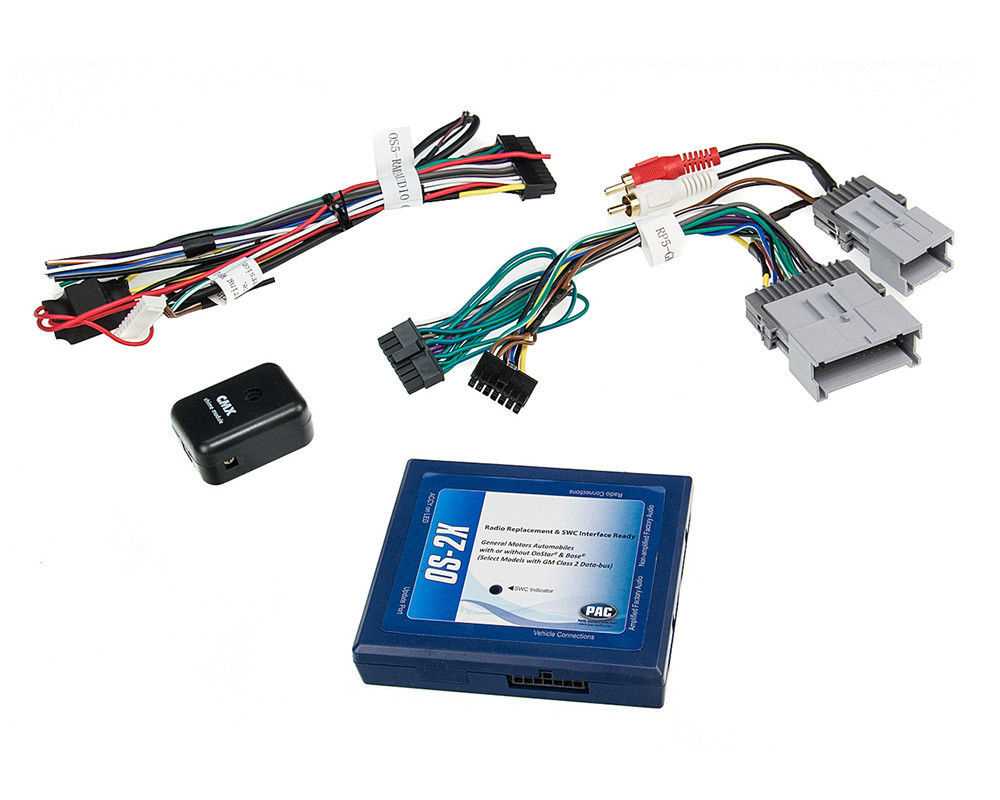

For premium installations, retain the factory amplifier by tapping into the data bus. The OEM interface often uses a Class II serial communication wire (pink/light blue stripe in most models) that must link to the aftermarket head unit’s data port. Failure to connect this wire results in muted speakers or erratic volume control. Use a vehicle-specific adapter harness (e.g., Metra ASWC-1 or Scosche GMOS) to bridge the gap without cutting original cables.
- Speaker wires: Factory setups frequently employ a dual-voice-coil configuration. Verify impedance with a multimeter–most stock speakers are 2-4 ohms. Mismatched resistance will distort audio or damage the new unit.
- Reverse signal: Vehicles with rear-view cameras require a dedicated pink wire for automatic display activation. Connect this to the aftermarket stereo’s reverse input to maintain safety features.
- Illumination: Dimmer-controlled dash lights use an orange/white wire. Connect this to the new system’s illumination lead to sync brightness with other controls.
Test each connection in isolation before finalizing the install. Power on the new stereo and cycle through modes (AM/FM/CD/aux). If static or no sound emerges, recheck speaker polarity–factory wiring often reverses front/rear channels. For vehicles with OnStar or Bose systems, retain the separate amplifier module (usually mounted under the driver’s seat) by bridging its output to the new head unit via RCA cables.
Advanced Troubleshooting for Persistent Issues
If the display flickers or the head unit resets intermittently, verify the alternator’s voltage output–luxury SUVs with high-demand electrical systems may produce spikes above 14.5V. Install an inline voltage stabilizer or capacitor rated for 1+ farads to protect sensitive electronics. For no power scenarios, probe the fuse box behind the left knee bolster; a blown 10A-15A fuse (often labeled “RADIO” or “AUDIO”) is the most common culprit.
Navigation integration requires additional steps. Factory GPS antennas (typically a small square module behind the glovebox) must link to the new unit via a separate coaxial cable. If the touchscreen loses responsiveness, ensure the pink wire (parking brake detect) is grounded–most aftermarket systems disable video unless this signal is present. Steering wheel controls will need a dedicated interface (e.g., PAC RP4-GM11) to function without error codes.
- Disconnect the battery’s negative terminal before handling any power-related connections to prevent short circuits.
- Label all wires with tape during disassembly to avoid misconnections during reassembly.
- Secure loose wires away from moving parts (e.g., pedals, seat rails) to prevent wear or electrical interference.
For optimal sound staging, consider professional tuning after installation. Stock equalizer presets (e.g., “Speech,” “Bass Boost”) often conflict with aftermarket settings. Use a real-time analyzer to calibrate frequencies–most luxury SUVs have acoustic properties that favor mid-range tones, so adjust crossover points accordingly. If rear entertainment screens are retained, ensure their RCA input matches the new head unit’s output voltage (usually 2-4V) to avoid screen burn-in.
