Complete Wiring Diagram for 2005 GMC Sierra Bose Radio Installation Guide
To locate the speaker and amplifier connections in your truck’s factory sound setup, start by removing the lower dashboard trim panel on the driver’s side. The main 16-pin harness connector sits directly behind the climate control module. Pins 1-4 carry front left channel signals, 5-8 handle front right, while 9-12 and 13-16 correspond to rear left and right channels respectively.
For power distribution, trace the thick red cable (4-gauge) from the amplifier’s B+ terminal to the main fuse box under the hood–look for the 50-amp fuse labeled “AMP” or “AUDIO SYS.” Ground connections use a black 8-gauge wire bolted to the chassis near the driver’s side kick panel. Remote turn-on is via a thin blue/white wire exiting the back of the head unit’s connector block, typically pin 7 on the 12-pin harness.
Critical color codes: Yellow (constant 12V), red (switched 12V), black (ground), orange/white (illumination), purple (left rear +), green (left rear –), gray/black (right front +), gray (right front –). Verify each wire with a multimeter before splicing–factory wiring varies between regular cab and crew cab models.
Aftermarket integration requires splicing into these factory harnesses. Use 18-gauge T-taps for signal wires and solder with heat-shrink tubing for power lines. The Bose amplifier outputs 25 watts RMS per channel–ensure aftermarket replacements match this impedance (4 ohms) to prevent distortion.
Common failure points include corroded ground connections near the rear door hinge areas and melted pin 11 on the amplifier harness from insufficient voltage supply. Inspect these before troubleshooting no-sound issues.
Understanding the Audio System Installation for Your Pickup Truck
Locate the 12-pin harness connector behind the factory head unit. Pin assignments follow this order: A (yellow) supplies constant 12V power, B (red) delivers accessory voltage, C (black) grounds the system, while D (gray) and E (lt. green) handle front speaker outputs. Rear channels connect via F (purple) and G (dk. green) for right and left signals respectively. Verify each connection with a multimeter before powering on to prevent short circuits–the harness uses 20-gauge wiring capable of handling up to 15 amps.
Key Components and Color Codes
- Amplifier remote turn-on: Pink (pin H) – triggers external amps at 200mA max
- Vehicle speed sensor input: Brown (pin I) – adjusts volume dynamically
- Mute control: Lt. blue (pin J) – silences audio during calls or navigation prompts
- Data bus: Dk. blue/white stripe (pin K) – communicates with OnStar or steering wheel controls
Splice the aftermarket unit’s harness into the existing plug using crimp connectors–avoid soldering near the module as excessive heat can damage adjacent circuits. If retaining the premium sound processor, ensure the orange illumination wire (pin L) receives 5V regulated power for proper dimming synchronization. Label each wire during disassembly to streamline reassembly or future upgrades like subwoofer integration or DSP tuning.
Finding the Audio System Plug Interface in the 2004–2006 Crew Cab Pickup

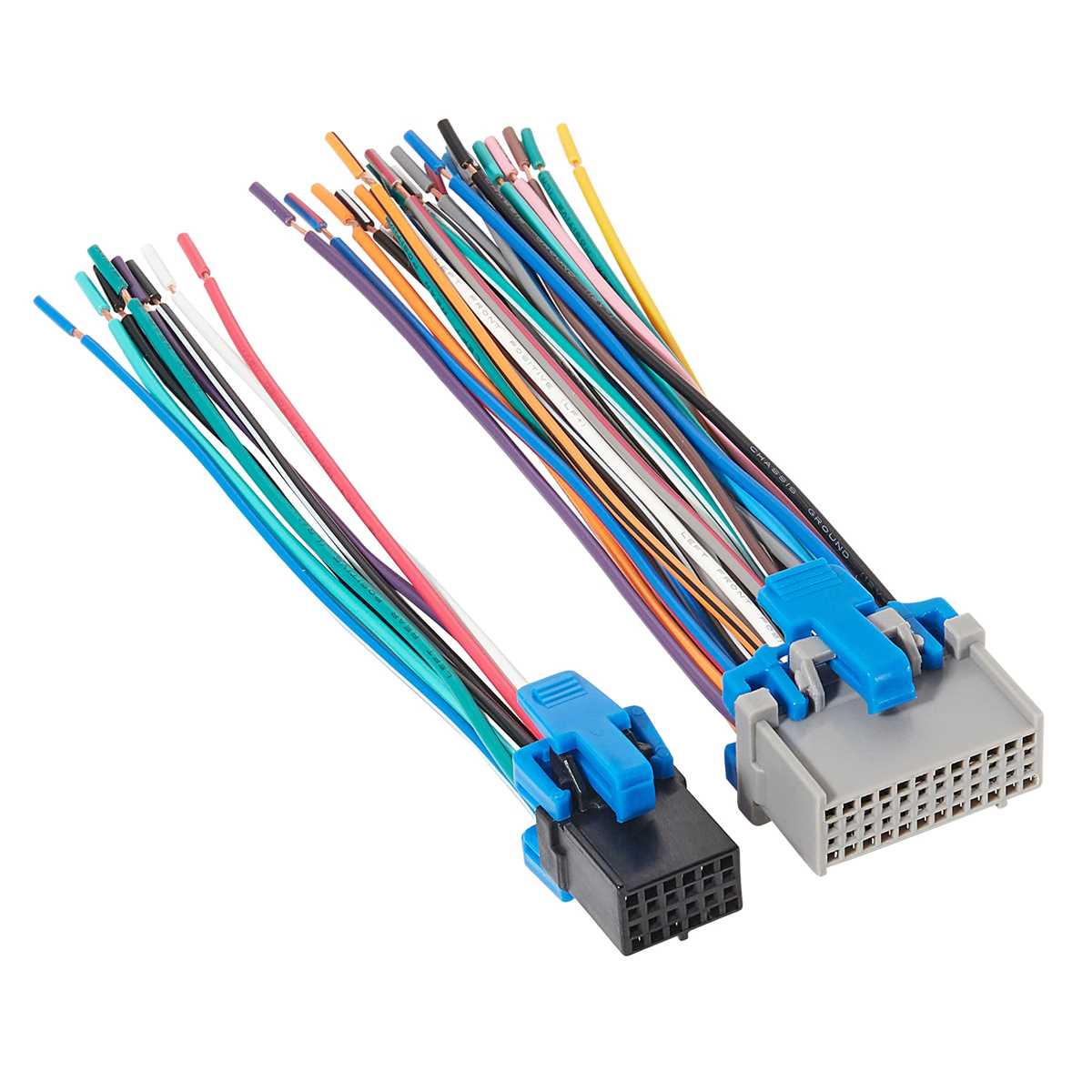

Begin by releasing the trim panel surrounding the entertainment unit–the lower dash cover secured by two Phillips-head screws beneath the climate controls. Once removed, gently pry the upper trim loose using a plastic trim tool, exposing the factory amplifier mounted behind the hazard switch. The primary harness connector clips directly onto the rear of the head unit, identifiable by its 12-pin rectangular plug with orange, purple, gray, and light green wires entering from the left side. For pre-wired aftermarket upgrades, trace the larger 24-pin harness adjacent to the parking brake linkage; it merges speaker power and illumination feeds into a single interface.
Verify the plug type by checking the pin arrangement–Bose-equipped models feature a triangular cluster of ground wires at pins 9–11, distinguishing them from non-amplified variants. If corrosion is present, address it immediately with contact cleaner to prevent signal degradation; factory splices for satellite tuning modules occasionally fail at this junction.
Matching Cable Hues to Audio Channel Outputs
Begin with the front left speaker: locate the grey wire paired with a grey stripe–this carries the positive signal, while its solid grey counterpart delivers the negative. Verify polarity by lightly tapping the connector; the correct pair should emit a clear, directed sound from the driver’s side door. Reverse these connections if the bass response weakens or the stereo image collapses inward.
For the front right channel, target the violet wire accompanied by a violet trace–these transmit the positive lead, whereas the plain violet handles the return path. Confirm by adjusting balance controls; a miswired pair will redirect sound to the opposite speaker or produce phase cancellation. Use a 9V battery test for rapid validation: brief contact should generate a sharp pop from the corresponding tweeter.
Rear left output follows the dark green and dark green-striped conductors, with the latter assigned to the positive terminal. Ensure the speaker’s impedance remains stable–Bose systems typically demand 2 ohms; deviations exceeding ±0.3 ohms suggest compromised shielding or incorrect termination. Strip insulation only far enough to secure the crimp connector; excess exposure risks shorting to adjacent chassis grounds.
Rear right audio routes through solid light blue and light blue-striped cables, where the striped variant supplies the hot signal. Cross-check by disabling fade; if volume drops disproportionately, inspect for frayed strands near the harness splice–common failure points include the firewall grommet where wires bend sharply. Solder all joints with 60/40 rosin-core solder, avoiding acidic flux that accelerates corrosion.
Subwoofer connections differ: seek the pink cable and matching pink-striped lead, reserved exclusively for low-frequency output. These bypass the amplifier’s built-in crossover; bypassing this step forces full-range signal through standard channels, risking tweeter damage. Secure connections with heat-shrink tubing, not electrical tape–thermal cycling degrades adhesives, inviting moisture ingress that corrodes terminals within 18-24 months.
Step-by-Step Guide to Safely Removing the Factory Audio System
Begin by locating the dashboard trim panel surrounding the sound unit. Use a plastic pry tool to gently release the clips holding the panel in place. Work from the bottom upward to avoid bending the trim or damaging the clips. Store the removed panel in a clean, secure area to prevent scratches or misplacement.
Disconnect the vehicle’s battery negative terminal to eliminate electrical risks. Use a 10mm wrench to loosen the terminal bolt, then wrap the cable in a non-conductive material like electrical tape to prevent accidental reconnection. This step prevents short circuits while handling the system’s connectors.
Identifying and Disengaging Connectors
| Connector Type | Location | Release Method |
|---|---|---|
| Power harness | Rear of unit, white/black bundle | Press tab, pull straight out |
| Speaker harness | Lower rear, gray/white bundle | Squeeze sides, slide off |
| Antenna cable | Right rear, coaxial connector | Rotate counterclockwise, pull gently |
Press the release tabs on each connector firmly while pulling to avoid damaging the pins. For stubborn connections, use a small flathead screwdriver to gently pry the locking mechanism without bending the plastic housing. Label each connector with masking tape to simplify reinstallation.
Remove the mounting brackets securing the head unit. Most factory systems use four 7mm bolts–two at the top and two at the bottom. Adjust a ratchet or socket wrench to the correct size, then turn counterclockwise until the bolts are fully loosened. Set the bolts aside in a magnetic tray to prevent loss.
Final Removal and Safety Checks
Slide the unit forward from the dashboard opening, tilting it slightly to clear the ventilation ducts behind it. Examine the wiring harness and connectors for signs of wear, corrosion, or fraying before proceeding with any modifications. If retaining the factory harness for aftermarket use, ensure all connections remain intact and free of debris.
Reinstall the dashboard trim panel by aligning the clips with their slots, pressing firmly until they click into place. Reconnect the battery terminal, tightening the bolt securely. Test the vehicle’s electrical systems (e.g., lights, gauges) to confirm no disruptions occurred during the process.
Aftermarket Head Unit Pin Configuration for Factory Harness Adaptation
Begin by identifying the OEM connector layout using a multimeter: factory audio systems in full-size pickups often split power, ground, and speaker feeds into distinct 12-pin and 8-pin plugs. Pin 1 of the larger harness delivers constant 12V (yellow), while pin 6 routes ignition-switched power (red). Ground typically consolidates to a single pin (black, pin 4 or 8), though some factory setups distribute it across multiple points–verify with continuity checks. Speaker outputs occupy the remaining pins, with front/rear channels paired in left/right polarity; left-front positive (light green, pin 12) and negative (dark green, pin 11) serve as a reference. Aftermarket decks use ISO or Metra standards, so map each OEM pin to the corresponding aftermarket harness wire by function, not color–factory colors rarely align.
Critical Compatibility Checks
- Amplifier integration: Factory premium sound systems embed signal processing in the head unit; bypassing it risks distorted output. Use the Metra 70-2261 harness to retain OEM amplifier control, routing pin 3 (data bus) to the aftermarket harness’s amp turn-on lead (blue/white).
- Steering wheel controls (SWC): If retaining SWC, locate the data wire (typically pin 2, gray/violet) and splice it to the aftermarket interface module (e.g., PAC RP5-GM11). Test resistance values–OEM modules often use resistive matrices (2kΩ–8kΩ) not compatible with universal adapters.
- Antitheft/immobilizer: Some OEM systems disable audio if the battery is disconnected; recovery requires cycling the ignition or entering a security code. Disconnect the battery negative terminal for 15 minutes before installation to reset the ECU.
For vehicles with on-board diagnostics (OBD-II), the retained accessory power (RAP) relay may cut audio power prematurely. Override this by splicing the RAP relay input (pin 5, orange) to a constant 12V source, ensuring uninterrupted power to the new head unit’s memory functions.
